Product Overview
- Product Name: DC Switching Power Supply
- Application: Widely used in power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
- Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
- Features: High stability and reliability
- Warranty: 1 Year
- Weight: Approximately 25KG
Product Features Showcase
Technical Specifications
| Product Name |
DC Switching Power Supply |
Operating Relative Humidity |
20%~88% |
| Power Rating |
12000W |
Application Scenarios |
Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields |
| Input Voltage |
Single-phase/Three-phase 220V / 380V |
Protection Functions |
Overcurrent, overvoltage, overheating, short-circuit protection |
| Output Voltage |
12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V |
Product Features |
High stability, high reliability |
| Output Current |
Selected power/selected voltage |
Warranty Period |
1 Year |
| Power Conversion Type |
AC-DC |
Product Weight |
Approximately 25KG |
| Efficiency |
> 88-89% |
Carton Dimensions |
770x400x600mm |
| Output Voltage Accuracy |
±1% |
|
|

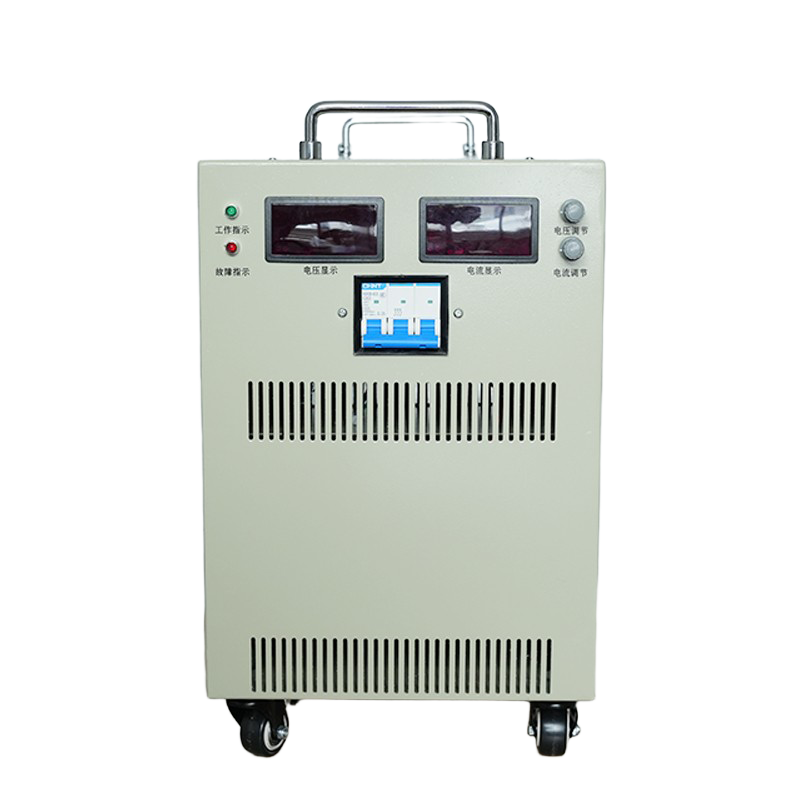

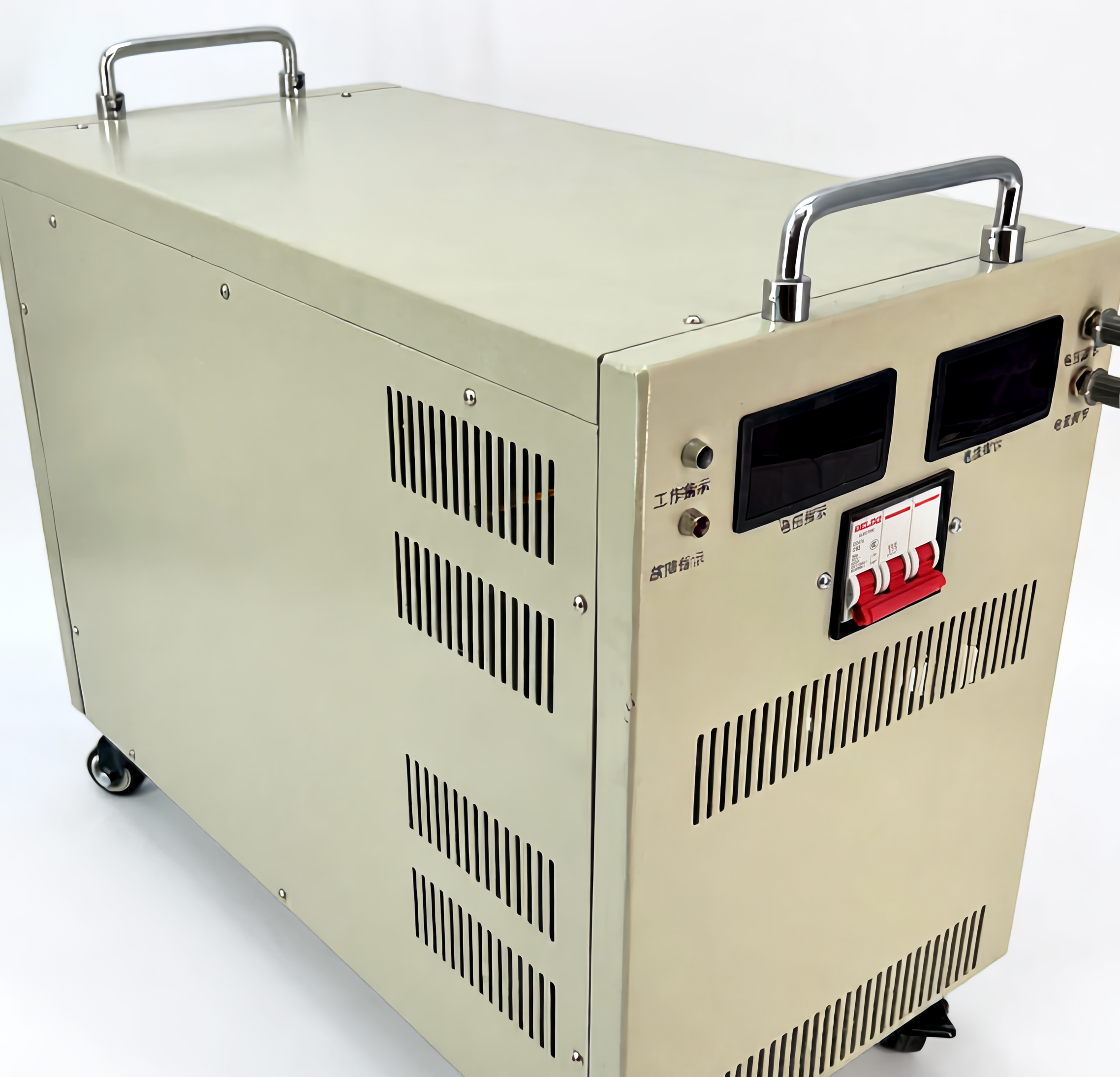

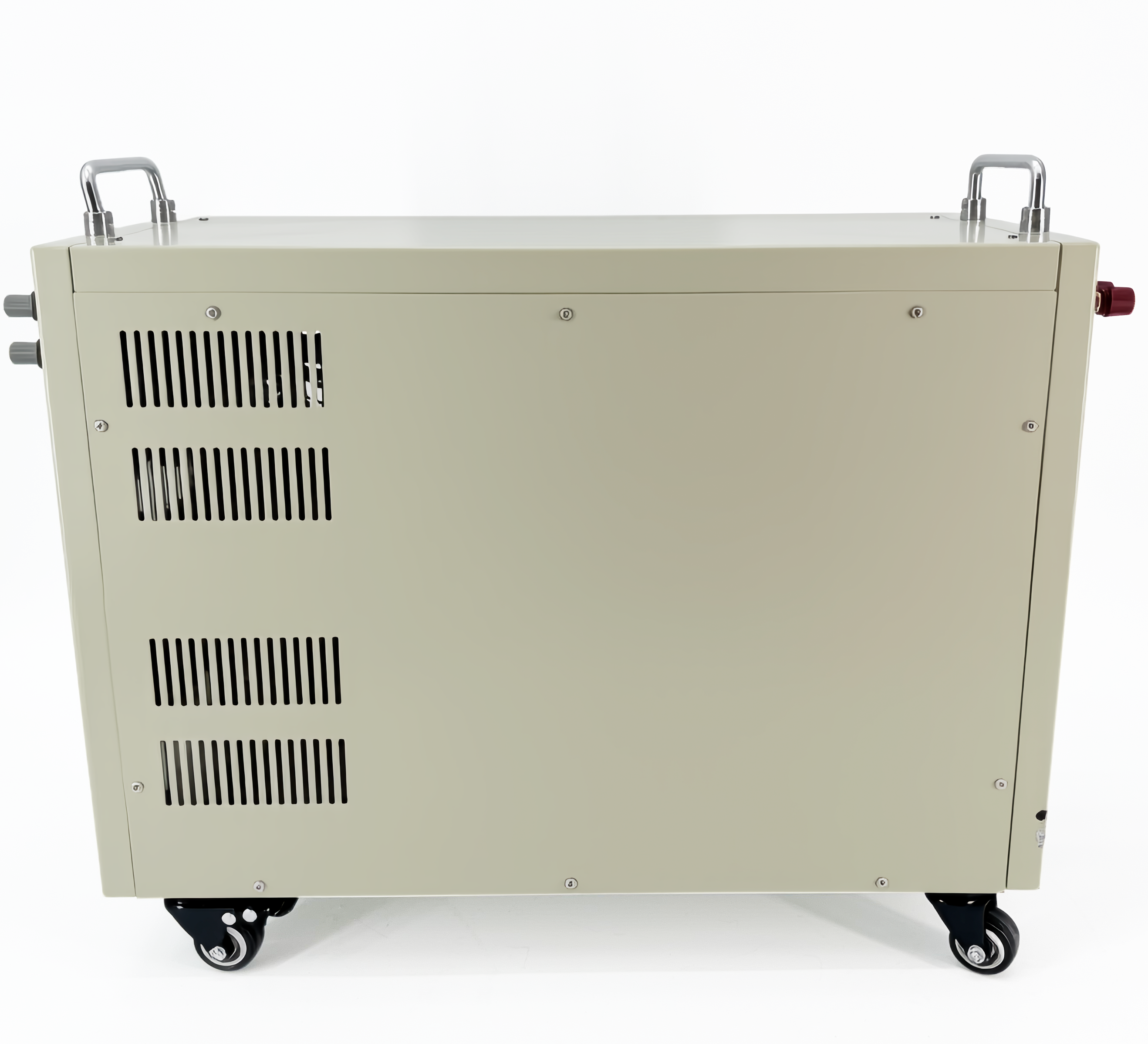

Detail & Construction Gallery
Product Instructions
1
Before powering on, check the stored and transported switch power supply. Inspect for any damage during transportation, such as loose screws, abnormal appearance, shaken power cords or terminals, and dampness. Address any issues promptly.
2
The local power switch controls the auxiliary power supply inside the machine. For safety, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel, confirming proper voltage alignment before operation.
3

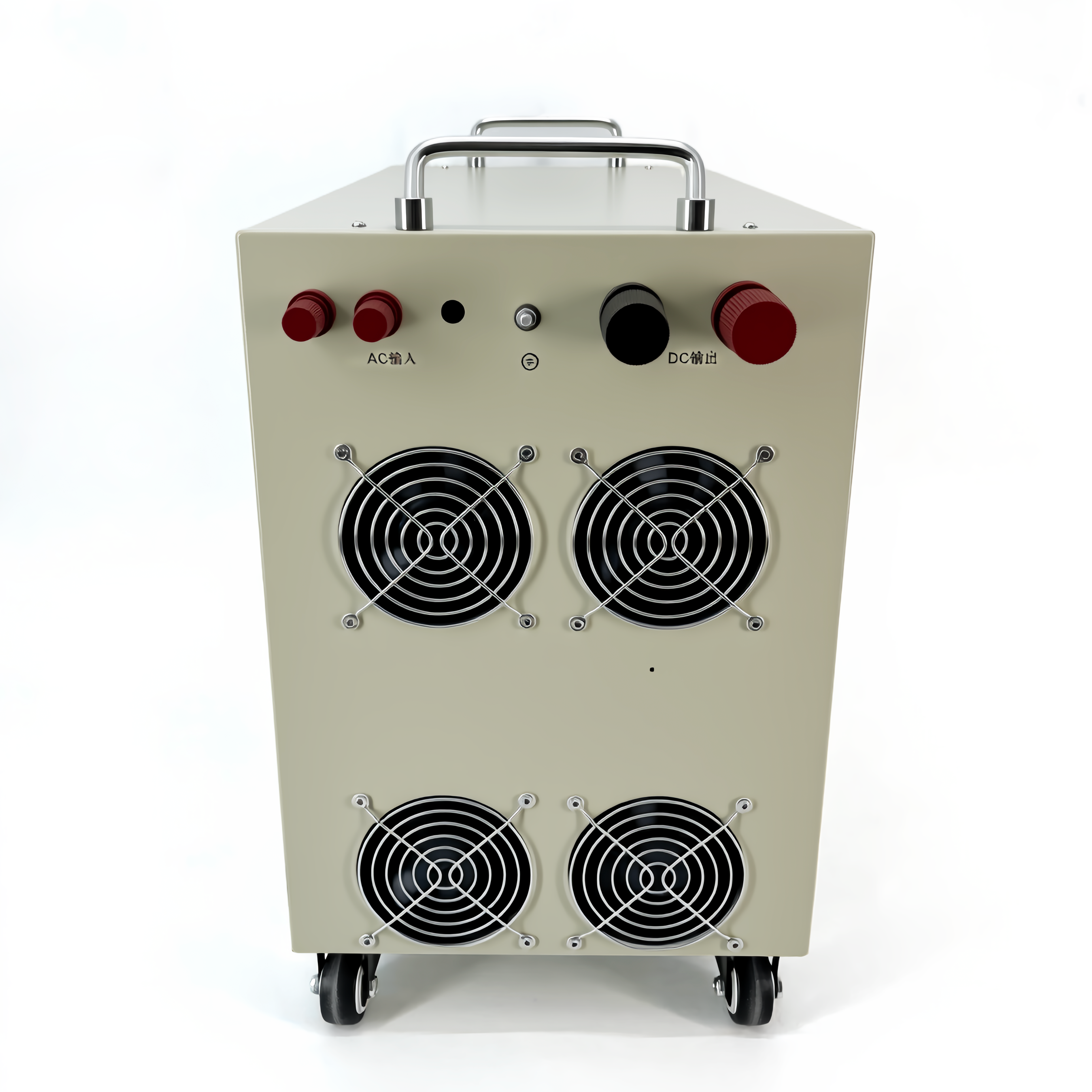

The cooling fan is temperature-controlled and starts when the internal temperature exceeds the setting threshold. The fan speed varies dynamically with the output voltage and current. Keep the air inlets and outlets unobstructed.
4
If the temperature inside the machine reaches the overheating shutdown threshold, the system automatically stops working to prevent damage. Operation resumes automatically once it cools down.
5
Keep the operating environment clean. Air dust, acid, or corrosive elements should not exceed normal levels. Avoid placing the device in areas of severe vibration, rain, or direct sunlight.
6
Perform regular dust removal to extend service life and reliability. Dry compressed air can be used, but avoid opening the outer casing to prevent contact with high internal voltage.
7
When storing the equipment long-term, choose a dry and ventilated environment. If stored for over 6 months, power on the device and run it for at least 30 minutes.
8
Warning: Only connect load equipment to the power supply after verifying successful, error-free testing.
9
In case of malfunction, immediately cut off the power switch. Inspect internal and external connections for loose screws and verify all switches and knob settings. Do not open the casing yourself to prevent high-voltage electric shock. Promptly contact technical support to resolve any persistent issues.
Frequently Asked Questions
Q Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes, the power supply is designed with full overcurrent, overvoltage, overheat, and short circuit protection.
Q Is reverse protection available?
Yes, reverse protection can be configured as a custom option.
Q Can it run at full power continuously?
No, it is recommended to run the power supply with excess capacity. Long-term continuous use is recommended under 80% load capacity.
Q How do you adjust the voltage and current?

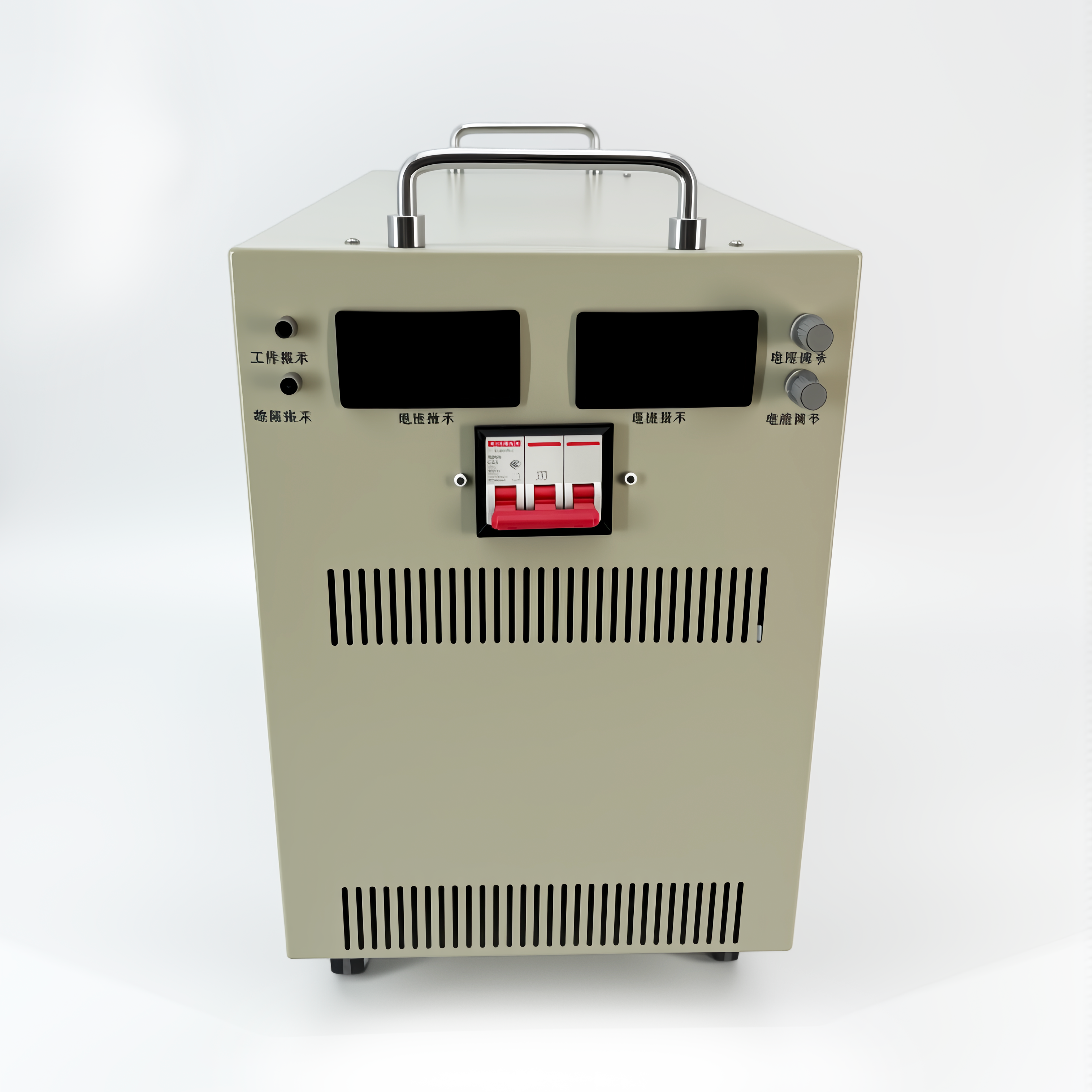

The device features dual knobs on the panel, allowing for easy and convenient adjustments of voltage and current.
Q Is the high-power unit isolated?
Yes, our high-power power supplies feature a fully isolated design.
Q What is the regulation starting point of the voltage?
The output voltage regulation starts from 1V.
