| Product Name | DC Switching Power Supply | Operating Relative Humidity | 20%~88% |
| Power Rating | 12000W | Application Scenarios | Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC fields |
| Input Voltage | Single-phase/Three-phase 220V, 380V | Protection Functions | Overcurrent, overvoltage, overheating, short-circuit protection |

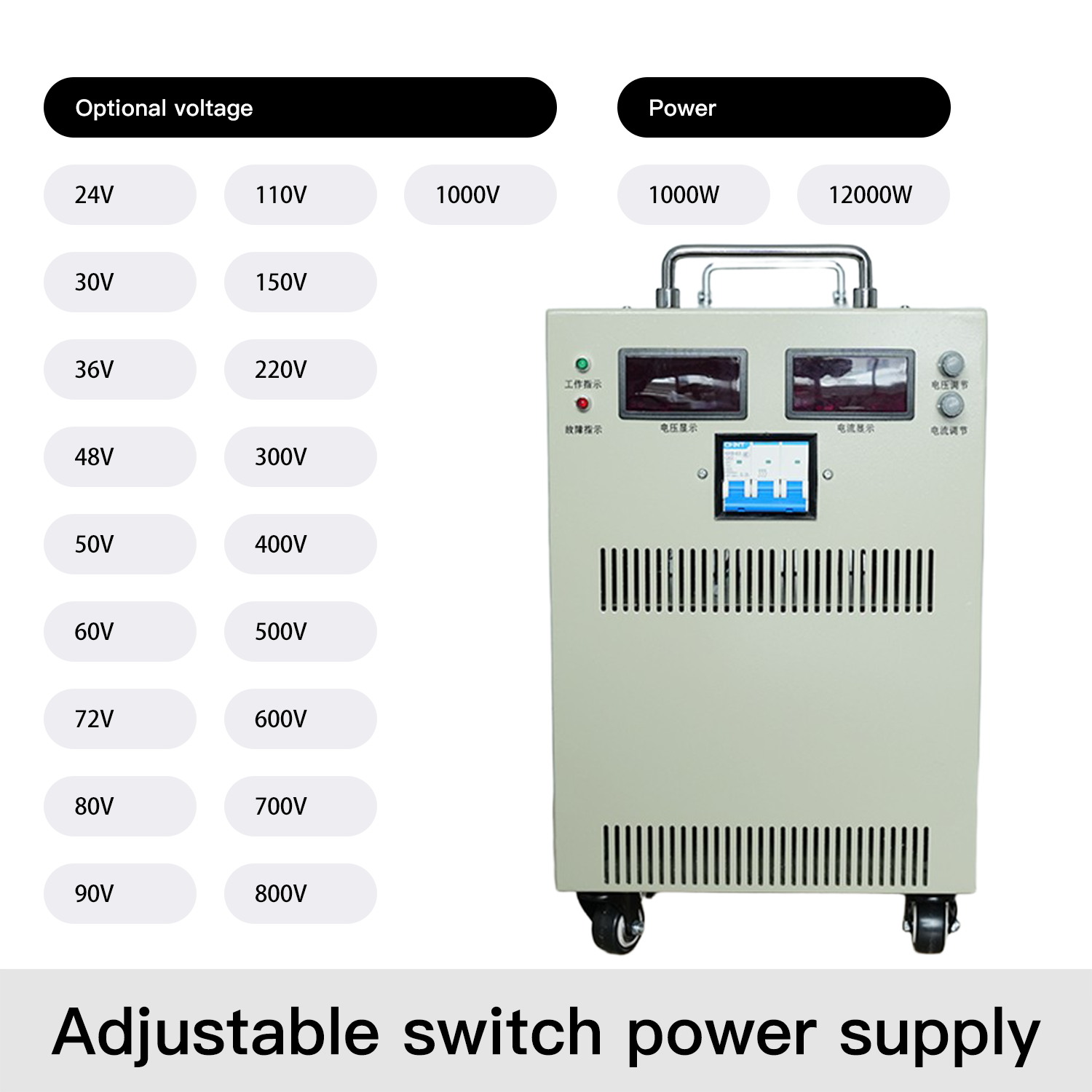

| Output Voltage | 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V | Product Features | High stability, high reliability |
| Output Current | Selected power / selected voltage | Warranty Period | 1 Year |
| Power Conversion Type | AC-DC | Product Weight | Approximately 25KG |
| Efficiency | ≥ 88-89% | Carton Dimensions | 770x400x600mm |
| Output Voltage Accuracy | ±1% |
Before powering on, inspect the device for any damage during transportation. Check if the screws are loose, if the appearance is abnormal, if the power cord and terminal are shaken off, and if they are damp. Address any issues promptly.
The local power switch controls the auxiliary power supply inside the machine. For safety, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel. Confirm that the connected input voltage matches the manual instructions.
The cooling fan is temperature controlled. It starts when the temperature inside the machine exceeds the starting threshold. The fan speed varies with the output voltage and current, which is normal. Ensure that the inlet and outlet of the fan are not blocked.
When the internal temperature reaches the threshold for overheating shutdown, the machine will automatically stop working to prevent damage. Once the temperature drops to a safe level, it will automatically resume operation.
When operating the equipment, prevent dust, acid, corrosive gases, or substances in the air from exceeding normal levels. Avoid severe vibrations, bumps, rain, and direct sunlight.
It is recommended to carry out dust removal work regularly to improve the service life and reliability of the power equipment. Dry compressed air can be used for dust removal. Do not open the casing or damage internal components due to high internal voltage.
When the power equipment is idle for a long time, store it in a dry and ventilated room. If stored for more than 6 months, the device should be powered on and operated for more than half an hour before use.
Only connect to the powered load equipment when the power-on test is normal and error-free.
If abnormal operation is found, cut off the power switch of the stabilized power supply immediately. Check the internal and external connections, screws, switches, and knobs. Do not unscrew the screws or remove the casing without authorization. Due to high internal voltage, do not attempt to repair it yourself without professional knowledge and equipment.
Yes, the power supply is designed with comprehensive built-in protection features including overvoltage, overcurrent, overheating, and short circuit protection.
Reverse protection can be added as a customized option upon request.
No, it is recommended to operate the power supply with excess capacity. Continuous operation is optimal at loads below 80% capacity.

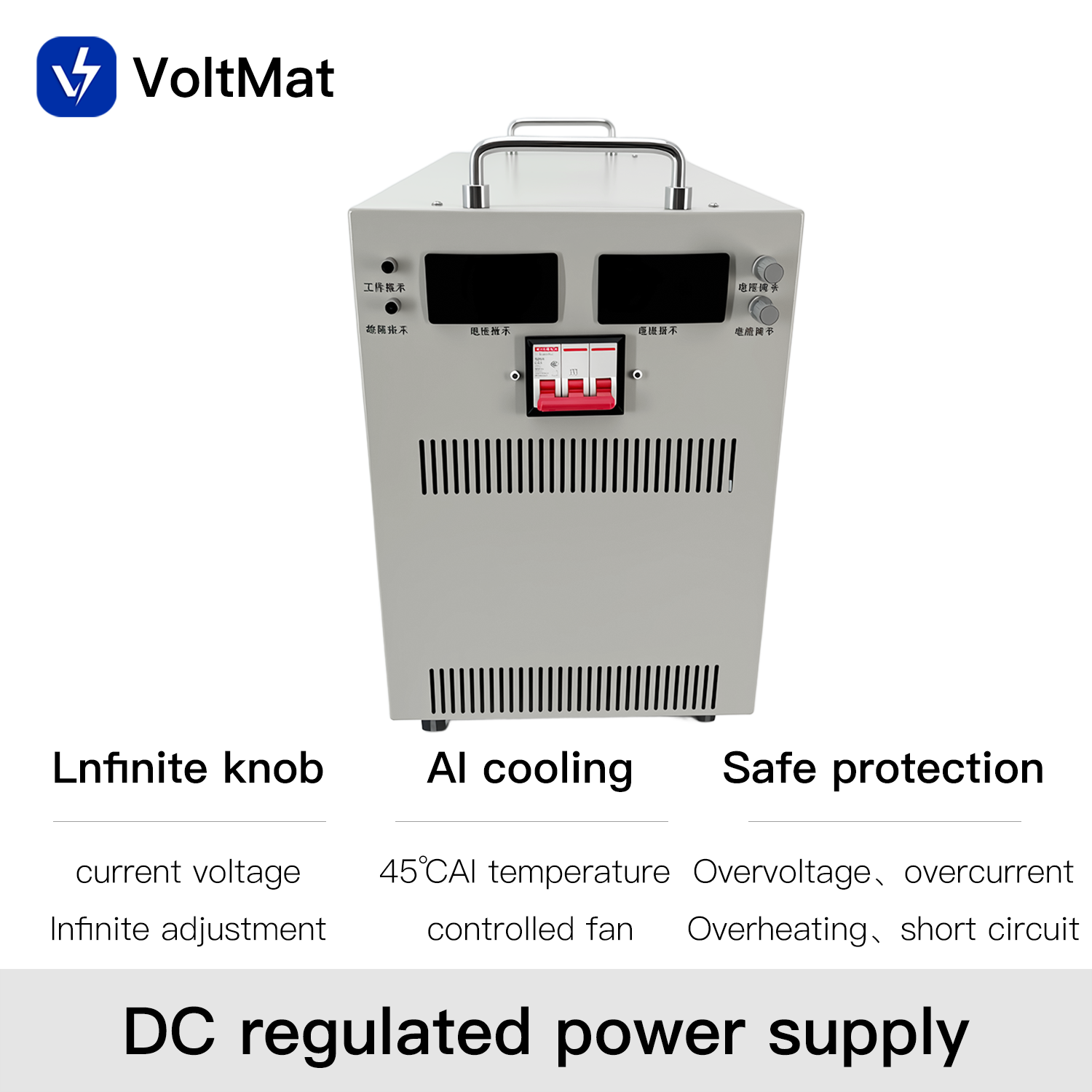

Yes, it is very convenient. The voltage and current can be easily adjusted using the dual knobs on the control panel.
Yes, this is a fully isolated power supply design to ensure safety and reliability.
The voltage regulation starts from 1V, and the equipment delivers full, sufficient rated power as specified.
