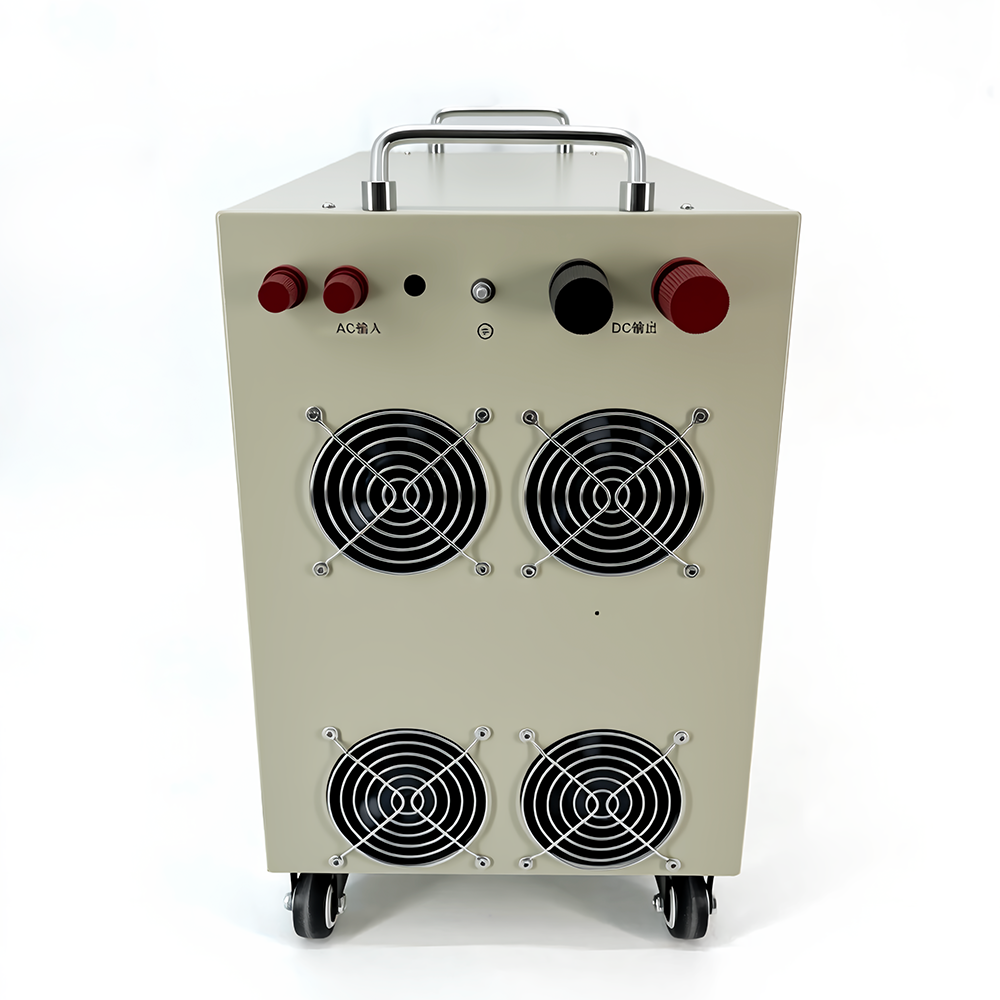

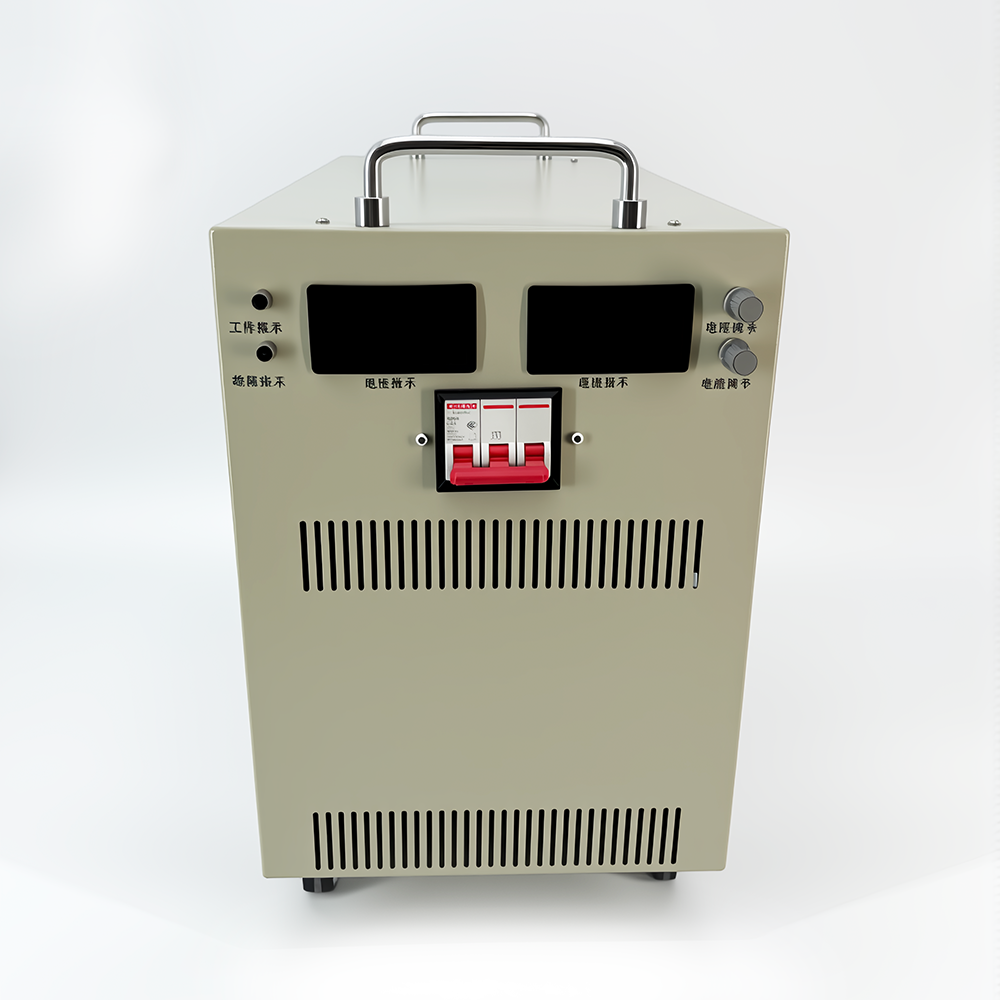

DC Power Supply High-Power Single Output AC-DC Converter (12000W 24V-1000V Optional 1 Year Warranty)
DC Power Supply High-Power Single Output AC-DC Converter (12000W 24V-1000V Optional 1 Year Warranty)
DC Power Supply High-Power Single Output AC-DC Converter (12000W 24V-1000V Optional 1 Year Warranty)
DC Power Supply High-Power Single Output AC-DC Converter (12000W 24V-1000V Optional 1 Year Warranty)
DC Power Supply High-Power Single Output AC-DC Converter (12000W 24V-1000V Optional 1 Year Warranty)
1 / 5
DC Power Supply High-Power Single Output AC-DC Converter (12000W 24V-1000V Optional 1 Year Warranty)
DC Power Supply High-Power Single Output AC-DC Converter (12000W 24V-1000V Optional 1 Year Warranty)
DC Power Supply High-Power Single Output AC-DC Converter (12000W 24V-1000V Optional 1 Year Warranty)
DC Power Supply High-Power Single Output AC-DC Converter (12000W 24V-1000V Optional 1 Year Warranty)
DC Power Supply High-Power Single Output AC-DC Converter (12000W 24V-1000V Optional 1 Year Warranty)

DC Power Supply High-Power Single Output AC-DC Converter (12000W 24V-1000V Optional 1 Year Warranty)

Send Inquiry

Product Description

DC Regulated Power Supply Banner
DC Switching Power Supply Unit

DC Switching Power Supply

  • Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
  • Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection.
  • Features: High stability and reliability.
  • Warranty: 1 Year Warranty.
  • Weight: Approximately 25KG.

Product Design & Interfaces

DC Power Supply Detail 1
DC Power Supply Detail 2
DC Power Supply Detail 3
DC Power Supply Detail 4
DC Power Supply Detail 5

Technical Specifications

Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 12000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase / Three-phase 220V / 380V Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V Product Features High stability, high reliability
Output Current Selected power / selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 25KG
Efficiency > 88-89% Carton Dimensions 770x400x600mm
Output Voltage Accuracy ±1% - -

Production & Testing

Production Process 1
Production Process 2
Production Process 3
Quality Testing 1
Quality Testing 2

Product Instructions

1. Before powering on, check the stored and transported switch power supply. Verify if any damage occurred during transportation, such as loose screws, abnormal appearance, disconnections of power cords and terminals, or exposure to moisture.
2. The local power switch controls the internal auxiliary power supply. For safety, please install an external air switch at the power input terminal. Connect the ground wire and input power wire correctly according to the rear panel label.
3. The cooling fan is temperature-controlled. It starts running when the internal temperature exceeds the threshold point. Ensure that the air inlet and outlet are not blocked during operation.
4. When the internal temperature reaches the overheat protection threshold, the machine stops automatically. It will restart once the temperature drops to a safe level.
5. Avoid using the device in environments with excessive dust, acid, corrosive gases, severe vibrations, direct sunlight, or rain.
6. Regular dust removal (using dry compressed air) can significantly improve the service life. Do not open the casing to prevent damaging internal components.
7. If idle for over 6 months, store the unit in a dry, ventilated room and power it on for at least 30 minutes before usage.
8. Warning: Only connect the load equipment after the initial power-on test runs normally and error-free.
9. Troubleshooting: If abnormal operation occurs, switch off the power supply immediately. Check the external connections for looseness and ensure switches and knobs are positioned correctly. Due to the high voltage hazard inside, do not attempt to disassemble the casing or repair the unit without professional equipment and authorization.

Frequently Asked Questions

Q What protections are built into this power supply?
A: Yes, it is fully equipped with overvoltage, overcurrent, overheating, and short-circuit protections.
Q Can it support reverse protection?
A: Yes, reverse protection can be added as a customized option.
Q Can the unit run at full power continuously?
A: No, for long-term continuous operation, it is recommended to keep the operating load below 80% of the maximum capacity.
Q How do I adjust the voltage and current output?
A: Adjustments are highly convenient. You can configure both parameters easily using the dual analog knobs.
Q Is this a fully isolated power supply?
A: Yes, our high-power power supplies feature a fully isolated design.
Q What is the starting voltage regulation range?
A: The voltage regulation starts from 1V.
