High Power DC Regulated Adjustable Switching Power Supply for Industry Use (12000W Output 24V-1000V Single 88-89% Efficiency 1
High Power DC Regulated Adjustable Switching Power Supply for Industry Use (12000W Output 24V-1000V Single 88-89% Efficiency 1
High Power DC Regulated Adjustable Switching Power Supply for Industry Use (12000W Output 24V-1000V Single 88-89% Efficiency 1
High Power DC Regulated Adjustable Switching Power Supply for Industry Use (12000W Output 24V-1000V Single 88-89% Efficiency 1
High Power DC Regulated Adjustable Switching Power Supply for Industry Use (12000W Output 24V-1000V Single 88-89% Efficiency 1
1 / 5
High Power DC Regulated Adjustable Switching Power Supply for Industry Use (12000W Output 24V-1000V Single 88-89% Efficiency 1
High Power DC Regulated Adjustable Switching Power Supply for Industry Use (12000W Output 24V-1000V Single 88-89% Efficiency 1
High Power DC Regulated Adjustable Switching Power Supply for Industry Use (12000W Output 24V-1000V Single 88-89% Efficiency 1
High Power DC Regulated Adjustable Switching Power Supply for Industry Use (12000W Output 24V-1000V Single 88-89% Efficiency 1
High Power DC Regulated Adjustable Switching Power Supply for Industry Use (12000W Output 24V-1000V Single 88-89% Efficiency 1

High Power DC Regulated Adjustable Switching Power Supply for Industry Use (12000W Output 24V-1000V Single 88-89% Efficiency 1

Send Inquiry

Product Description

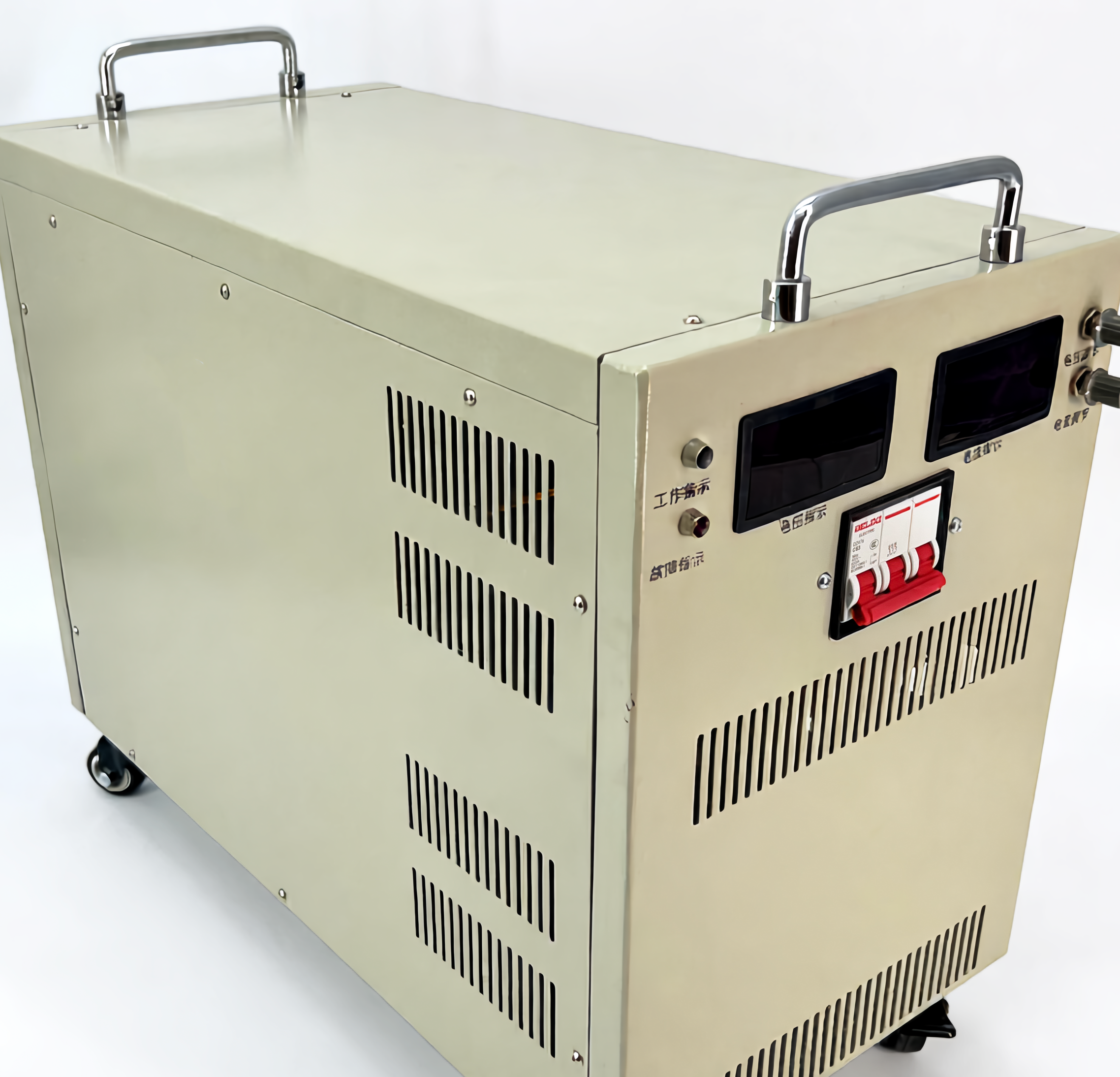

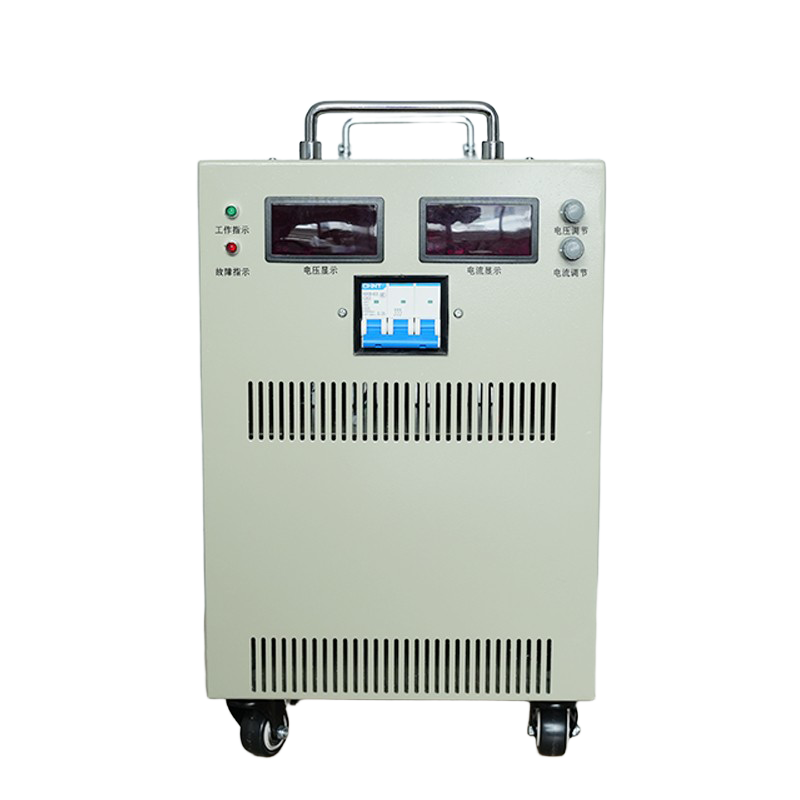

DC Switching Power Supply Main View
DC Switching Power Supply Specifications

DC Switching Power Supply

  • Application: Widely used in power electronics, electroplating, water treatment, battery charging, new energy maintenance, and various DC application sites.
  • Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection.
  • Features: High stability and reliability.
  • Warranty: 1 year.
  • Weight: Approximately 25KG.
Product Overview
DC Switching Power Supply Display 1 DC Switching Power Supply Display 2 DC Switching Power Supply Display 3 DC Switching Power Supply Display 4 DC Switching Power Supply Display 5
Technical Specifications
Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 12000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase / Three-phase 220V, 380V Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V Product Features High stability, high reliability
Output Current Selected power / selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 25KG
Efficiency ≥ 88-89% Carton Dimensions 770x400x600mm
Output Voltage Accuracy ±1% - -

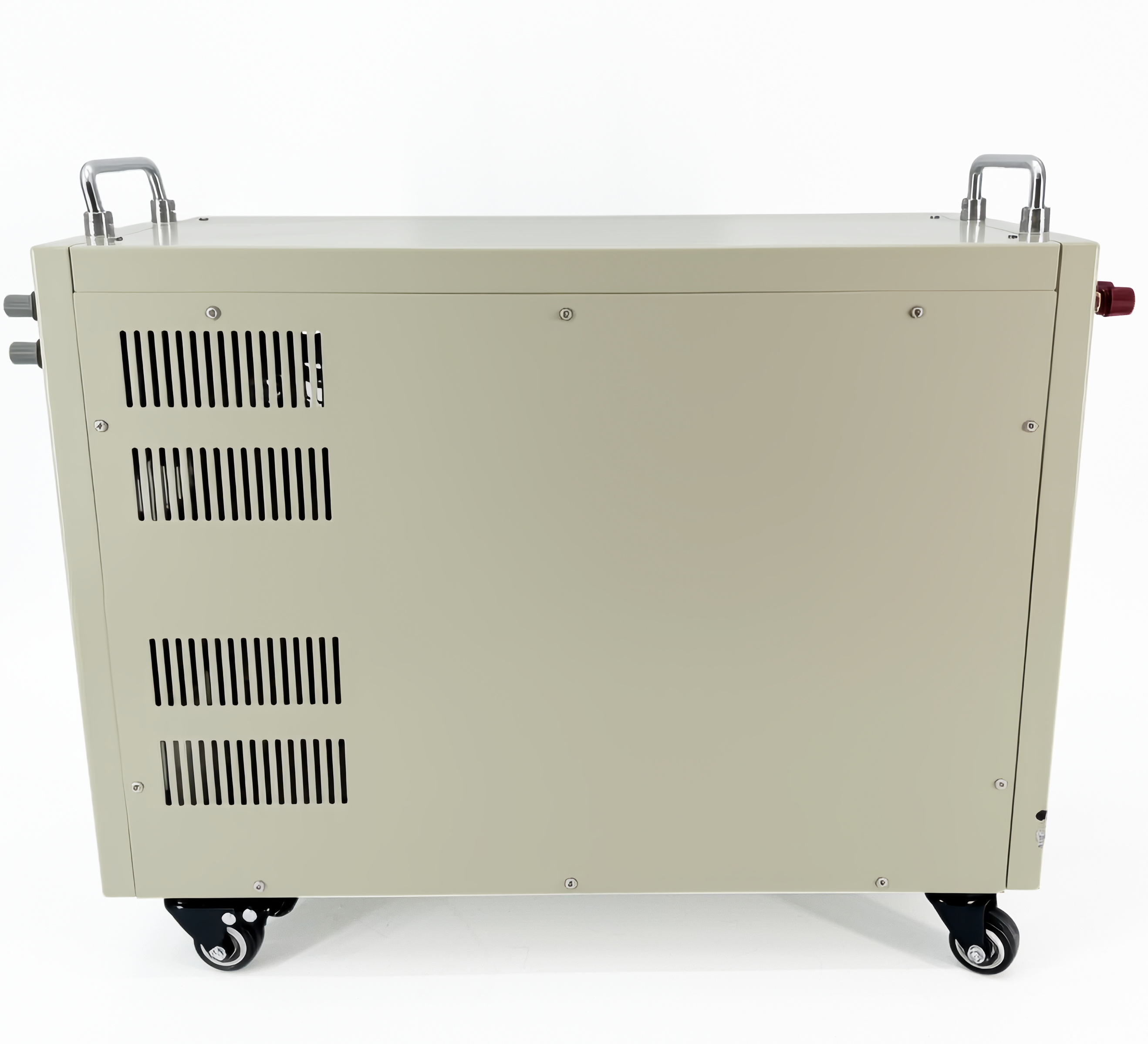

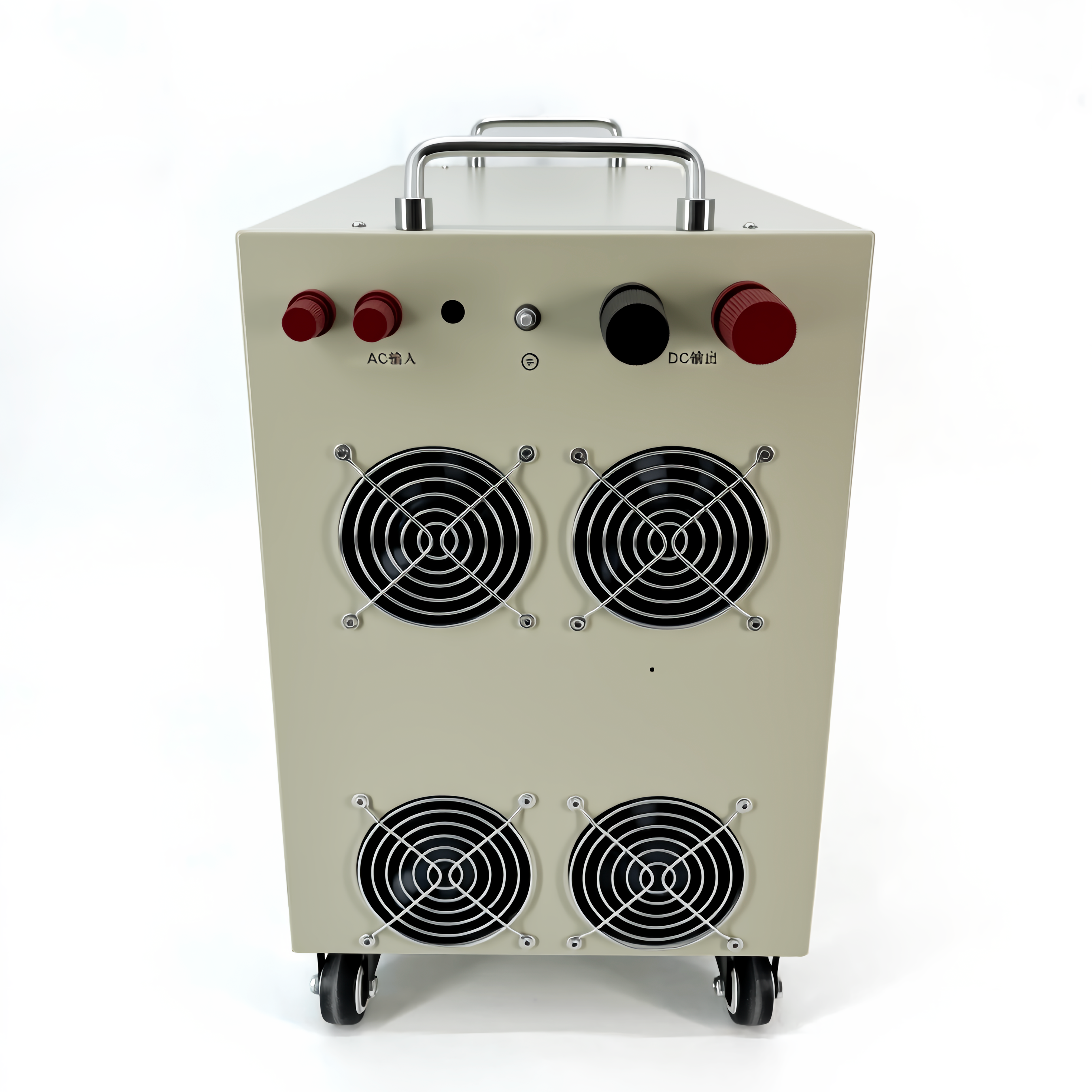

Product Detail Views
Detail View 1 Detail View 2 Detail View 3 Detail View 4 Detail View 5
Product Instructions
  • Inspection: Before powering on, inspect the switching power supply. Check for transportation damage such as loose screws, abnormal appearance, loose power cords, terminal issues, or dampness. Deal with any issues in a timely manner.
  • Power Input: The power switch controls the auxiliary power supply inside the machine. For safety, install an air switch at the power input terminal. Connect the ground wire and input power wire correctly according to the rear panel label. Verify the input voltage matches the machine manual specifications.
  • Cooling Fan: The cooling fan is temperature-controlled and starts running when internal temperatures exceed the threshold. Speed varies based on voltage and current output. Make sure not to block the air inlet and outlet vents.
  • Overheat Recovery: If the internal temperature reaches the overheating threshold, the machine stops automatically. It will automatically restart once cooled down.
  • Environment: Keep dust, acid, corrosive gases, or airborne substances within normal levels. Avoid severe vibrations, bumps, rain, and direct sunlight.
  • Maintenance: Regular dust removal improves reliability and product life. Use dry compressed air for dust removal. Do not open the casing as high voltage is present inside.
  • Storage: Store the equipment in a dry, well-ventilated room. If stored for over 6 months, power on and operate the unit for at least half an hour before use.
  • Warning: Only connect load equipment to the power supply after a successful and error-free power-on test.
  • Troubleshooting: If abnormal operation occurs, shut off the power switch immediately. Check internal and external connections, screws, switches, and knobs. Do not disassemble the casing or attempt self-repair due to high voltage. Please contact professional support promptly.
Frequently Asked Questions (FAQ)
Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes, the power supply features built-in protections for overvoltage, overcurrent, overheating, and short circuits.
Can it be used at full power for a long time?
No, the power supply needs to be used with excess capacity. Long-term continuous operations should keep power levels below 80%.
Is it easy to adjust the voltage and current?
Yes, it features dual knobs for convenient, precise adjustment of both voltage and current.
Is this high-power power supply isolated?
Yes, it is designed as a fully isolated power supply.
What is the voltage regulation range?
The voltage regulation range starts from 1V.
Is there reverse protection?
Reverse protection can be added as a custom option upon request.
