10000W High Power DC Regulated Adjustable Switching Power Supply with 24V-1000V Selectable Output Single Output Industrial Use

Our professional production facility spans over 10,000 square meters, specializing in the manufacture of high-power regulated power supplies with 15 years of industry experience. Recognized for exceptional product quality and excellent after-sales support services, we deliver reliable power solutions globally.

Product Name: DC Switching Power Supply

Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection.
Features: High stability and reliability.
Warranty: 1 year.
Weight: Approximately 25KG.

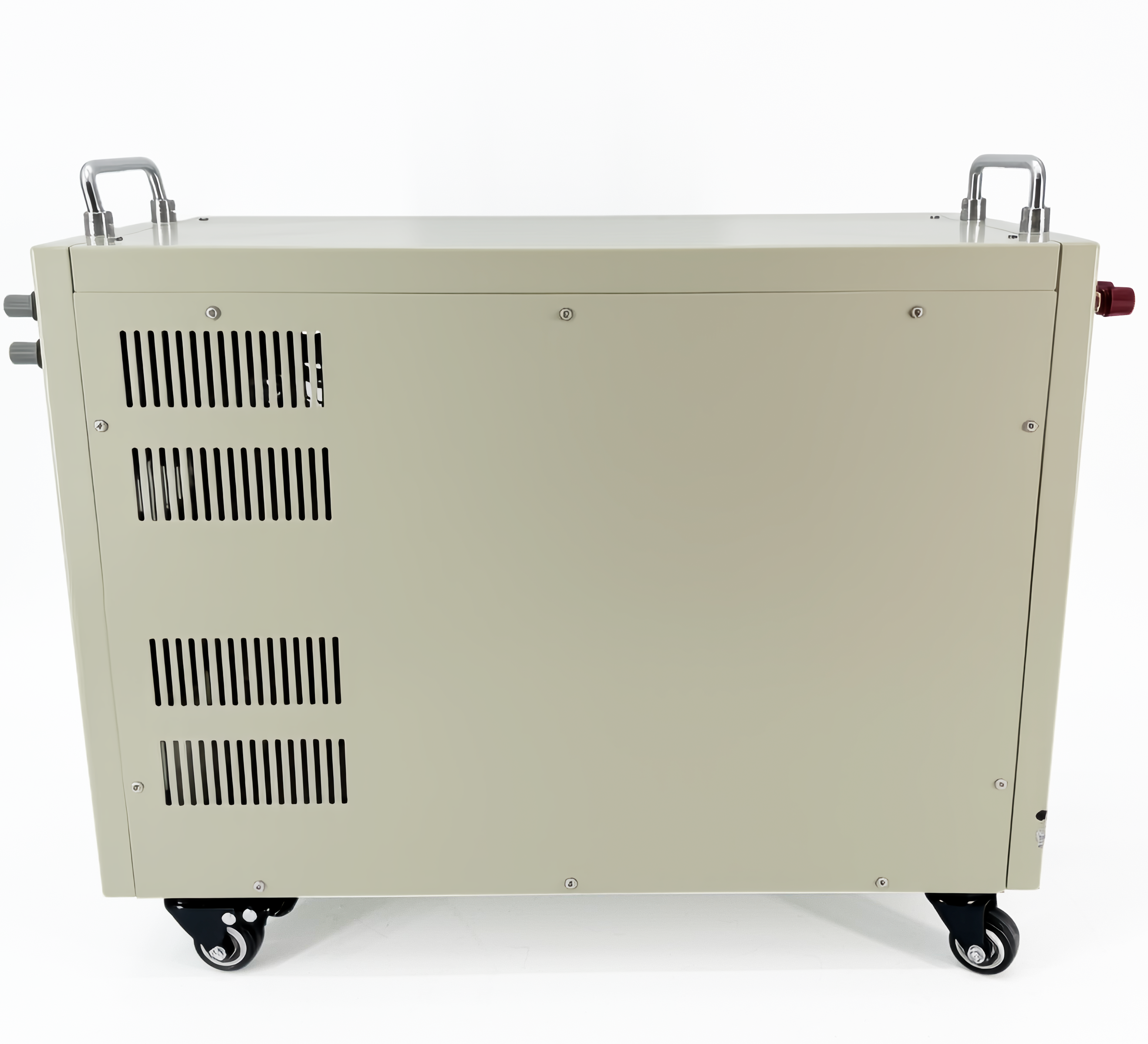

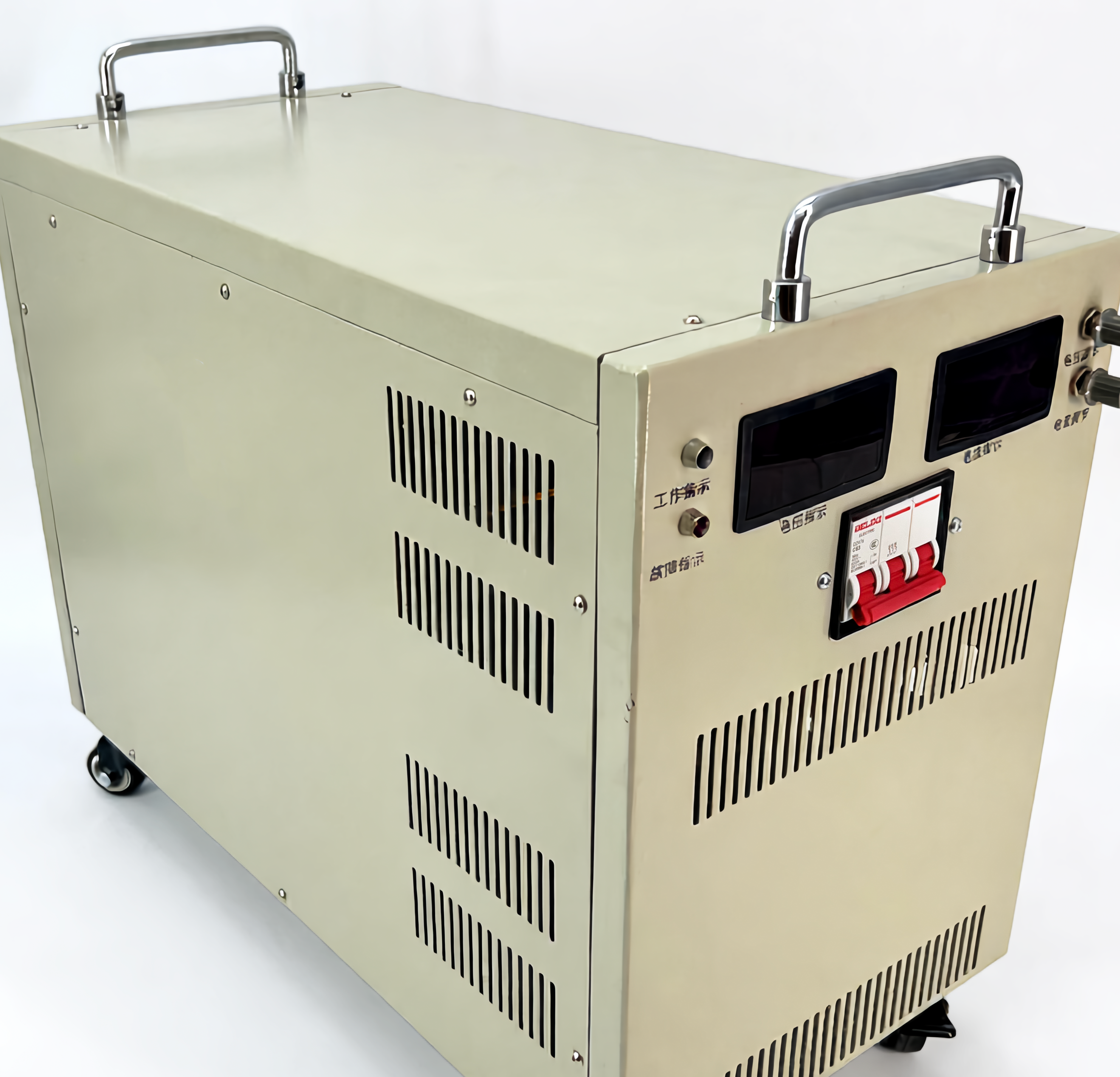

Product Display

Technical Specifications

Product Name	DC Switching Power Supply	Operating Relative Humidity	20%~88%
Power Rating	10000W	Application Scenarios	Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage	Single-phase/Three-phase 220V / 380V	Protection Functions	Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage	12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V	Product Features	High stability, high reliability
Output Current	Selected power/selected voltage	Warranty Period	1 Year
Power Conversion Type	AC-DC	Product Weight	Approximately 25KG
Efficiency	≥ 88-89%	Carton Dimensions	770x400x600mm
Output Voltage Accuracy	±1%	Cooling System	Temperature Controlled Fan

Production & Internal Views

Product Instructions

1

Before powering on, check the stored and transported switch power supply. Any damage during transportation should be checked, such as whether the screws are loose, whether the appearance is abnormal, whether the power cord and terminal are shaken off, and whether they are damp. If any of the above occurs, it should be dealt with in a timely manner.

2

The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel to confirm correct connection. Pay attention to whether the voltage of the input power supply matches the specifications in the manual.

3

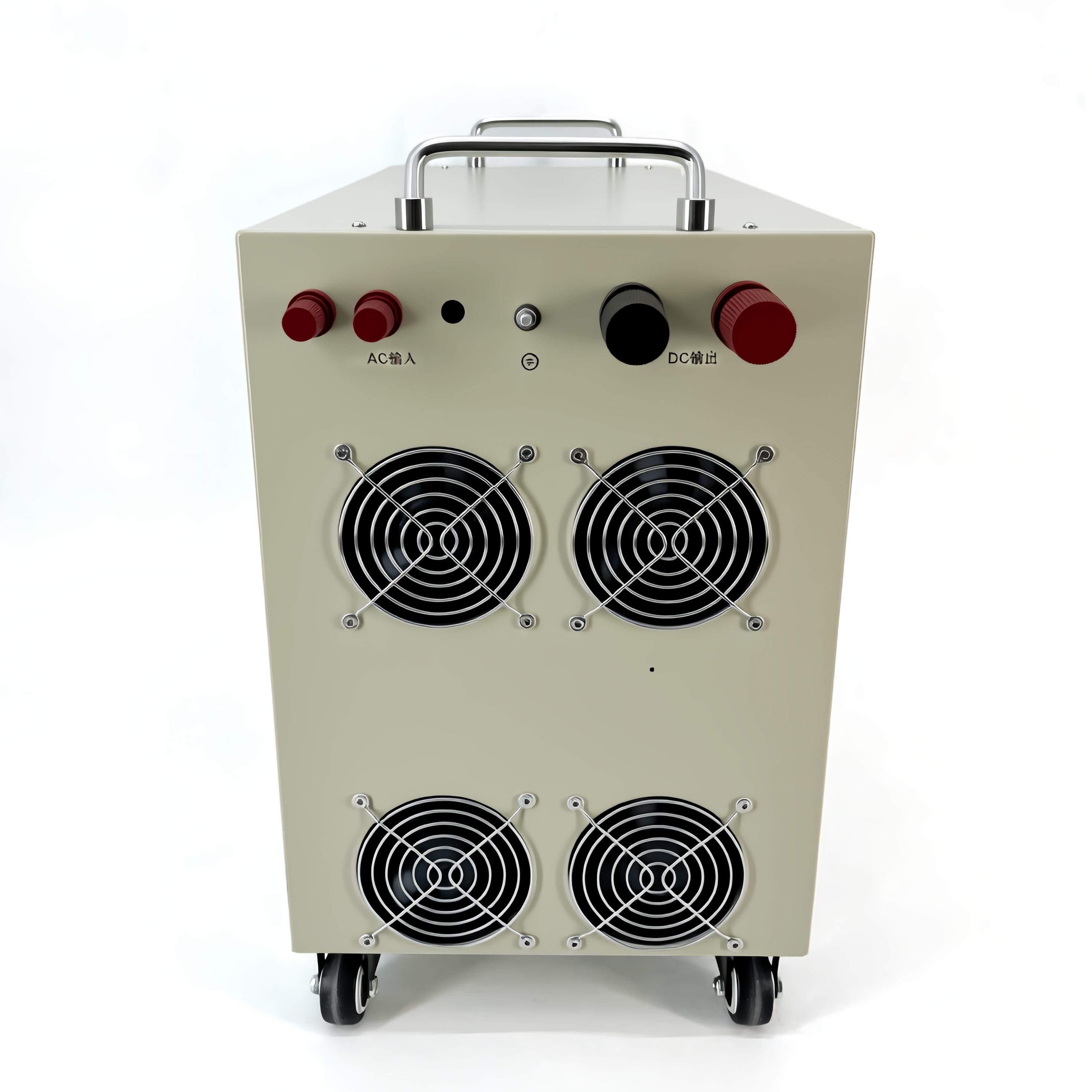

The cooling fan is temperature controlled. When the temperature inside the machine exceeds the start point, the fan will run. The fan speed varies with output voltage and current. Keep the inlet and outlet of the fan unblocked during operation.

4

When the temperature inside the machine reaches the threshold for overheating shutdown, the machine will automatically stop working to prevent damage. When the temperature drops slightly, it will automatically resume work.

5

Ensure that dust, acid, corrosive gases, or substances in the air do not exceed normal levels. Avoid severe vibrations, bumps, rain, and direct sunlight.

6

Regular dust removal can greatly improve service life and reliability. Dry compressed air can be used for dust removal. Do not open the casing unauthorized due to internal high pressure to avoid damaging internal components.

7

If stored idle for a long time, keep the power equipment in a dry, ventilated room. If stored for over 6 months, the device should be powered on and operated for more than half an hour.

8

Warning: Only connect to powered load equipment once the power-on test is normal and error-free.

9

Troubleshooting: If abnormal operation occurs, cut off the switch immediately. Check internal/external connections and screws. Do not unscrew the casing unauthorized due to high voltage. Please contact technical support promptly to resolve the issue.

Frequently Asked Questions (FAQ)

Is there overvoltage, overcurrent, overheating, or short circuit protection?

Yes, the power supply is designed with comprehensive protection features including overvoltage, overcurrent, overheating, and short circuit protection.

Is there reverse protection?

Reverse protection is optional and can be integrated with customization requirements.

Can it be used at full power for a long time?

No, the power supply needs to be used with excess capacity. Using the power supply below 80% capacity is recommended for continuous, long-term operation.

Is it convenient to adjust the voltage and current?

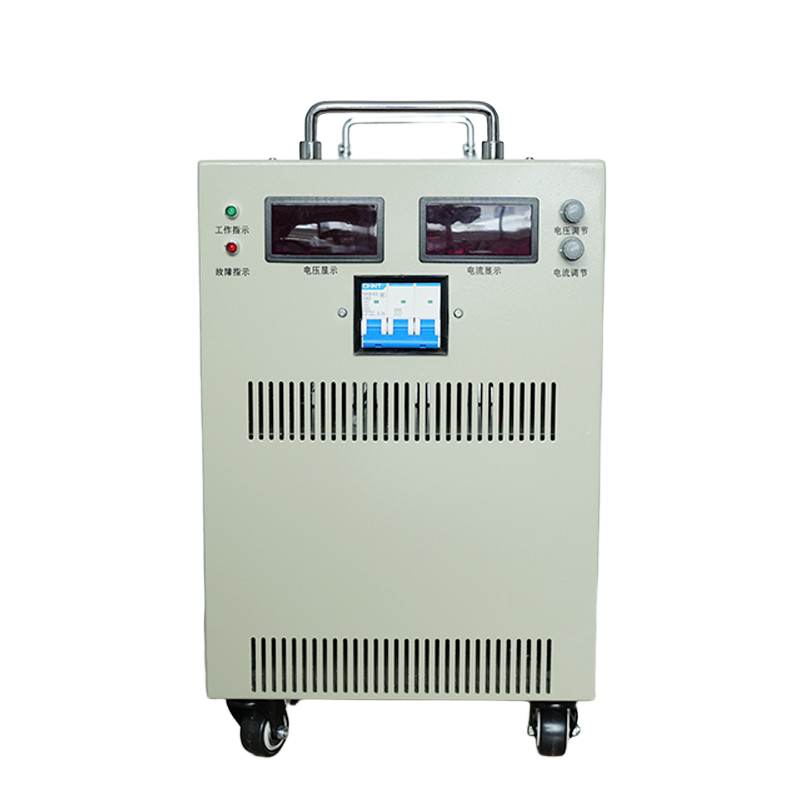

Yes, both voltage and current can be easily adjusted using the user-friendly dual knobs on the panel.

Is the high-power power supply isolated?

Yes, our high-power power supplies are fully isolated, ensuring high safety levels for operation.

What is the voltage regulation range?

The voltage regulation range starts from 1V up to the rated voltage.
