High Power DC Regulated Adjustable Switching Power Supply (12000W 24V-1000V Single High Efficiency 88-89% 1 Year Industrial
High Power DC Regulated Adjustable Switching Power Supply (12000W 24V-1000V Single High Efficiency 88-89% 1 Year Industrial
High Power DC Regulated Adjustable Switching Power Supply (12000W 24V-1000V Single High Efficiency 88-89% 1 Year Industrial
High Power DC Regulated Adjustable Switching Power Supply (12000W 24V-1000V Single High Efficiency 88-89% 1 Year Industrial
High Power DC Regulated Adjustable Switching Power Supply (12000W 24V-1000V Single High Efficiency 88-89% 1 Year Industrial
1 / 5
High Power DC Regulated Adjustable Switching Power Supply (12000W 24V-1000V Single High Efficiency 88-89% 1 Year Industrial
High Power DC Regulated Adjustable Switching Power Supply (12000W 24V-1000V Single High Efficiency 88-89% 1 Year Industrial
High Power DC Regulated Adjustable Switching Power Supply (12000W 24V-1000V Single High Efficiency 88-89% 1 Year Industrial
High Power DC Regulated Adjustable Switching Power Supply (12000W 24V-1000V Single High Efficiency 88-89% 1 Year Industrial
High Power DC Regulated Adjustable Switching Power Supply (12000W 24V-1000V Single High Efficiency 88-89% 1 Year Industrial

High Power DC Regulated Adjustable Switching Power Supply (12000W 24V-1000V Single High Efficiency 88-89% 1 Year Industrial

Send Inquiry

Product Description

High-Power Regulated Power Supply
We feature a professional production factory of 10,000 square meters, specializing in high-power regulated power supplies with 15 years of industry expertise, providing honest operations and excellent after-sales support.
DC Switching Power Supply Details

Product Profile: DC Switching Power Supply

  • Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
  • Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection.
  • Features: High stability and reliability.
  • Warranty: 1 year.
  • Weight: Approximately 25KG.

Detailed Views & Build Quality

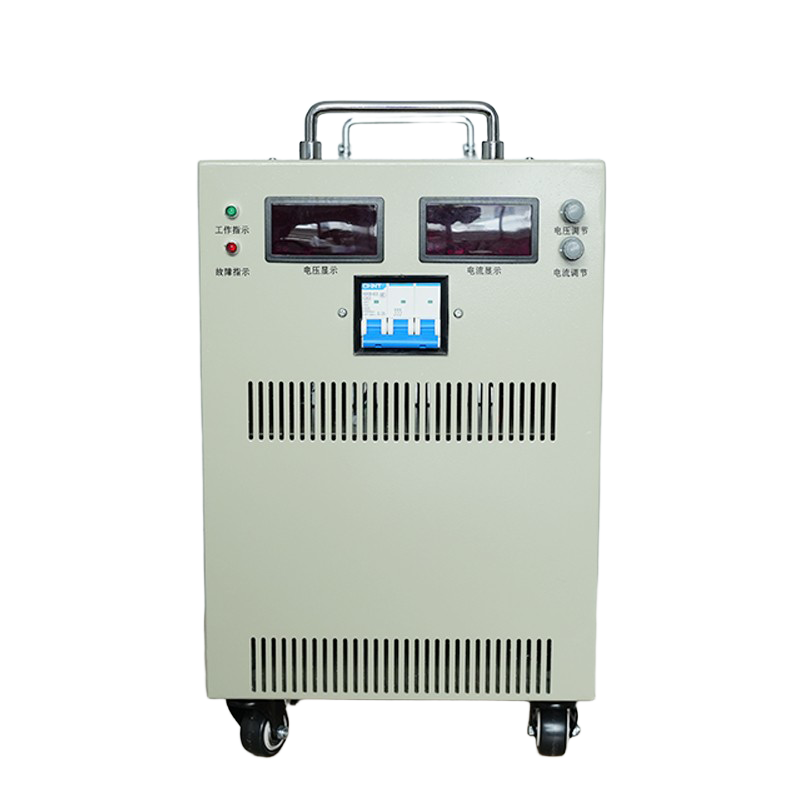

Front View Panel Design
Internal Configuration & Circuitry

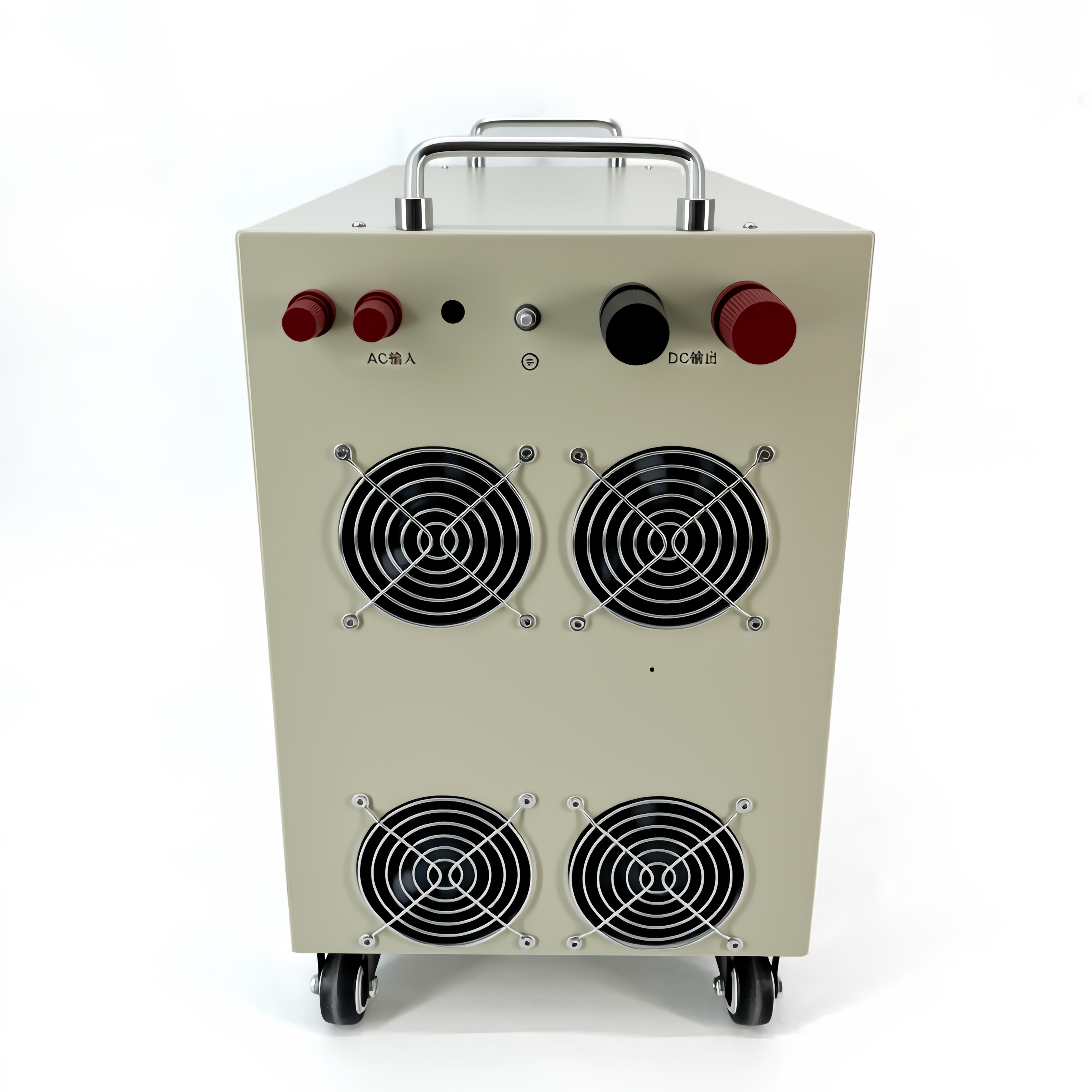

Cooling System and Back Terminals
Power Supply Indicators and Adjusters
Industrial Grade Components Display

Technical Specifications

Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 12000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase/Three-phase 220V, 380V Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V Product Features High stability, high reliability
Output Current Selected power/selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 25 kg
Efficiency >88-89% Carton Dimensions 770x400x600mm
Output Voltage Accuracy ±1% - -

Testing & Verification Processes

Assembly Line Process
Full Load Aging Test Area
Oscilloscope Waveform Calibration
Pre-shipment Inspection Line
Industrial Grade Packaging Safety Check

Product Instructions

1 Before powering on, check the stored and transported switch power supply. Inspect for any potential damage during transportation, such as loose screws, abnormal appearance, disconnected terminals, or signs of dampness. Ensure any issues are resolved before use.
2 The local power switch controls the auxiliary power supply inside the machine. For safety, please add an air switch to the power input terminal to manage the main input. Properly connect the ground wire and input power wires based on the rear panel labels and verify that the input voltage matches the device specifications.
3 The cooling fan is temperature controlled and will automatically start running when the internal temperature reaches the control point. The fan speed fluctuates dynamically based on output voltage and current. Keep the fan inlets and outlets clean and clear of obstructions at all times.
4 If the internal temperature of the device crosses the overheat shutdown threshold, the machine will shut down automatically to prevent internal damage. Once the unit cools down to a safe range, it will automatically resume normal operation.
5 Ensure that ambient dust, acid, corrosive gases, or substances in the operating air do not exceed standard safety limits. Avoid severe vibrations, mechanical shocks, direct rain, and intense direct sunlight.
6 Conduct regular dust removal to extend the lifetime and reliability of the power equipment. Clean using dry compressed air. Caution: High voltage exists inside the device. Do not open the outer casing or tamper with internal components.
7 For long-term storage, keep the power supply in a dry, well-ventilated space. If stored idle for over 6 months, it should be powered on and operated for at least half an hour to maintain stability.
8 Warning: Only connect load equipment to the power supply once the initial power-on test has run successfully and without error.
9 Troubleshooting: If abnormal performance is noted, shut off the power switch immediately. Carefully check all external and internal connections for loose parts and verify knob configurations. Due to the high-voltage design, do not open the casing to perform self-repair without professional equipment and qualifications. Contact support promptly for assistance.

Frequently Asked Questions

Does the unit feature comprehensive safety protection?
Yes, the power supply includes built-in overvoltage, overcurrent, overheating, and short-circuit protection.
Can reverse polarity protection be added to this model?
Yes, reverse polarity protection can be configured as a custom upgrade upon request.
Can the device operate at full power output continuously?
No, it is highly recommended to select a power capacity with excess headroom. Running the device below 80% of its maximum power output is required for long-term continuous operation.
How are the output voltage and current controlled?
Adjustments are quick and convenient using the integrated dual control knobs on the front panel.
Is this high-power switching power supply isolated?
Yes, the unit features a fully isolated circuit design for enhanced system safety.
What is the starting voltage regulation range?
The output voltage regulation starts from 1V.
