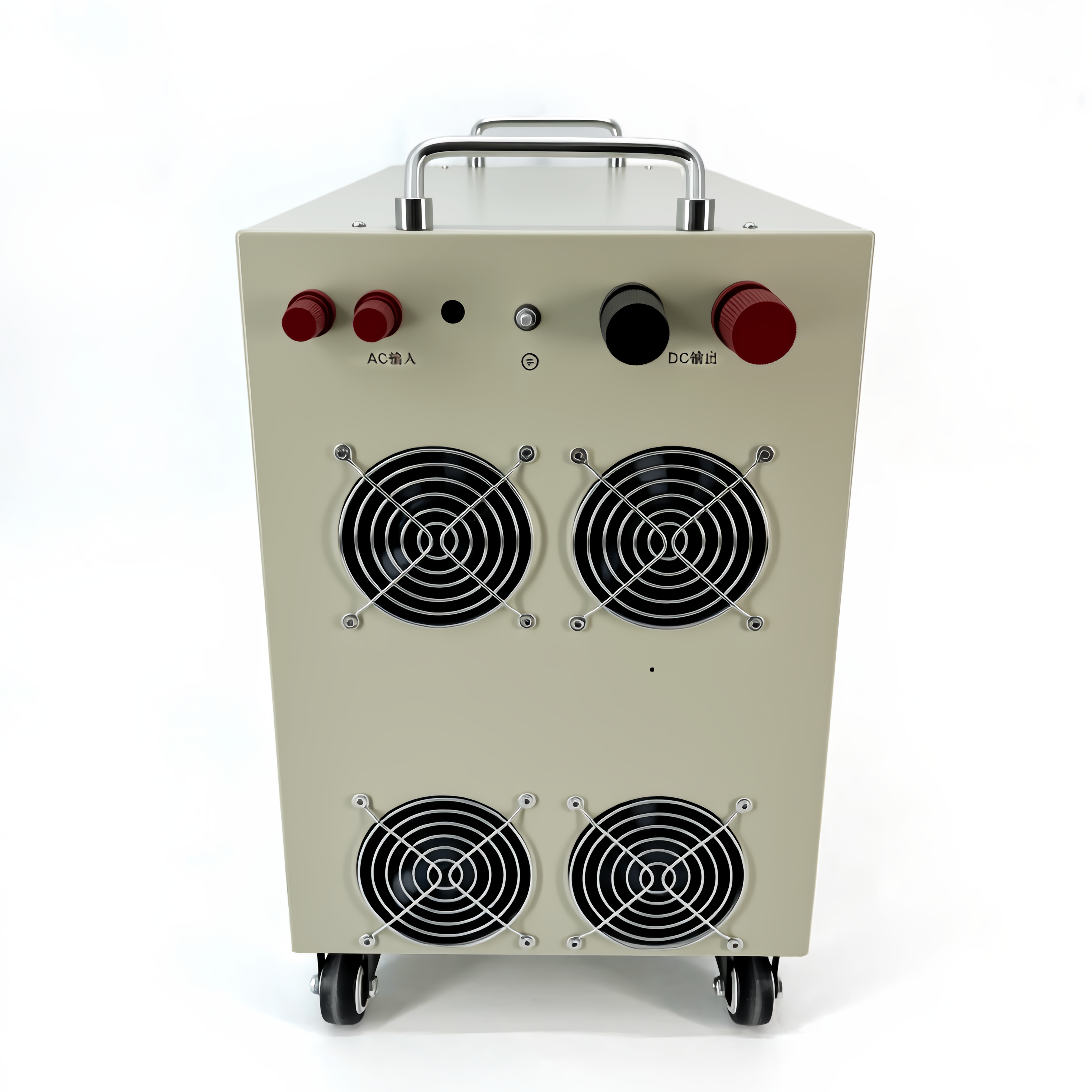

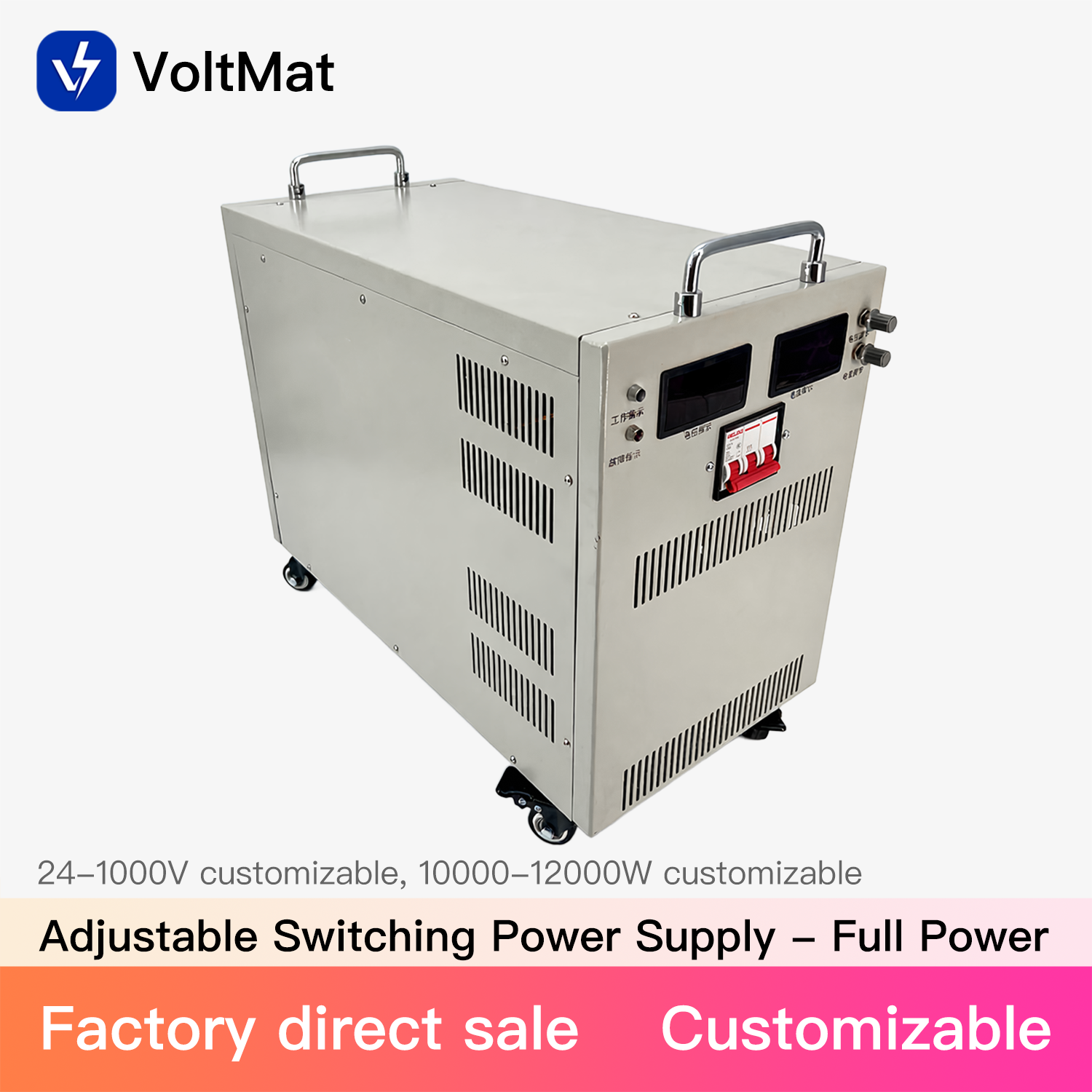

Output 800V-10000W High-Power AC-DC Switching Power Supply with Multi-Voltage Input & 24V-1000V Single Output
Output 800V-10000W High-Power AC-DC Switching Power Supply with Multi-Voltage Input & 24V-1000V Single Output
Output 800V-10000W High-Power AC-DC Switching Power Supply with Multi-Voltage Input & 24V-1000V Single Output
Output 800V-10000W High-Power AC-DC Switching Power Supply with Multi-Voltage Input & 24V-1000V Single Output
Output 800V-10000W High-Power AC-DC Switching Power Supply with Multi-Voltage Input & 24V-1000V Single Output
1 / 5
Output 800V-10000W High-Power AC-DC Switching Power Supply with Multi-Voltage Input & 24V-1000V Single Output
Output 800V-10000W High-Power AC-DC Switching Power Supply with Multi-Voltage Input & 24V-1000V Single Output
Output 800V-10000W High-Power AC-DC Switching Power Supply with Multi-Voltage Input & 24V-1000V Single Output
Output 800V-10000W High-Power AC-DC Switching Power Supply with Multi-Voltage Input & 24V-1000V Single Output
Output 800V-10000W High-Power AC-DC Switching Power Supply with Multi-Voltage Input & 24V-1000V Single Output

Output 800V-10000W High-Power AC-DC Switching Power Supply with Multi-Voltage Input & 24V-1000V Single Output

Send Inquiry

Product Description

Regulated Power Supply Banner

We feature a professional production facility encompassing 10,000 square meters. Specialized in manufacturing high-power regulated power supplies for over 15 years, our operations represent industry-leading quality standards, recognized integrity, and exceptional after-sales service support.

Product Profile

DC Switching Power Supply Main View

DC Switching Power Supply

  • Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
  • Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
  • Features: High stability and reliability
  • Warranty: 1 Year
  • Weight: Approximately 25KG

Detailed Views

Detail Angle 1
Detail Angle 2
Detail Angle 3
Detail Angle 4
Detail Angle 5

Technical Specifications

Product Name DC Switching Power Supply Operating Relative Humidity 20% ~ 88%
Power Rating 10000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC fields
Input Voltage Single-phase / Three-phase 220V / 380V Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V Product Features High stability, high reliability
Output Current Selected power / selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 25KG
Efficiency ≥ 88 - 89% Carton Dimensions 770x400x600mm
Output Voltage Accuracy ±1% - -

Additional Product Highlights

Interior Details 1
Interior Details 2
Interface Panels
Assembly Process
Quality Inspection

Product Instructions & Guidelines

1
Before powering on, check the stored and transported switch power supply. Any damage during transportation should be checked, such as loose screws, abnormal appearance, disconnected power cords or terminals, and signs of dampness. Address any such phenomena in a timely manner.
2
The local power switch controls the internal auxiliary power supply. For safety reasons, please add an air switch to the power input terminal to control main power input. Connect the ground wire and input power wire according to the labels on the rear panel. Ensure that the input power supply matches the voltage indicated in the manual.
3
The cooling fan is temperature controlled and will start when the internal temperature exceeds the starting threshold. Speed varies based on output voltage and current. Ensure the inlet and outlet vents remain unblocked during operation.
4
If the internal temperature reaches the shutdown threshold, the machine will stop automatically to prevent damage. It will resume operation once it cools down.
5
When operating, avoid environments exceeding normal dust levels, acid, or corrosive elements. Keep away from severe vibration, bumps, rain, and direct sunlight.
6
Perform regular dust removal using dry compressed air to improve service life and reliability. High voltage is present inside; do not open the casing to prevent component damage.
7
Store in a dry, ventilated area if idle long-term. If stored for over 6 months, power on and operate the unit for more than 30 minutes.
8
Warning: Only connect load equipment to the output once the initial power-on test has run normally and error-free.
9
Troubleshooting: If operation seems abnormal, turn off the switch immediately. Verify external connections, screws, switches, and knobs. Do not unscrew the casing or attempt unauthorized self-repair due to high internal voltages. Contact support promptly for assistance.

Frequently Asked Questions (FAQ)

1. Does the power supply have built-in overvoltage, overcurrent, overheating, or short-circuit protection?
Yes. The system features full protective measures for overcurrent, overvoltage, overheating, and short-circuit faults to ensure safe operation.
2. Is there reverse polarity protection available?
Yes. Reverse polarity protection can be added as a custom option upon request.
3. Can it be operated at full power continuously?
No, we recommend operating with a reserve capacity. For long-term continuous operations, usage should remain below 80% of the maximum capacity.
4. How is the output voltage and current adjusted?
Adjustment is very straightforward. The voltage and current levels can be regulated precisely using the integrated dual control knobs.
5. Are these high-power power supplies electrically isolated?
Yes, our high-power DC switching power supplies are fully isolated units designed for safety and system protection.
6. What is the regulation start range for the voltage output?
The voltage regulation starts from 1V.
