Product Description

High-Power Regulated Power Supplies Production Factory

Equipped with a professional production factory spanning 10,000 square meters, we have specialized in high-power regulated power supplies for 15 years. Recognized as an honest enterprise unit and an excellent provider of after-sales service, we are committed to delivering highly reliable power solutions with convenient product export operations globally.

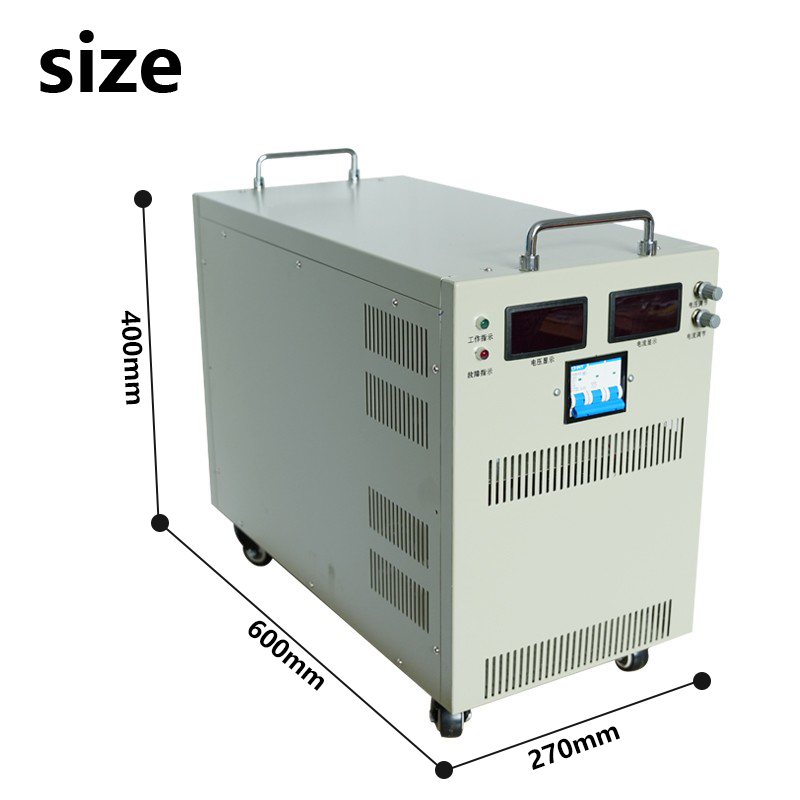

DC Switching Power Supply Overview
Product Name: DC Switching Power Supply

Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.

Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection

Features: High stability and reliability

Warranty: 1 year

Weight: Approximately 25KG

DC Switching Power Supply Interface
DC Switching Power Supply Performance Diagram
DC Switching Power Supply Specifications
DC Switching Power Supply Inside Layout

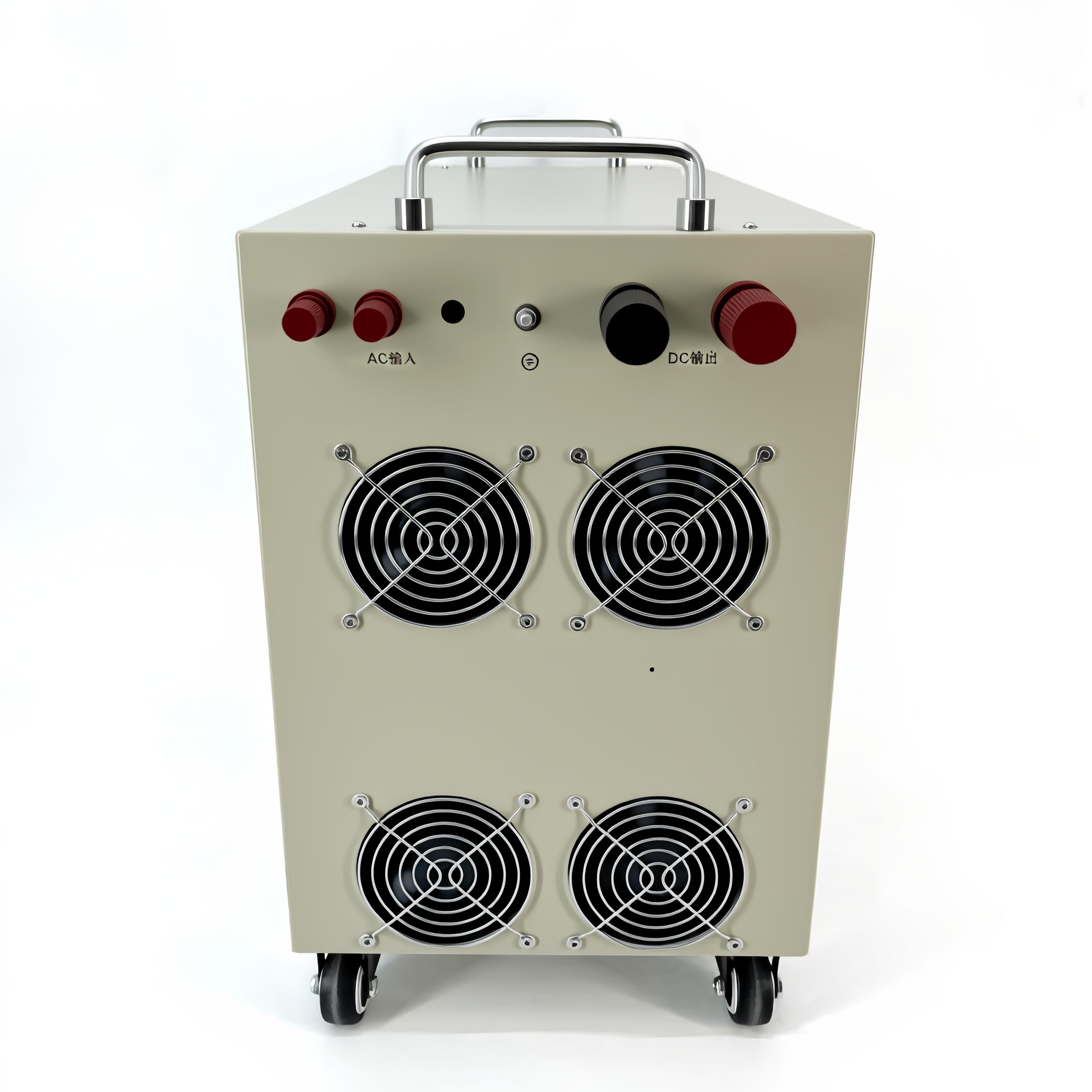

DC Switching Power Supply Connection Terminals
Technical Specifications
Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 12000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase/Three-phase 220V, 380V Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V Product Features High stability, high reliability
Output Current Selected power/selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 25KG
Efficiency >88-89% Carton Dimensions 770x400x600mm
Output Voltage Accuracy ±1% - -
DC Switching Power Supply Manufacturing Detail
Quality Testing Details
Internal Component View
Control Panel Assembly
Power Supply Finished Unit
Product Instructions
  • 1
    Before powering on, check the stored and transported switch power supply. Verify if damage occurred during transportation, such as loose screws, abnormal appearance, power cords or terminals shaken off, or exposure to dampness. If any issues are found, handle them in a timely manner.
  • 2
    The local power switch controls the auxiliary power supply inside the machine. For safety, please add an air switch to the power input terminal to control the main input. Connect the ground wire and input power wire according to the label on the rear panel. Confirm that the voltage of the input power supply matches the values indicated in the manual.
  • 3
    The cooling fan is temperature controlled and starts running when internal temperature limits are exceeded. The fan speed varies according to output voltage and current, which is normal. Ensure the inlet and outlet of the fan remain unblocked during operation.
  • 4
    When the temperature inside the machine reaches the threshold for overheating shutdown, the machine will automatically stop working to prevent damage. It will automatically start and resume work once the temperature drops slightly.
  • 5
    Ensure operating environments avoid excessive levels of dust, acid, corrosive gases, or substances. Avoid severe vibrations, bumps, rain, and direct exposure to sunlight.
  • 6
    Regular dust removal (using dry compressed air) can significantly increase the service life and reliability of the equipment. Due to internal high voltage, do not open the casing to prevent component damage.
  • 7
    When idle for long periods, store the equipment in a dry, ventilated room. If stored for over 6 months, power on the device and run it for at least half an hour.
  • 8
    Warning: Connect to the load equipment only after the initial power-on test functions normally and without errors.
  • 9
    Malfunction Handling: If abnormal operation is observed, cut off the power switch immediately. Inspect all internal/external connections for tightness and verify switch positions. High voltage is present inside; do not attempt self-repair without professional knowledge. Please contact the technical support team promptly to resolve issues.
Frequently Asked Questions
Does this power supply unit feature comprehensive safety protections?
Yes, the power supply is fully equipped with overvoltage, overcurrent, overheating, and short-circuit protection features.
Is reverse polarity protection available?
Yes, reverse polarity protection can be integrated as an optional, customized upgrade.
Can the power supply be run at full capacity for extended durations?
Continuous operation is recommended with a reserve capacity margin. Running the power supply below 80% load capacity is optimal for long-term usage.
How easy is it to adjust the voltage and current?
Adjustments are very convenient. The system utilizes dual control knobs to easily set the required voltage and current levels.
Is the high-power unit designed with isolated outputs?
Yes, our high-power power supplies are designed with fully isolated circuitry for maximum safety and performance.
What is the voltage regulation starting range and is the power delivery sufficient?
The voltage regulation starts from 1V, and the equipment is fully rated to provide sufficient, consistent power output.
