High Power Adjustable Regulated AC-DC Single Output Power Supply (12000W 24V-1000V Optional High Efficiency)
High Power Adjustable Regulated AC-DC Single Output Power Supply (12000W 24V-1000V Optional High Efficiency)
High Power Adjustable Regulated AC-DC Single Output Power Supply (12000W 24V-1000V Optional High Efficiency)
High Power Adjustable Regulated AC-DC Single Output Power Supply (12000W 24V-1000V Optional High Efficiency)
High Power Adjustable Regulated AC-DC Single Output Power Supply (12000W 24V-1000V Optional High Efficiency)
1 / 5
High Power Adjustable Regulated AC-DC Single Output Power Supply (12000W 24V-1000V Optional High Efficiency)
High Power Adjustable Regulated AC-DC Single Output Power Supply (12000W 24V-1000V Optional High Efficiency)
High Power Adjustable Regulated AC-DC Single Output Power Supply (12000W 24V-1000V Optional High Efficiency)
High Power Adjustable Regulated AC-DC Single Output Power Supply (12000W 24V-1000V Optional High Efficiency)
High Power Adjustable Regulated AC-DC Single Output Power Supply (12000W 24V-1000V Optional High Efficiency)

High Power Adjustable Regulated AC-DC Single Output Power Supply (12000W 24V-1000V Optional High Efficiency)

Send Inquiry

Product Description

Regulated Power Supply Manufacturing

Equipped with a professional production factory of 10,000 square meters, specializing in high-power regulated power supplies for 15 years.

DC Switching Power Supply

Product Overview

  • Product Name: DC Switching Power Supply
  • Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
  • Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
  • Features: High stability and reliability
  • Warranty: 1 year
  • Weight: Approximately 25 KG

Product Showcase

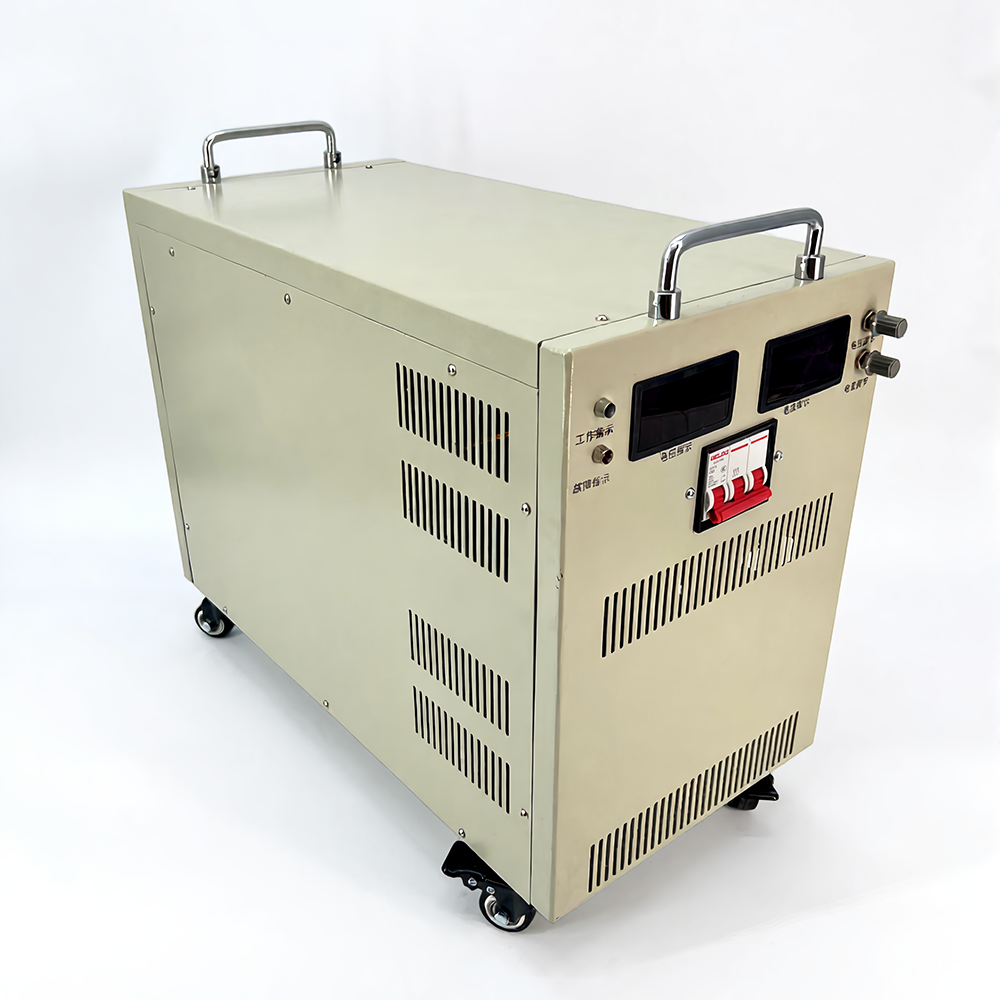

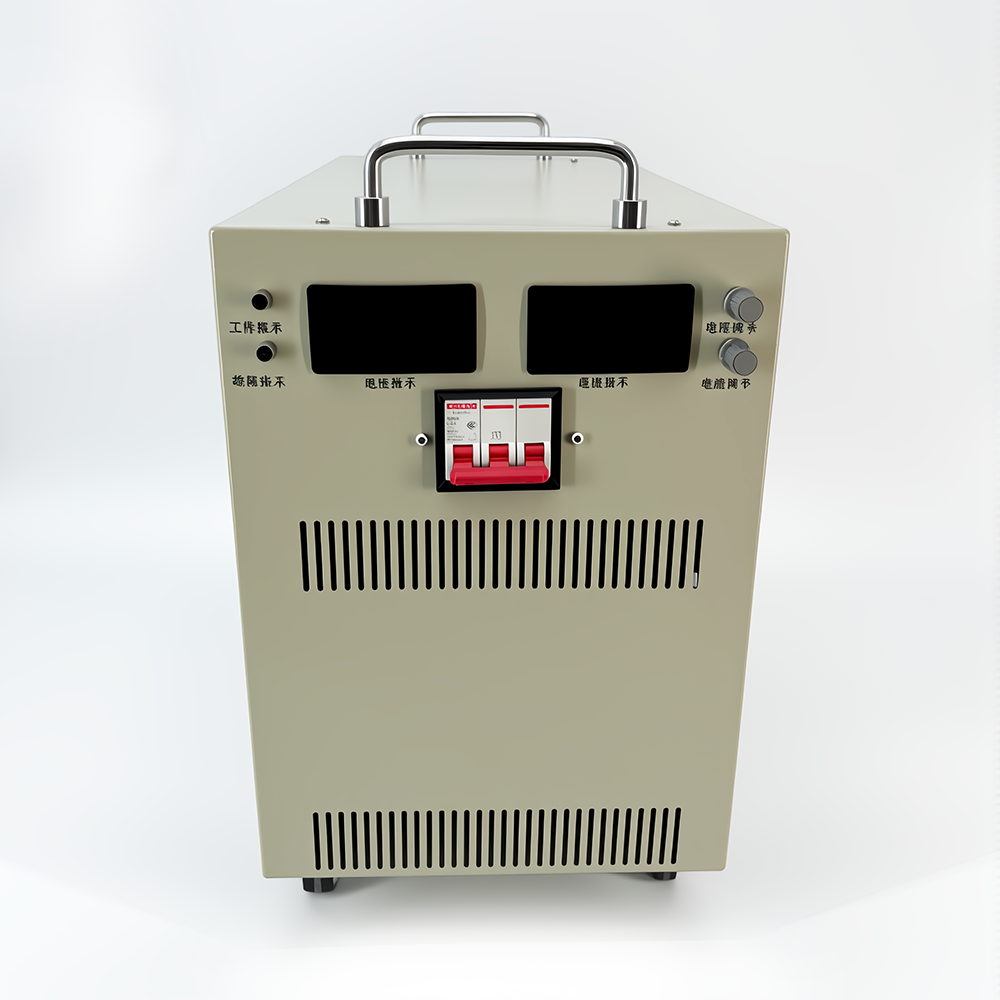

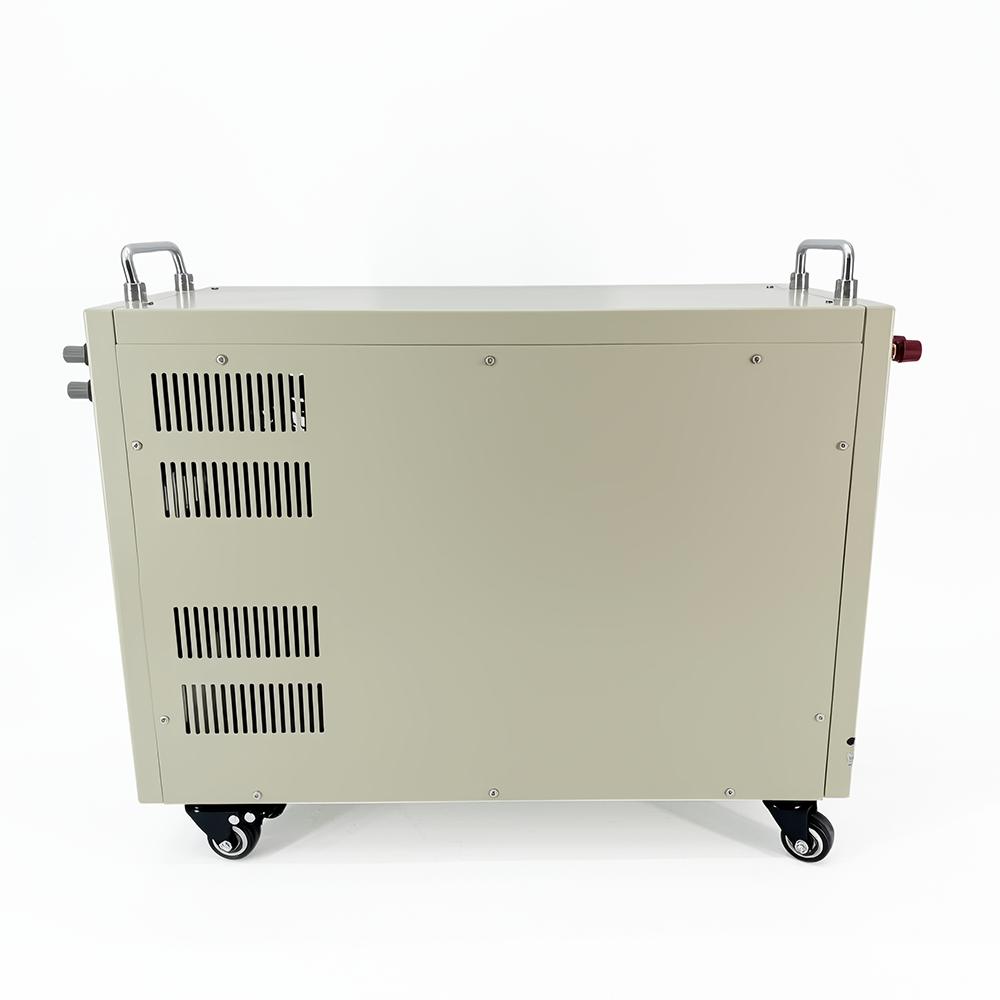

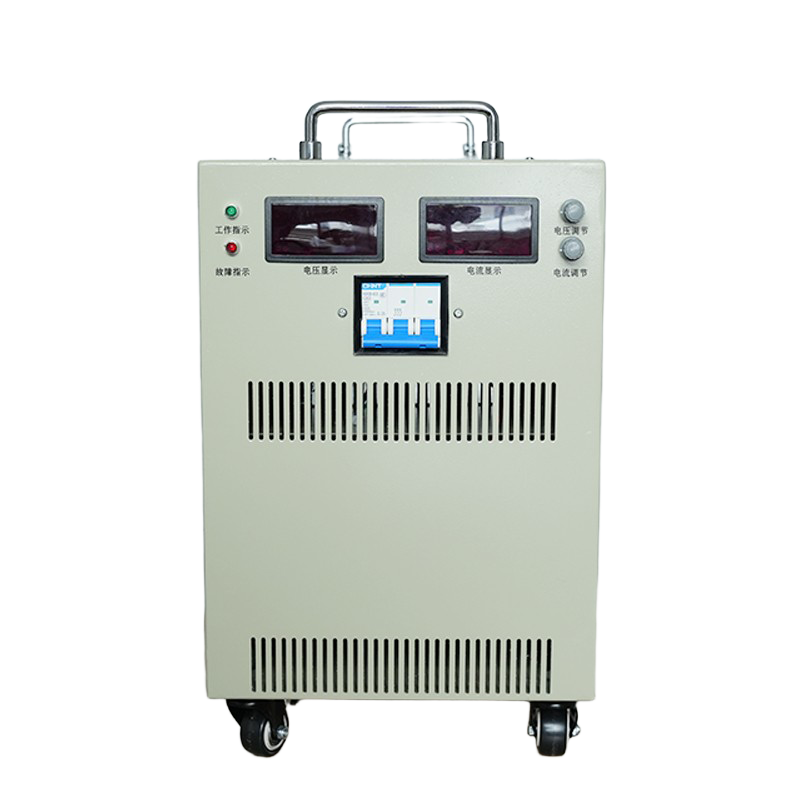

DC Power Supply Unit Front View DC Power Supply Unit Side View DC Power Supply Details

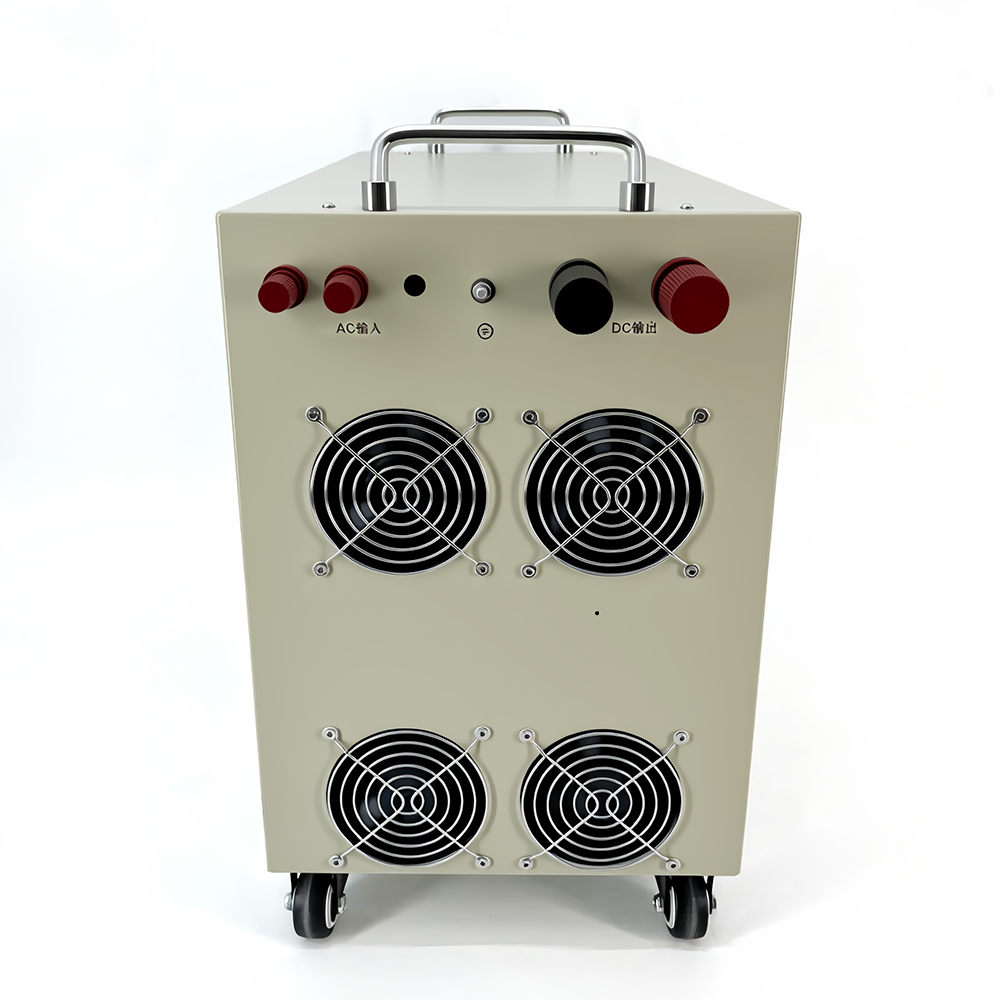

DC Power Supply Interface DC Power Supply Internal Layout

Technical Specifications

Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 12000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase/Three-phase 220V±10% 50-60HZ / 380V±10% 50-60HZ Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V Product Features High stability, high reliability
Output Current Selected power/selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 25 KG
Efficiency >88-89% Carton Dimensions 770x400x600mm
Output Voltage Accuracy ±1% - -

Detailed Images

Product Feature Highlight 1 Product Feature Highlight 2 Product Feature Highlight 3
Product Feature Highlight 4 Product Feature Highlight 5

Product Instructions

1. Inspection: Before powering on, check the stored and transported switch power supply. Any damage during transportation should be checked, such as loose screws, abnormal appearance, whether the power cord and terminals are shaken off, or if they are damp. If any such issues occur, they should be handled in a timely manner.
2. Installation: The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel. Confirm that the voltage of the input power supply matches the voltage indicated in the manual.
3. Cooling: The cooling fan is temperature controlled. When the internal temperature exceeds the starting threshold, the fan will run. The fan speed varies with output voltage and current. Ensure that the air inlet and outlet are not blocked during operation.
4. Protection: When the internal temperature reaches the threshold for overheating shutdown, the machine will automatically stop working. Once the temperature drops, it will automatically resume work.
5. Environment: Avoid exposing the equipment to dust, acid, corrosive gases, severe vibrations, bumps, rain, or direct sunlight.
6. Maintenance: Regularly carry out dust removal with dry compressed air to improve the service life and reliability of the equipment. Do not open the casing or touch internal components due to high internal voltage.
7. Storage: If the power equipment is idle for more than 6 months, store it in a dry, ventilated room and power it on for at least half an hour before use.
8. Warning: Only connect the load equipment after confirming the power-on test is normal and error-free.
9. Troubleshooting: If abnormal operation is found, turn off the power switch immediately. Check all external connections, screws, switches, and knobs. Do not attempt to open the casing or repair the unit yourself to avoid electric shock. Please notify technical support promptly to resolve the issue.

Frequently Asked Questions

Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes, the power supply includes comprehensive protection mechanisms for overcurrent, overvoltage, overheating, and short circuit safety.
Is there reverse protection available?
Yes, reverse protection can be configured as a customized option.
Can it be used at full power for a long period?
No, the power supply should be used with excess capacity. For long-term continuous operation, it is recommended to keep the load below 80% of capacity.
Is it convenient to adjust the voltage and current?
Yes, it is very convenient. Both the voltage and current can be easily adjusted using the dual control knobs.
Is the high-power power supply isolated?
Yes, our equipment is built as a fully isolated power supply.
What is the voltage regulation range of this power supply?
The voltage regulation range starts from 1V.
