High Power Linear Regulated AC-DC Power Supply 12000W Capacity 24V-1000V Single Output
High Power Linear Regulated AC-DC Power Supply 12000W Capacity 24V-1000V Single Output
High Power Linear Regulated AC-DC Power Supply 12000W Capacity 24V-1000V Single Output
High Power Linear Regulated AC-DC Power Supply 12000W Capacity 24V-1000V Single Output
High Power Linear Regulated AC-DC Power Supply 12000W Capacity 24V-1000V Single Output
1 / 5
High Power Linear Regulated AC-DC Power Supply 12000W Capacity 24V-1000V Single Output
High Power Linear Regulated AC-DC Power Supply 12000W Capacity 24V-1000V Single Output
High Power Linear Regulated AC-DC Power Supply 12000W Capacity 24V-1000V Single Output
High Power Linear Regulated AC-DC Power Supply 12000W Capacity 24V-1000V Single Output
High Power Linear Regulated AC-DC Power Supply 12000W Capacity 24V-1000V Single Output

High Power Linear Regulated AC-DC Power Supply 12000W Capacity 24V-1000V Single Output

Send Inquiry

Product Description

Production Facility Banner

Operating a professional production factory spanning 10,000 square meters, we have specialized in high-power regulated power supplies for over 15 years. Committed to honest enterprise practices and high standards of service, we deliver reliable power electronics solutions worldwide.

DC Switching Power Supply

DC Switching Power Supply

  • Application: Widely used in power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC fields.
  • Protection: Equipped with Overcurrent, Overvoltage, Overheat, and Short Circuit Protection.
  • Features: High stability, high reliability, and excellent performance.
  • Warranty: 1 year warranty coverage.
  • Weight: Approximately 25KG.

Product Diagrams & Dimensions

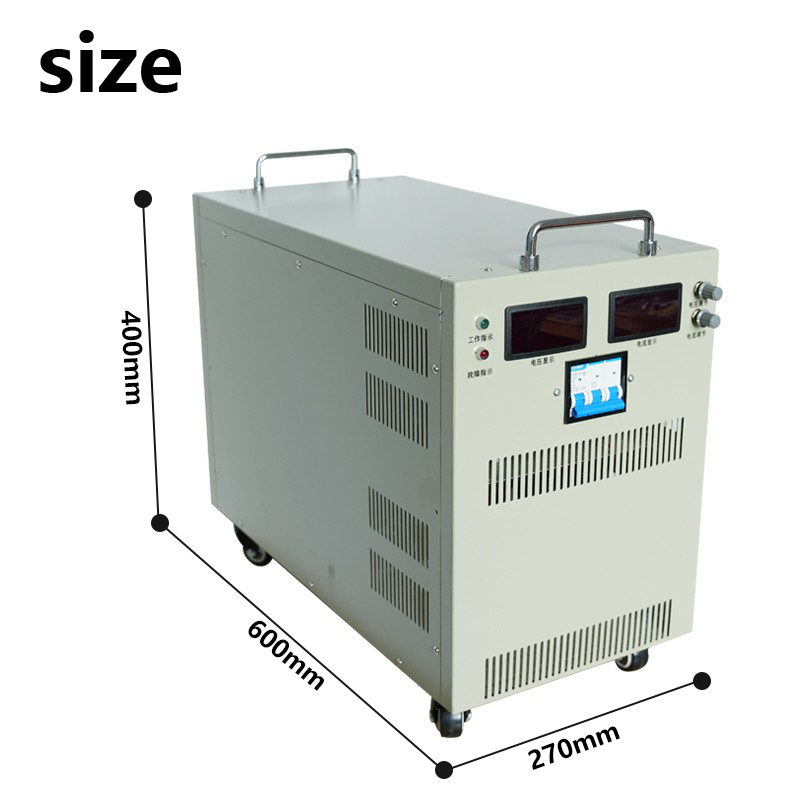

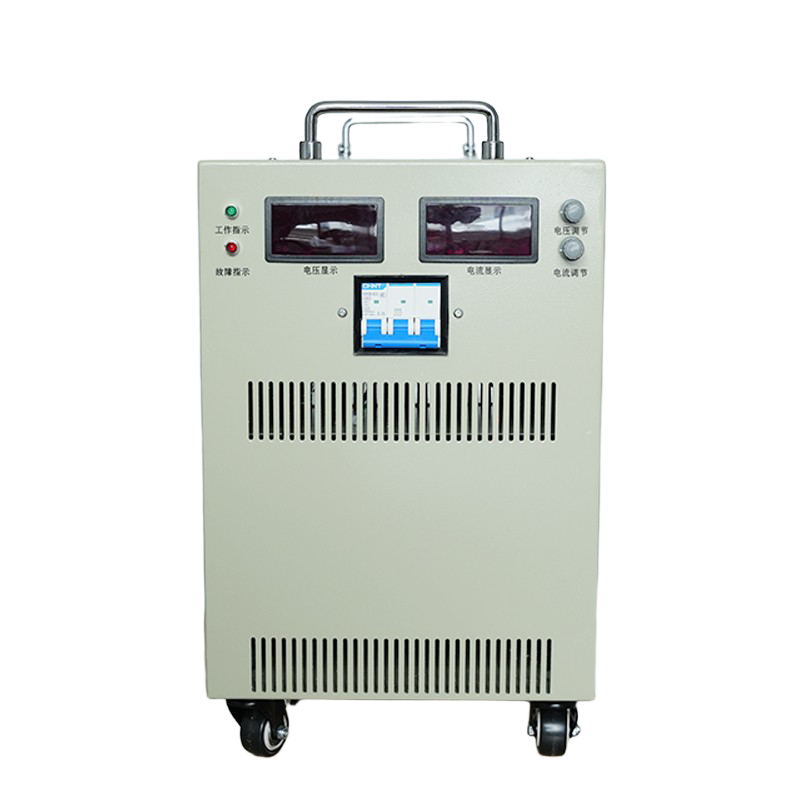

Interface Layout Diagram Internal Design View Front Panel Controls Dimension Specifications Technical Specifications Sheet

Technical Specifications

Product Name DC Switching Power Supply Operating Relative Humidity 20% ~ 88%
Power Rating 12000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC fields
Input Voltage Single-phase / Three-phase 220V / 380V Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V to 1000V (Available in multiple standard output ranges) Product Features High stability, high reliability
Output Current Determined by selected power / selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 25KG
Efficiency ≥ 88-89% Carton Dimensions 770x400x600mm
Output Voltage Accuracy ±1% - -

Product Showcase Gallery

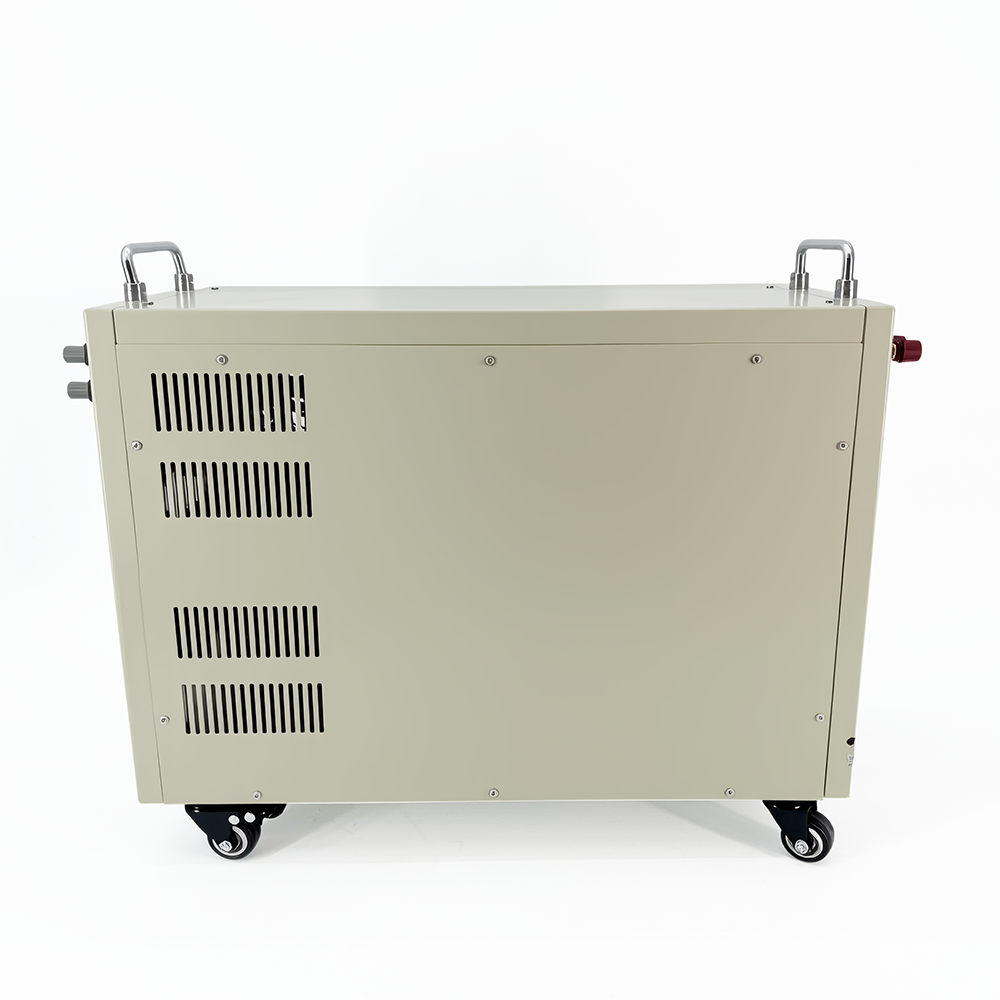

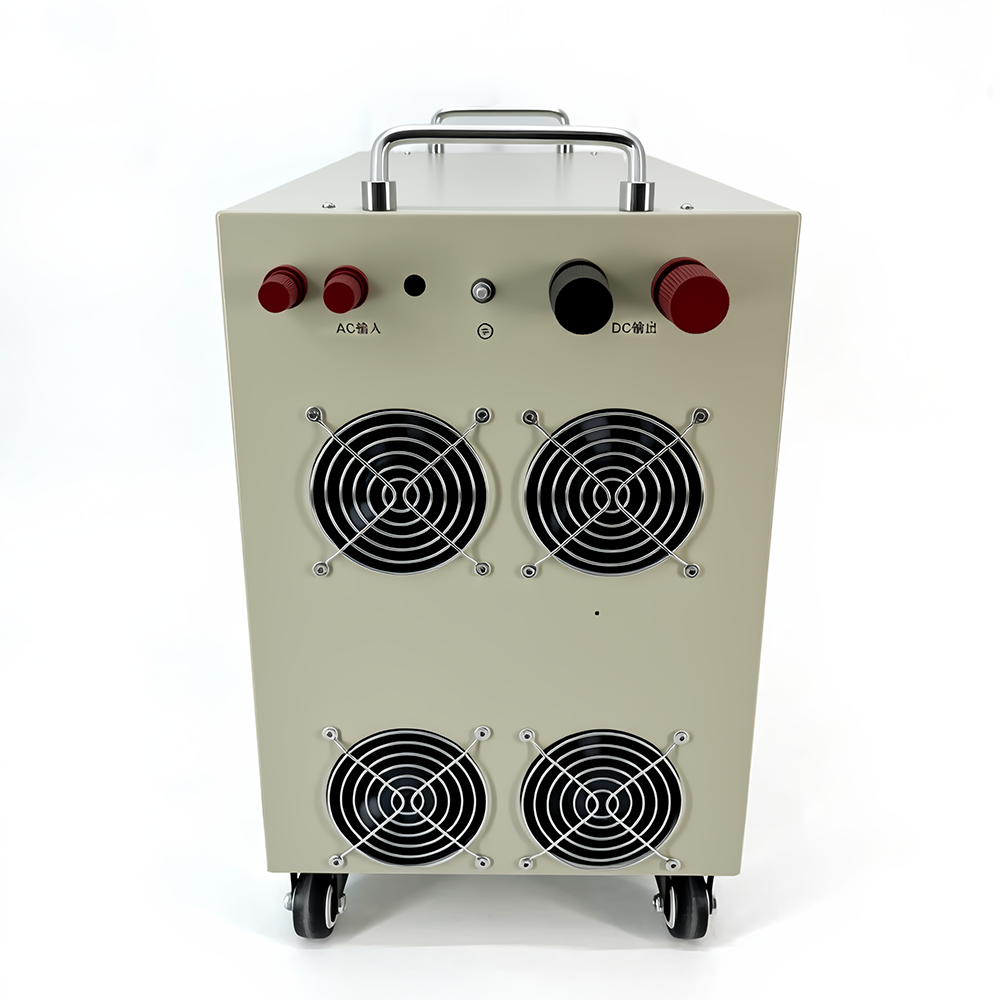

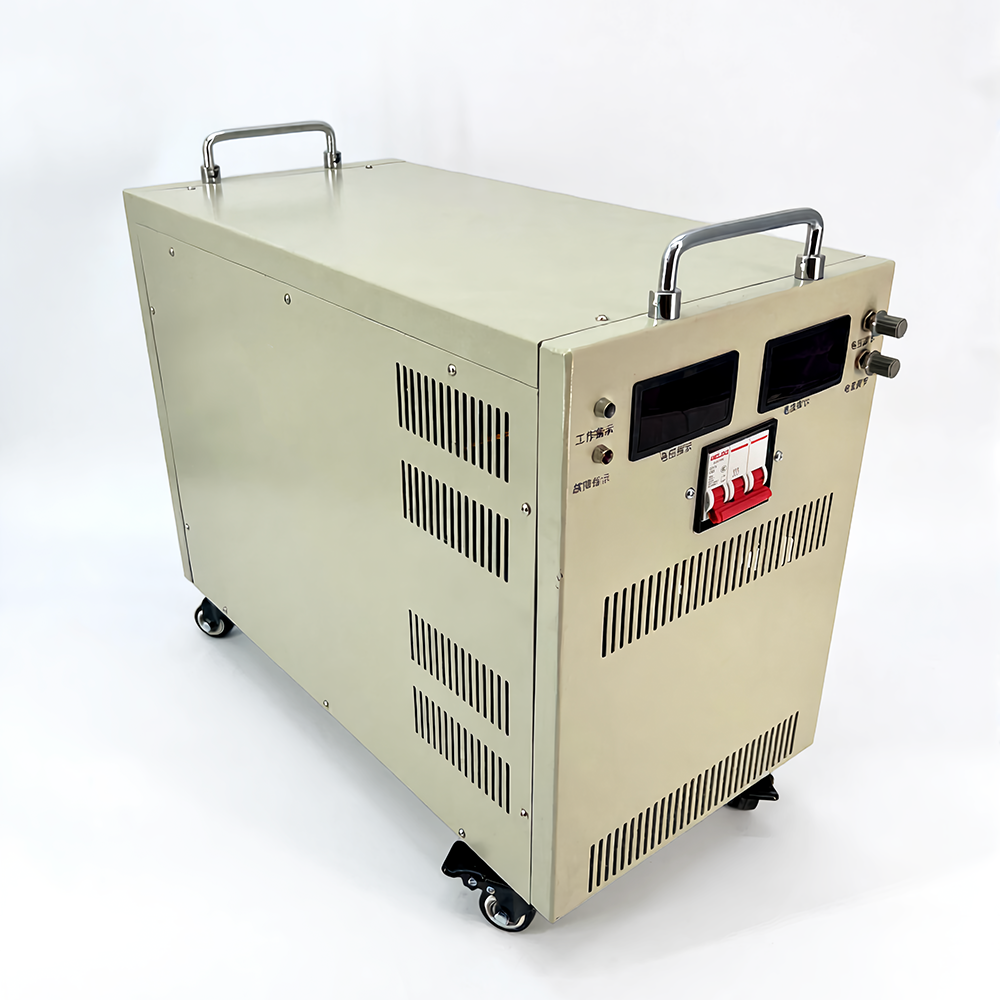

Product Angle 1 Product Angle 2 Product Angle 3 Product Detail View Product Rear Panel

Product Instructions & Guidelines

  • Inspection: Check the unit for any transit damage (e.g., loose screws, dampness, visual abnormalities, loose terminals) before powering on.
  • Power Source Setup: The built-in switch controls the internal auxiliary power supply. Connect an appropriate air switch at the power input terminal to manage the primary power input. Ensure the ground wire is correctly routed.
  • Cooling Fan System: The built-in fan is temperature-controlled. Avoid blocking the inlet and outlet vents. Fan speed will adjust automatically based on current load conditions.
  • Overheat Safety: If internal operating temperatures reach safety limits, the machine will shut down automatically and restart once temperatures cool down.
  • Operating Environment: Use the equipment in environments free from extreme dust, acidic/corrosive gases, severe vibrations, humidity, or direct intense sunlight.
  • Maintenance & Cleanliness: Regularly clean out dust using dry compressed air. Do not open the unit enclosure if you are not a qualified technician due to internal high voltage risks.
  • Long-term Storage: Store in a dry, ventilated area. For storage exceeding 6 months, power on the device for at least 30 minutes to maintain component longevity.
  • Connecting Load: Only establish connection to power-consuming equipment after verifying proper no-load operation.
  • Troubleshooting: If malfunctions are detected, shut off the power immediately. Verify terminal tightness and settings configuration. Do not attempt internal DIY repairs.

Frequently Asked Questions

Q: Does this DC power supply feature overvoltage, overcurrent, overheating, or short circuit protection?
A: Yes. The system is equipped with robust protections against overvoltage, overcurrent, overheating, and short-circuit faults to ensure safe operation.
Q: Is reverse protection available for this power supply?
A: Yes, reverse protection features can be added as an optional upgrade upon request.
Q: Can the power supply be operated at full load continuously?
A: No. For stable long-term operation, we recommend selecting a unit with excess capacity and running the power supply below 80% of its maximum rating.
Q: How do you adjust the voltage and current outputs?
A: The voltage and current output levels can be adjusted easily via the dual precision knobs on the front control panel.
Q: Are these high-power supplies isolated?
A: Yes, our high-power regulated systems feature a fully isolated design to safeguard sensitive load equipment.
Q: What is the regulation range of the output voltage?
A: The voltage regulation starts from 1V up to the maximum rated capability of the selected model.
