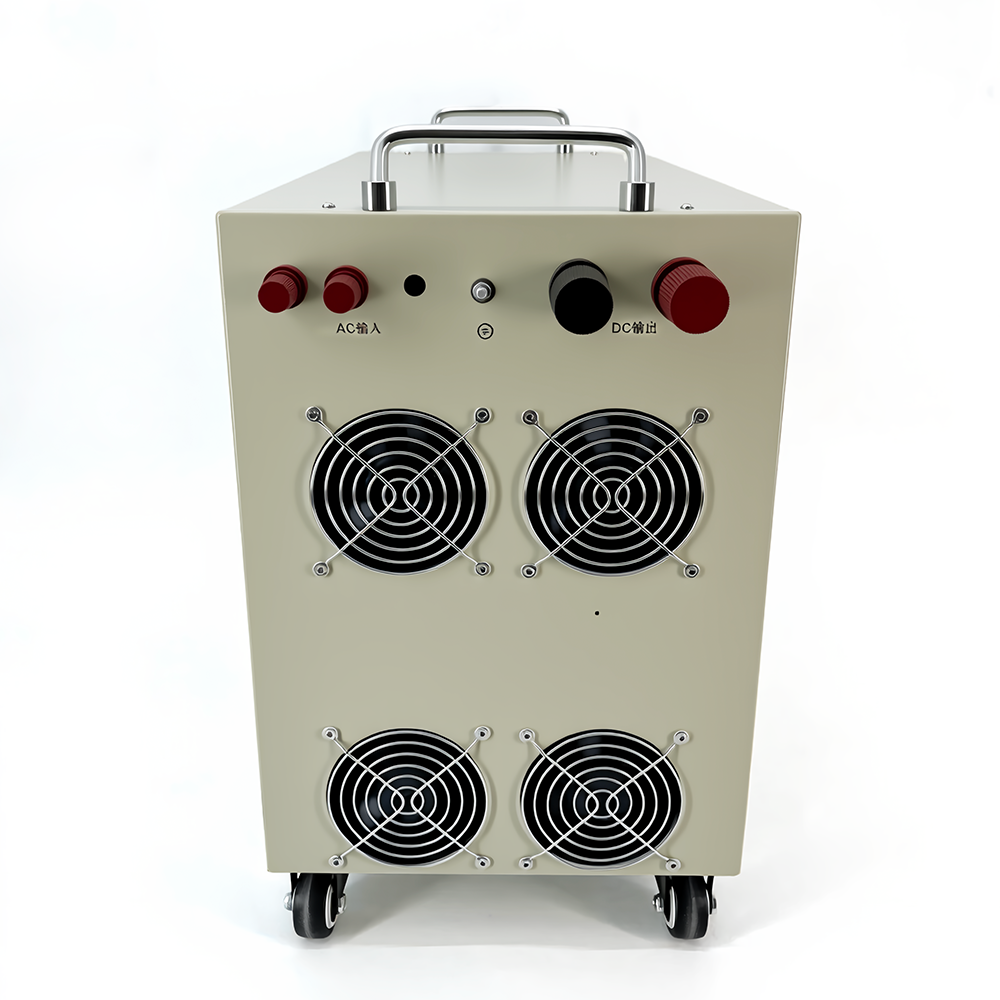

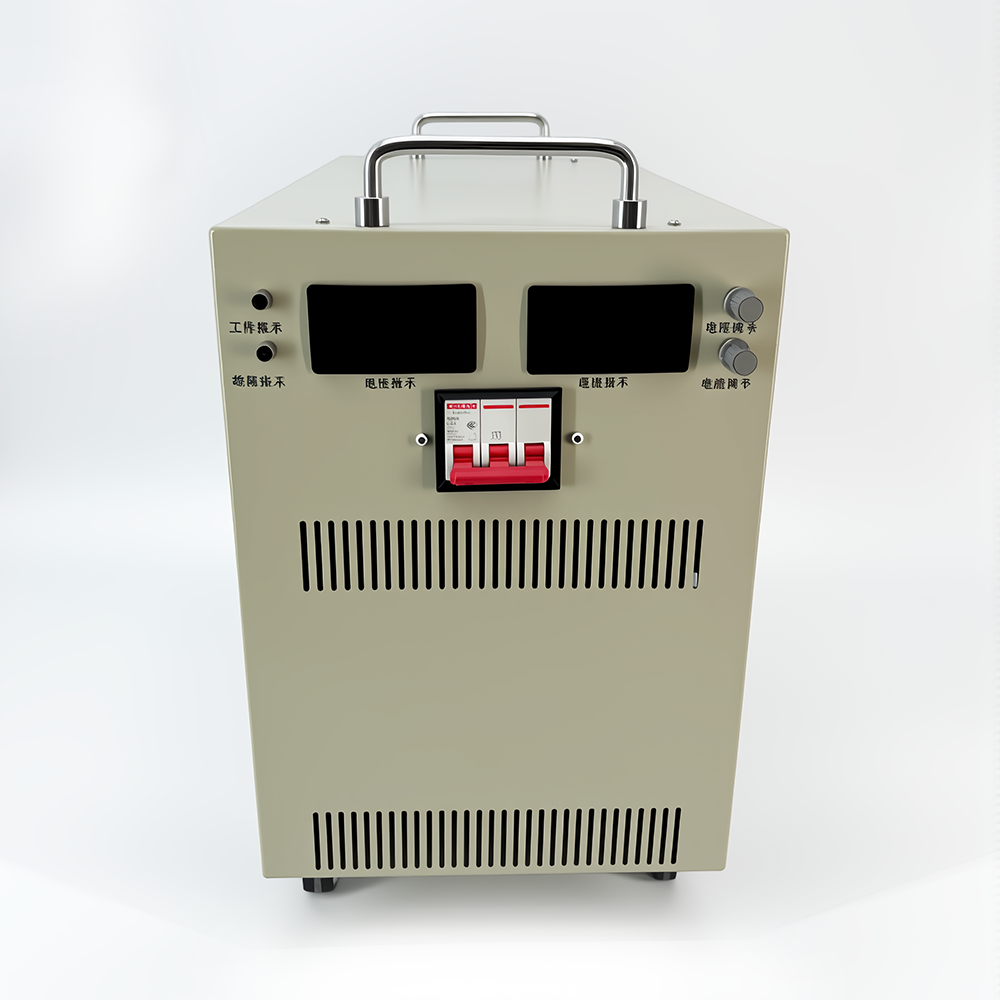

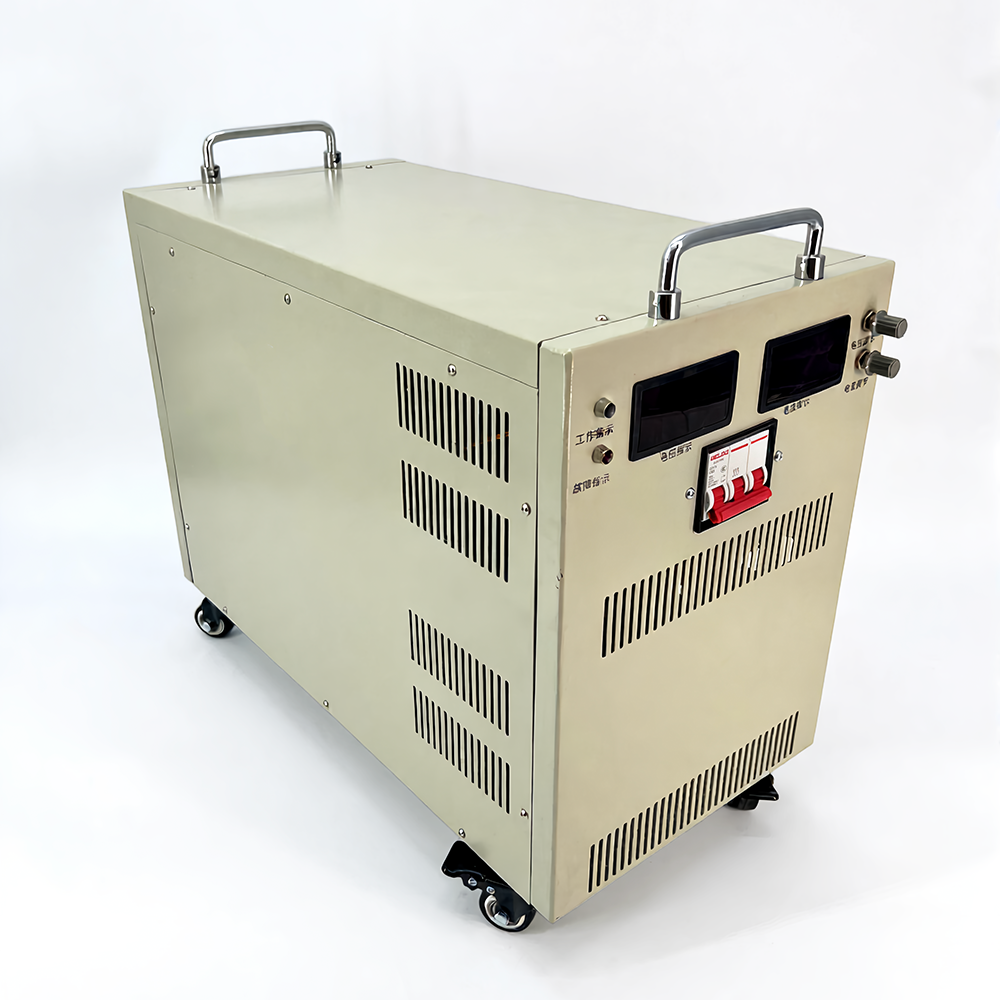

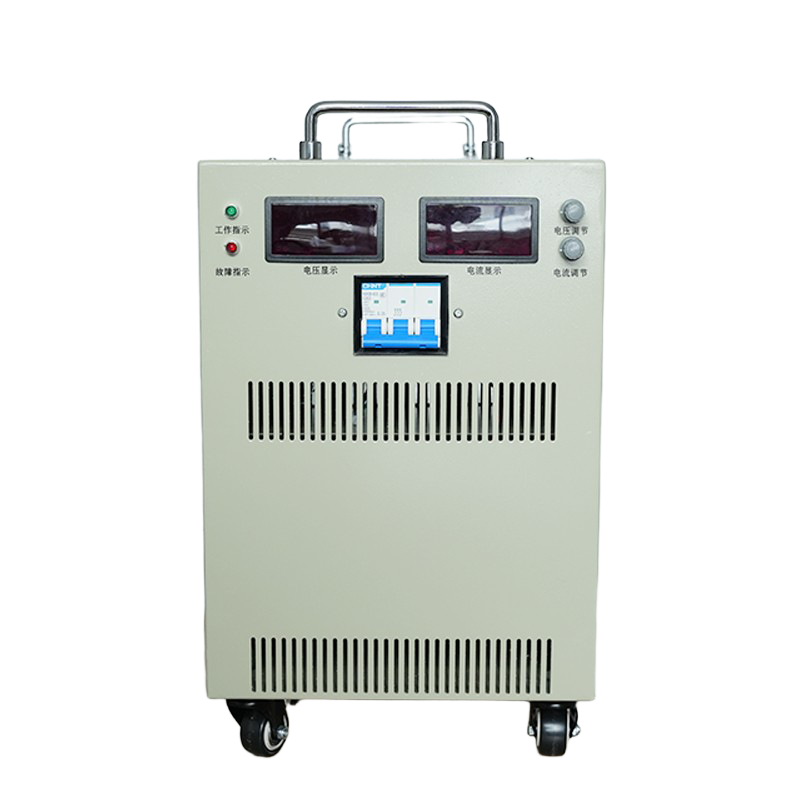

DC Voltage Regulator Switching Power Supply (10000W) Single Output 24V-1000V Optional Output High Efficiency
DC Voltage Regulator Switching Power Supply (10000W) Single Output 24V-1000V Optional Output High Efficiency
DC Voltage Regulator Switching Power Supply (10000W) Single Output 24V-1000V Optional Output High Efficiency
DC Voltage Regulator Switching Power Supply (10000W) Single Output 24V-1000V Optional Output High Efficiency
DC Voltage Regulator Switching Power Supply (10000W) Single Output 24V-1000V Optional Output High Efficiency
1 / 5
DC Voltage Regulator Switching Power Supply (10000W) Single Output 24V-1000V Optional Output High Efficiency
DC Voltage Regulator Switching Power Supply (10000W) Single Output 24V-1000V Optional Output High Efficiency
DC Voltage Regulator Switching Power Supply (10000W) Single Output 24V-1000V Optional Output High Efficiency
DC Voltage Regulator Switching Power Supply (10000W) Single Output 24V-1000V Optional Output High Efficiency
DC Voltage Regulator Switching Power Supply (10000W) Single Output 24V-1000V Optional Output High Efficiency

DC Voltage Regulator Switching Power Supply (10000W) Single Output 24V-1000V Optional Output High Efficiency

Send Inquiry

Product Description

DC Switching Power Supply Banner
DC Switching Power Supply

DC Switching Power Supply

  • ■ Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
  • ■ Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
  • ■ Features: High stability and reliability
  • ■ Warranty: 1 year
  • ■ Weight: Approximately 25KG
DC Switching Power Supply Feature 1
DC Switching Power Supply Feature 2
DC Switching Power Supply Feature 3
DC Switching Power Supply Feature 4
DC Switching Power Supply Feature 5

Product Specifications

Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 10000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase/Three-phase 220V, 380V Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V Product Features High stability, high reliability
Output Current Selected power/selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 25KG

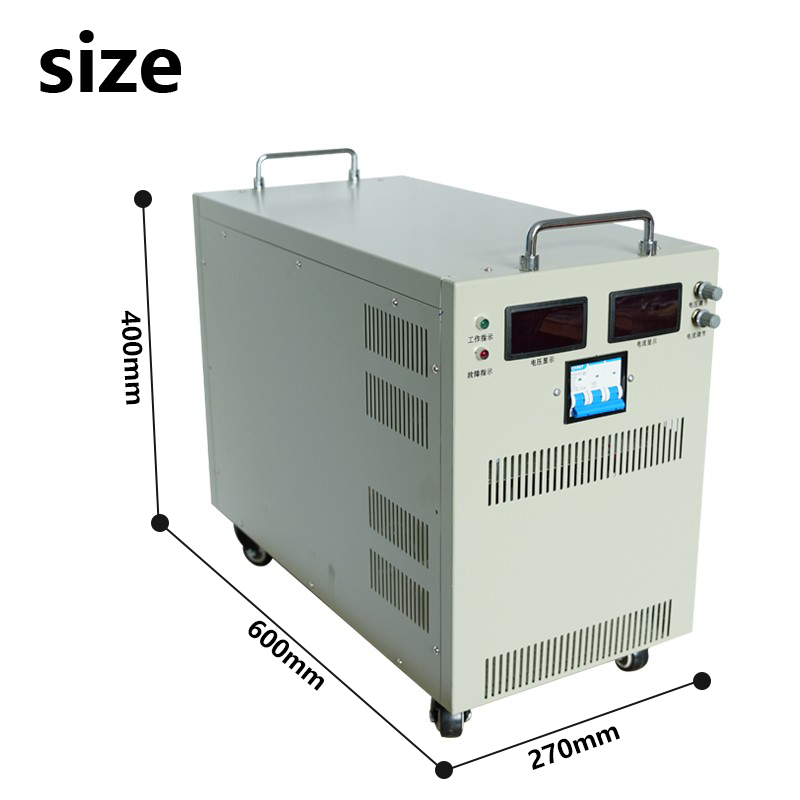

Efficiency > 88-89% Carton Dimensions 770x400x600mm
Output Voltage Accuracy ±1% - -
Production Process 1
Production Process 2
Production Process 3
Production Process 4
Production Process 5

Product Instructions

1
Before powering on, check the stored and transported switch power supply. Check for any damage during transportation, such as whether the screws are loose, the appearance is abnormal, the power cord and terminal are shaken off, or if they are damp. If any of these occur, they must be addressed in a timely manner.
2
The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel. Confirm that they are connected correctly and that the voltage of the input power supply matches the voltage indicated in the manual.
3
The cooling fan is temperature-controlled and starts when the internal temperature exceeds the starting threshold. The fan speed varies with the output voltage and current. Ensure the fan's inlet and outlet are not blocked during operation.
4
If the internal temperature reaches the overheating shutdown threshold, the machine will automatically stop working to prevent damage. It will resume operation automatically once the temperature drops.
5
Avoid exposing the equipment to abnormal levels of dust, acid, corrosive gases, severe vibrations, impacts, rain, or direct sunlight.
6
Regular dust removal is recommended to improve the lifespan and reliability of the equipment. Dry compressed air can be used, but due to high internal voltage, do not open the casing or damage internal components.
7
When idle for a long time, store the equipment in a dry, ventilated room. If stored for more than 6 months, power on and operate the equipment for at least half an hour.
8
Warning: Only connect the powered load equipment once the power-on test is confirmed normal and error-free.
9
Malfunction Handling: If abnormal operation is detected, shut off the power switch immediately and verify the internal and external connections, screws, switches, and knobs. Do not unscrew the casing or attempt repairs yourself without professional knowledge and equipment due to the presence of high voltage. Please contact authorized technical support promptly to resolve the issue.

Frequently Asked Questions

Q: Is there overvoltage, overcurrent, overheating, or short circuit protection?

A: Yes, the power supply is equipped with complete protection functions including overcurrent, overvoltage, overheating, and short-circuit protection.

Q: Is there reverse protection?

A: Reverse protection can be configured as an optional customization.

Q: Can it be used at full power for a long time?

A: No, the power supply needs to be operated with excess capacity. It is recommended to use the power supply below 80% capacity for long-term continuous operation.

Q: Is it convenient to adjust voltage and current?

A: Yes, it is very convenient. The voltage and current can be adjusted easily using the dual knobs.

Q: Is the high-power power supply isolated?

A: Yes, our units are fully isolated power supplies.

Q: What is the voltage regulation range and power sufficiency?

A: The voltage regulation starts from 1V, and the power supply delivers full and sufficient rated power.
