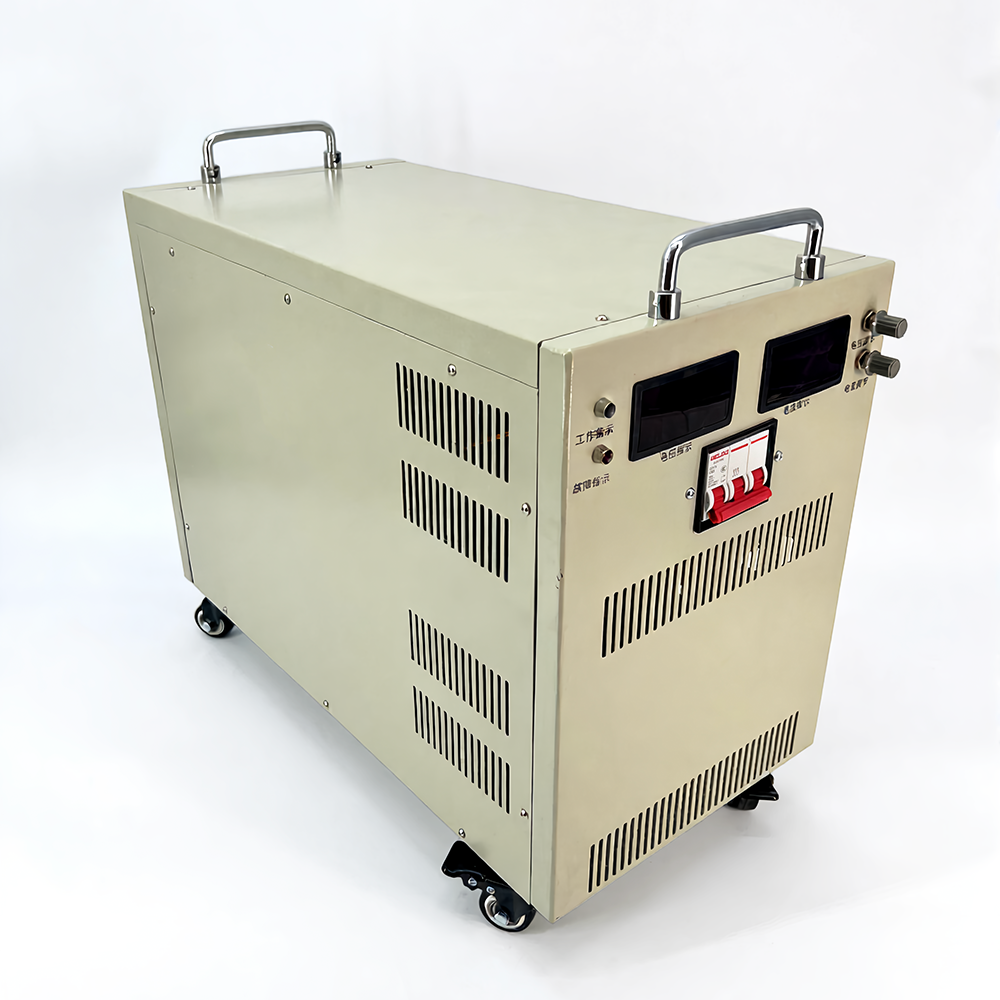

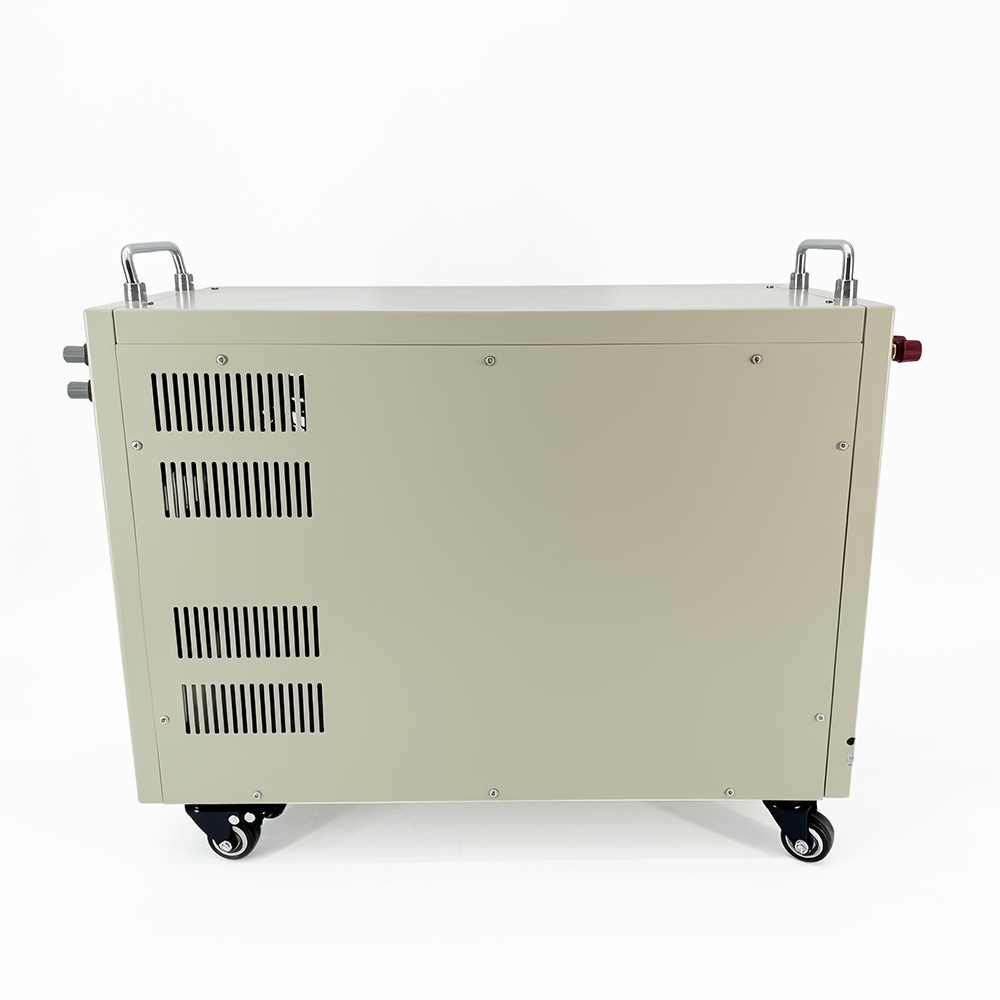

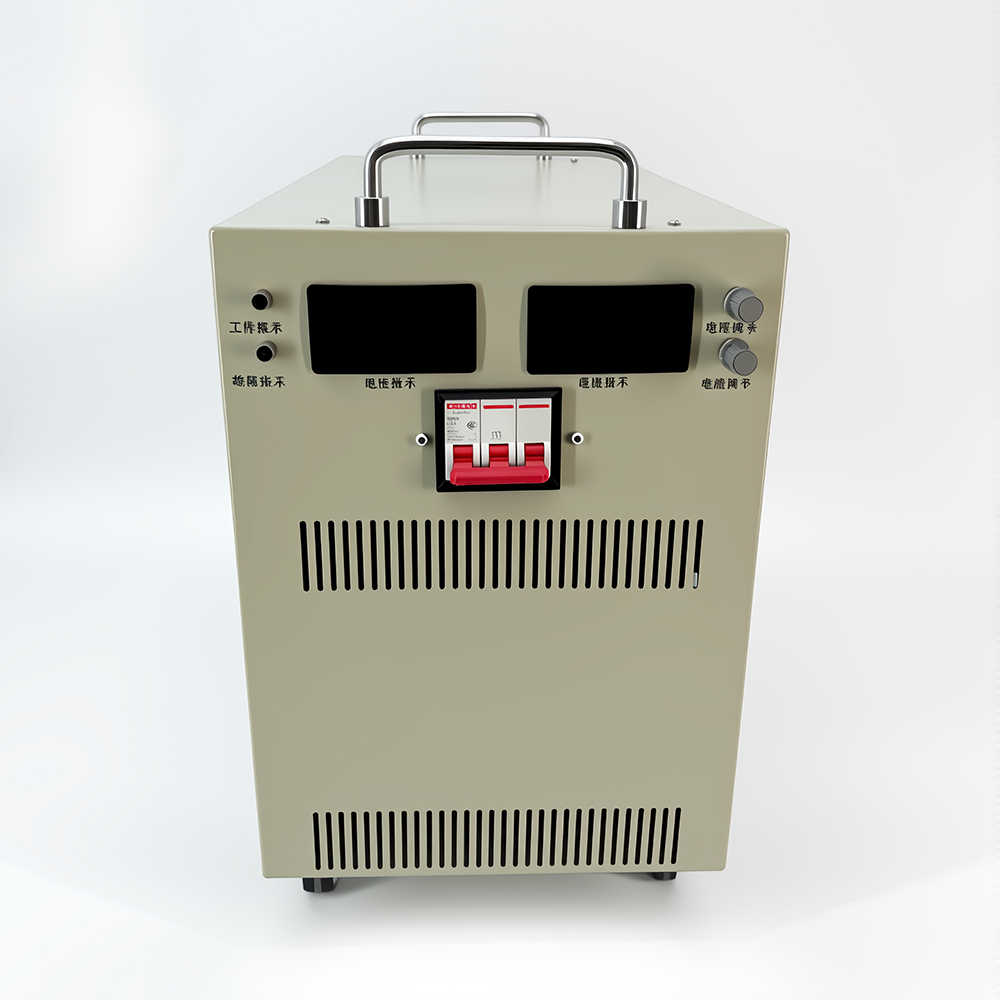

DC Regulated Adjustable High Power AC-DC Switching Power Supply Single Output 12000W Capacity 24V-1000V Optional Output
DC Regulated Adjustable High Power AC-DC Switching Power Supply Single Output 12000W Capacity 24V-1000V Optional Output
DC Regulated Adjustable High Power AC-DC Switching Power Supply Single Output 12000W Capacity 24V-1000V Optional Output
DC Regulated Adjustable High Power AC-DC Switching Power Supply Single Output 12000W Capacity 24V-1000V Optional Output
DC Regulated Adjustable High Power AC-DC Switching Power Supply Single Output 12000W Capacity 24V-1000V Optional Output
1 / 5
DC Regulated Adjustable High Power AC-DC Switching Power Supply Single Output 12000W Capacity 24V-1000V Optional Output
DC Regulated Adjustable High Power AC-DC Switching Power Supply Single Output 12000W Capacity 24V-1000V Optional Output
DC Regulated Adjustable High Power AC-DC Switching Power Supply Single Output 12000W Capacity 24V-1000V Optional Output
DC Regulated Adjustable High Power AC-DC Switching Power Supply Single Output 12000W Capacity 24V-1000V Optional Output
DC Regulated Adjustable High Power AC-DC Switching Power Supply Single Output 12000W Capacity 24V-1000V Optional Output

DC Regulated Adjustable High Power AC-DC Switching Power Supply Single Output 12000W Capacity 24V-1000V Optional Output

Send Inquiry

Product Description

DC Switching Power Supply Factory Overview
A professional production factory spanning 10,000 square meters, specializing in high-power regulated power supplies for 15 years, committed to delivering outstanding quality and reliable performance.
Product Overview
DC Switching Power Supply Unit
  • Product Name: DC Switching Power Supply
  • Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
  • Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
  • Features: High stability and reliability
  • Warranty: 1 year
  • Weight: Approximately 25KG
Product Details & Displays
DC Switching Power Supply Details 1
DC Switching Power Supply Details 2
DC Switching Power Supply Details 3
DC Switching Power Supply Details 4
DC Switching Power Supply Details 5
Technical Specifications
Product Name DC Switching Power Supply Operating Relative Humidity 20% ~ 88%
Power Rating 12000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase / Three-phase 220V / 380V Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V, 15V, 24V, 30V, 36V, 48V, 50V, 60V, 72V, 80V, 90V, 110V, 150V, 220V, 300V, 400V, 500V, 600V, 700V, 800V, 1000V Product Features High stability, high reliability
Output Current Selected power / selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 25KG
Efficiency > 88-89% Carton Dimensions 770x400x600mm
Output Voltage Accuracy ±1% - -
Product Gallery
Gallery Image 1
Gallery Image 2
Gallery Image 3
Gallery Image 4
Gallery Image 5
Product Instructions
1
Before powering on, check the stored and transported switch power supply. Verify that there is no damage during transportation, check if screws are loose, if the appearance is normal, if the power cord and terminal are shaken off, and if they are damp. If any issues are found, handle them in a timely manner.
2
The local power switch controls the auxiliary power supply inside the machine. For safety, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel. Confirm that they are connected correctly and that the input voltage matches the manual guidelines.
3

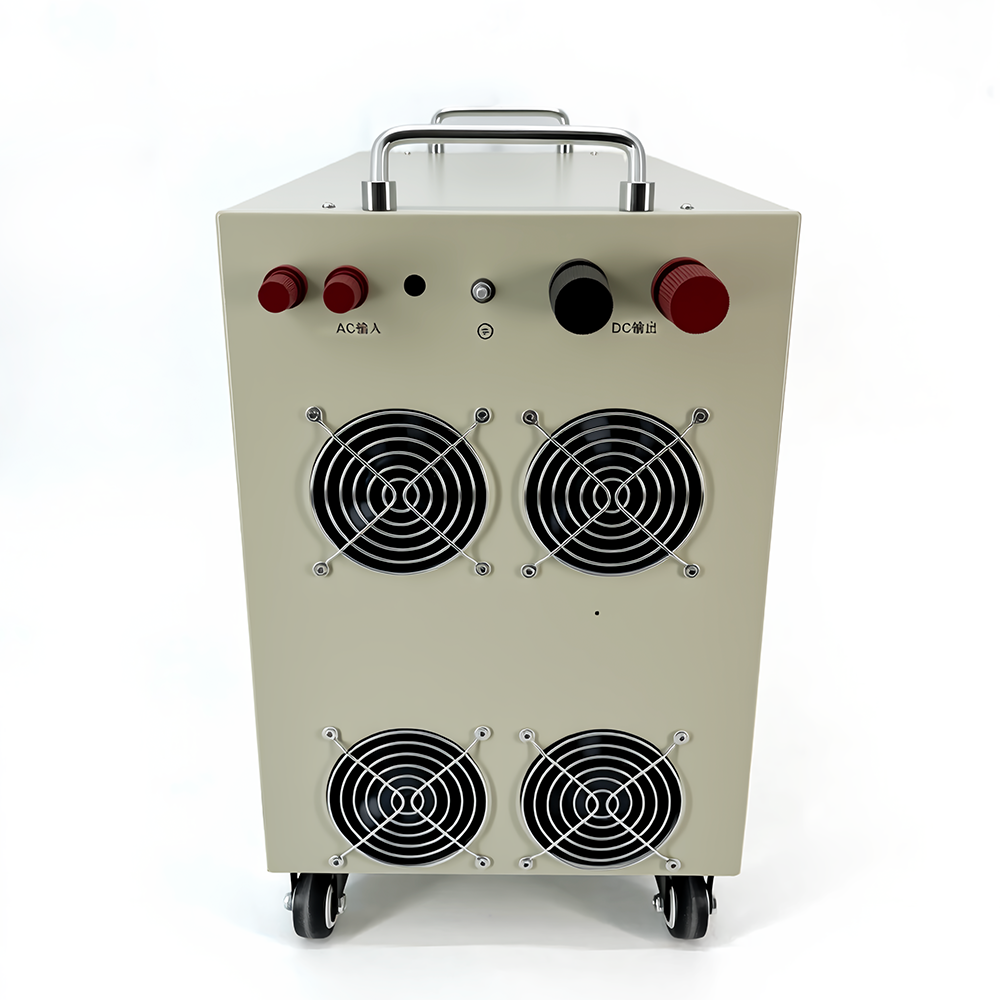

The cooling fan is temperature-controlled. The fan starts when the internal temperature exceeds the starting threshold. The fan speed varies with output voltage and current, which is normal. Ensure the inlet and outlet of the fan are not blocked during operation.
4
When the internal temperature reaches the threshold for overheating protection, the machine will automatically stop working to prevent damage. It will automatically resume operation once the temperature drops to a safe level.
5
When using the power equipment, the levels of dust, acid, corrosive gases, or substances in the air should not exceed normal standards. Avoid severe vibrations, bumps, rain, and direct sunlight.
6
It is best to regularly carry out dust removal work, which can greatly improve the service life and reliability of power equipment (dry compressed air can be used for dust removal, but do not open the casing to avoid high voltage danger or damaging internal components).
7
When the power equipment is idle for a long time, store it in a dry and ventilated room. If the storage time exceeds 6 months, power on the equipment and let it run for more than half an hour.
8
Warning: Only connect to the powered load equipment when the power-on test is normal and error-free.
9
Handling of malfunctions: If abnormal operation occurs, cut off the power switch immediately. Carefully check internal and external connections for correctness and ensure screws are tight. If problems are difficult to resolve, do not remove the casing or attempt repairs yourself due to the risk of high-voltage electric shock. Please contact professional support promptly for assistance.
Frequently Asked Questions (FAQ)
Does the power supply have overvoltage, overcurrent, overheating, or short circuit protection?
Yes, this power supply is fully equipped with overcurrent, overvoltage, overheating, and short-circuit protection features to ensure secure operation.
Can the power supply be used at full power for a long time?
No, it is recommended to use the power supply with excess capacity. For long-term continuous operation, please keep the load below 80% of the maximum capacity.
Is it easy to adjust the voltage and current?

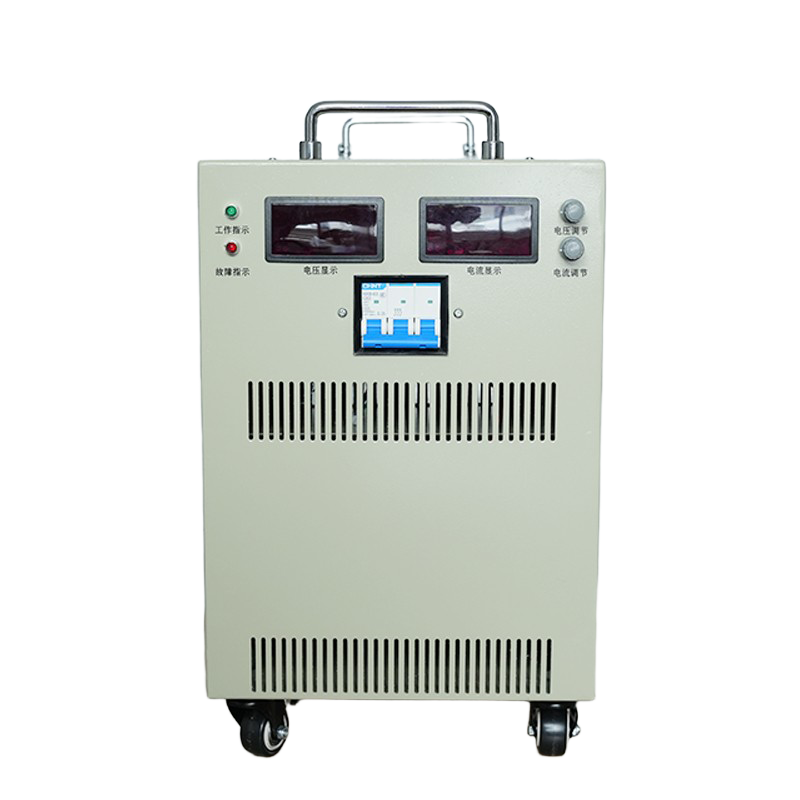

Yes, it is very convenient. The output voltage and current can be easily adjusted using the dual knobs on the front panel.
Is the high-power power supply isolated?
Yes, our high-power power supplies are designed as fully isolated power supplies for enhanced safety and stability.
What is the output voltage regulation range?
The voltage regulation range starts from 1V up to the maximum rated voltage of the selected model.
Can reverse polarity protection be added?
Yes, reverse polarity protection can be customized and integrated into the system upon request for an additional fee.
