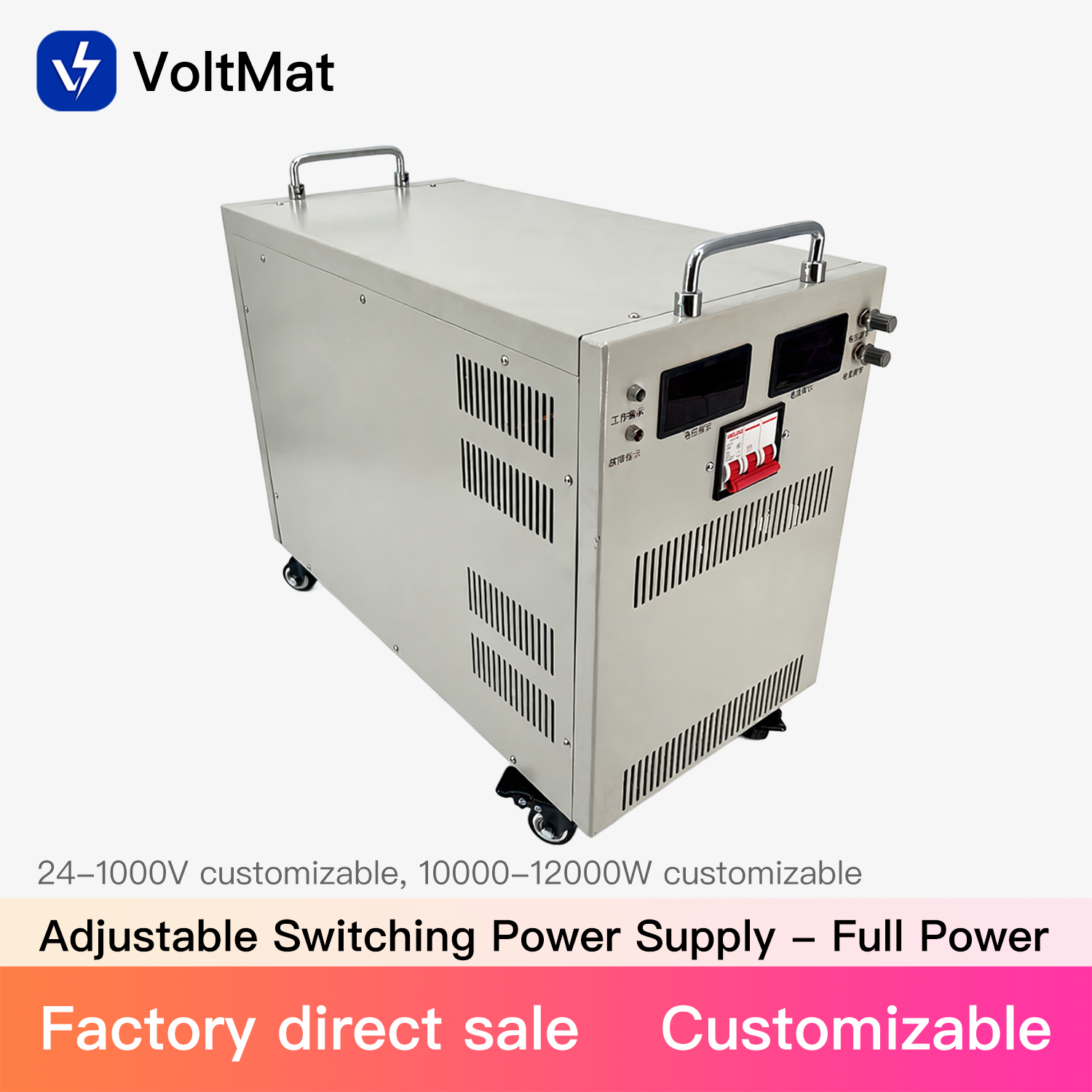

300V-12000W Industrial Grade DC Regulated Adjustable Switching Power Supply Single Output High Efficiency 89% 1 Year Warranty

Product Overview

🔵 Product Name: DC Switching Power Supply

🔵 Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.

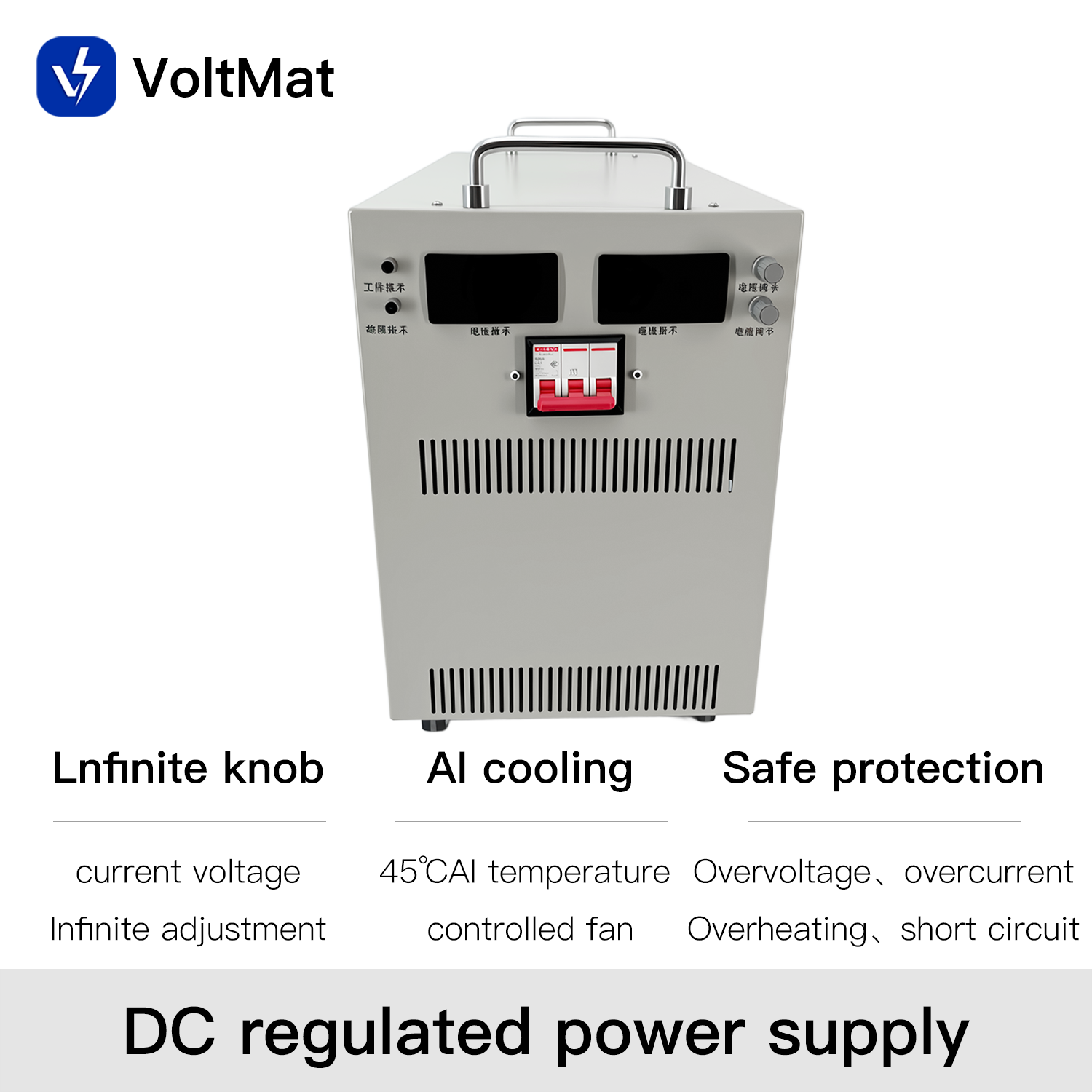

🔵 Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection

🔵 Features: High stability and reliability

🔵 Warranty: 1 year

🔵 Weight: Approximately 25KG

Technical Specifications

Product Name	DC Switching Power Supply	Operating Relative Humidity	20%~88%
Power Rating	12000W	Application Scenarios	Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage	Single-phase/Three-phase 220V±10% 50-60HZ / 380V±10% 50-60HZ	Protection Functions	Overcurrent, overvoltage, overheating, short-circuit protection

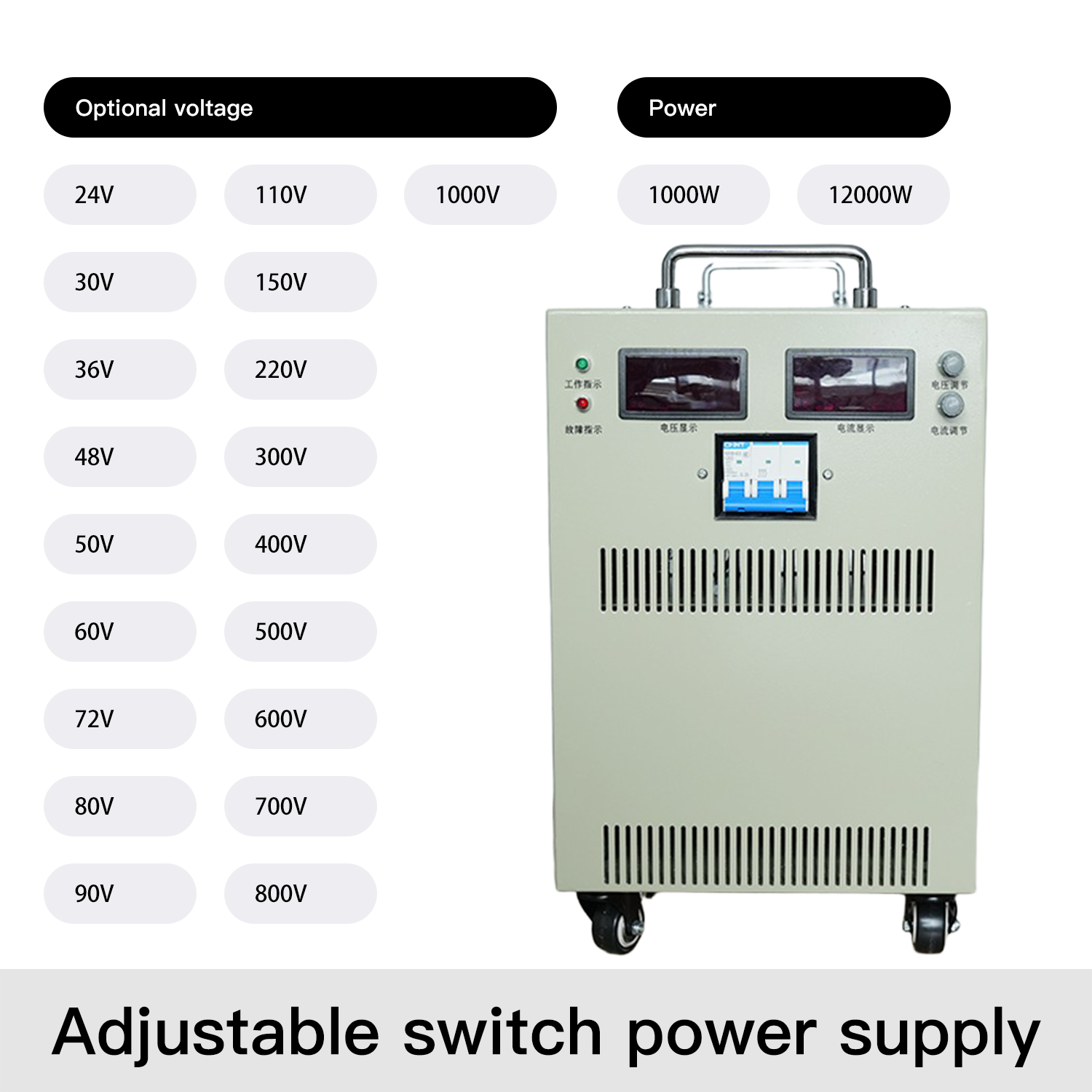

Output Voltage	12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V	Product Features	High stability, high reliability
Output Current	Selected power/selected voltage	Warranty Period	1 Year
Power Conversion Type	AC-DC	Product Weight	Approximately 25KG

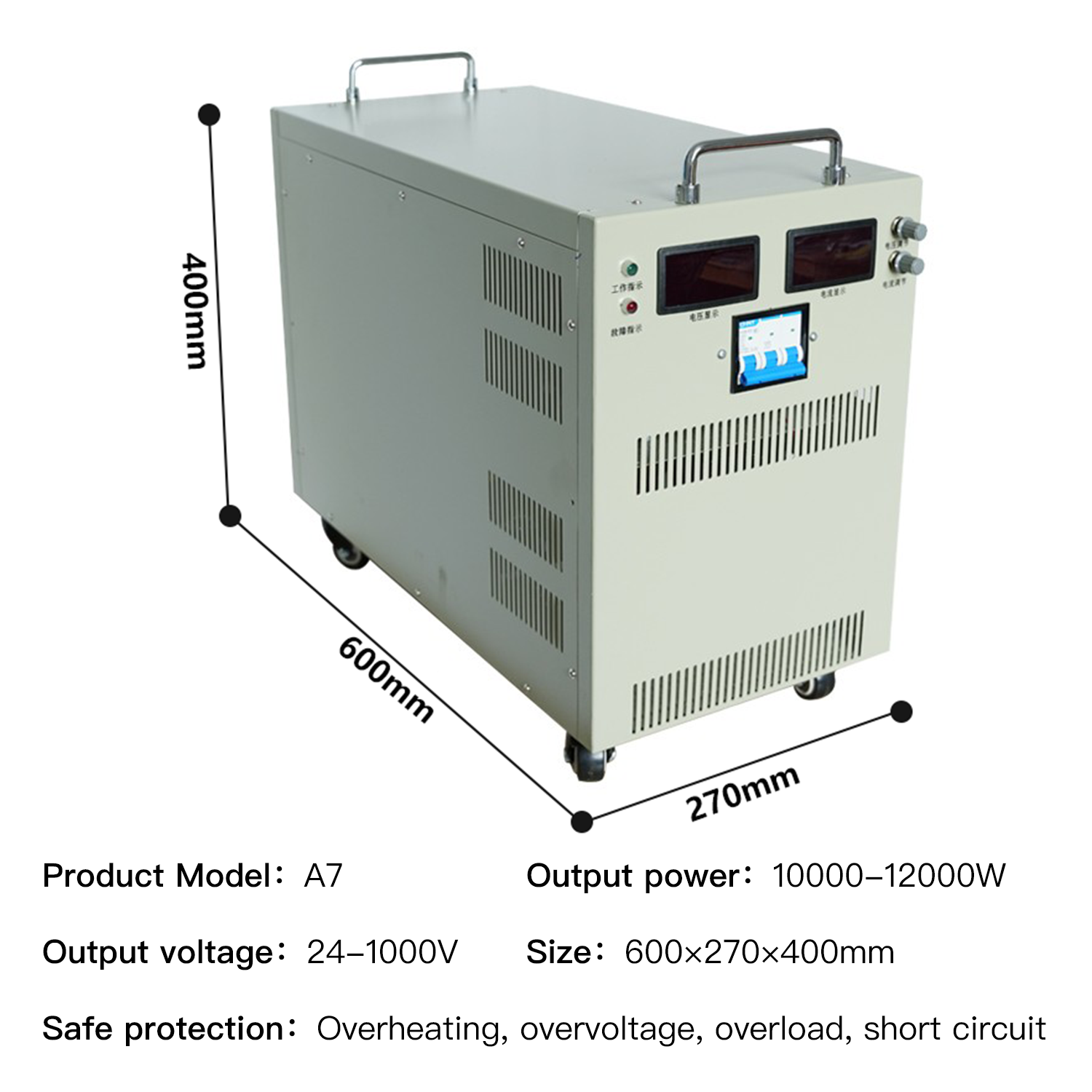

Efficiency	>88-89%	Carton Dimensions	770x400x600mm
Output Voltage Accuracy	±1%	-	-

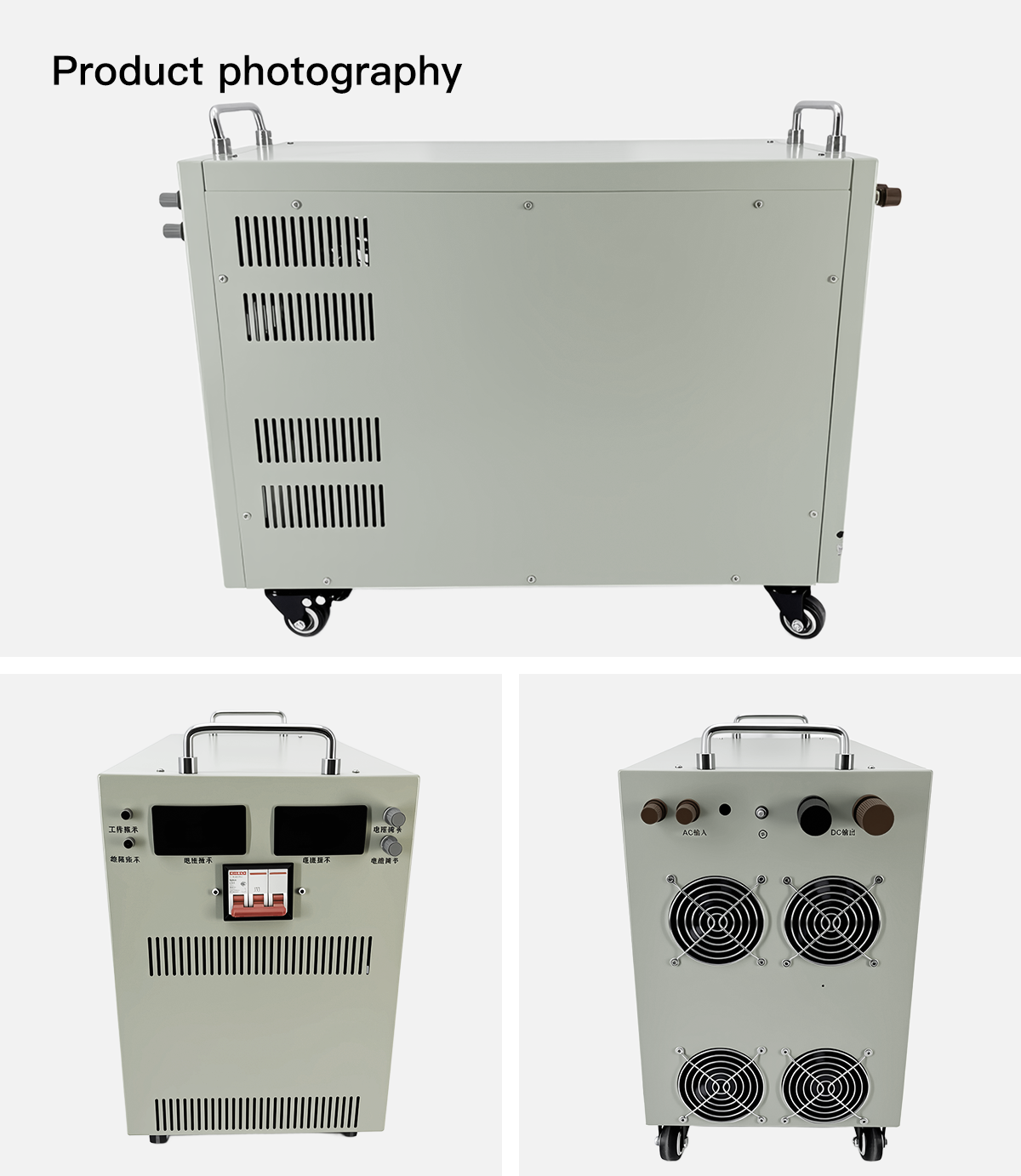

Product Gallery

Product Instructions

1 Before powering on, check the stored and transported switch power supply. Inspect for any damage during transportation, such as loose screws, abnormal appearance, disconnected power cords or terminals, and dampness. Address any issues promptly.
2 The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel to confirm that they are connected correctly. Pay attention to whether the voltage of the input power supply connected is consistent with the voltage indicated in the manual.
3 The cooling fan is temperature-controlled. When the temperature inside the machine exceeds the starting temperature control point of the fan, the fan will start. The fan speed varies with the output voltage and current, which is normal. When working, please make sure not to block the inlet and outlet of the fan.
4 When the temperature inside the machine reaches the threshold for overheating shutdown, the machine will automatically stop working to ensure that it is not damaged. When the temperature drops, it will automatically resume operation.
5 When using power equipment, dust, acid, corrosive gases, or substances in the air should not exceed normal levels. Avoid severe vibrations, bumps, rain, and direct sunlight.
6 It is best to regularly carry out dust removal work, which can greatly improve the service life and reliability of power equipment (dry compressed air can be used for dust removal, but do not open the casing as high voltage is present inside. Be careful not to damage internal components).
7 When the power equipment is idle for a long time, store it in a dry and ventilated room. If the storage time exceeds 6 months, the power supply equipment should be powered on and operated for more than half an hour.
8 Warning: Only connect to the powered load equipment when the power-on test is normal and error-free.
9 Handling of Malfunctions: If abnormal operation is found, immediately turn off the power switch of the stabilized power supply. Carefully check the internal and external connections for correctness and ensure screws are not loose. Verify all switches and knobs are in the correct positions. Do not unscrew the casing without authorization due to high-voltage shock risks. Please contact support promptly to resolve any issues.

Frequently Asked Questions

QIs there overvoltage, overcurrent, overheating, or short circuit protection?

Yes, the power supply includes comprehensive protection mechanisms against overcurrent, overvoltage, overheating, and short circuits to ensure safe operation.

QIs there reverse protection?

Yes, reverse protection can be integrated as an optional feature.

QCan it be used at full power for a long time?

No, the power supply should be operated with excess capacity. For continuous, long-term use, it is recommended to keep the load below 80% of the rated capacity.

QIs it convenient to adjust the voltage and current?

Yes, adjusting both voltage and current is highly convenient using the dual knobs configuration.

QIs the high-power power supply isolated?

Yes, this product is designed as a fully isolated power supply.

QWhat is the voltage regulation range?

The voltage regulation range starts from 1V.
