Output 500V-8000W High-Stability Industrial DC Power Supply 50/60Hz 88-89% Efficiency 1 Year Warranty Model A6-500-8000
Output 500V-8000W High-Stability Industrial DC Power Supply 50/60Hz 88-89% Efficiency 1 Year Warranty Model A6-500-8000
Output 500V-8000W High-Stability Industrial DC Power Supply 50/60Hz 88-89% Efficiency 1 Year Warranty Model A6-500-8000
Output 500V-8000W High-Stability Industrial DC Power Supply 50/60Hz 88-89% Efficiency 1 Year Warranty Model A6-500-8000
Output 500V-8000W High-Stability Industrial DC Power Supply 50/60Hz 88-89% Efficiency 1 Year Warranty Model A6-500-8000
1 / 5
Output 500V-8000W High-Stability Industrial DC Power Supply 50/60Hz 88-89% Efficiency 1 Year Warranty Model A6-500-8000
Output 500V-8000W High-Stability Industrial DC Power Supply 50/60Hz 88-89% Efficiency 1 Year Warranty Model A6-500-8000
Output 500V-8000W High-Stability Industrial DC Power Supply 50/60Hz 88-89% Efficiency 1 Year Warranty Model A6-500-8000
Output 500V-8000W High-Stability Industrial DC Power Supply 50/60Hz 88-89% Efficiency 1 Year Warranty Model A6-500-8000
Output 500V-8000W High-Stability Industrial DC Power Supply 50/60Hz 88-89% Efficiency 1 Year Warranty Model A6-500-8000

Output 500V-8000W High-Stability Industrial DC Power Supply 50/60Hz 88-89% Efficiency 1 Year Warranty Model A6-500-8000

Send Inquiry

Product Description

DC Switching Power Supply Banner
DC Switching Power Supply Detail

Product Name: DC Switching Power Supply

  • Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
  • Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
  • Features: High stability and reliability
  • Warranty: 1 year
  • Weight: Approximately 19KG
Power Supply Internal Construction

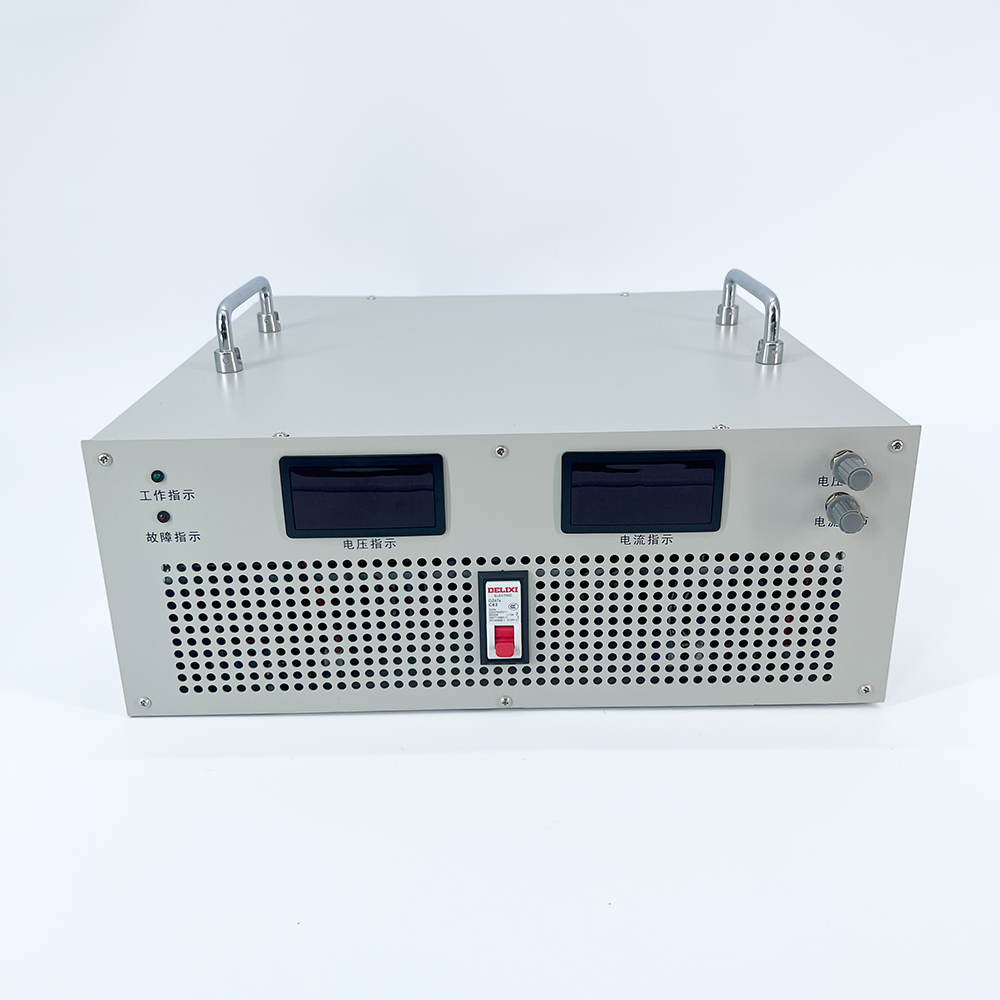

Power Supply UI Panel

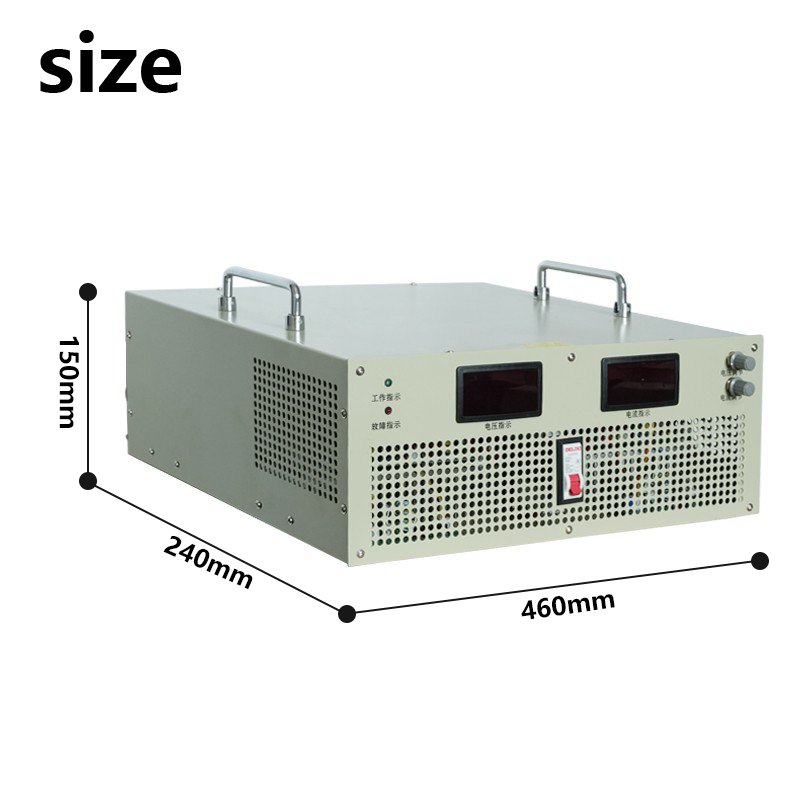

Power Supply Dimensions and Outlines

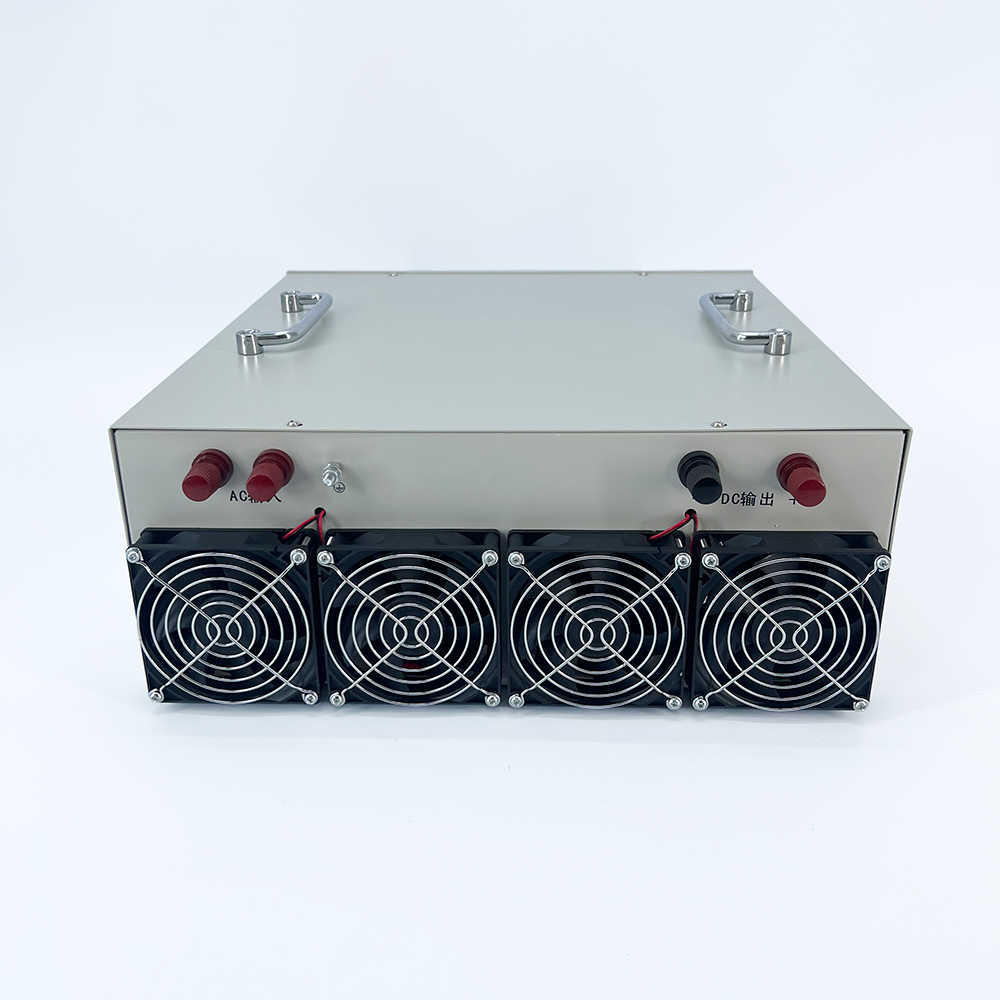

Power Supply Back View
Power Supply Performance Specs
Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 8000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase/Three-phase 220V±10% 50-60HZ / 110V±10% 50-60HZ / 380V±10% Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V Product Features High stability, high reliability
Output Current Selected power/selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 19KG
Efficiency ≥ 88-89% Carton Dimensions 550x505x235mm
Output Voltage Accuracy ±1%
Product Views 1
Product Views 2
Product Views 3
Product Views 4
Product Views 5
Product Instructions
  • 1 Before powering on, check the stored and transported switch power supply. Before powering on, the damage during transportation should be checked, such as whether the screws are loose, whether the appearance is abnormal, whether the power cord and terminal are shaken off, and whether they are damp. If the above phenomenon occurs, it should be dealt with in a timely manner.
  • 2 The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel to confirm that they are connected correctly. Pay attention to whether the voltage of the input power supply connected is consistent with the voltage indicated in the manual.
  • 3 The cooling fan is temperature controlled. When the temperature inside the machine exceeds the starting temperature control point of the fan, the fan can start. The fan speed varies with the output voltage and current, which is a normal situation. When working, please make sure not to block the inlet and outlet of the fan.
  • 4 When the temperature inside the machine reaches the threshold for overheating shutdown, the machine will automatically stop working to ensure that it is not damaged. When the temperature drops slightly, it will automatically start to resume work.
  • 5 When using power equipment, the dust, acid, corrosive gases or substances in the air should not exceed normal levels, and there should be no severe vibration, bumps, rain, and direct sunlight should be avoided as much as possible.
  • 6 It is best to regularly carry out dust removal work, which can greatly improve the service life and reliability of power equipment (dry compressed air can be used for dust removal, but there is high pressure inside. Do not open the casing and be careful not to damage internal components).
  • 7 When the power equipment is idle for a long time, it should be stored in a dry and ventilated room. If the storage time exceeds 6 months, the power supply equipment should be powered on and operated for more than half an hour.
  • 8 Warning: Only connect to the powered load equipment when the power on test is normal and error free.
  • 9 Handling of malfunctions and problems: If abnormal operation is found after turning on the machine, the power switch of the stabilized power supply should be cut off, and the internal and external connections of the machine should be carefully checked for correctness, and the connecting screws should be checked for looseness. Are all switches and knobs in the correct position. If there are problems that users find difficult to handle, do not unscrew the screws and remove the casing without authorization. Due to the presence of high voltage inside the machine, do not repair it yourself without professional knowledge and equipment to avoid electric shock accidents.
Frequently Asked Questions (FAQ)
Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes, the power supply features built-in protections for overvoltage, overcurrent, overheating, and short circuits.
Is there reverse protection?
Reverse protection can be added as an optional customized upgrade.
Can it be used at full power for a long time?
No, the power supply needs to be used with excess capacity. Operating below 80% power capacity is recommended for continuous, long-term use.
Is it convenient to adjust voltage and current?
Yes, the design is highly convenient and allows voltage and current adjustments via dual knobs.
Is the high-power power supply isolated?
Yes, this is a fully isolated power supply unit.
What is the voltage regulation range?
The voltage regulation starts from 1V.
