Output 60V 8000W High Power DC Adjustable Switching Power Supply (24V-1000V Optional) for Industry and Various DC Applications
Output 60V 8000W High Power DC Adjustable Switching Power Supply (24V-1000V Optional) for Industry and Various DC Applications
Output 60V 8000W High Power DC Adjustable Switching Power Supply (24V-1000V Optional) for Industry and Various DC Applications
Output 60V 8000W High Power DC Adjustable Switching Power Supply (24V-1000V Optional) for Industry and Various DC Applications
Output 60V 8000W High Power DC Adjustable Switching Power Supply (24V-1000V Optional) for Industry and Various DC Applications
1 / 5
Output 60V 8000W High Power DC Adjustable Switching Power Supply (24V-1000V Optional) for Industry and Various DC Applications
Output 60V 8000W High Power DC Adjustable Switching Power Supply (24V-1000V Optional) for Industry and Various DC Applications
Output 60V 8000W High Power DC Adjustable Switching Power Supply (24V-1000V Optional) for Industry and Various DC Applications
Output 60V 8000W High Power DC Adjustable Switching Power Supply (24V-1000V Optional) for Industry and Various DC Applications
Output 60V 8000W High Power DC Adjustable Switching Power Supply (24V-1000V Optional) for Industry and Various DC Applications

Output 60V 8000W High Power DC Adjustable Switching Power Supply (24V-1000V Optional) for Industry and Various DC Applications

Send Inquiry

Product Description

DC Switching Power Supply Overview
DC Switching Power Supply Details
Industrial Grade

DC Switching Power Supply

  • Applications: Widely used in power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application sites.
  • Protections: Overcurrent, Overvoltage, Overheat, and Short Circuit Protection.
  • Features: Engineered for high stability and reliability.
  • Warranty: 1 Year.
  • Weight: Approximately 19KG.
Power Supply Internals and Design

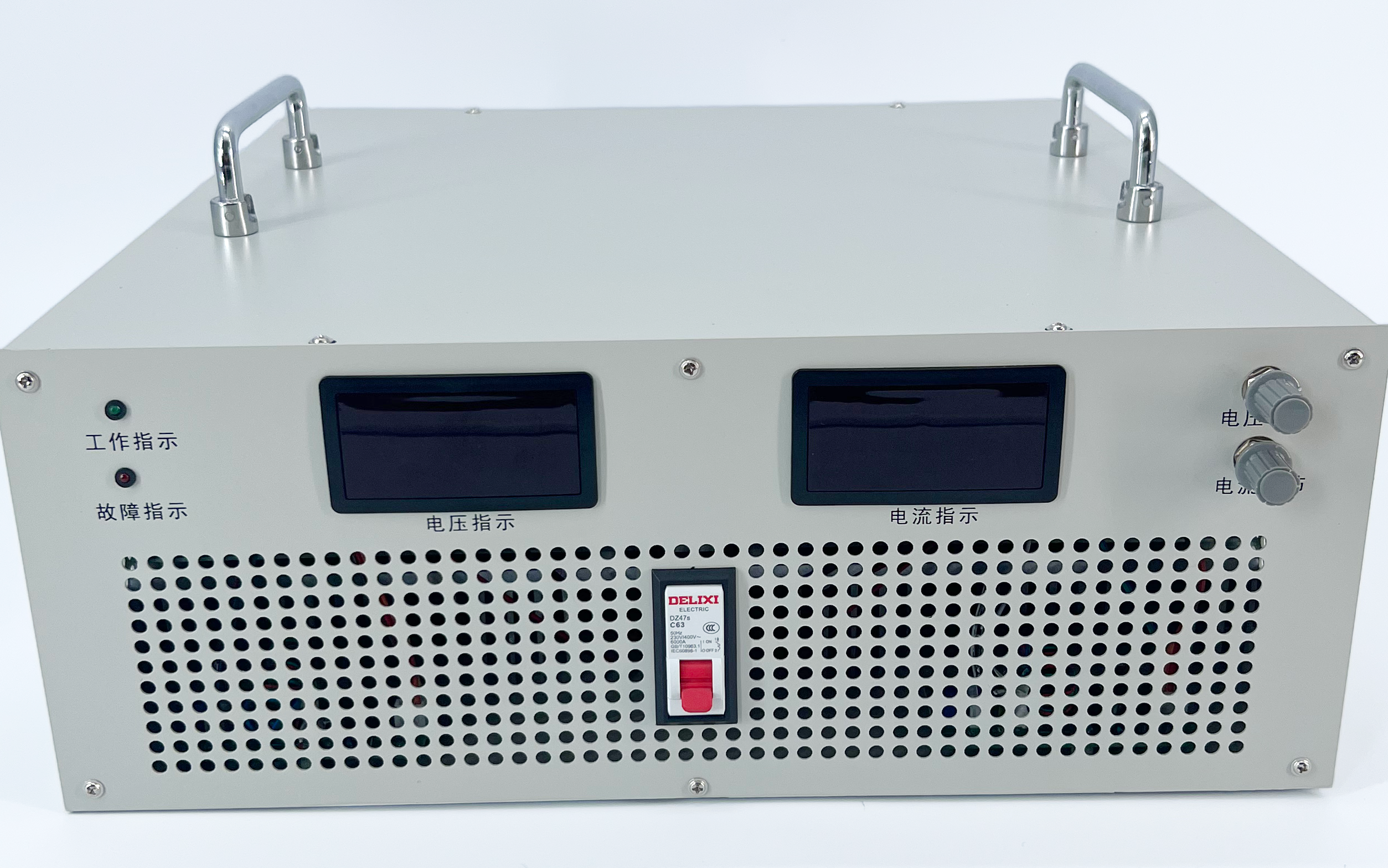

Front Panel Controls

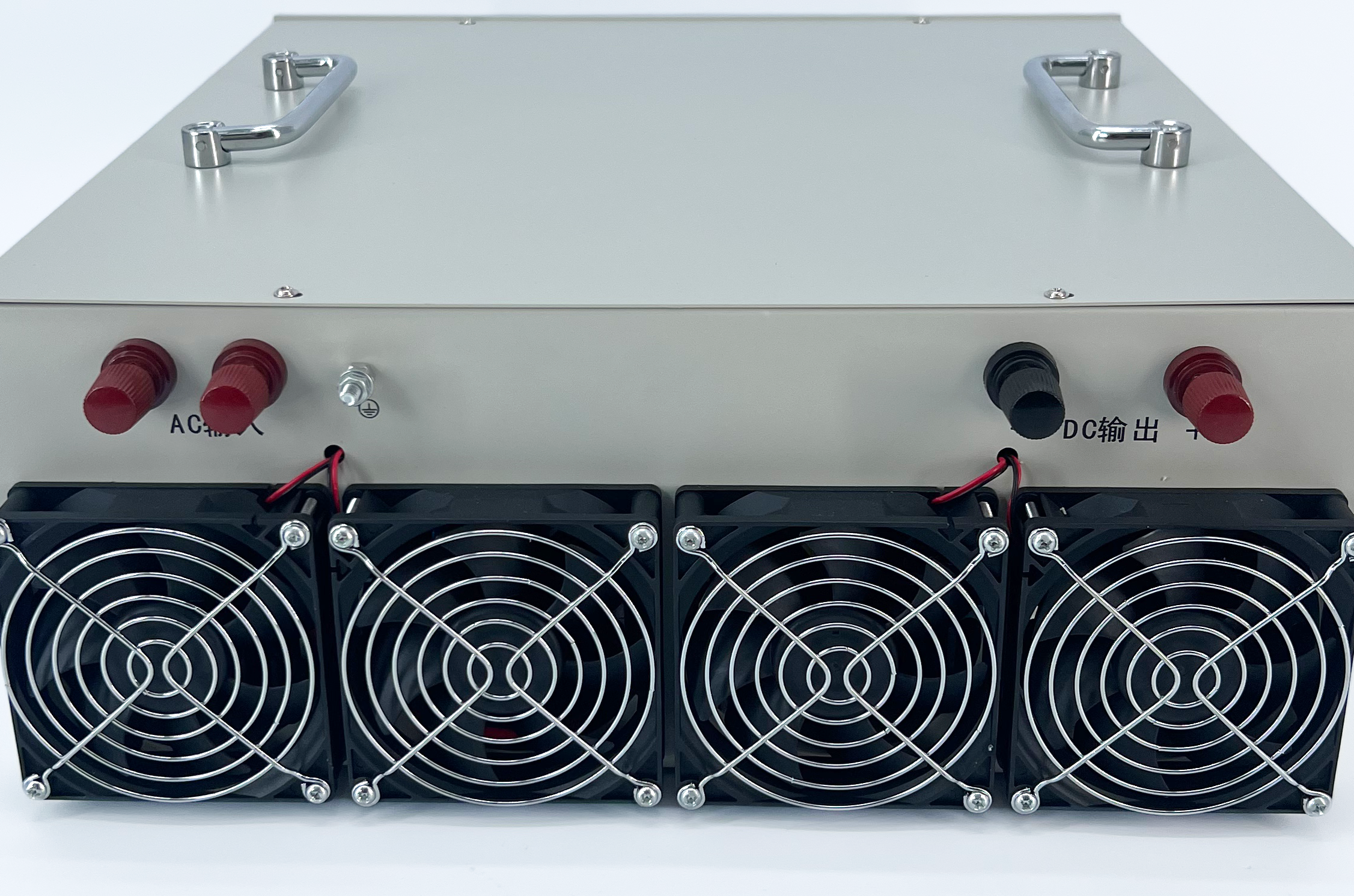

Rear Interface Connectors
Cooling System Airflow

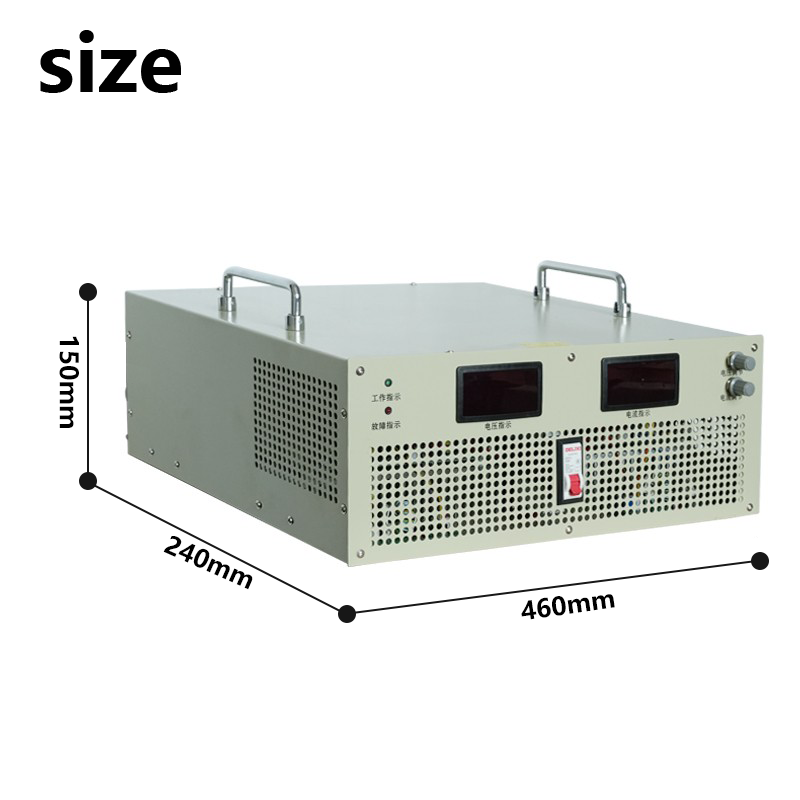

Dimensions and Footprint

Technical Specifications

Product Name DC Switching Power Supply Operating Relative Humidity 20% ~ 88%
Power Rating 8000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC fields
Input Voltage Single-phase/Three-phase 110V±10% / 220V±10% / 380V±10% (50-60Hz) Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage Options 12V, 15V, 24V, 30V, 36V, 48V, 50V, 60V, 72V, 80V, 90V, 110V, 150V, 220V, 300V, 400V, 500V, 600V, 700V, 800V, 1000V Product Features High stability, high reliability
Output Current Selected power / selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 19KG
Efficiency > 88-89% Carton Dimensions 550 x 505 x 235 mm
Output Voltage Accuracy ±1%

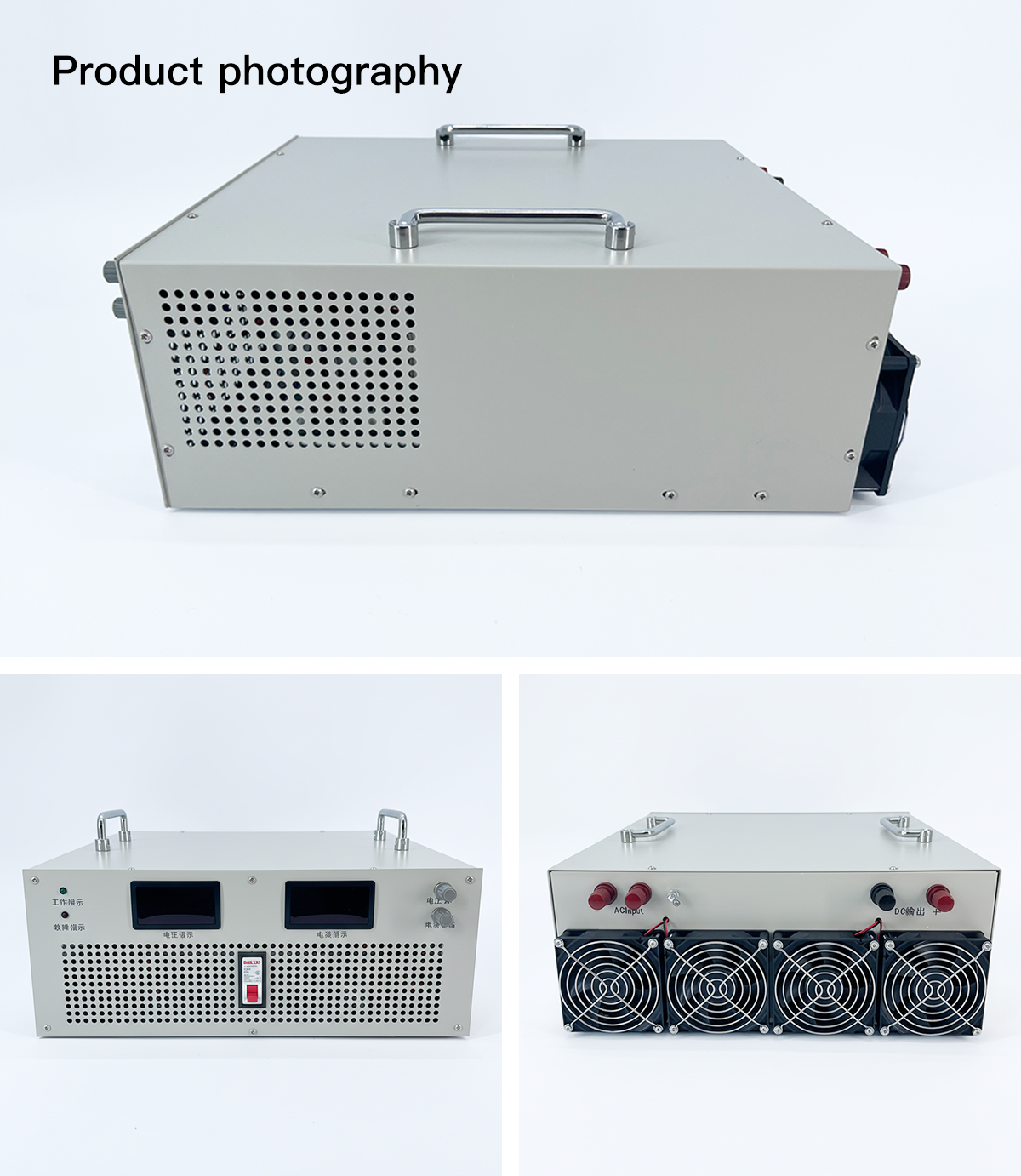

Product Gallery

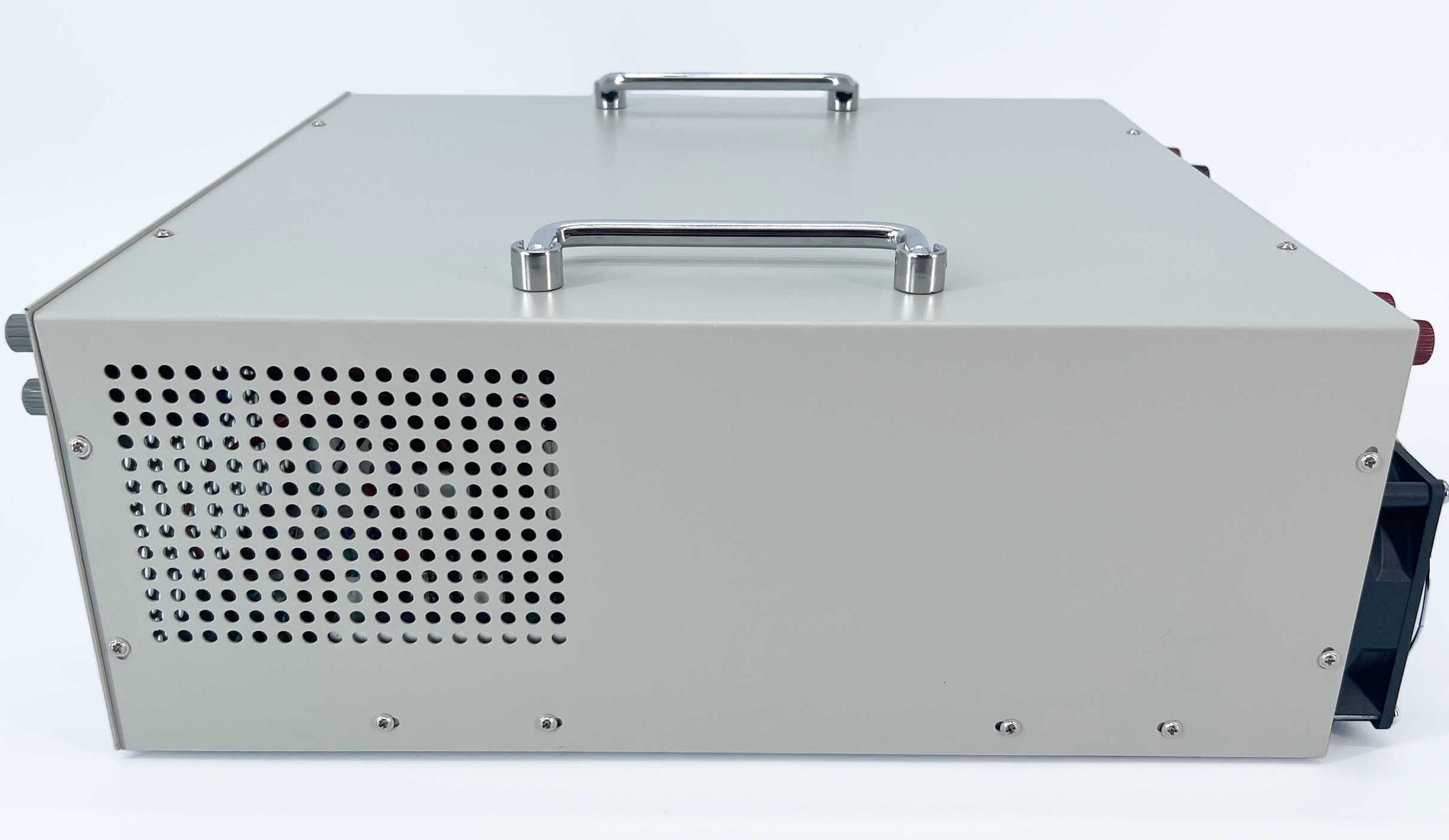

Power Supply Angle View
Power Supply Inner Build
Power Supply Display Close Up
Power Supply Connection Terminals
Power Supply Packaging

Product Instructions

1 Pre-power Inspection: Before powering on, check the unit for any transit damage. Ensure all screws are tight, the appearance is normal, power cords and terminals are secure, and that the unit has not been exposed to moisture.
2 Safe Wiring: The local power switch controls internal auxiliary power. For safety, install an external air switch at the power input. Connect the ground wire and input power wire correctly as labeled on the rear panel. Verify input voltage matches manual requirements.
3 Cooling System: The built-in cooling fan is temperature-controlled and starts automatically when thresholds are reached. Fan speed varies based on output voltage and current. Keep the fan inlets and outlets clear of blockages.
4 Overheat Safety: If internal temperatures reach the overheating limit, the machine will shut down automatically. Once cooled down, it will automatically restart.
5 Operating Environment: Avoid using the unit in areas with excess dust, acid, corrosive gases, severe vibrations, impact, rain, or direct sunlight.
6 Maintenance & Dusting: Regularly clean out dust to improve service life and reliability. Dry compressed air can be used for dusting; do not open the casing as high voltage remains inside.
7 Storage Instructions: Store the unit in a dry, ventilated room. If stored for over 6 months, power on and operate the unit for at least half an hour before use.
8 Load Warning: Connect the powered load equipment only after the initial power-on test has run successfully and error-free.
9 Troubleshooting: If abnormal operation occurs, switch off immediately. Check all external and internal connections for tightness, and ensure all knobs are in correct positions. Due to internal high voltage, do not attempt to open the casing or repair the unit yourself. Please notify technical support for assistance.

Frequently Asked Questions

Does this power supply feature overvoltage, overcurrent, overheating, or short-circuit protection?
Yes, all of these safety protection mechanisms are fully integrated.
Is reverse polarity protection available?
Yes, reverse polarity protection can be added as a customized option.
Can this unit run at full power for continuous, long-term operation?
No, it is recommended to run the power supply below 80% capacity for long-term continuous use to ensure optimal longevity.
How easy is it to adjust the voltage and current?
It is very convenient. The voltage and current can be easily adjusted using the dual rotary knobs on the panel.
Is this high-power power supply isolated?
Yes, we manufacture fully isolated power supplies.
What is the starting voltage for regulation?
The voltage regulation range starts from 1V.
