DC Switching Power Supply

• Application: Widely used in power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
• Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection.
• Features: High stability and reliability.
• Warranty: 1 year.
• Weight: Approximately 19KG.

Technical Design & Interface Layout

Product Specifications

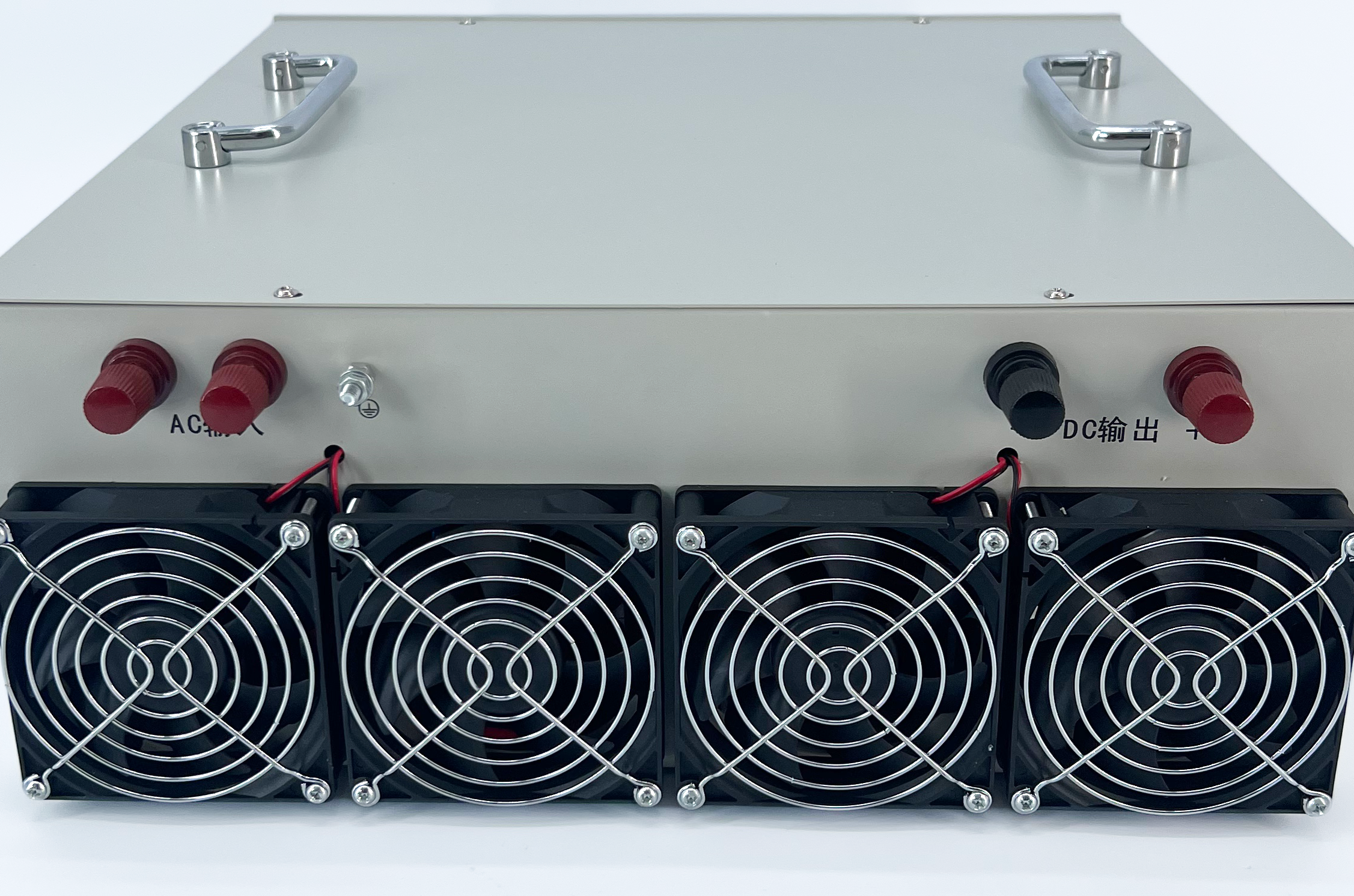

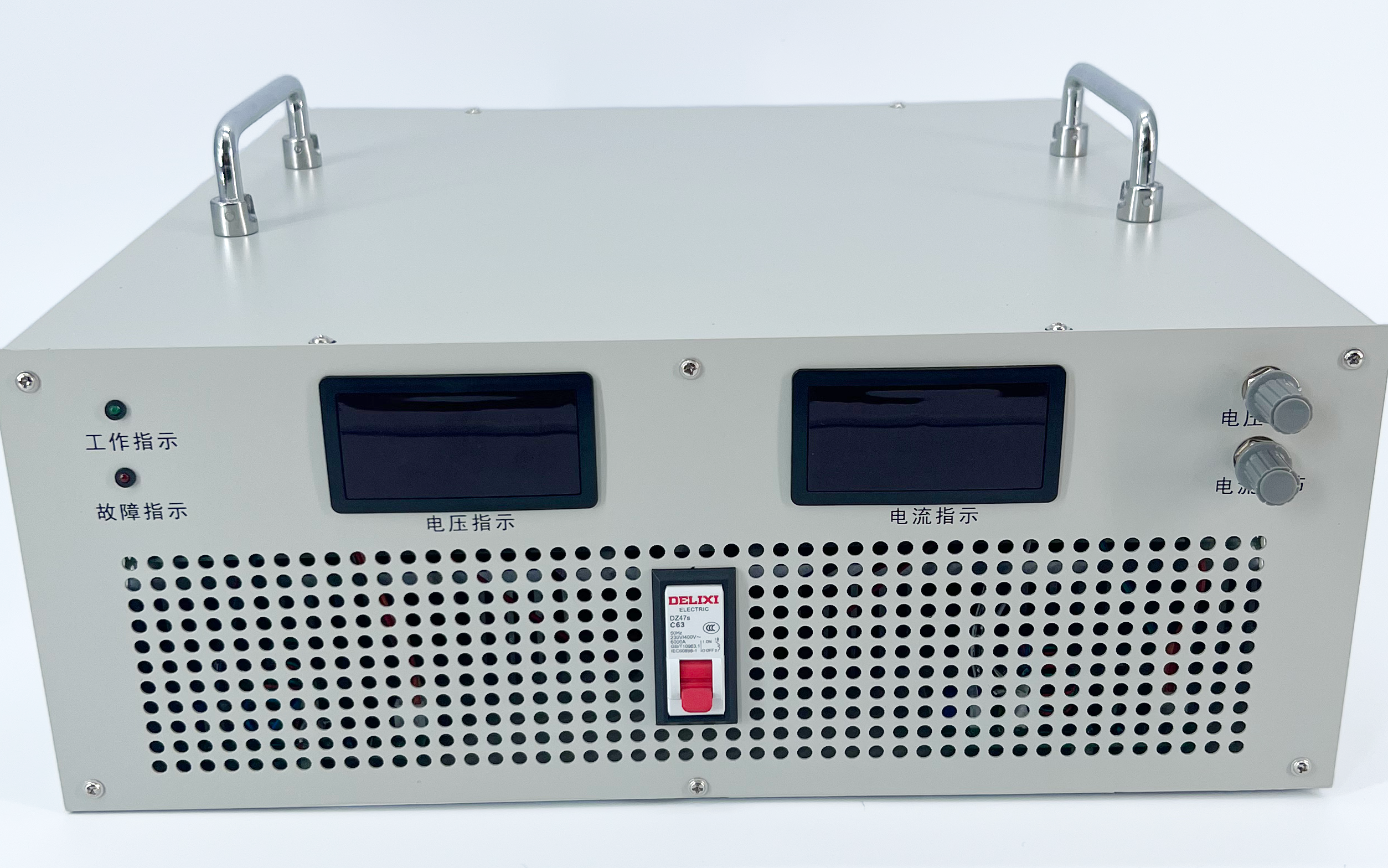

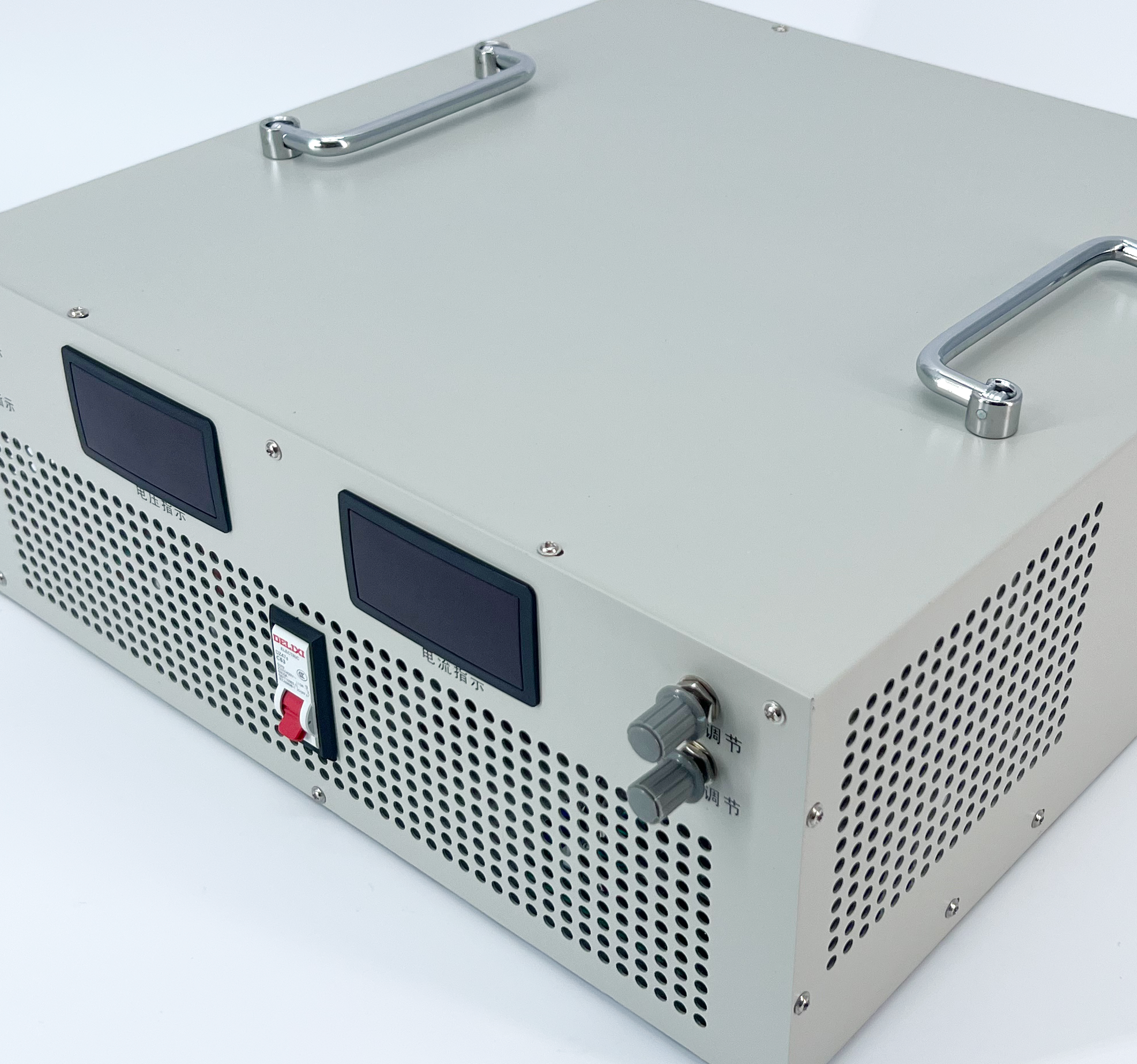

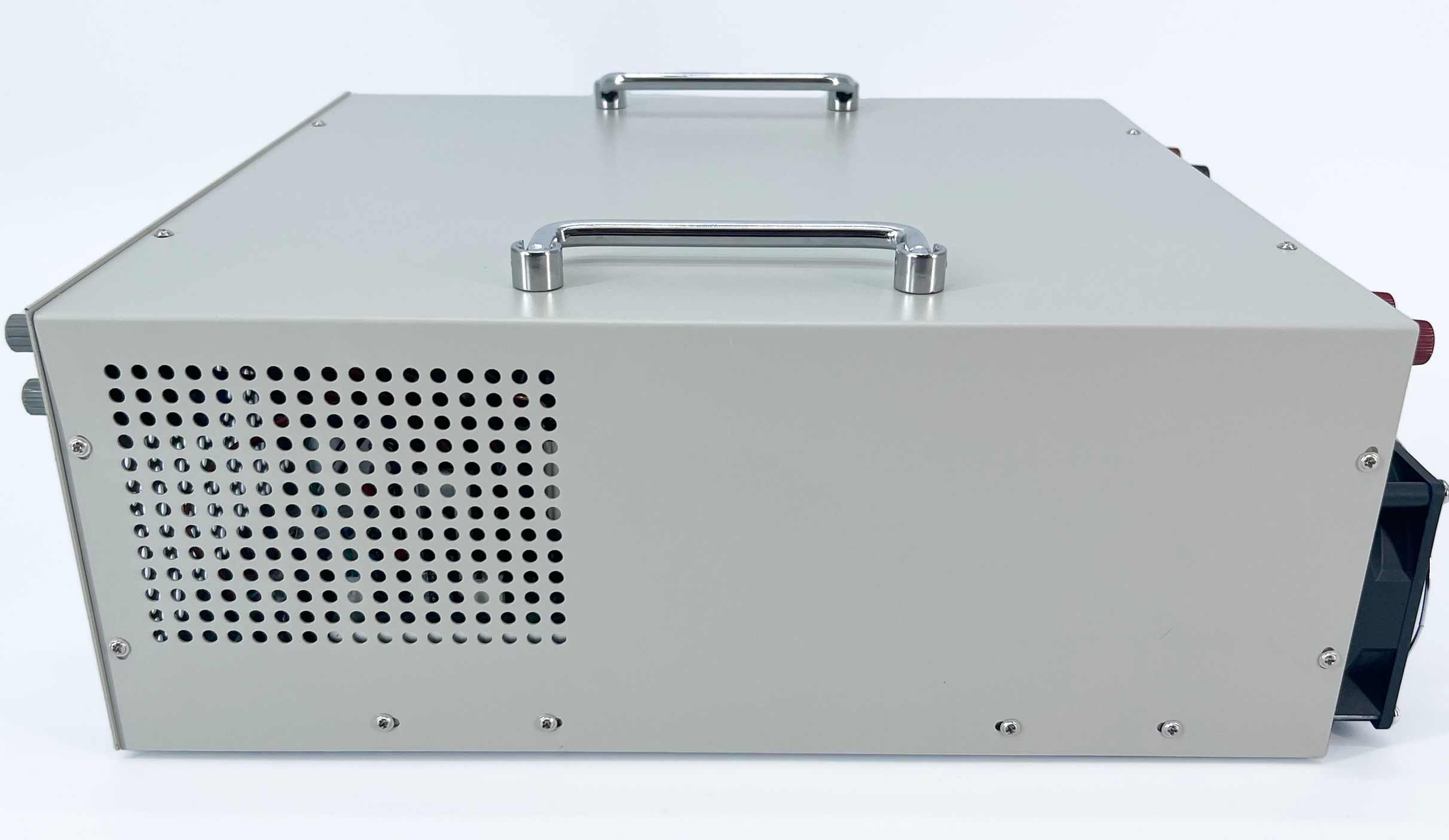

Product Details & Interface Close-ups

Product Instructions & Guidelines

• 1. Before powering on, verify the stored and transported switching power supply for any physical damage (e.g., loose screws, dampness, or loose terminals). Address any abnormalities promptly.
• 2. The local power switch controls internal auxiliary power. For safety, install an external air switch at the input terminal. Ensure input and ground wires are wired correctly according to the rear panel label.
• 3. The cooling fan is temperature-controlled. Speed varies dynamically with load and output conditions. Ensure the air inlets and outlets remain unblocked during operation.
• 4. If internal temperatures reach critical levels, the over-temperature safety shutdown activates. The unit will automatically resume operation once the temperature drops.
• 5. Maintain an environment free of excessive dust, acids, corrosive elements, severe vibration, rain, and direct sunlight.
• 6. Periodically blow dust off the internal system using dry compressed air to extend life expectancy. (Warning: high voltages present inside; do not operate with the casing removed).
• 7. If stored unused for over 6 months, dry-run the power supply for at least half an hour.
• 8. Warning: Ensure input connections and test outputs are normal before connecting to active loads.
• 9. In the event of system failure, turn off the power switch immediately. Check for loose exterior screws and switch positions. Contact professional technical support for inside-casing maintenance to avoid shock hazard.
