Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection.
Features: High stability and reliability.
Warranty: 1 year.

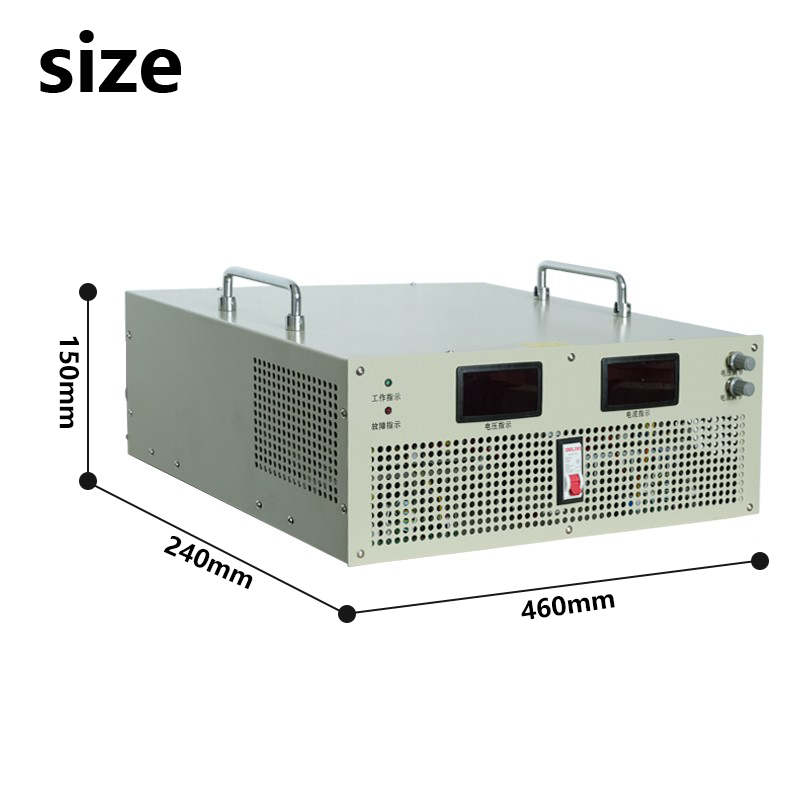

Weight: Approximately 19KG.
Product Specifications
Product Name
DC Switching Power Supply
Operating Relative Humidity
20%~88%
Power Rating
10000W
Application Scenarios
Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Before powering on, check the stored and transported switch power supply. Verify if there is any damage during transportation, such as loose screws, abnormal appearance, loose power cords/terminals, or dampness. Address any of these issues promptly.
2
The local power switch controls the internal auxiliary power supply. For safety reasons, please add an external air switch to the power input terminal to control overall power input. Connect the ground wire and input power wire according to the labels on the rear panel. Confirm the input supply voltage matches the specifications in the manual.
3

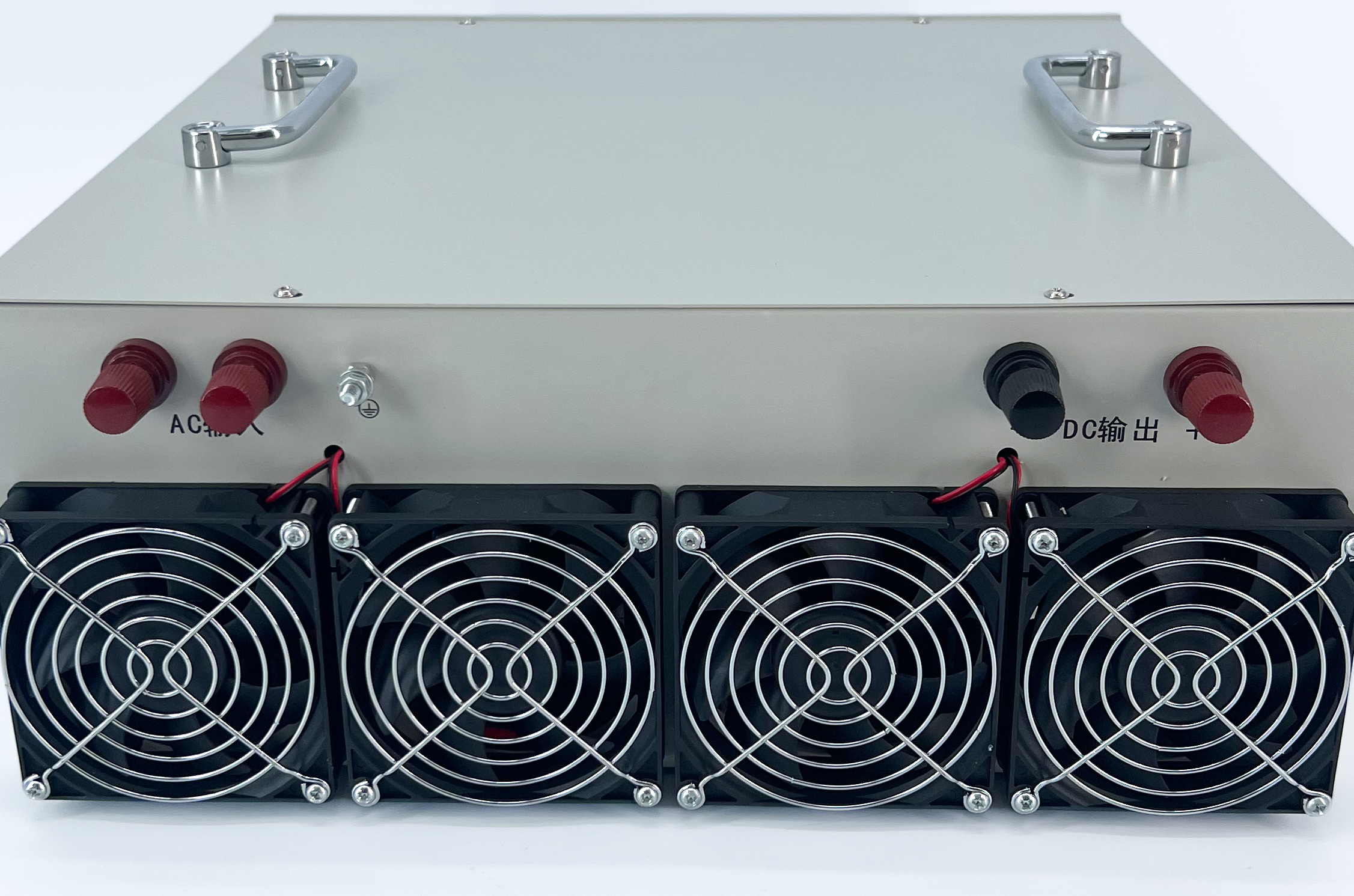

The cooling fan is temperature-controlled and starts when the internal temperature exceeds the set point. Fan speed will vary based on output voltage and current. Keep the fan air inlets and outlets completely clear at all times.
4
If the internal temperature reaches the overheat threshold, the machine will shut down automatically. Once the temperature drops to a safe level, it will automatically resume operation.
5
Ensure the ambient air contains normal levels of dust, acid, corrosive gases, or substances. Avoid severe vibrations, bumps, rain, and direct sunlight.
6
Regular dust removal (using dry compressed air) can significantly extend the device service life. Note that high voltage is present inside; do not open the casing to prevent damage to internal components.
7
When idle for long periods, store the unit in a dry, ventilated room. If stored for over 6 months, power on and operate the supply for at least half an hour before use.
8
Warning: Connect to load equipment only after the initial power-on test is normal and error-free.
9
Troubleshooting: If abnormal operation is observed, cut off the main switch immediately. Inspect both internal and external connections for loose screws or wiring faults. Make sure all dials and switches are set correctly. If the issue remains unresolved, do not attempt to dismantle the casing or repair the unit yourself due to high-voltage hazards. Please contact support promptly.
Frequently Asked Questions
Does the power supply have built-in safety protection?
Yes, it features full protection against overvoltage, overcurrent, overheating, and short circuits. Custom reverse protection can also be implemented at an additional cost.
Can the power supply be operated at full load continuously?
No, we recommend configuring the power supply with extra capacity. For long-term continuous operation, please maintain the usage load below 80% of its maximum capacity.
How are the output voltage and current adjusted?

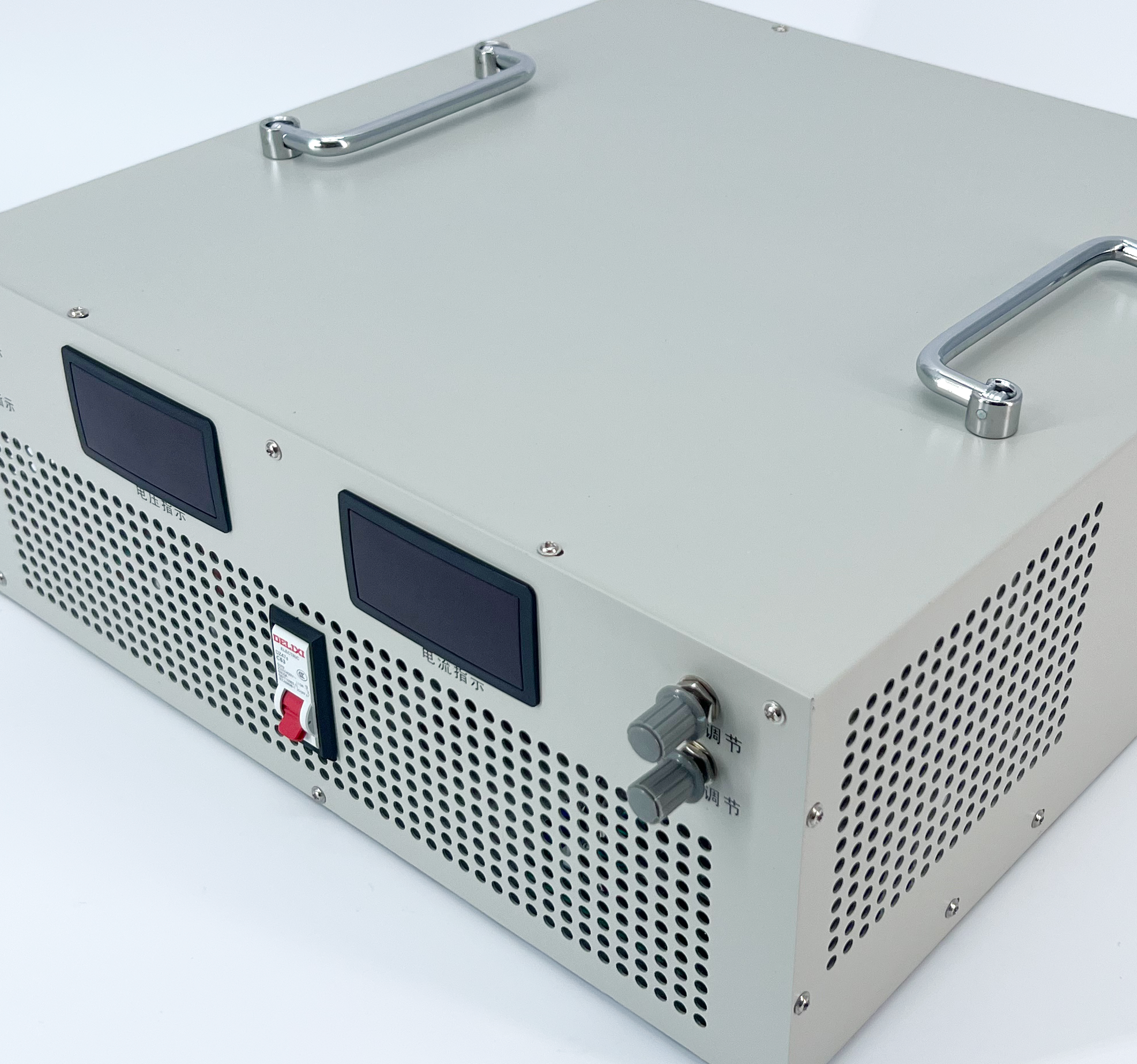

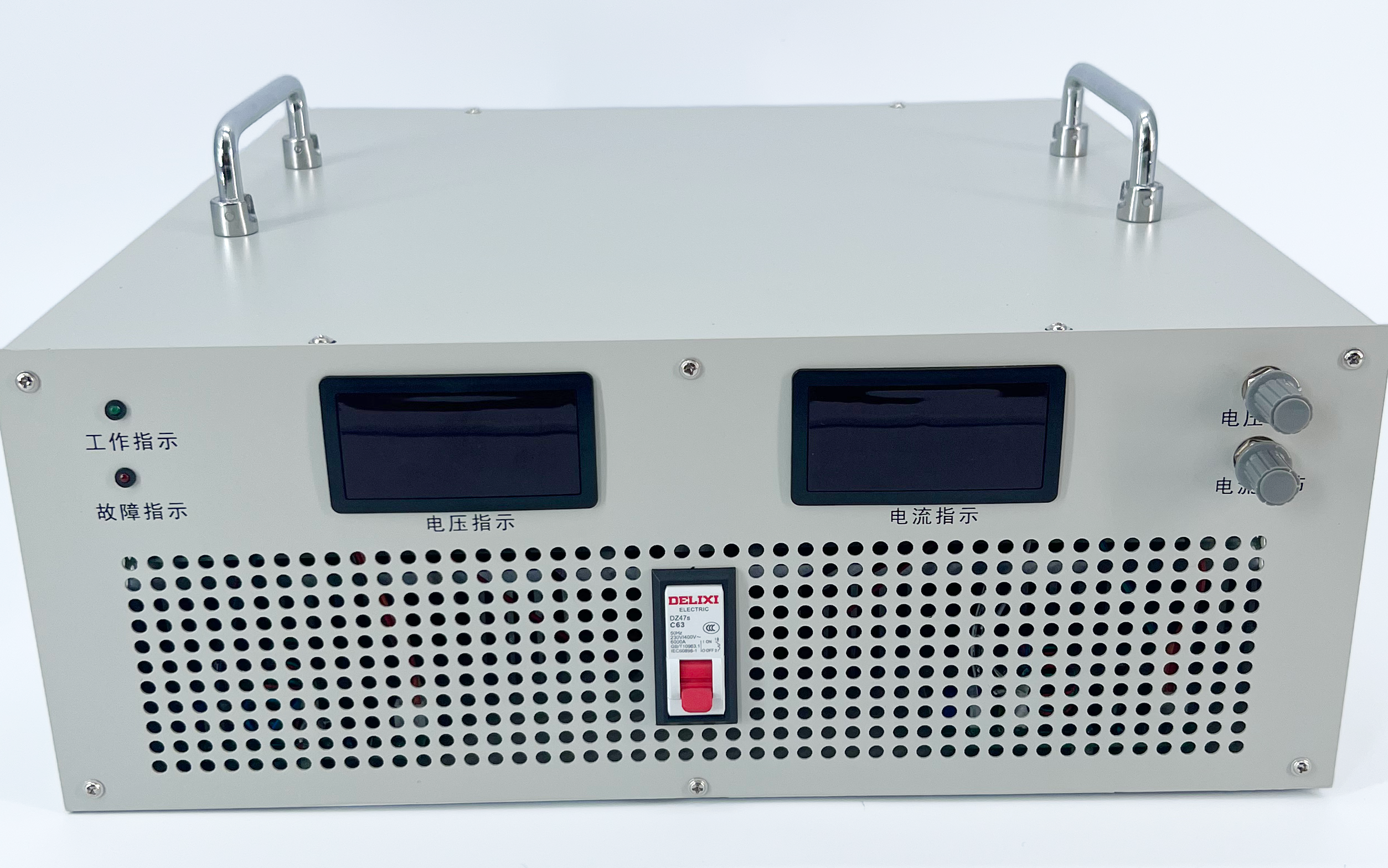

Adjusting parameters is very convenient. Both output voltage and current can be regulated easily using the dual control knobs on the panel.
Is this high-power switching power supply isolated?
Yes, our high-power power supplies are designed as fully isolated units for safety and performance.
What is the minimum output voltage setting?
The output voltage regulation starting range begins at 1V.
Is the actual output power sufficient to meet specified ratings?
Yes, the device is fully rated and outputs sufficient, stable power according to its design specification.
