Output 72V-8000W High Power AC-DC Adjustable Switching Power Supply 89% Efficiency 1 Year Warranty Industrial Use 19kg Model
Output 72V-8000W High Power AC-DC Adjustable Switching Power Supply 89% Efficiency 1 Year Warranty Industrial Use 19kg Model
Output 72V-8000W High Power AC-DC Adjustable Switching Power Supply 89% Efficiency 1 Year Warranty Industrial Use 19kg Model
Output 72V-8000W High Power AC-DC Adjustable Switching Power Supply 89% Efficiency 1 Year Warranty Industrial Use 19kg Model
Output 72V-8000W High Power AC-DC Adjustable Switching Power Supply 89% Efficiency 1 Year Warranty Industrial Use 19kg Model
1 / 5
Output 72V-8000W High Power AC-DC Adjustable Switching Power Supply 89% Efficiency 1 Year Warranty Industrial Use 19kg Model
Output 72V-8000W High Power AC-DC Adjustable Switching Power Supply 89% Efficiency 1 Year Warranty Industrial Use 19kg Model
Output 72V-8000W High Power AC-DC Adjustable Switching Power Supply 89% Efficiency 1 Year Warranty Industrial Use 19kg Model
Output 72V-8000W High Power AC-DC Adjustable Switching Power Supply 89% Efficiency 1 Year Warranty Industrial Use 19kg Model
Output 72V-8000W High Power AC-DC Adjustable Switching Power Supply 89% Efficiency 1 Year Warranty Industrial Use 19kg Model

Output 72V-8000W High Power AC-DC Adjustable Switching Power Supply 89% Efficiency 1 Year Warranty Industrial Use 19kg Model

Send Inquiry

Product Description

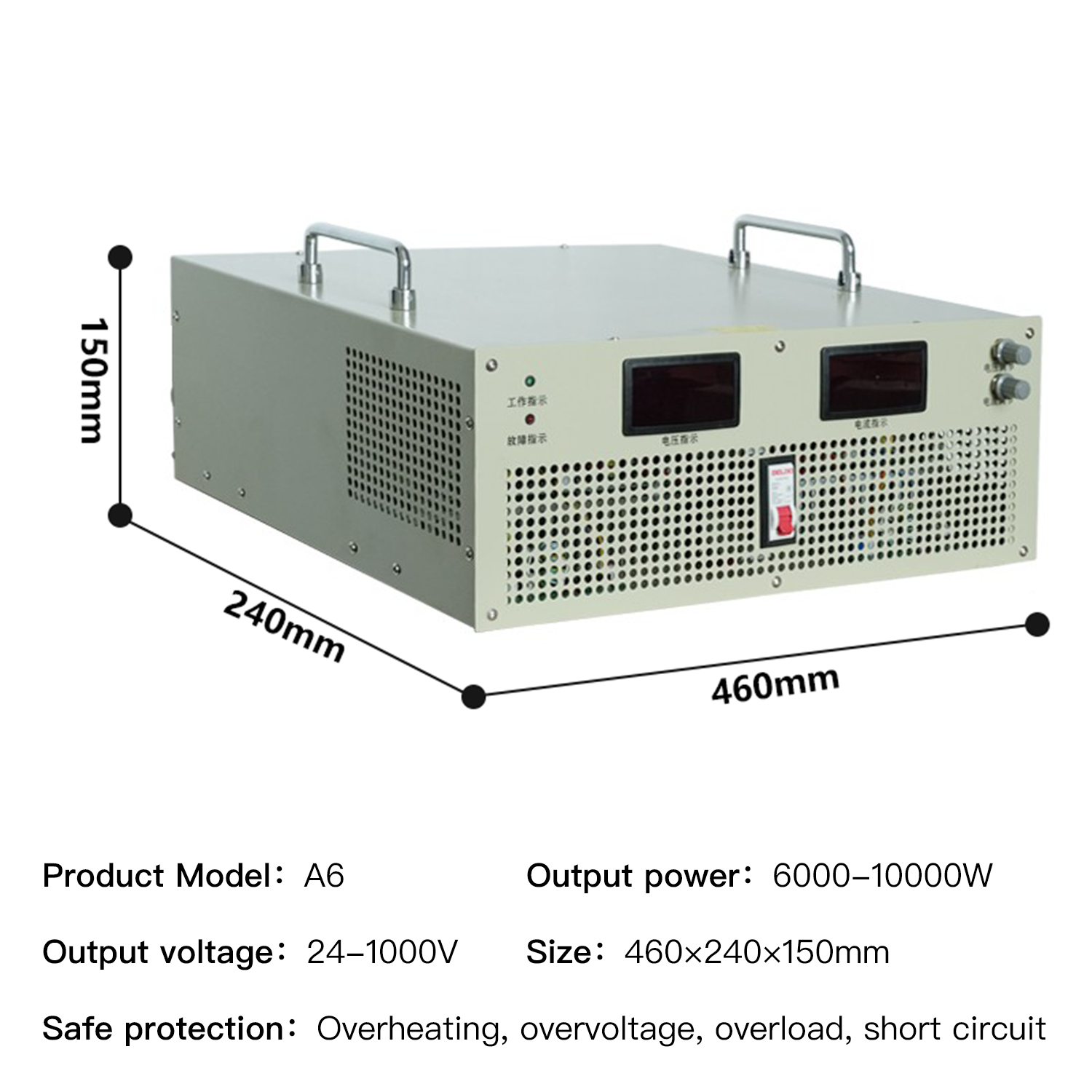

DC Switching Power Supply Main Display

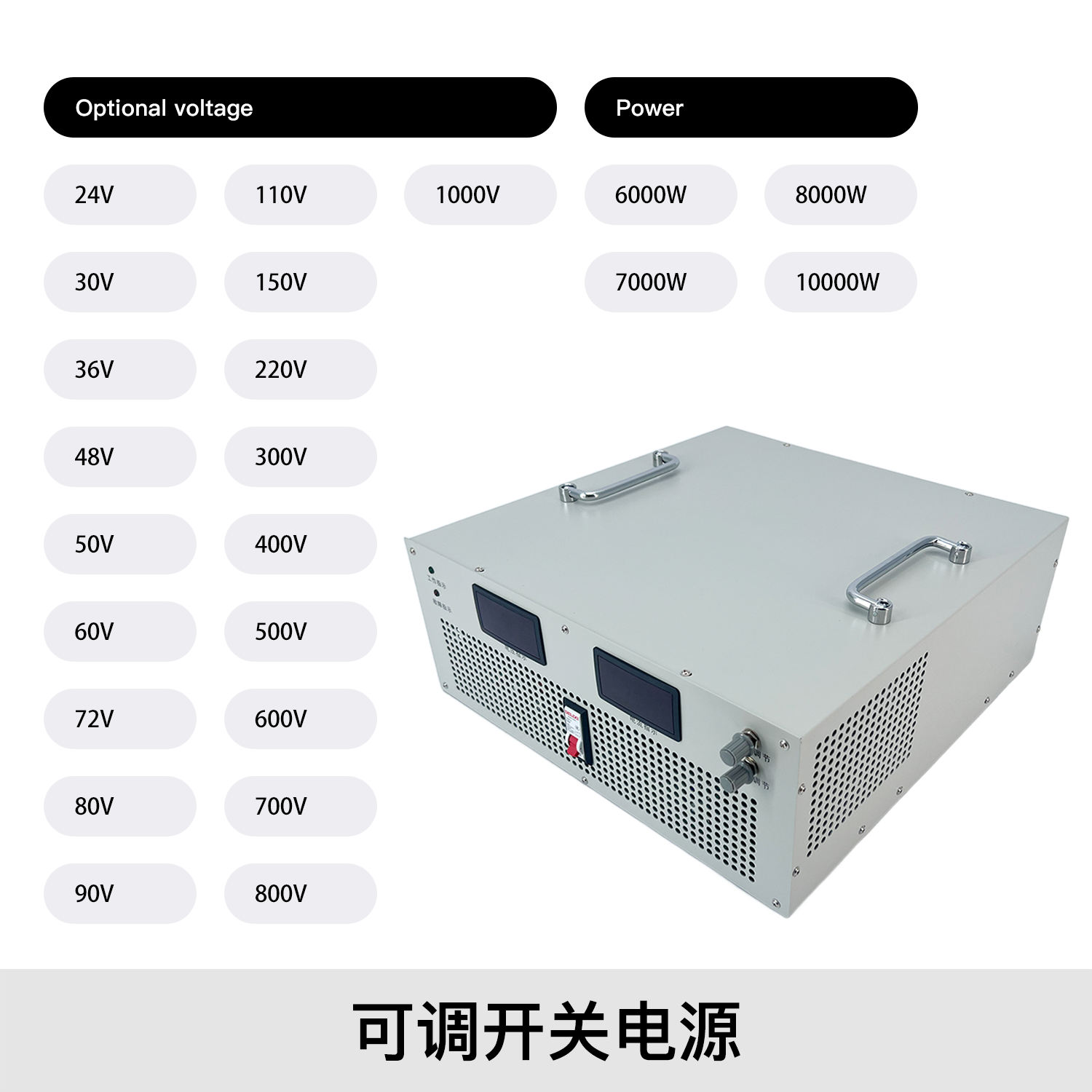

DC Power Supply Range Overview

Supported by a professional production factory of 10,000 square meters, we specialize in high-power regulated power supplies with 15 years of industry experience, ensuring top-tier engineering standards and excellent service support.

Product Overview

DC Switching Power Supply Details

DC Switching Power Supply

  • Application: Widely used in power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC fields.
  • Protection: Overcurrent, Overvoltage, Overheat, and Short Circuit Protection.
  • Features: High stability and high reliability.
  • Warranty: 1 Year.
  • Weight: Approximately 19KG.

Product Gallery & Components

DC Power Supply Component Display
Switching Power Supply Internal Structure
Regulated Power Supply Design
Power Supply Back Interface
Power Supply Ventilation Design

Technical Specifications

Product Name DC Switching Power Supply Operating Humidity 20%~88% RH
Power Rating 8000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
Input Voltage Single-phase/Three-phase
110V±10% / 220V±10% / 380V±10% 50-60Hz		 Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V to 1000V range selections Product Features High stability, high reliability
Output Current Selected power / Selected voltage Warranty Period 1 Year
Power Conversion AC to DC Product Weight Approximately 19KG
Efficiency > 88-89% Carton Dimensions 550x505x235mm
Output Accuracy ±1%

Applications & Production Display

Application Scenario 1
Application Scenario 2
Application Scenario 3
Application Scenario 4
Application Scenario 5

Product Instructions & Guidelines

1. Pre-Operation Check: Inspect the power supply for transit damage prior to turn on. Confirm tight screws, normal structural casing, securely connected terminal ports, and dry operating conditions.
2. Safe Power Input: The power button manages internal auxiliary modules. For safety, insert an air switch at the main power terminal for safe system disconnection. Verify voltage specifications match the configuration label before switching on.
3. Smart Cooling Fan: Integrated cooling fan triggers dynamically based on internal temperature metrics. Ensure continuous airflow space around the inlet and outlet vents during run time.
4. Thermal Protection: Overheat safety features trigger automated device shutdowns during temperature anomalies. Safe operation resumes after cooling below the safe threshold level.
5. Environmental Precautions: Refrain from exposing power units to excessive dust, acid particles, corrosive gases, heavy vibrations, rain, or direct sunlight.
6. Proper Maintenance: Keep the device clean through regular dust removal using dry compressed air. Do not open the external case structure or contact internal circuits to prevent unit issues.
7. Storage Recommendations: Store unused units in ventilated, dry areas. For periods exceeding six months, operate the unit continuously for at least half an hour to check functions.
8. Safe Startup Order: Connect your load system to the power supply unit only after verifying correct output parameters without active faults.
9. Troubleshooting & Safety: Stop usage if abnormal operating behavior appears. Inspect internal connections and external screws for security. Do not adjust internal parts manually; consult professional support technicians promptly.

Frequently Asked Questions

Q Does the power supply have built-in safety protection?
Yes, it includes active overvoltage, overcurrent, overheating, and short-circuit protection circuits.
Q Is reverse protection available?
Yes, reverse protection functions can be configured as an optional custom addition.
Q Can it run continuously at maximum capacity load?
No, power sources require buffer capacity. For long-term operations, keep power usage under 80% of rated capacity.
Q How is the voltage and current adjusted?
Voltage and current values are adjusted conveniently using dual integrated knobs.
Q Is this a fully isolated power supply unit?
Yes, our high-power regulated systems feature fully isolated structural circuitry.
Q What is the regulation start voltage of this power supply?
The output voltage regulation starts from 1V.
