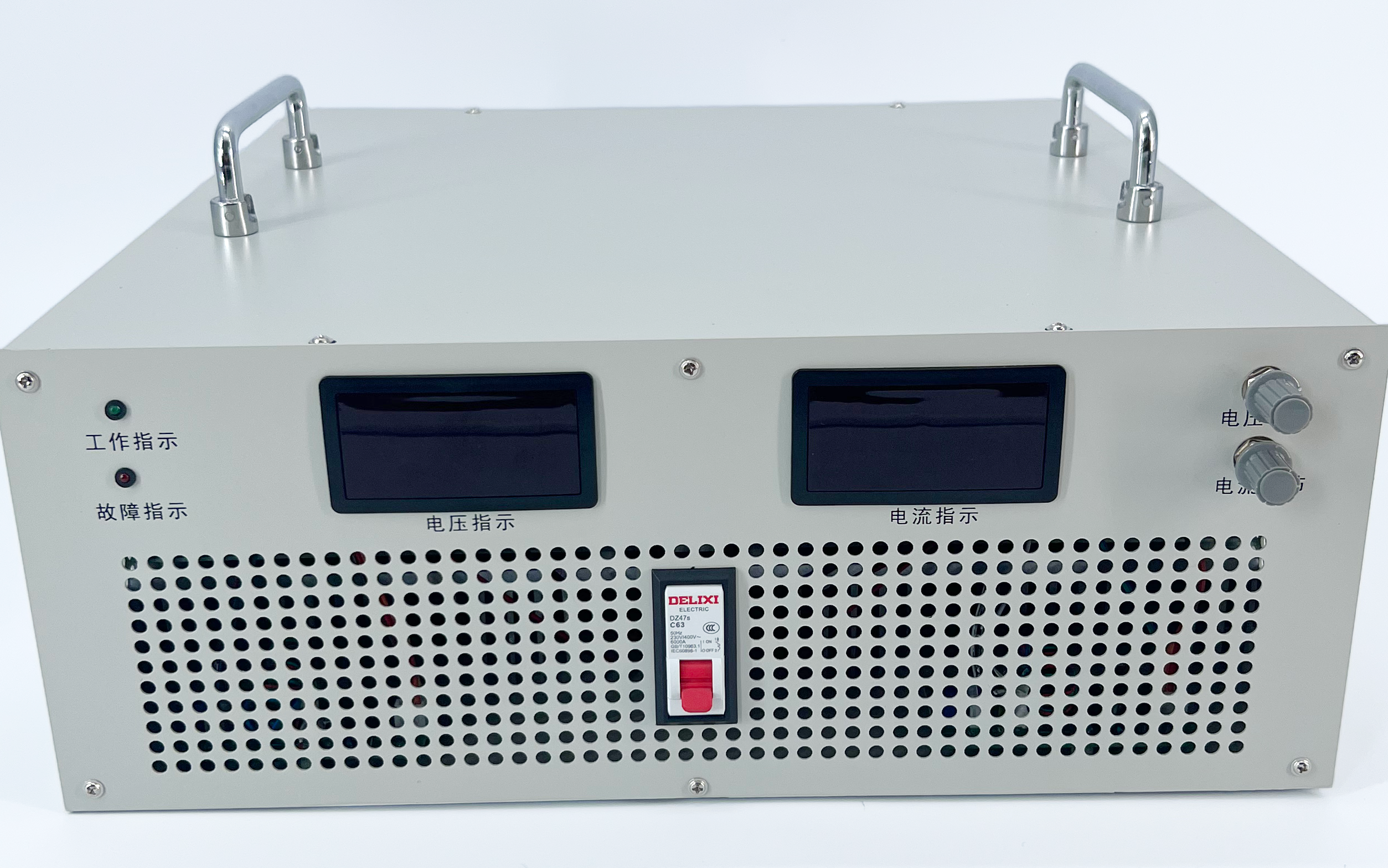

Output 24V-8000W High-Stability DC Switching Power Supply for Water Treatment/New Energy Maintenance , 24V-1000V
Pre-power check: Check the stored and transported switching power supply. Check for any damage during transportation, loose screws, abnormal appearance, disconnected terminals/power cords, or moisture. Address these issues promptly before operations.
2
External Switch Setup: The local power switch controls the internal auxiliary power supply. For safety, install an external air switch on the power input terminal. Connect the ground wire and input power wire according to the rear panel label. Confirm input voltage matches the manual specifications.
3

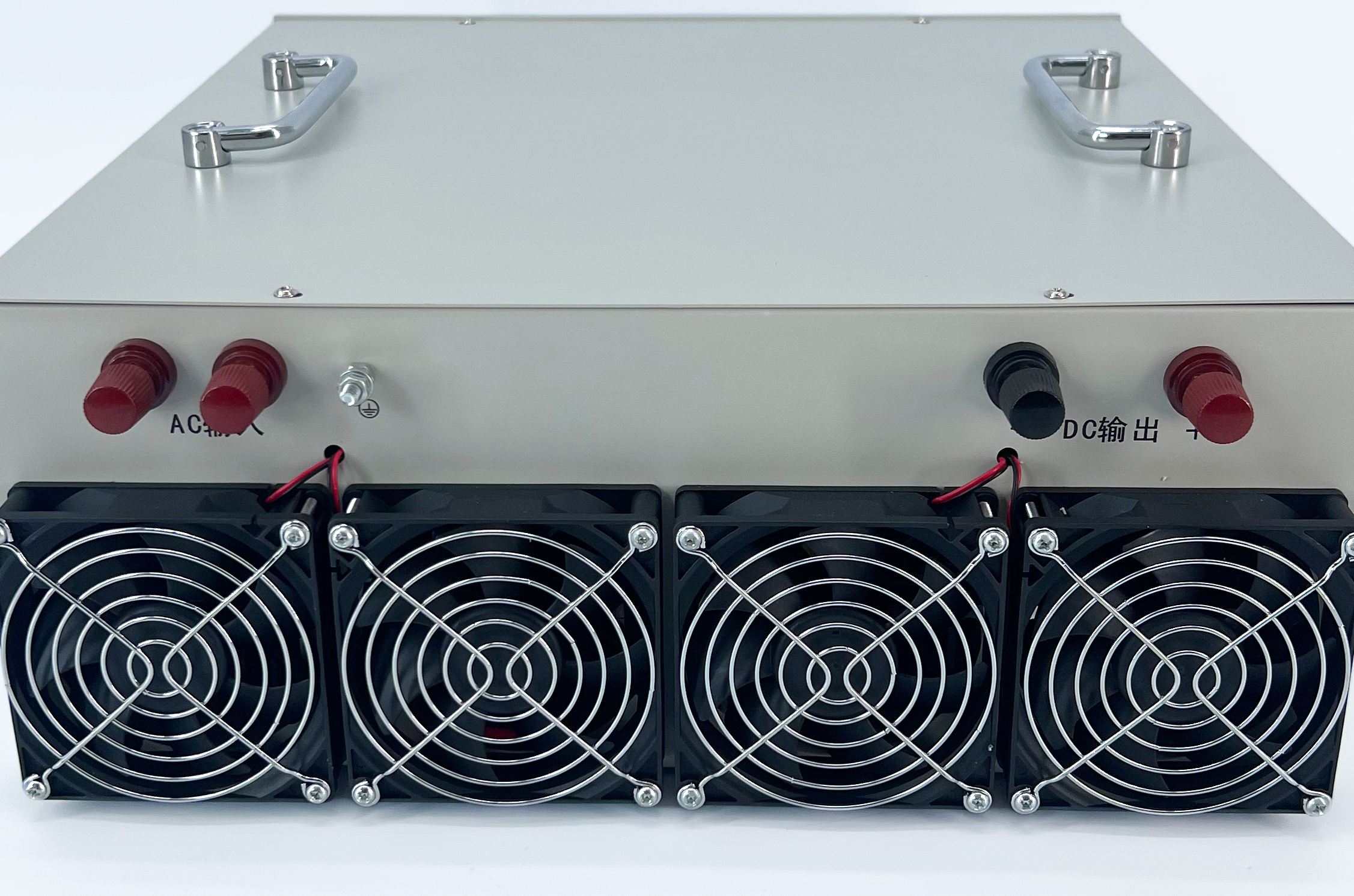

Temperature-controlled Fan: The cooling fan automatically starts when the internal temperature exceeds the limit. Fan speed changes relative to output voltage and current. Keep the air inlets and outlets completely unobstructed.
4
Overheat Protection: If the internal temperature reaches the shutdown threshold, the machine will auto-stop. It resumes operation automatically once the temperature cools down.
5
Operating Environment: Prevent excessive exposure to dust, acid, corrosive gases, severe vibrations, drops, rain, and direct sunlight.
6
Regular Dust Removal: Perform regular dust removal using dry compressed air to extend service life. Due to high internal voltages, do not open the casing to prevent damage and injury.
7
Long-term Storage: Store in a dry, ventilated room. If stored for over 6 months, power on and run the device for at least 30 minutes.
8
Warning: Only connect load equipment to the power supply once the power-on test is confirmed stable and error-free.
9
Troubleshooting: If operation is abnormal, cut off the main switch immediately. Inspect all external connections, terminal screws, and control knob positions. Do not disassemble the enclosure due to high voltage risks; contact professional technical support to resolve any issues.
Frequently Asked Questions (FAQ)
What protection functions are built into this power supply?

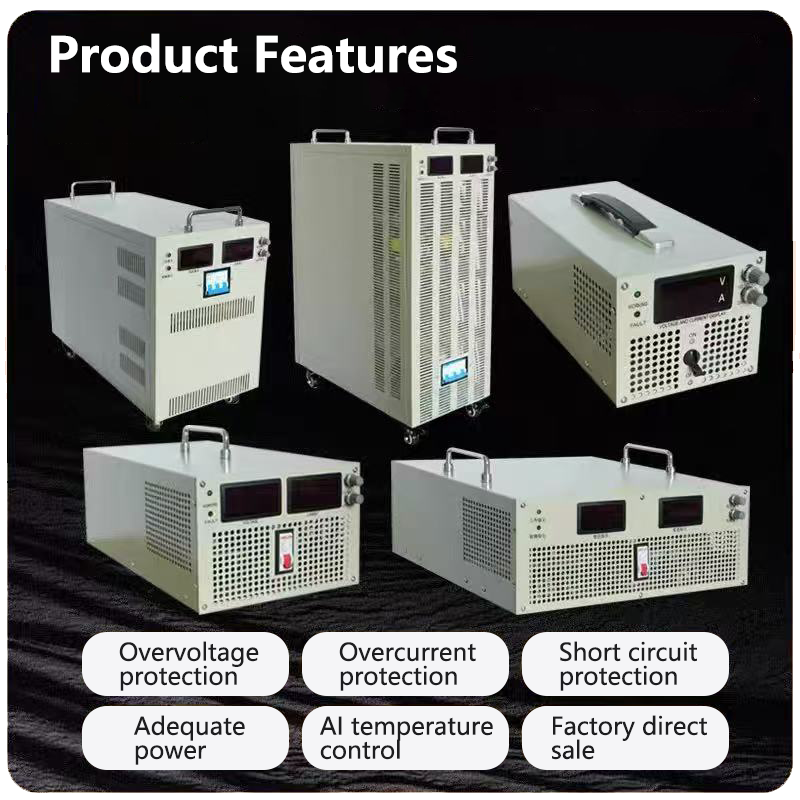

This unit comes fully equipped with comprehensive safety protections including overvoltage, overcurrent, overheating, and short-circuit protection.
Can the power supply run at 100% capacity continuously?
No, for continuous and long-term usage, the power supply load should be kept below 80% of the maximum capacity to ensure durability.
How do you adjust the output voltage and current?
The control panel features dual rotary knobs, allowing for smooth, intuitive, and convenient adjustments of both voltage and current settings.
Is this high-power DC supply fully isolated?
Yes, this unit is engineered as a fully isolated power supply to ensure electrical safety and minimize interference.
What is the starting voltage range?
The output voltage regulation starts from 1V up to the rated capacity.
Does the power supply output actual rated power?
Yes, this power supply provides full, stable, and sufficient power output according to specified model ratings.
