Output 30V- 6000W High Power DC Adjustable Switching Power Supply for Industrial Applications High Efficiency

Specializing in high-power regulated power supplies for 15 years with a professional production factory of 10,000 square meters.

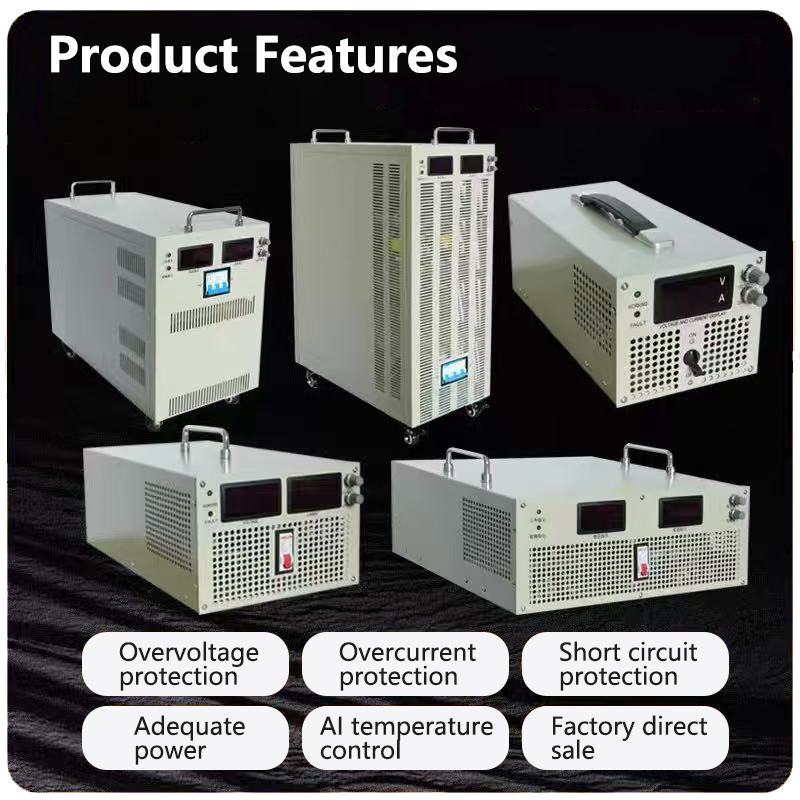

Product Showcase

✓
Product Name:DC Switching Power Supply
✓
Application:Widely used in power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
✓
Protection:Overcurrent, Overvoltage, Overheat, Short Circuit Protection
✓
Features:High stability and reliability
✓
Warranty:1 year
✓
Weight:Approximately 19KG

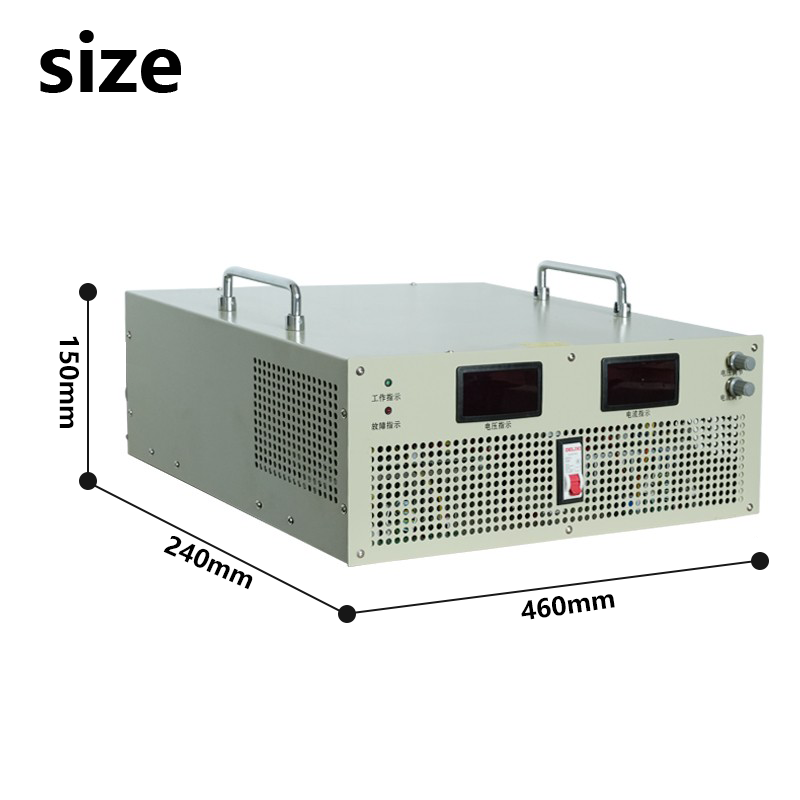

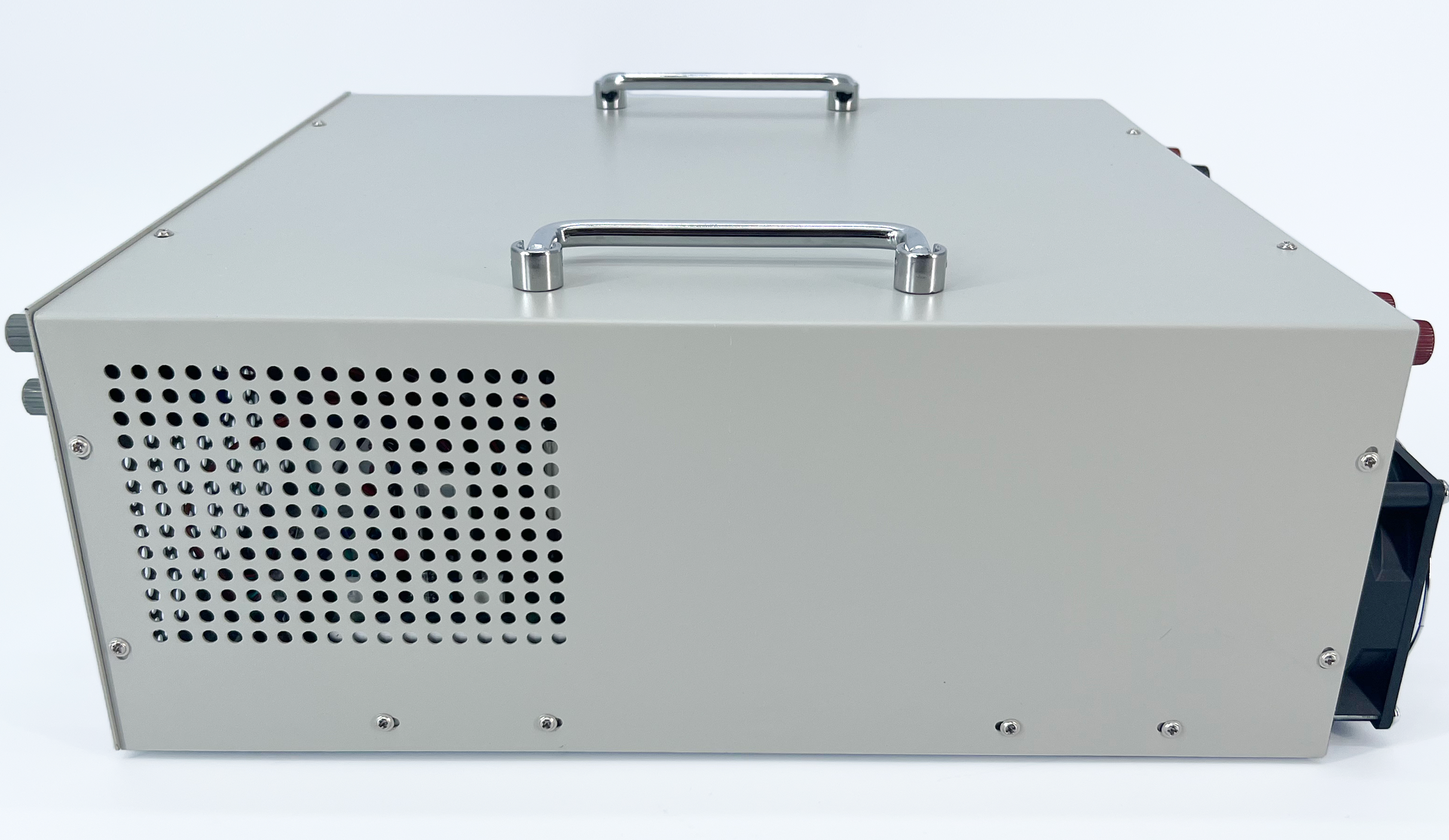

Detail Images

Technical Specifications

Product Name	DC Switching Power Supply	Operating Relative Humidity	20%~88%
Power Rating	10000W	Application Scenarios	Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage	Single-phase/Three-phase 220V±10% 50-60HZ 110V±10% 50-60HZ 380V±10%	Protection Functions	Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage	12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V	Product Features	High stability, high reliability
Output Current	Selected power/selected voltage	Warranty Period	1 Year
Power Conversion Type	AC-DC	Product Weight	Approximately 19 kg
Efficiency	>88-89%	Carton Dimensions	550x505x235mm
Output Voltage Accuracy	±1%

Production & Quality Showcase

Product Instructions

1

Before powering on, check the stored and transported switch power supply. Inspect for any transportation damage, such as loose screws, abnormal appearance, loose power cord or terminal shaking, and dampness. Address any issues promptly.

2

The local power switch controls the internal auxiliary power supply. For safety, please add an air switch at the power input terminal to control the input power. Connect the ground wire and input power wire correctly according to the rear panel label. Verify that the input voltage matches the manual specification.

3

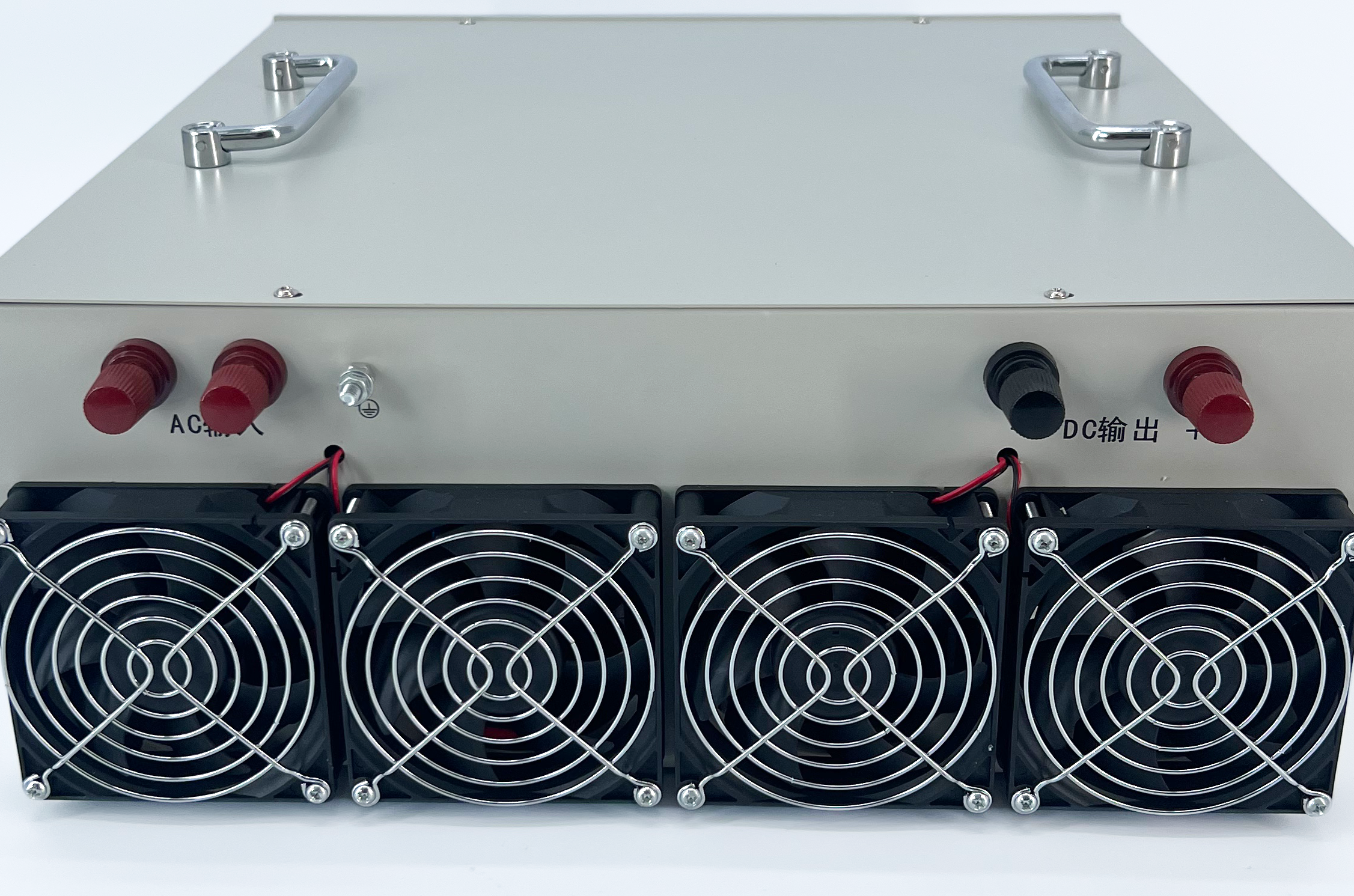

The cooling fan is temperature-controlled and starts when the internal temperature exceeds the threshold. The speed adjusts based on the output voltage and current. Keep the air inlets and outlets clear of obstructions.

4

If the internal temperature reaches the overheat shutdown limit, the unit automatically stops working to prevent damage. It will resume operation automatically once it cools down.

5

Ensure that operational environment parameters (dust, acid, corrosive gases, or airborne substances) remain within normal limits. Avoid severe vibration, physical shock, rain, and direct exposure to sunlight.

6

Perform periodic dust removal to extend service life and operational reliability. Dry compressed air can be used for cleaning. Due to high internal voltage, do not open the outer casing or damage internal components.

7

Store the equipment in a dry, well-ventilated room when idle. If stored for more than 6 months, power on the device and run it for at least 30 minutes.

8

Warning: Only connect load equipment to the power supply after verifying that the initial power-on test is normal and error-free.

9

Troubleshooting: If abnormal operation is observed, turn off the switch immediately. Verify external and internal connections for tightness. Confirm switches and knobs are positioned correctly. For complex issues, do not open the casing to prevent electric shock hazards. Contact support to resolve the issue.

Frequently Asked Questions (FAQ)

Q: Does the power supply have protection functions?

A: Yes, it is equipped with overvoltage, overcurrent, overheating, and short circuit protection.

Q: Can it be operated at full power for a long duration?

A: No, the power supply needs to be used with excess capacity. To ensure long-term stability, we recommend operating it under 80% of its maximum power load.

Q: How convenient is it to adjust the voltage and current?

A: The adjustment is highly user-friendly. Voltage and current can be easily adjusted via dual independent knobs.

Q: Is the high-power power supply isolated?

A: Yes, our units are fully isolated power supplies for safety and reliability.

Q: What is the voltage regulation starting point?

A: The voltage regulation range starts from 1V.

Q: Can reverse protection be added?

A: Yes, reverse protection can be configured as a custom-ordered option.
