Product Description

Power Supply Production
Our professional production facility spans 10,000 square meters, backed by 15 years of specialization in high-power regulated power supplies. We are dedicated to providing superior product quality and excellent after-sales support.

Product Specifications & Overview

DC Switching Power Supply

DC Switching Power Supply

  • ⚡ Application: Widely used in power electronics, electroplating, water treatment, battery charging, new energy maintenance, and various DC application sites.
  • 🛡️ Protection: Equipped with Overcurrent, Overvoltage, Overheat, and Short Circuit Protection.
  • ⭐ Features: High stability and outstanding reliability.
  • 📋 Warranty: 1 Year Warranty.
  • ⚖️ Weight: Approximately 19KG.

Product Features & Performance

Feature Diagram 1
Feature Diagram 2
Feature Diagram 3
Feature Diagram 4
Feature Diagram 5

Technical Parameters

Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 8000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase / Three-phase
220V±10% 50-60Hz, 110V±10% 50-60Hz, 380V±10%		 Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V, 15V, 24V, 30V, 36V, 48V, 50V, 60V, 72V, 80V, 90V, 110V, 150V, 220V, 300V, 400V, 500V, 600V, 700V, 800V, 1000V Product Features High stability, high reliability
Output Current Selected power / selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 19 kg

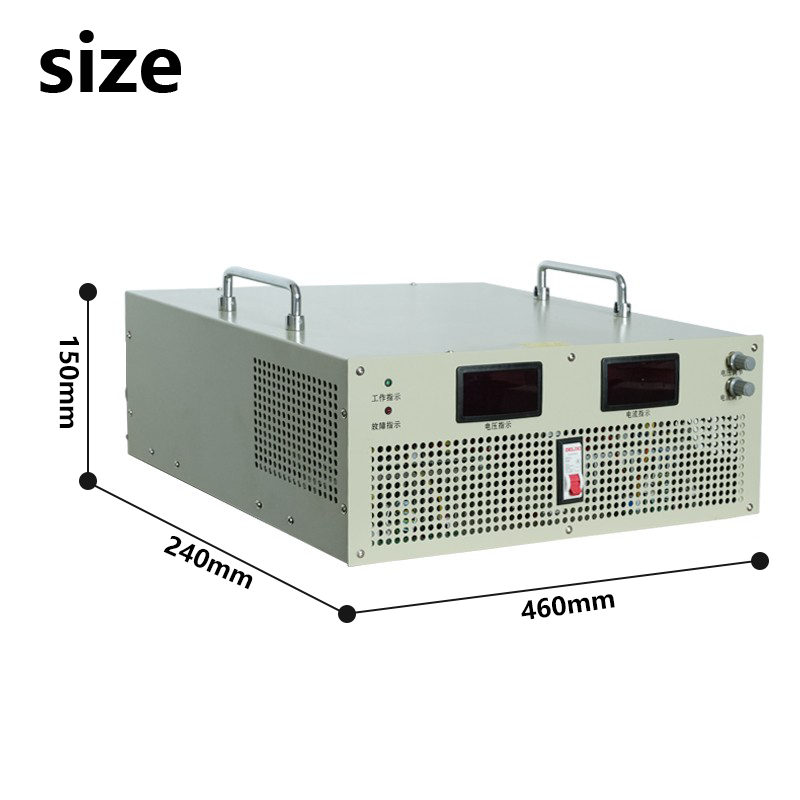

Efficiency ≥ 88-89% Carton Dimensions 550x505x235mm
Output Voltage Accuracy ±1% - -

Product Showcase Gallery

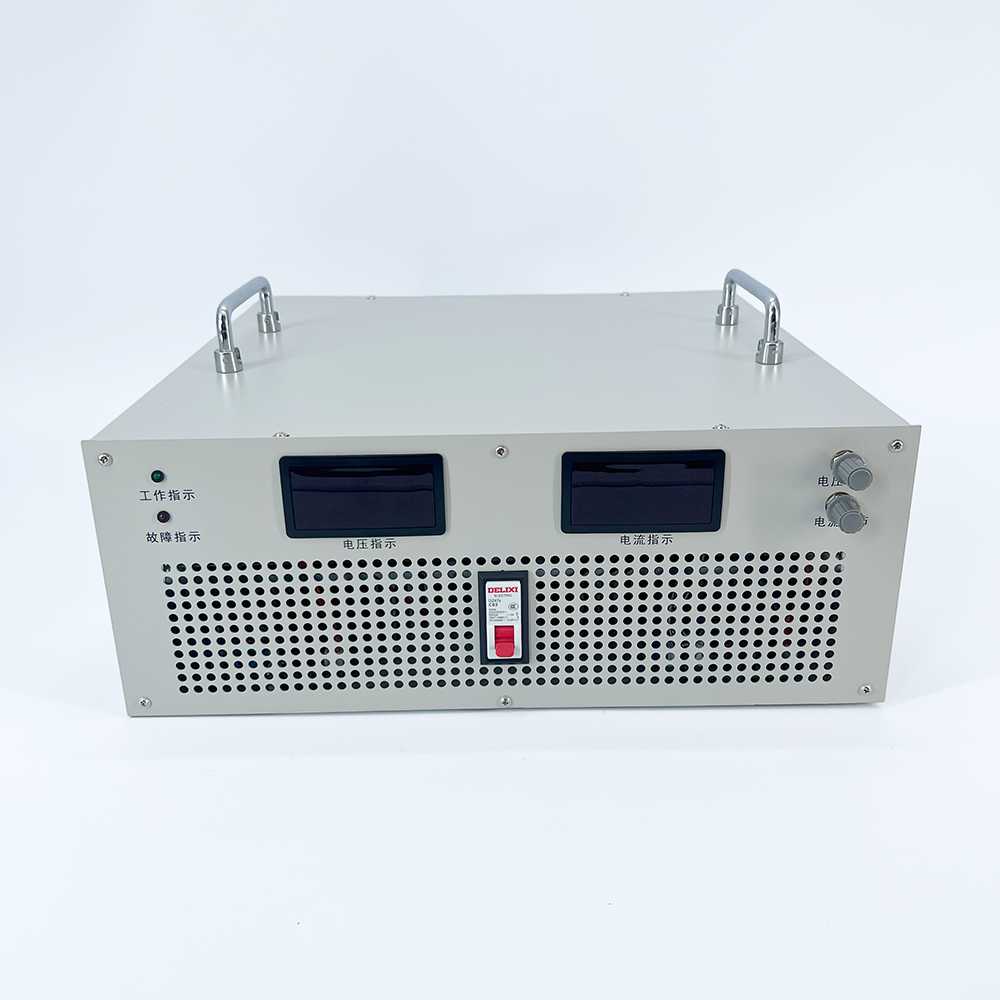

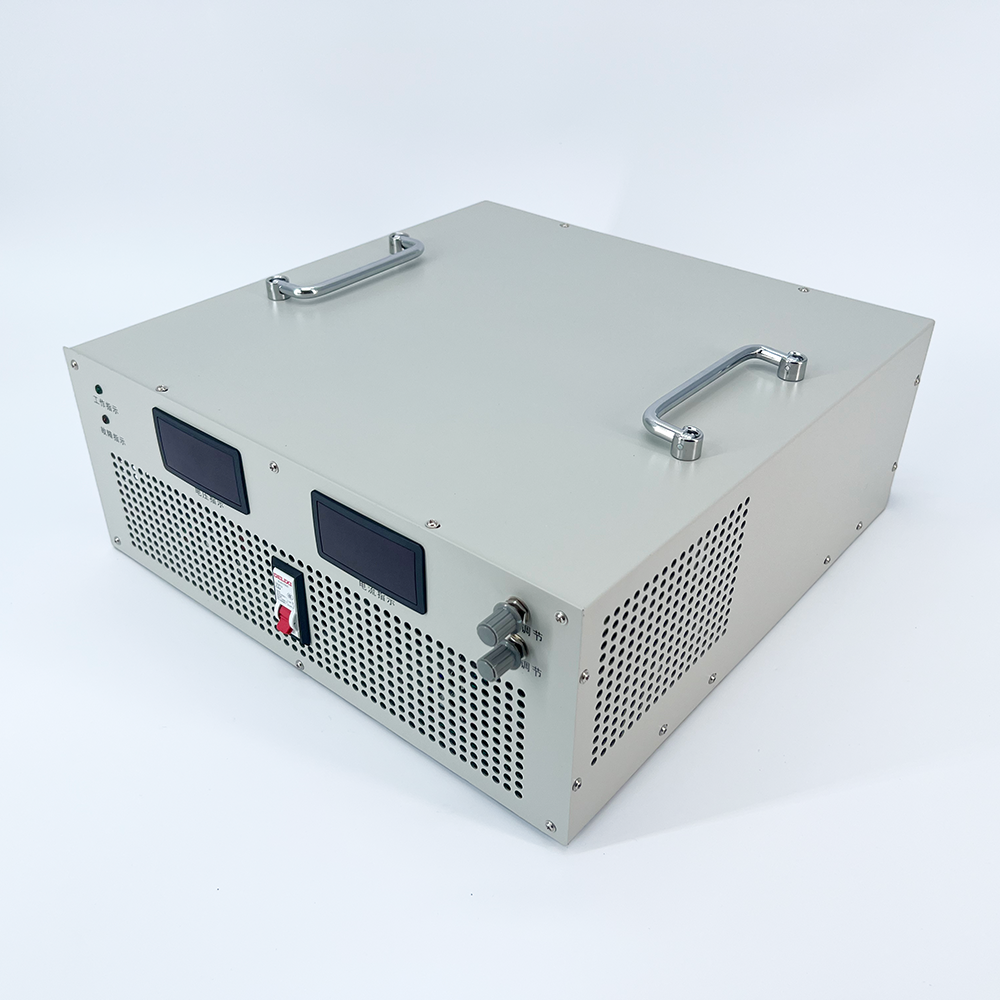

Product Angle 1

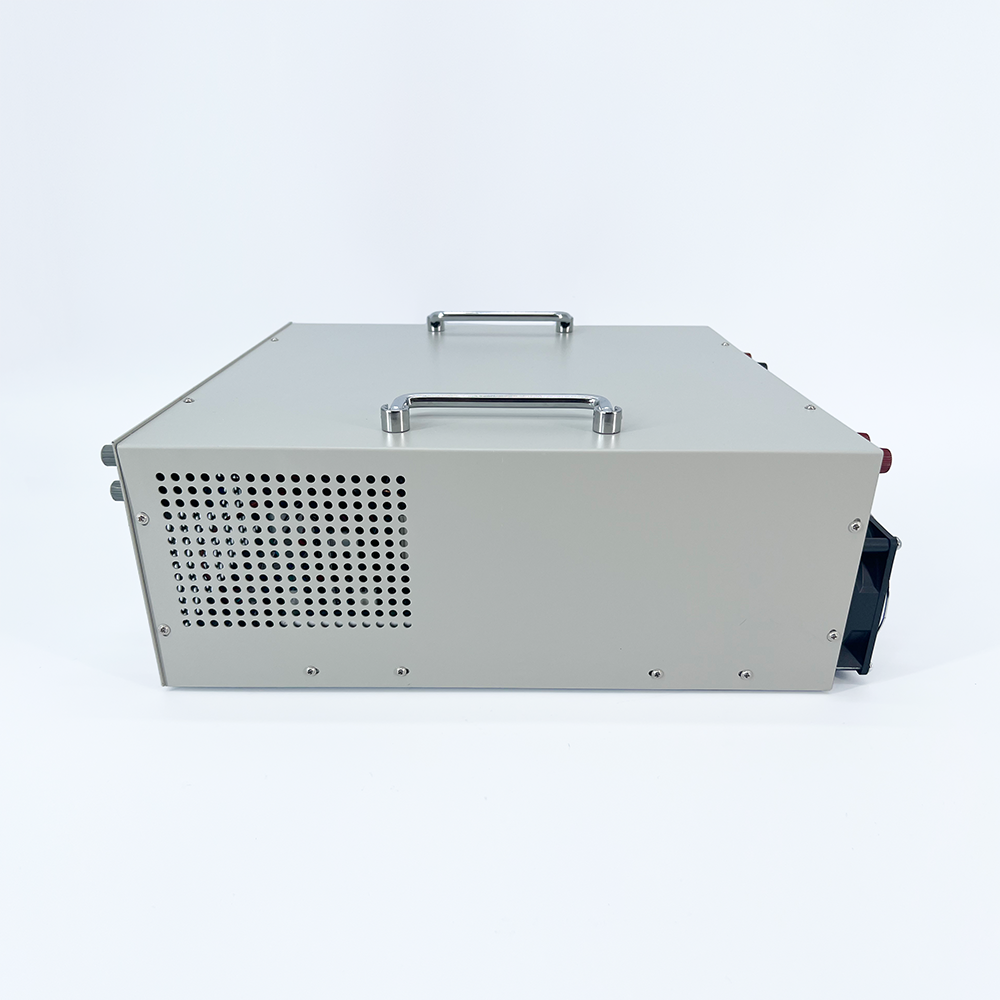

Product Angle 2
Product Detail
Internal Structure

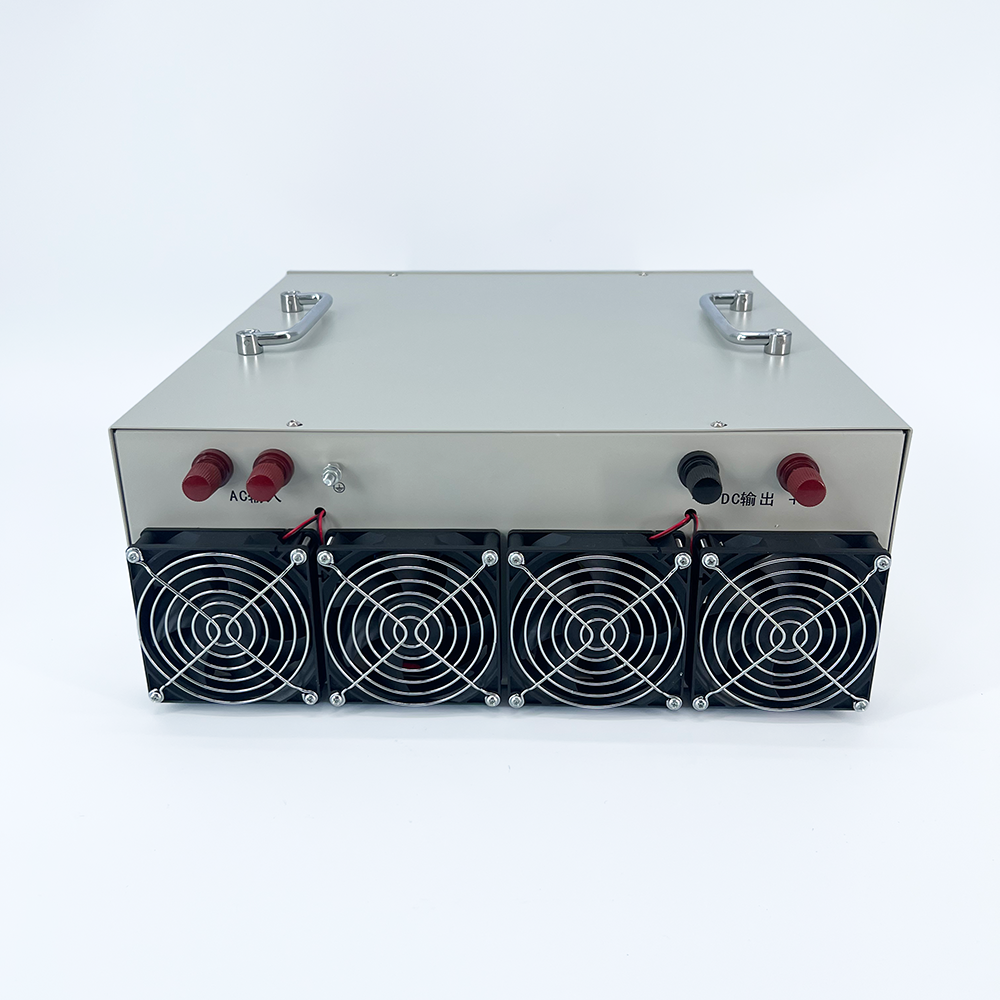

Interface Configuration

Product Instructions & Safety Guidelines

1. Pre-Power Check Before powering on, inspect the device for any potential damage sustained during transit. Check for loose screws, structural anomalies, loose wiring terminals, or signs of dampness. Correct any issues immediately before use.
2. Electrical Installation The local power switch controls the internal auxiliary circuitry. For enhanced safety, please connect an air switch to the power input terminals. Connect the ground wire and input power cables in strict compliance with the rear panel labels. Confirm that the supply voltage matches the specifications outlined in this guide.
3. Temperature-Controlled Cooling The built-in cooling fan relies on temperature activation. The fan automatically starts when internal temperatures cross the preset threshold. The fan speed fluctuates dynamically based on output voltage and current parameters. Ensure the air inlets and outlets remain unobstructed during operation.
4. Overheat Safety Protection Should the internal temperature reach critical thresholds, the unit will automatically initiate shutdown protection. The unit resumes operation automatically once the internal components cool down to safe levels.
5. Environmental Restrictions Ensure the operating environment is free of excess dust, acid, corrosive gases, or aggressive chemicals. Avoid severe vibrations, mechanical shocks, rain, and direct sunlight exposure.
6. Maintenance & Cleaning Perform periodic dust removal to extend the operational life and stability of the equipment. Dry compressed air can be used for cleaning. Warning: Due to internal high voltage, do not open the casing shell or touch components directly.
7. Storage Recommendations If the device is idle for long periods, store it in a dry, well-ventilated space. For storage periods exceeding 6 months, power on the device and run it for at least 30 minutes before deployment.
8. Load Connection Do not connect any powered load equipment until the system has successfully completed the initial no-load power test without errors.
9. Troubleshooting & Servicing In the event of abnormal performance, immediately turn off the stabilized power switch. Double-check all external/internal wiring connections, verify screw tightness, and ensure all control knobs are set correctly. If complex issues persist, do not attempt self-repair or disassemble the chassis. Contact professional technical support immediately to resolve the issue.

Frequently Asked Questions (FAQ)

QDoes the power supply have built-in safety protection?
Yes, the power supply is designed with full protection systems, including overvoltage, overcurrent, overheating, and short-circuit protections.
QIs reverse polarity protection available?
Yes, reverse polarity protection can be customized and integrated into the unit upon request.
QCan this system operate at full power for continuous, long-term use?
No, for long-term continuous operations, the power supply should be used with reserve capacity. We recommend keeping the load below 80% for continuous operation.
QHow easy is it to adjust output voltage and current?
Adjustment is highly convenient. It features independent dual-knob controls for quick and precise regulation of both voltage and current.
QIs this high-power system fully isolated?
Yes, this product is a fully isolated power supply designed for safe industrial operations.
QWhat is the minimum voltage output range?
The adjustable voltage regulation range starts from 1V.
