110V-8000W High-Efficiency DC Adjustable Switching Power Supply Single 24V-1000V Input High Stability Reliability 1 Year

We are located in a core city cluster in the Yangtze River Delta region of China. Located near Shanghai, product exports are convenient. The professional production factory spans 10,000 square meters. We have been specializing in high-power regulated power supplies for 15 years, recognized as an honest enterprise unit and an excellent after-sales service provider.

Product Overview

Product Name:DC Switching Power Supply
Application:Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
Protection:Overcurrent, Overvoltage, Overheat, Short Circuit Protection
Features:High stability and reliability
Warranty:1 year
Weight:Approximately 19KG

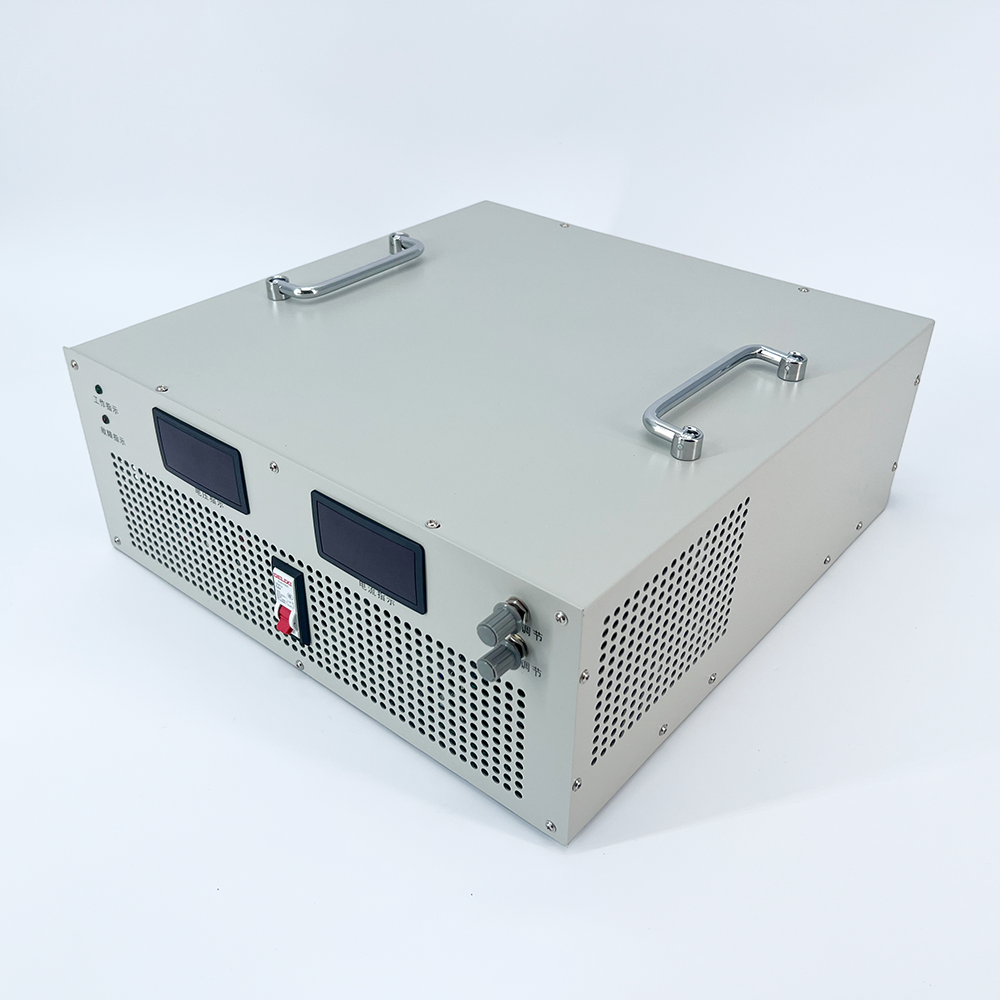

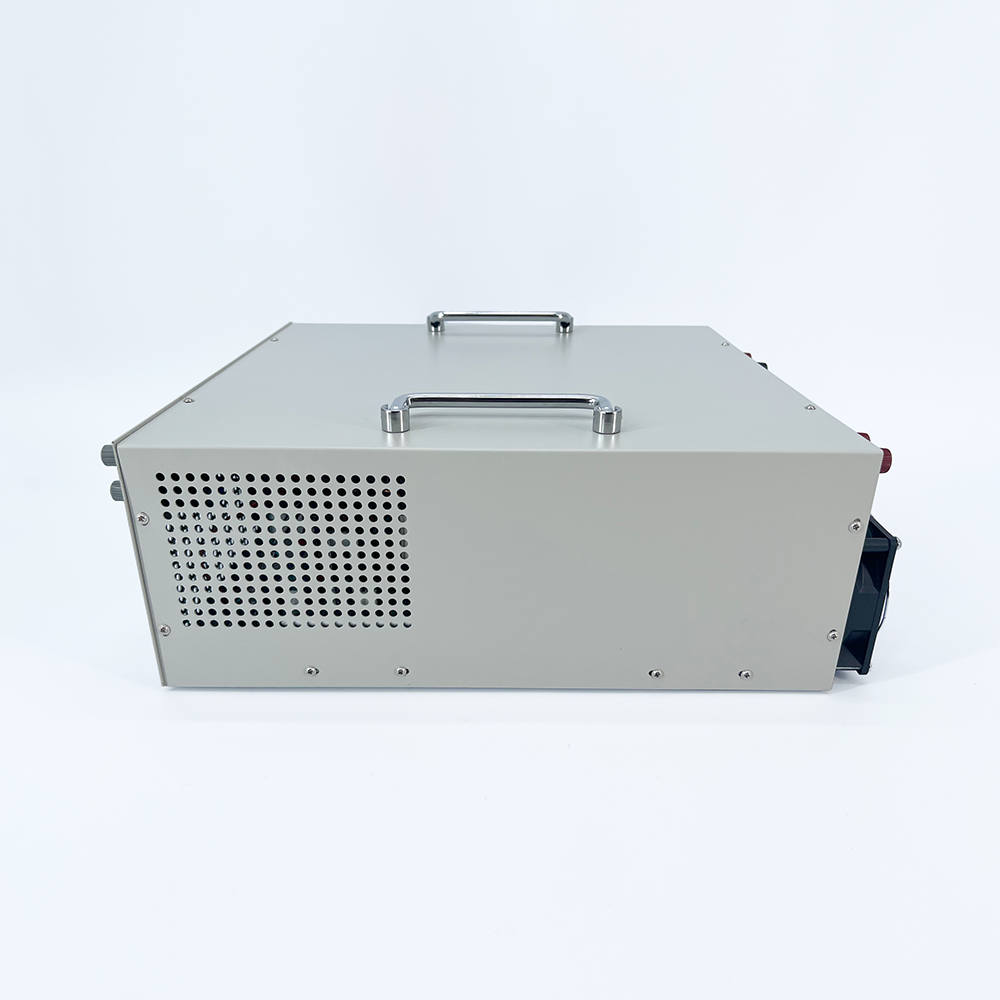

Product Gallery

Technical Specifications

Product Name	DC Switching Power Supply	Operating Relative Humidity	20%~88%
Power Rating	8000W	Application Scenarios	Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage	Single-phase/Three-phase 220V±10% 50-60HZ 110V±10% 50-60HZ 380V±10%	Protection Functions	Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage	12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V	Product Features	High stability, high reliability
Output Current	Selected power / selected voltage	Warranty Period	1 Year
Power Conversion Type	AC-DC	Product Weight	Approximately 19 kg

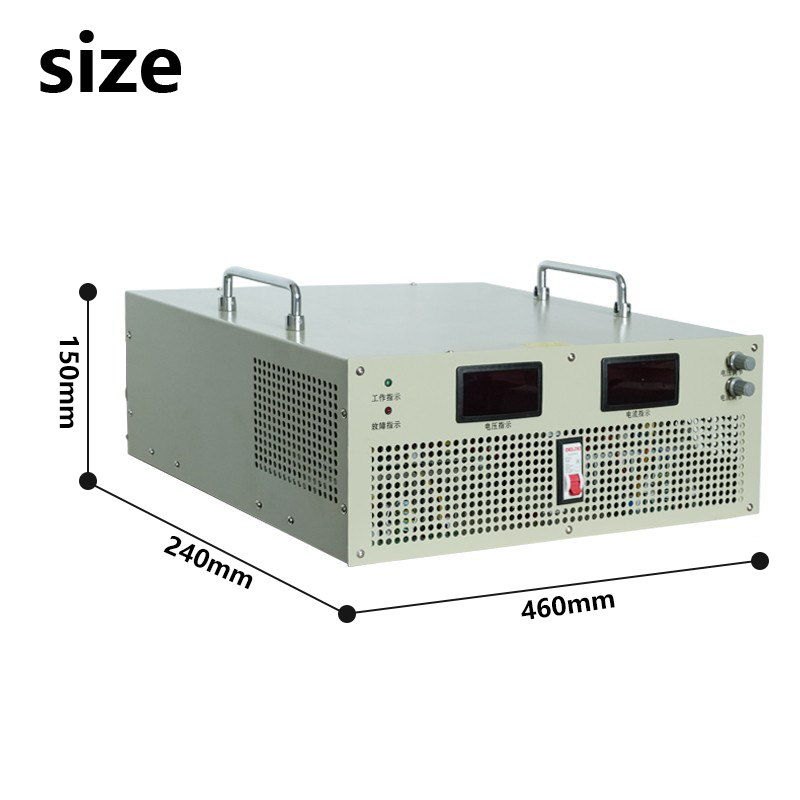

Efficiency	>88-89%	Carton Dimensions	550x505x235mm
Output Voltage Accuracy	±1%

Detailed Images

Product Instructions

Before powering on, check the stored and transported switch power supply. Inspect for any damage during transportation, such as loose screws, abnormal appearance, shaken power cords/terminals, or signs of dampness. If any issues are found, resolve them in a timely manner.
The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel to confirm correct connection. Ensure the input power supply voltage matches the voltage indicated in the manual.

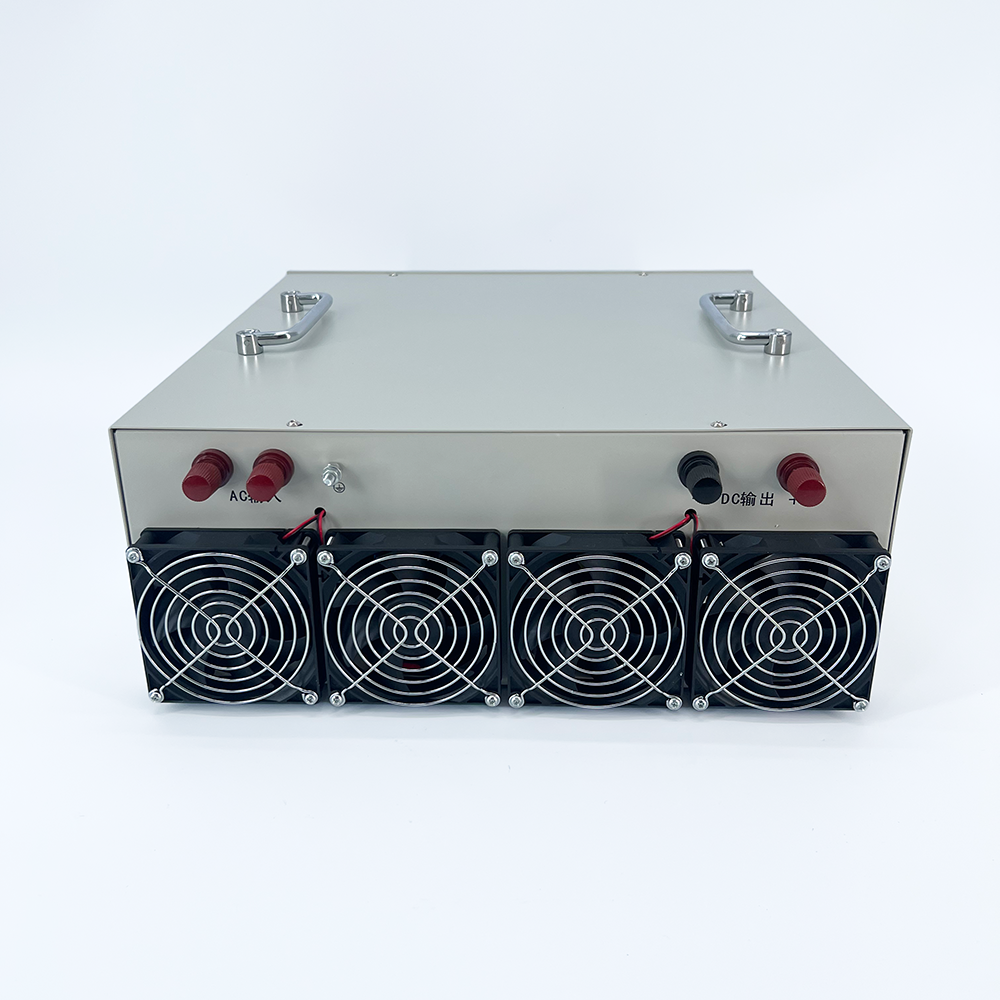

The cooling fan is temperature controlled. The fan starts running when the internal machine temperature exceeds the starting threshold. The fan speed varies based on the output voltage and current, which is normal. Keep the inlet and outlet of the fan clear during operation.
When the internal temperature reaches the threshold for overheating shutdown, the machine will automatically stop working to prevent damage. Once the temperature drops to a safe level, it will automatically restart and resume operation.
When operating the power equipment, ensure that dust, acid, corrosive gases, or substances in the air do not exceed normal levels. Avoid severe vibrations, bumps, rain, and direct sunlight.
Regular dust removal is highly recommended to significantly improve the service life and reliability of the equipment. Dry compressed air can be used for dust removal. Note that high voltage is present inside; do not open the casing and handle with care to avoid damaging internal components.
When the power equipment is idle for an extended period, store it in a dry and ventilated room. If stored for more than 6 months, the equipment should be powered on and operated for more than half an hour.
Warning: Only connect to the powered load equipment when the power-on test is normal and error-free.
Handling Malfunctions: If abnormal operation is observed after power-on, immediately cut off the power switch of the stabilized power supply. Carefully check the internal and external connections for correctness and verify that screws are tight. Ensure all switches and knobs are in the correct positions. Do not unscrew the casing or attempt repairs without professional knowledge due to high-voltage hazards. Please notify the service center promptly to resolve the issue.

Frequently Asked Questions (FAQ)

Is there overvoltage, overcurrent, overheating, or short circuit protection?

Yes, the power supply has built-in overcurrent, overvoltage, overheat, and short circuit protection.

Is there reverse protection?

Yes, reverse protection can be configured as an option.

Can it be used at full power for a long time?

No, the power supply needs to be operated with excess capacity. Long-term usage should be kept below 80% of the maximum capacity.

Is it convenient to adjust the voltage and current?

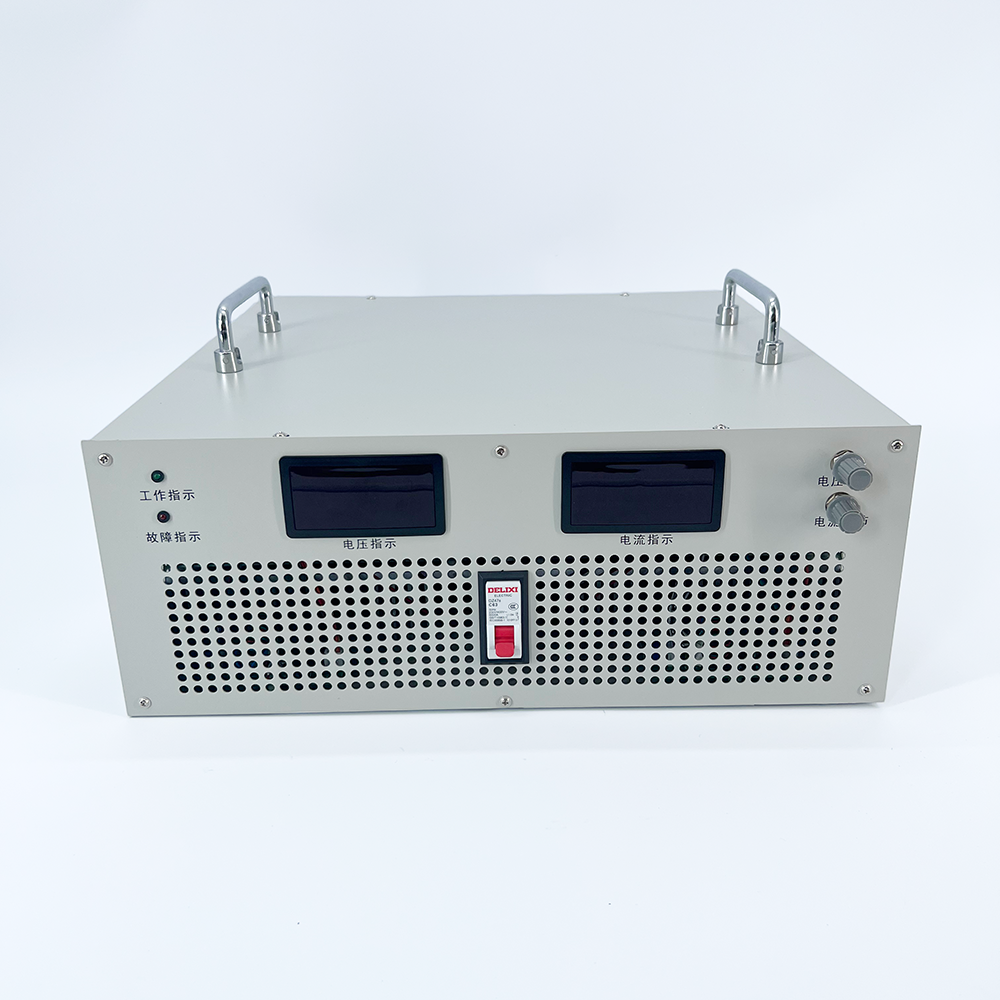

Yes, adjusting is very convenient. Voltage and current can be set using dual control knobs.

Is the high-power power supply isolated?

Yes, our system is designed as a fully isolated power supply.

What is the voltage regulation range?

The voltage regulation starts from 1V.
