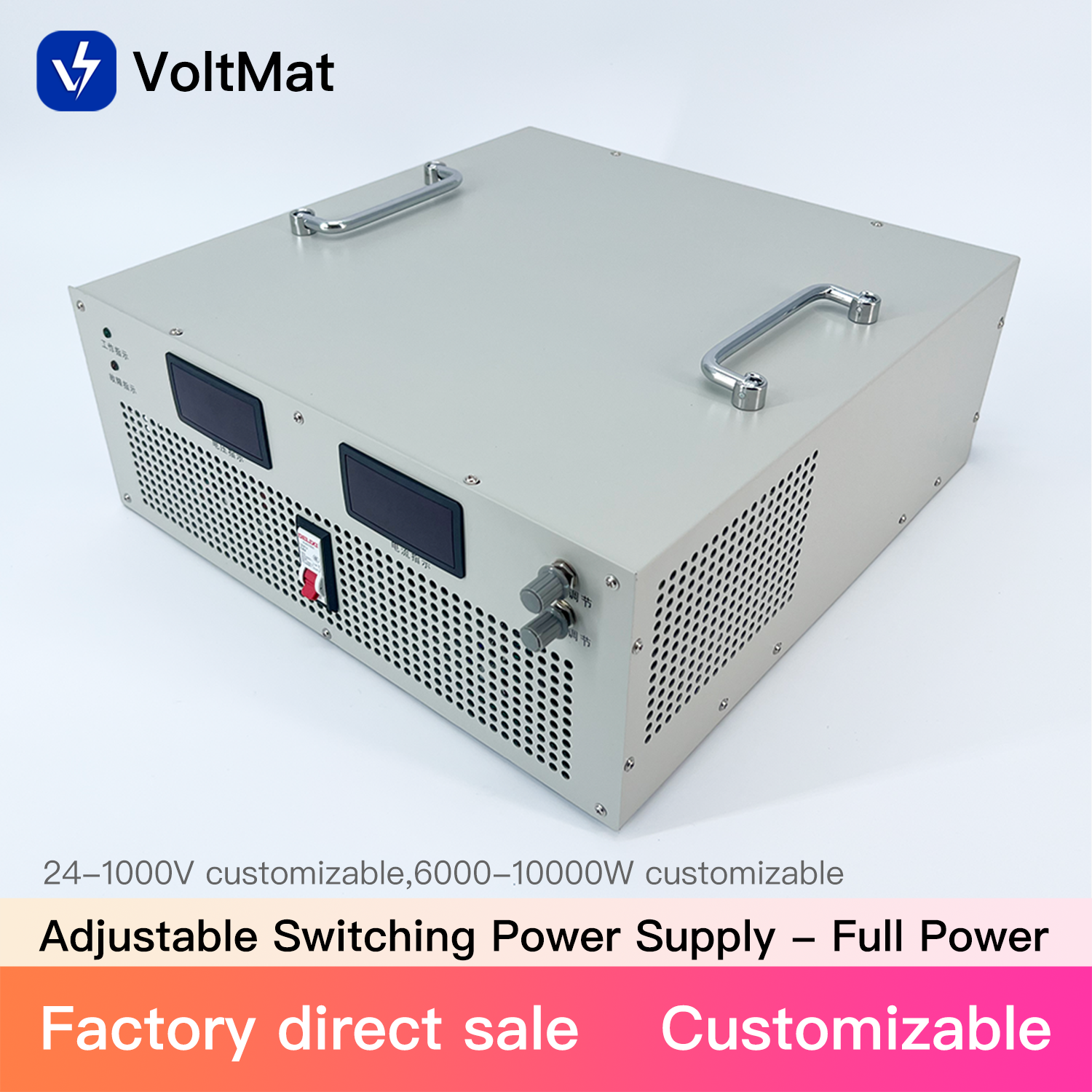

Adjustable Regulated Single Output Industrial AC-DC Power Supply High Precision High Stability DC Efficiency 88-89% 1 Year

A professional production factory of 10,000 square meters, specializing in high-power regulated power supplies for 15 years, committed to providing highly stable and customized power solutions.

DC Switching Power Supply

Application: Widely used in power electronics, electroplating, water treatment, battery charging, and new energy maintenance.
Safety Protection: Equipped with overcurrent, overvoltage, overheat, and short circuit protection.
Core Features: Excellent high stability and long-term reliability.
Warranty: 1-year product warranty.
Weight: Approximately 19KG.

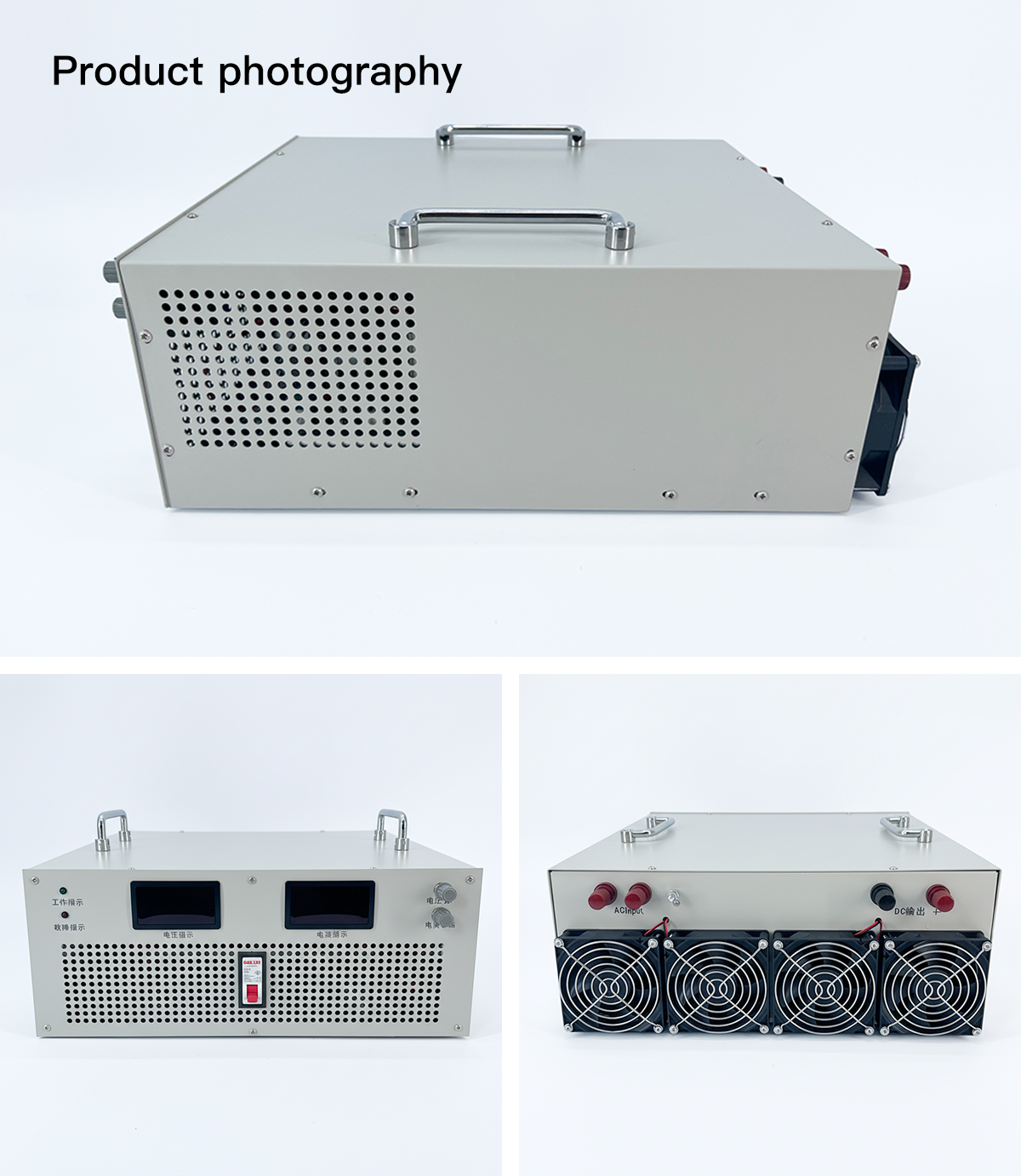

Product Details Showcase

Specifications

Product Name	DC Switching Power Supply	Operating Humidity	20% ~ 88% RH
Power Rating	10000W	Applications	Power electronics, electroplating, water treatment, battery charging, maintenance
Input Voltage	Single-phase/Three-phase 110V/220V/380V ±10% 50-60Hz	Protections	Overcurrent, overvoltage, overheat, short-circuit protection
Output Voltage	12V to 1000V range selections	Features	High stability, high reliability
Output Current	Selected power / selected voltage	Warranty	1 Year
Conversion Type	AC to DC	Product Weight	Approximately 19KG
Efficiency	> 88-89%	Dimensions	550 x 505 x 235 mm
Voltage Accuracy	±1%	-	-

Product Overview & Production

Product Instructions

1

Pre-operation Check: Inspect the unit for transport damage, such as loose screws, physical abnormalities, disconnected terminals, or moisture, before powering on.

2

Power Input Control: For safety, install an air switch at the power input terminal. Ensure proper ground and input wire connections matching the rear panel labels and verify the supply voltage.

3

Cooling Fan System: The cooling fan operates based on internal temperature. Ensure the fan's inlet and outlet paths are completely unobstructed during operation.

4

Overheat Shutdown: If internal temperatures exceed safe thresholds, the machine will shut down automatically and restart once it cools down to safe levels.

5

Environmental Limits: Do not operate in environments with excessive dust, acid, corrosive gases, direct sunlight, or severe vibrations.

6

Maintenance & Cleaning: Regularly clean out dust using dry compressed air. Do not open the casing as high voltage components are contained inside.

7

Storage Requirements: Store in a dry, ventilated area. If stored for over 6 months, power on the device and let it run for at least 30 minutes.

8

Load Connection: Always verify normal no-load voltage output before connecting to any load equipment.

9

Troubleshooting: If abnormality occurs, cut off input power immediately. Do not attempt self-repair due to high internal voltage hazards.

Frequently Asked Questions

Does the power supply feature safety protections?

Yes, it features overvoltage, overcurrent, overheating, and short-circuit protection.

Can it run continuously at full power?

No. Power supplies require excess capacity. Running under 80% capacity is recommended for long-term usage.

Is it convenient to adjust voltage and current?

Yes, voltage and current can be adjusted easily via dual control knobs.

Is this high-power power supply isolated?

Yes, it is designed with a fully isolated output.

What is the voltage regulation starting limit?

The voltage regulation range starts from 1V.

Can reverse polarity protection be added?

Yes, reverse protection can be integrated as a custom option.
