Output 80V-7000W High-Efficiency DC Adjustable Switching Power Supply for Diverse DC Applications
Output 80V-7000W High-Efficiency DC Adjustable Switching Power Supply for Diverse DC Applications
Output 80V-7000W High-Efficiency DC Adjustable Switching Power Supply for Diverse DC Applications
Output 80V-7000W High-Efficiency DC Adjustable Switching Power Supply for Diverse DC Applications
Output 80V-7000W High-Efficiency DC Adjustable Switching Power Supply for Diverse DC Applications
1 / 5
Output 80V-7000W High-Efficiency DC Adjustable Switching Power Supply for Diverse DC Applications
Output 80V-7000W High-Efficiency DC Adjustable Switching Power Supply for Diverse DC Applications
Output 80V-7000W High-Efficiency DC Adjustable Switching Power Supply for Diverse DC Applications
Output 80V-7000W High-Efficiency DC Adjustable Switching Power Supply for Diverse DC Applications
Output 80V-7000W High-Efficiency DC Adjustable Switching Power Supply for Diverse DC Applications

Output 80V-7000W High-Efficiency DC Adjustable Switching Power Supply for Diverse DC Applications

Send Inquiry

Product Description

DC Switching Power Supply Factory Overview
A professional production factory of 10,000 square meters, specializing in high-power regulated power supplies for over 15 years. Committed to delivering high-stability products with excellent customer and after-sales support.
DC Switching Power Supply Detail

Product Overview

  • Product Name: DC Switching Power Supply
  • Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
  • Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
  • Features: High stability and reliability
  • Warranty: 1 year
  • Weight: Approximately 19KG

Product Showcase

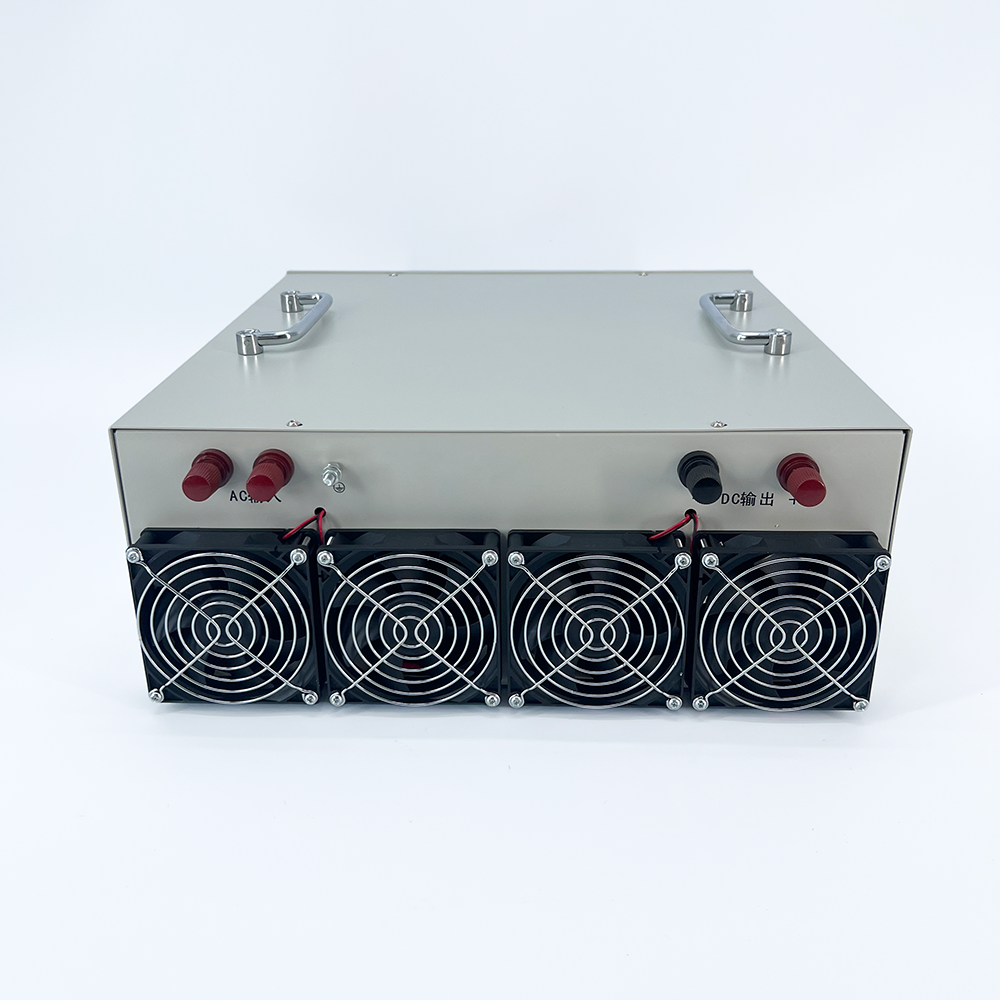

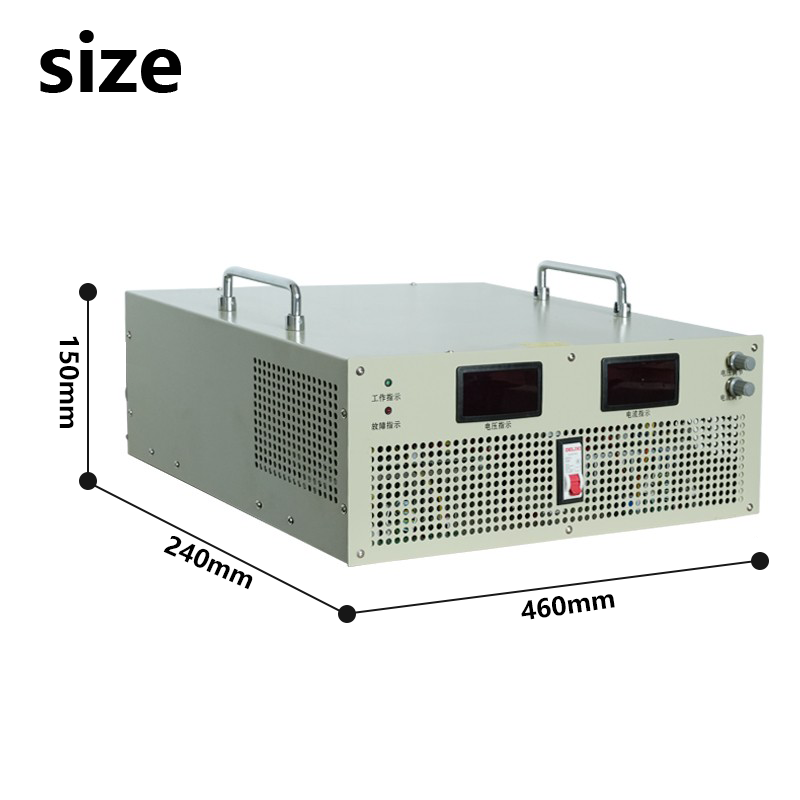

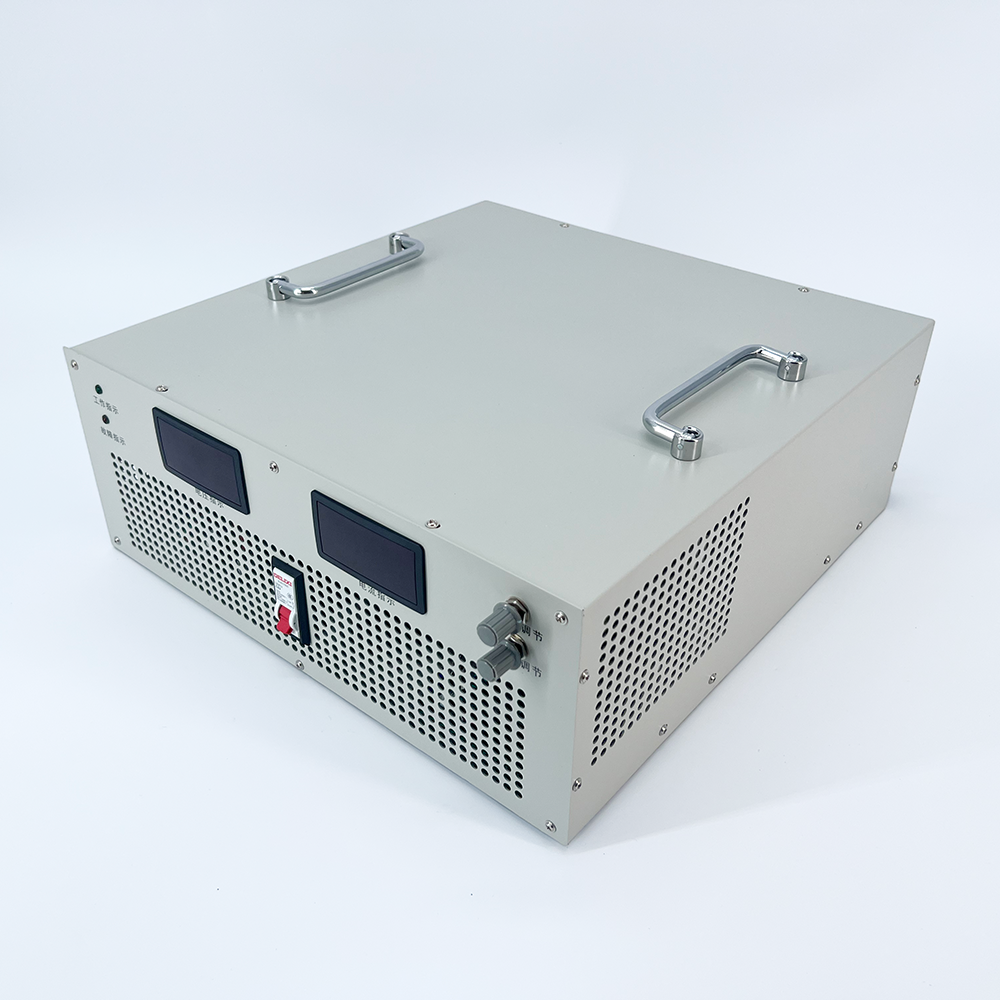

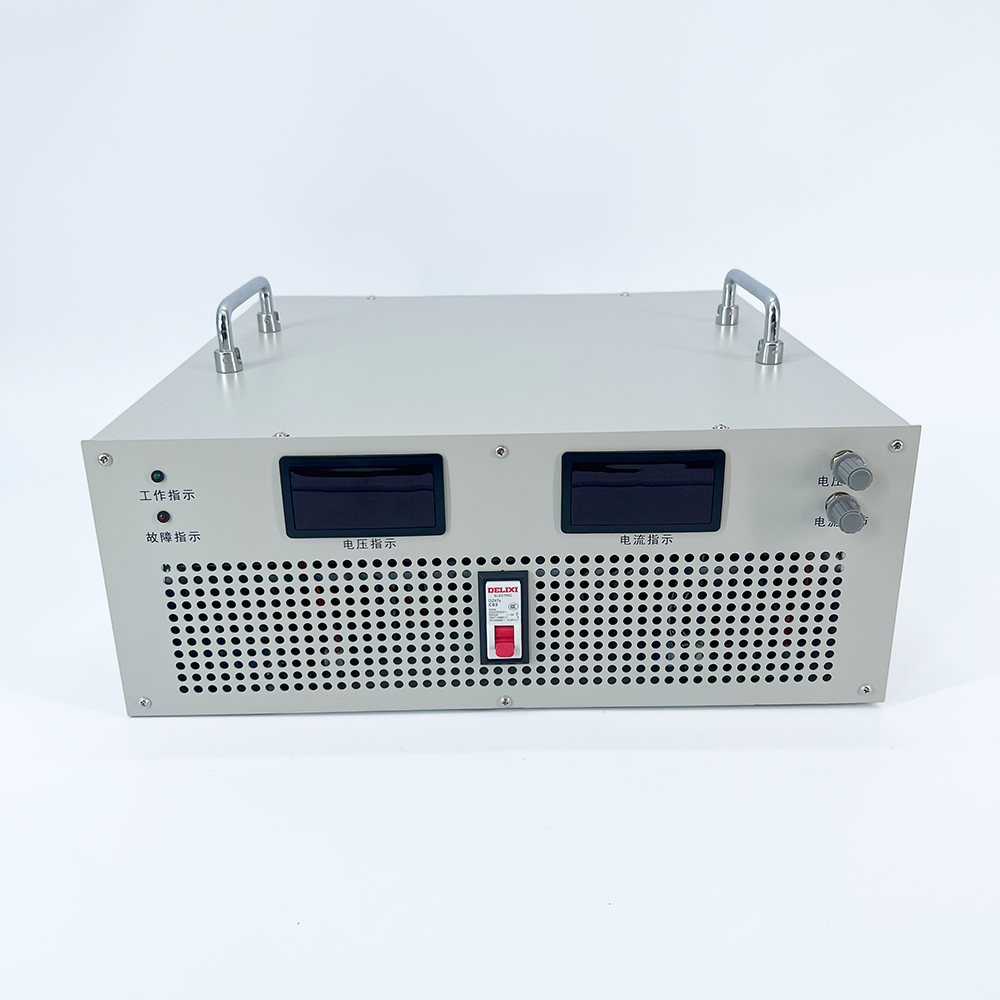

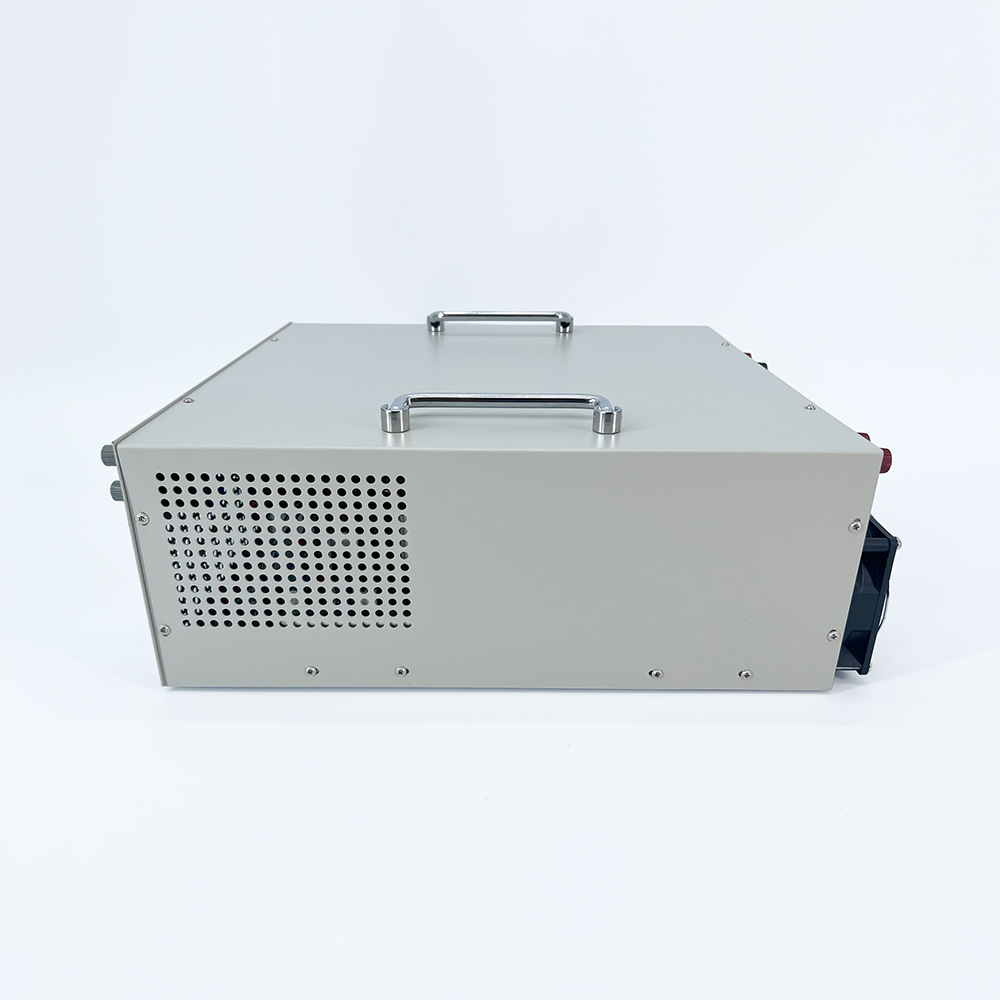

DC Power Supply Angle 1
DC Power Supply Angle 2
DC Power Supply Detail 1
DC Power Supply Detail 2
DC Power Supply Internal View

Technical Specifications

Parameter Specification Details Parameter Specification Details
Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 7000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase/Three-phase
220V±10% 50-60HZ / 110V±10% 50-60HZ / 380V±10%		 Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V Product Features High stability, high reliability
Output Current Selected power / selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 19 kg
Efficiency ＞88-89% Carton Dimensions 550x505x235mm
Output Voltage Accuracy ±1% -- --

Factory Production & Quality

Production Line 1
Production Line 2
Testing Equipment
Warehouse
Packaging

Product Instructions

1. Transport & Damage Check Before powering on, check the stored and transported switch power supply. Any damage during transportation should be checked, such as loose screws, abnormal appearance, loose power cords/terminals, or dampness. Address these issues promptly.
2. Power Switch & Wiring The local power switch controls the auxiliary power supply inside the machine. For safety, add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire correctly according to the label on the rear panel. Verify input voltage matches the manual.
3. Temperature Controlled Cooling Fan The cooling fan is temperature-controlled and starts when the internal temperature exceeds the starting threshold. Fan speed varies with the output voltage and current. Ensure the inlet and outlet of the fan remain unblocked.
4. Overheating Protection If the temperature inside the machine reaches the threshold for overheating shutdown, the machine will automatically stop to prevent damage. It will auto-restart once the temperature drops.
5. Environmental Requirements Avoid environments with high levels of dust, acid, corrosive gases or substances. Prevent severe vibrations, physical impacts, rain, and direct sunlight.
6. Maintenance & Dust Removal Regularly clean the dust to improve the service life and reliability of the power equipment. Use dry compressed air for dust removal. Do not open the casing to prevent damage to internal components.
7. Long-term Storage When idle, store in a dry, ventilated room. If stored for over 6 months, power on the device and run it for at least 30 minutes.
8. Load Connection warning Only connect to the powered load equipment when the power-on test is normal and error-free.
9. Troubleshooting & Safety If abnormal operation is found, cut off the power switch immediately. Check internal/external connections for looseness and ensure all switches and knobs are correctly positioned. Due to high internal voltage, do not open the casing or attempt repairs yourself without professional knowledge. Please contact support promptly to resolve issues.

Frequently Asked Questions (FAQ)

Q1: Is there overvoltage, overcurrent, overheating, or short circuit protection?
A: Yes, the power supply includes comprehensive overvoltage, overcurrent, overheating, and short-circuit protection features.
Q2: Is there reverse protection?
A: Reverse protection can be integrated as an optional feature with an additional charge.
Q3: Can it be used at full power for a long time?
A: No, the power supply should be used with excess capacity. For long-term continuous operation, it is recommended to keep the load below 80% of maximum capacity.
Q4: Is it convenient to adjust the voltage and current?
A: Yes, it is very convenient. The voltage and current can be easily adjusted using the dual knobs on the unit.
Q5: Is the high-power power supply isolated?
A: Yes, this power supply is fully isolated.
Q6: What is the voltage regulation range?
A: The voltage regulation starts from 1V.
