Output 800V-8000W High Stability Single AC-DC Switching Power Supply for Industrial Water Treatment & New Energy Maintenance

Product Name: DC Switching Power Supply

Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.

Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection

Features: High stability and reliability

Warranty: 1 year

Weight: Approximately 19KG

Highly Reliable Power System

Key Features & Detail Images

Technical Specifications

Product Name	DC Switching Power Supply	Operating Relative Humidity	20%~88%
Power Rating	8000W	Application Scenarios	Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage	Single-phase/Three-phase 220V±10% 50-60HZ / 110V±10% 50-60HZ / 380V±10%	Protection Functions	Overcurrent, overvoltage, overheating, short-circuit protection

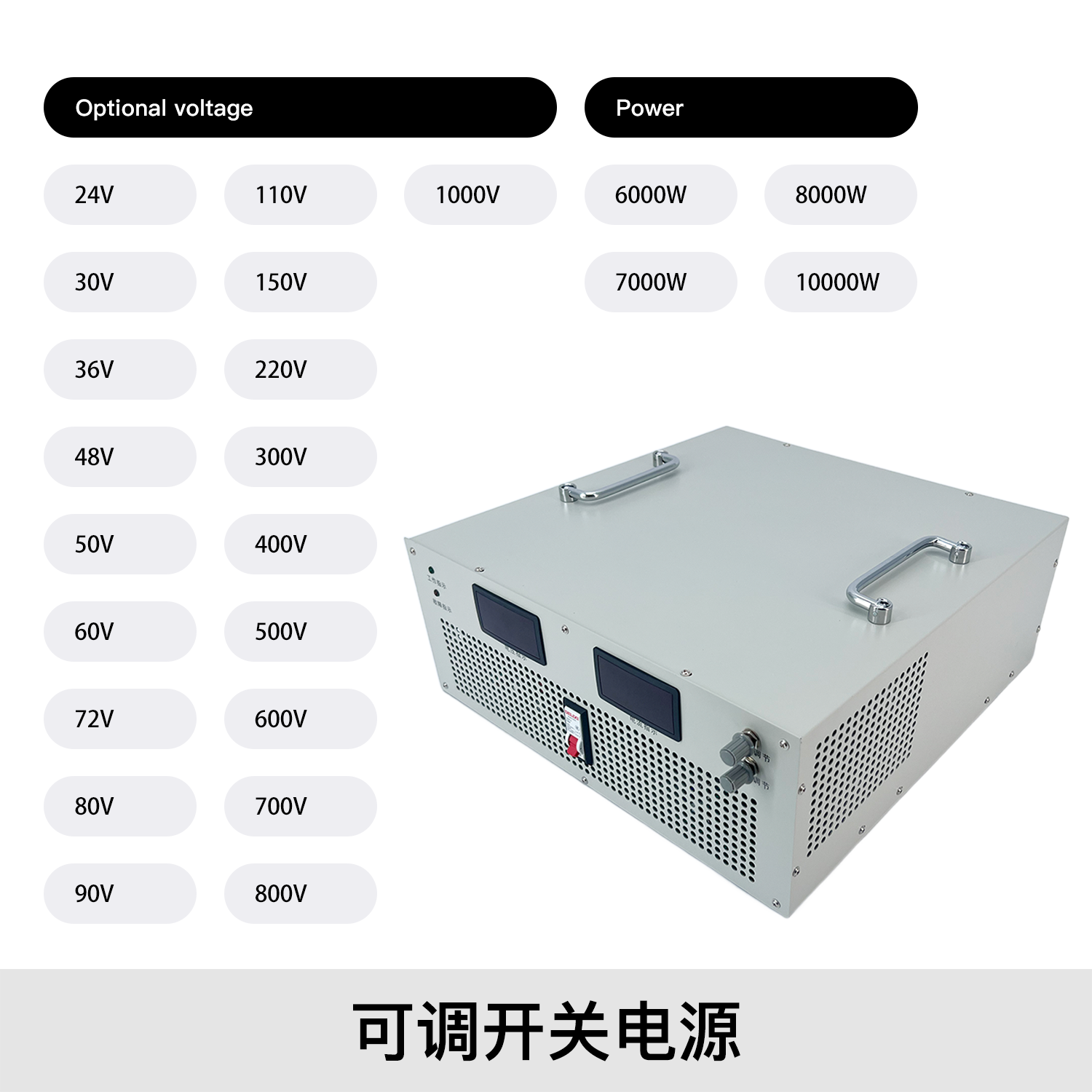

Output Voltage	12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V	Product Features	High stability, high reliability
Output Current	Selected power / selected voltage	Warranty Period	1 Year
Power Conversion Type	AC-DC	Product Weight	Approximately 19 kg
Efficiency	> 88-89%	Carton Dimensions	550x505x235mm
Output Voltage Accuracy	±1%	-	-

Product Gallery

Product Instructions

1

Before powering on, check the stored and transported switch power supply. Inspect for any damage during transportation, such as whether screws are loose, whether the appearance is abnormal, whether the power cord and terminal are shaken off, and whether they are damp. If any such phenomenon occurs, address it in a timely manner.

2

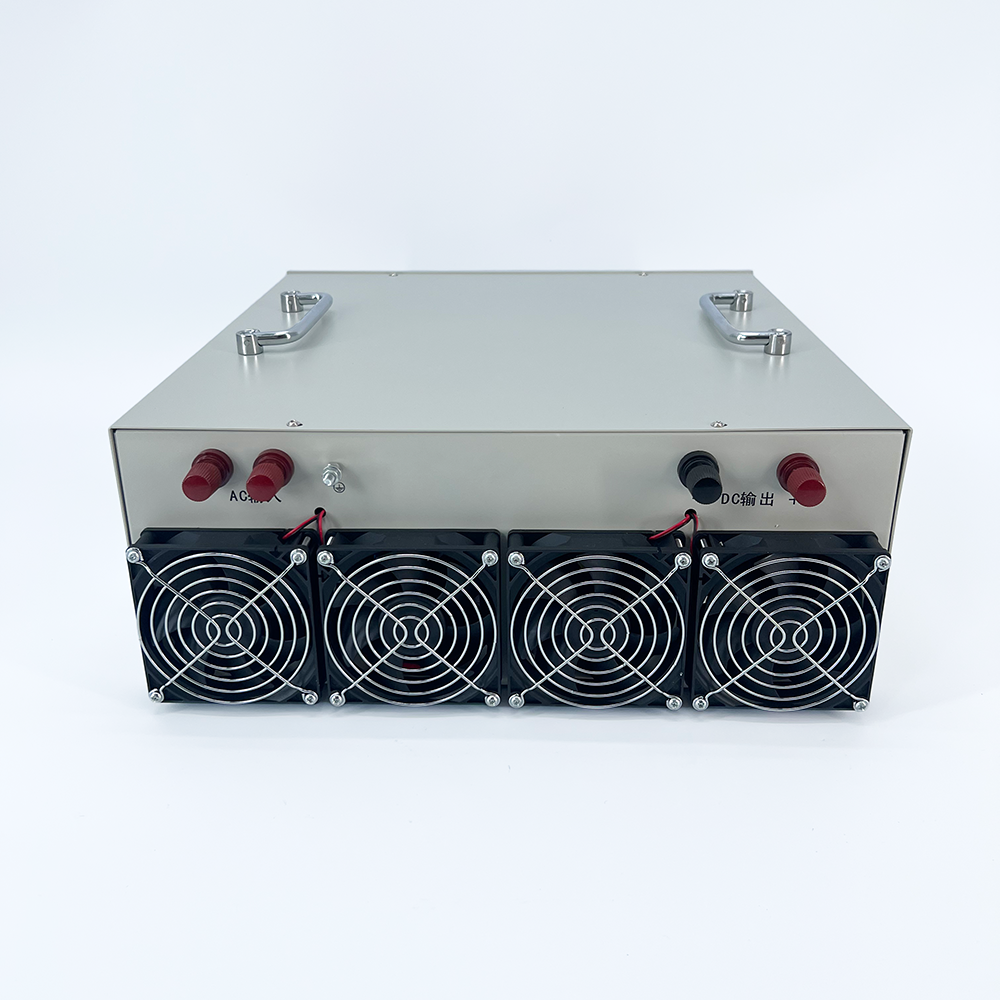

The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel to confirm they are connected correctly. Verify that the input voltage is consistent with the voltage indicated in the manual.

3

The cooling fan is temperature controlled. When the internal temperature exceeds the starting threshold, the fan will automatically start. The fan speed varies based on the output voltage and current, which is normal. Ensure that the fan's inlet and outlet are never blocked.

4

When the temperature inside the machine reaches the threshold for overheating shutdown, the machine will automatically stop working to prevent damage. When the temperature drops, it will automatically restart and resume work.

5

When using this power equipment, make sure dust, acid, corrosive gases, or substances in the air do not exceed normal levels. Avoid severe vibration, bumps, rain, and direct sunlight.

6

Regularly perform dust removal using dry compressed air to improve service life and reliability. Due to high internal voltage, do not open the casing and take care not to damage internal components.

7

When the power equipment is idle for a long time, store it in a dry and ventilated room. If stored for more than 6 months, power on the equipment and let it run for over half an hour.

8

Warning: Only connect to powered load equipment once the power-on test is normal and error-free.

9

Malfunction Handling: If abnormal operation is found, cut off the power switch and carefully check internal and external connections for correctness and tightness. Check if all switches and knobs are in the correct position. If issues persist, do not disassemble the unit without authorization. High voltage is present inside; do not repair it yourself without professional training and tools to avoid electric shock.

Frequently Asked Questions

? Is there overvoltage, overcurrent, overheating, or short circuit protection?

Yes, the system is fully equipped with overvoltage, overcurrent, overheating, and short circuit protection mechanism.

? Is there reverse protection?

Yes, reverse protection can be custom added upon request.

? Can it be used at full power for a long time?

No, the power supply needs to be operated with excess capacity. Long-term continuous usage should be kept below 80% of the total capacity.

? Is it convenient to adjust voltage and current?

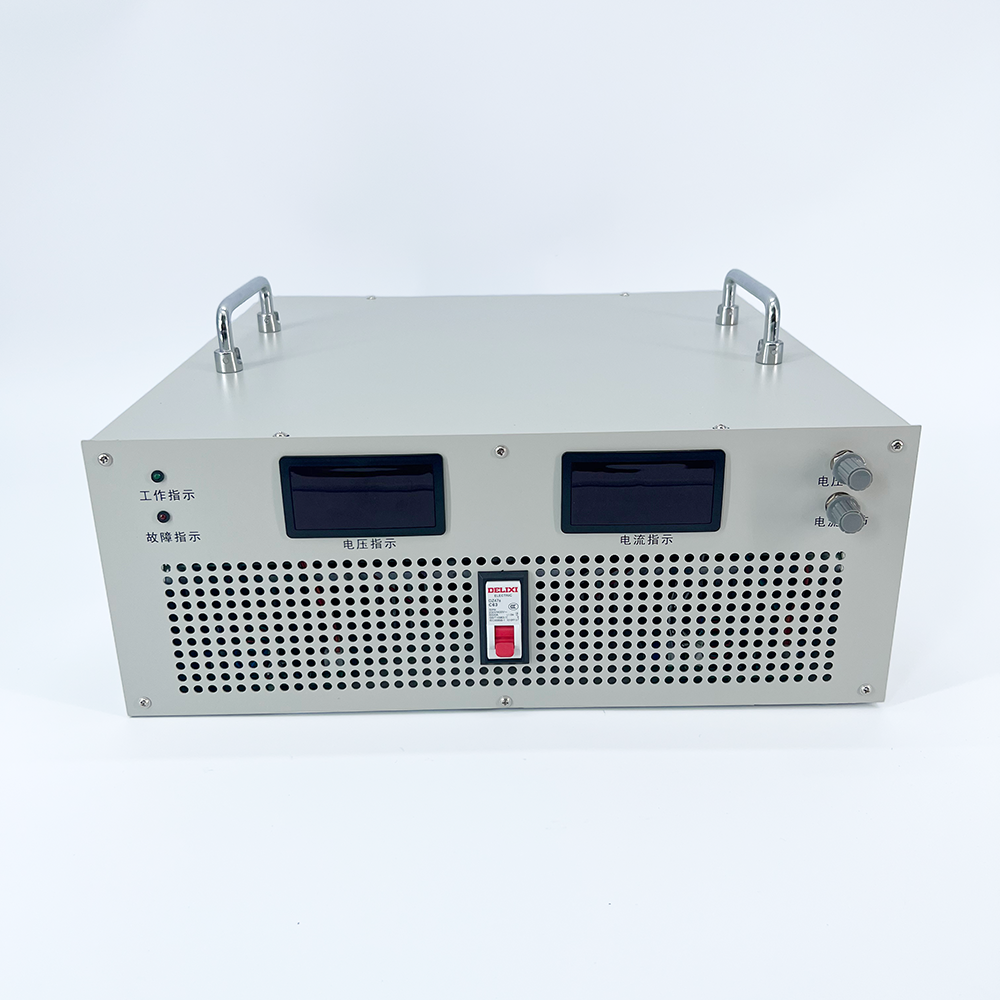

Yes, adjustments are highly convenient and can be completed using the dual control knobs.

? Is the high-power power supply isolated?

Yes, this unit is designed as a fully isolated power supply.

? What is the voltage regulation range?

The voltage regulation starts from 1V.
