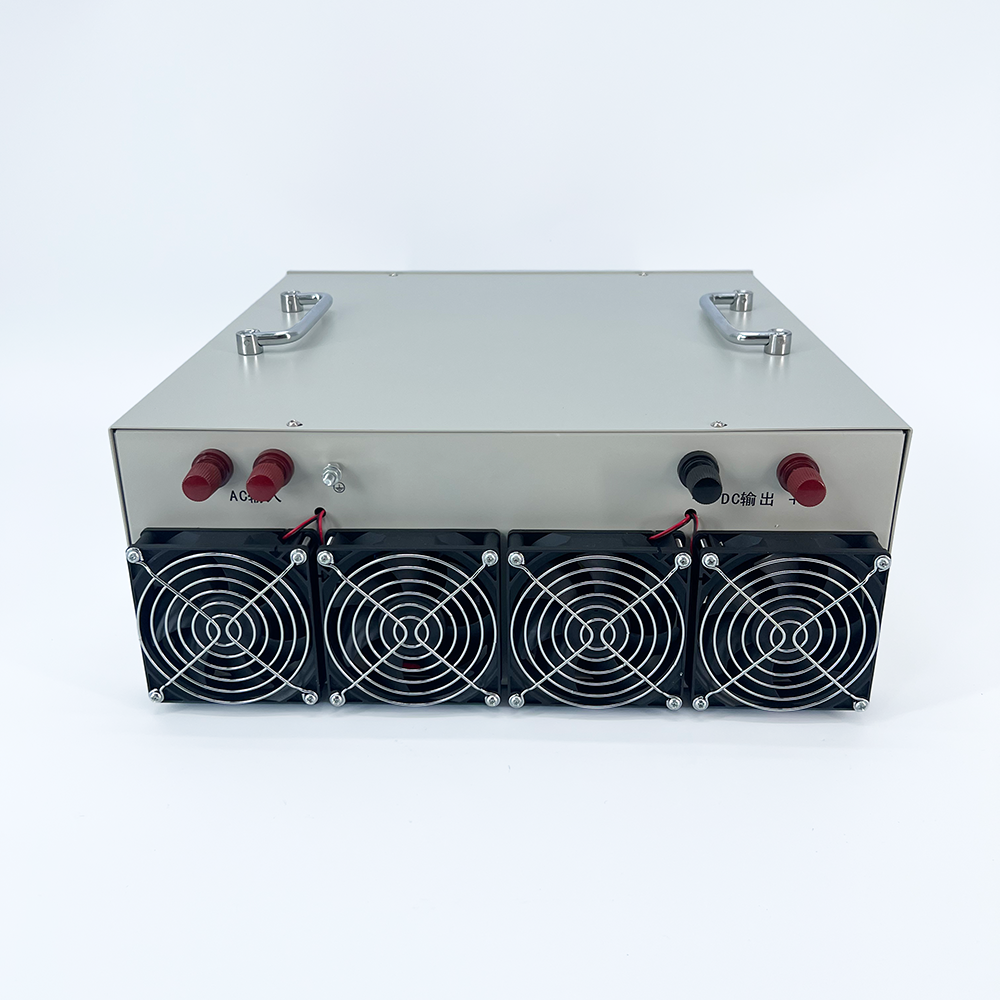

Output 72V- 7000W High-Efficiency DC Adjustable Switching Power Supply (, 24V-1000V Optional) for Various DC Applications
Output 72V- 7000W High-Efficiency DC Adjustable Switching Power Supply (, 24V-1000V Optional) for Various DC Applications
Output 72V- 7000W High-Efficiency DC Adjustable Switching Power Supply (, 24V-1000V Optional) for Various DC Applications
Output 72V- 7000W High-Efficiency DC Adjustable Switching Power Supply (, 24V-1000V Optional) for Various DC Applications
Output 72V- 7000W High-Efficiency DC Adjustable Switching Power Supply (, 24V-1000V Optional) for Various DC Applications
1 / 5
Output 72V- 7000W High-Efficiency DC Adjustable Switching Power Supply (, 24V-1000V Optional) for Various DC Applications
Output 72V- 7000W High-Efficiency DC Adjustable Switching Power Supply (, 24V-1000V Optional) for Various DC Applications
Output 72V- 7000W High-Efficiency DC Adjustable Switching Power Supply (, 24V-1000V Optional) for Various DC Applications
Output 72V- 7000W High-Efficiency DC Adjustable Switching Power Supply (, 24V-1000V Optional) for Various DC Applications
Output 72V- 7000W High-Efficiency DC Adjustable Switching Power Supply (, 24V-1000V Optional) for Various DC Applications

Output 72V- 7000W High-Efficiency DC Adjustable Switching Power Supply (, 24V-1000V Optional) for Various DC Applications

Send Inquiry

Product Description

DC Switching Power Supply Overview
DC Switching Power Supply Details
Product Specification
📌
Product Name DC Switching Power Supply
⚡
Application Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
🛡️
Protection Overcurrent, Overvoltage, Overheat, Short Circuit Protection
⭐
Features High stability and reliability
📅
Warranty 1 year
⚖️
Weight Approximately 19KG
Features Detail 1 Features Detail 2 Features Detail 3

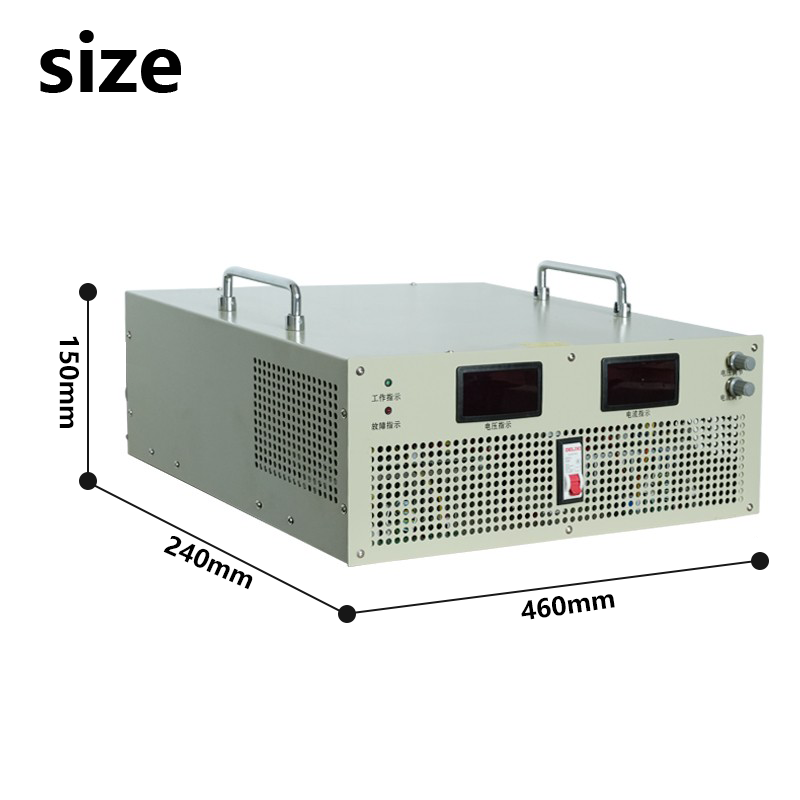

Specifications Diagram 1 Specifications Diagram 2
Technical Specifications
Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 7000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase/Three-phase
220V±10% 50-60HZ 110V±10% 50-60HZ 380V±10%		 Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V Product Features High stability, high reliability
Output Current Selected power/selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 19
Efficiency >88-89% Carton Dimensions 550x505x235mm
Output Voltage Accuracy ±1%
Product Gallery

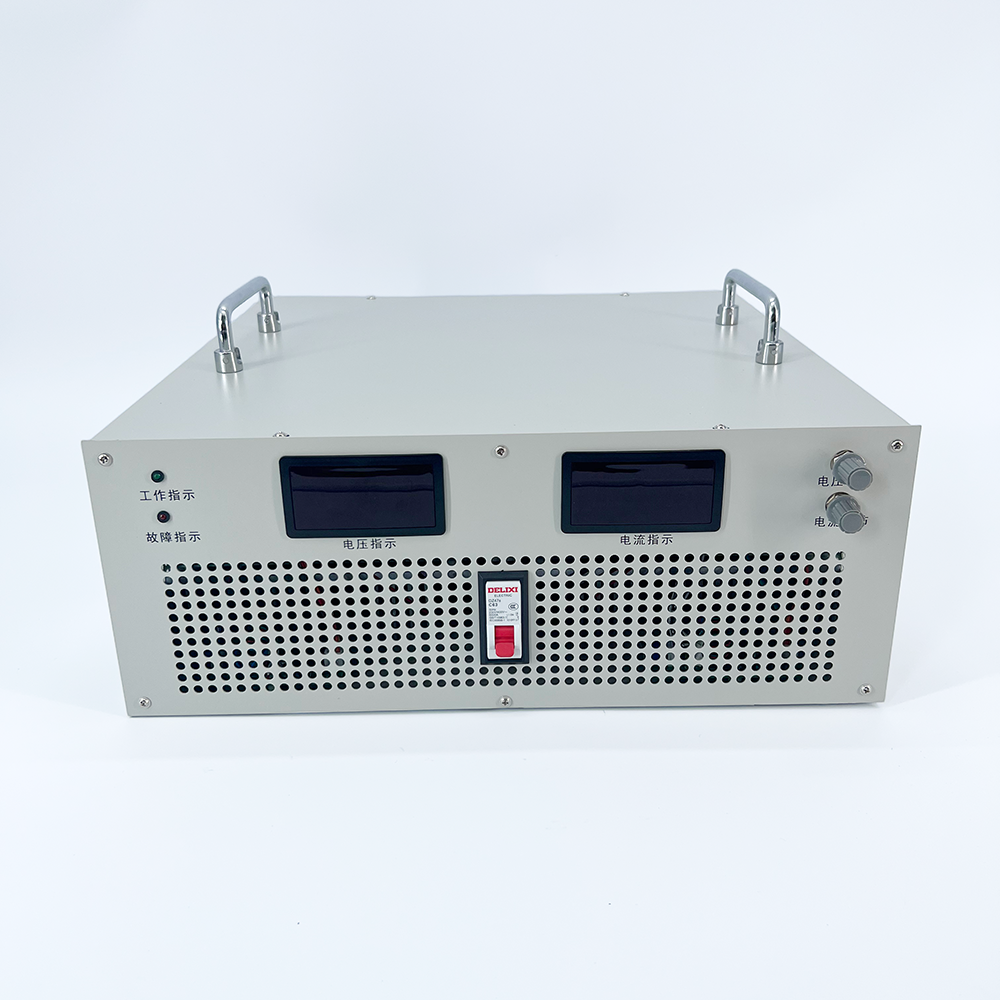

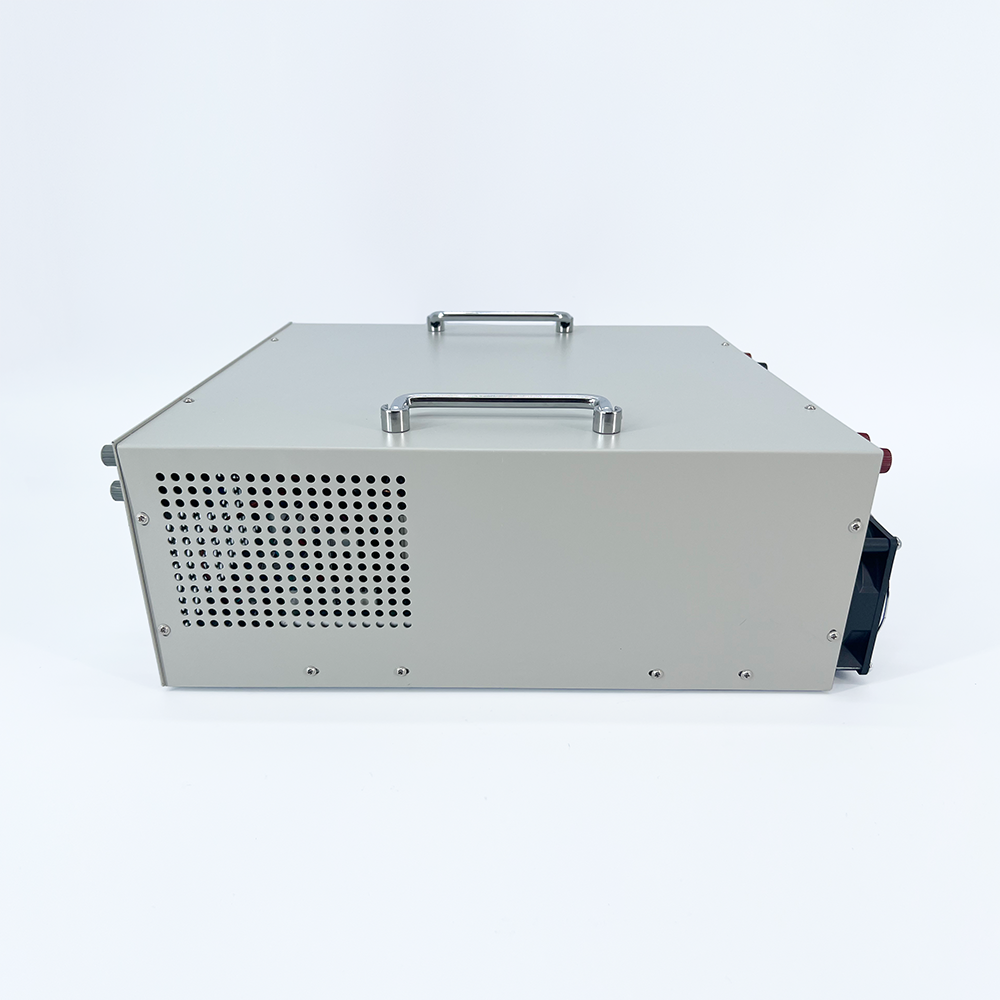

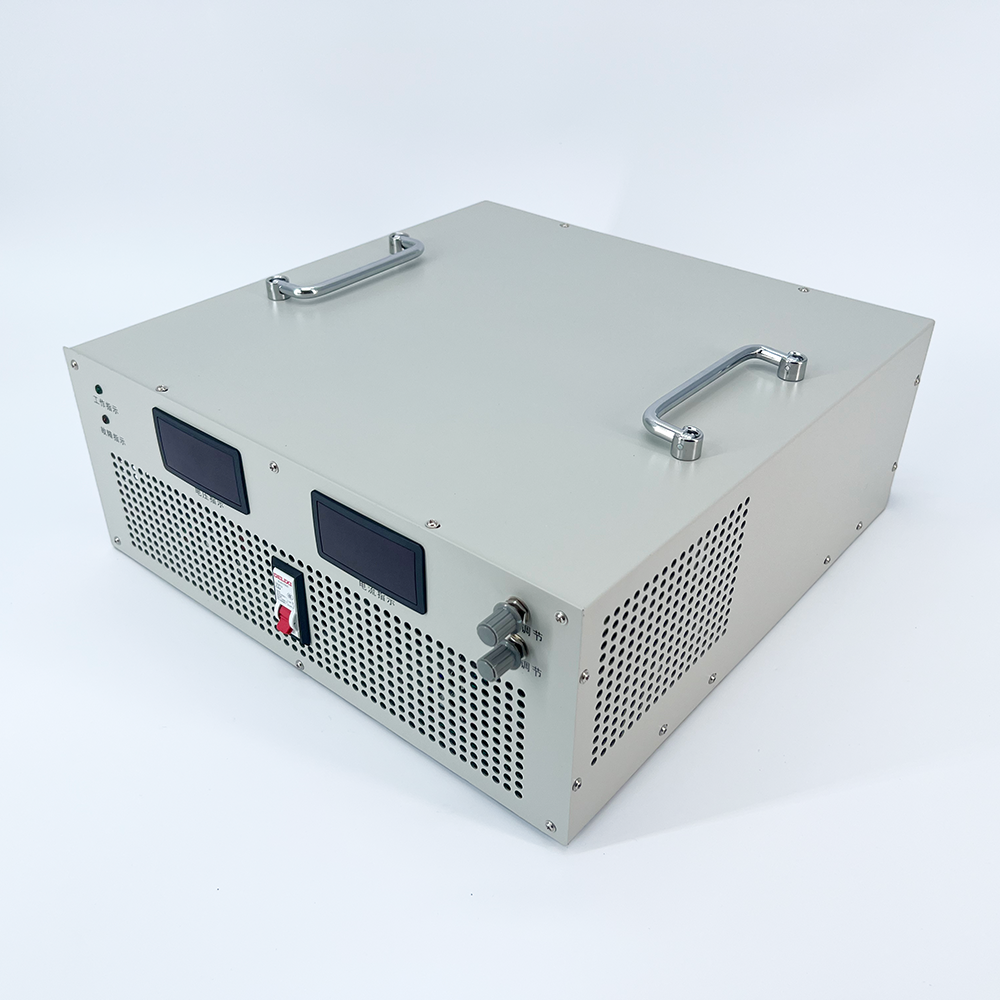

Product Showcase 1 Product Showcase 2 Product Showcase 3
Product Showcase 4 Product Showcase 5
Product Instructions
1
Before powering on, check the stored and transported switch power supply. Check for transportation damage such as loose screws, abnormal appearance, loose power cords/terminals, or moisture. Address any issues promptly.
2
The local power switch controls the internal auxiliary power supply. For safety, install an air switch at the power input terminal to control the power input. Connect the ground and input power wires securely according to the rear panel label. Ensure the input voltage matches the manual's specifications.
3
The cooling fan is temperature-controlled and starts when the internal temperature exceeds the threshold. The fan speed adjusts dynamically with the output voltage and current. Keep the fan's inlet and outlet clear during operation.
4
If the internal temperature reaches the overheat threshold, the machine will automatically shut down to prevent damage. It will automatically resume operation once the temperature drops.
5
Ensure the operating environment stays free of excessive dust, acid, corrosive gases, severe vibrations, direct sunlight, rain, or impact.
6
Perform regular dust removal to extend the equipment's lifespan and reliability. Use dry compressed air for cleaning, and do not open the casing to prevent damage or contact with internal high voltage.
7
When idle for long periods, store the power supply in a dry, ventilated room. If stored for over 6 months, power on and operate the equipment for at least half an hour.
8
Warning: Only connect to a powered load after the power-on test is confirmed normal and error-free.
9
Handling malfunctions: If abnormal operation occurs, switch off the power supply immediately. Check all external connections, switches, knobs, and screws. Do not open the casing or attempt self-repair due to high voltage.
Frequently Asked Questions (FAQ)
❓ Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes, the power supply includes comprehensive safety systems containing overvoltage, overcurrent, overheating, and short-circuit protection.
❓ Is there reverse protection?
Reverse protection can be integrated as a customized feature.
❓ Can it be used at full power for a long time?
No, the power supply needs to be used with excess capacity. Long-term continuous operations should remain below 80% of full power load.
❓ Is it convenient to adjust voltage and current?
Yes, settings are easily adjustable with the dual knobs on the unit.
❓ Is the high-power power supply isolated?
Yes, this system is designed as a fully isolated power supply.
❓ What is the voltage regulation range?
The output voltage regulation starts from 1V.
