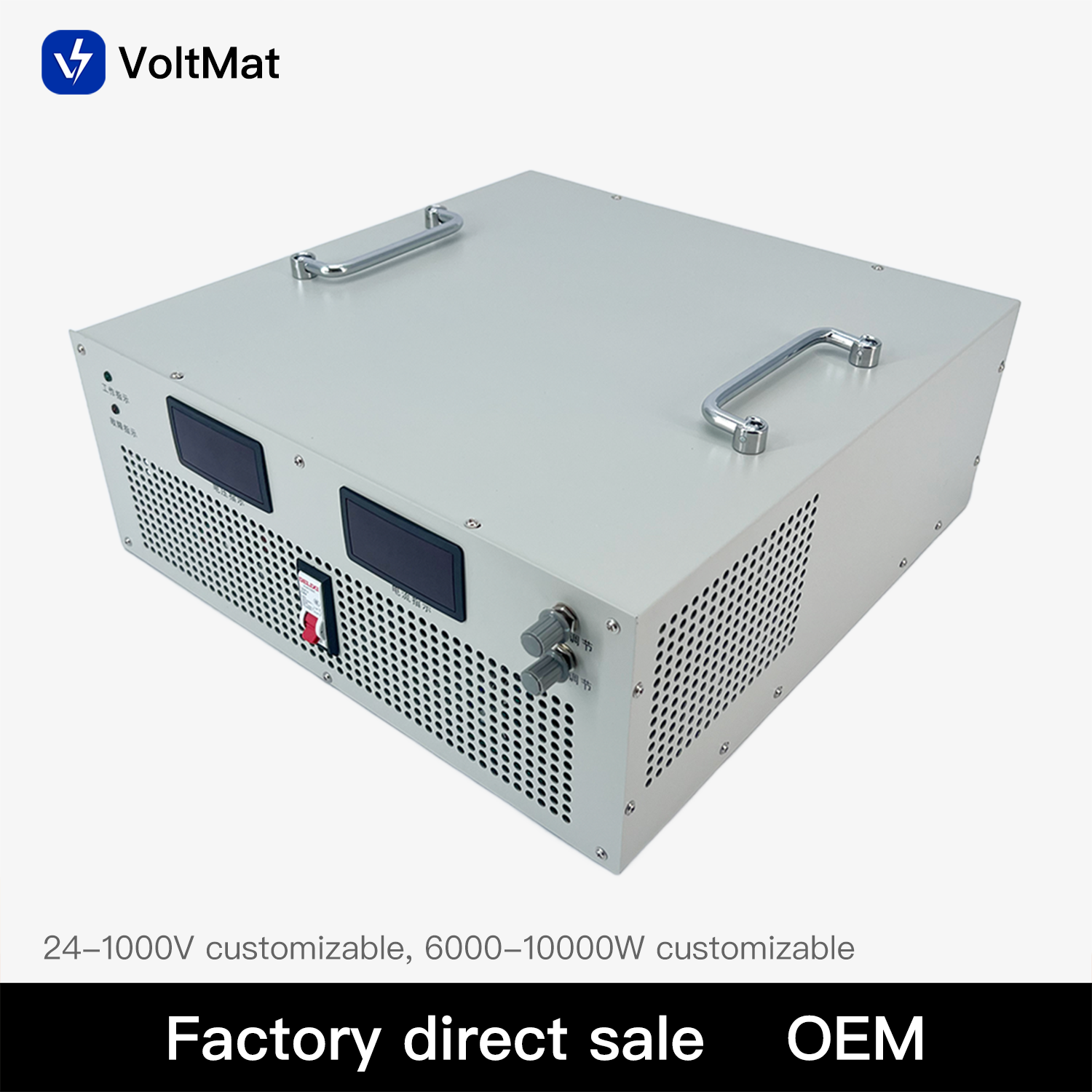

6KW-10KW DC Regulated Power Battery Charging Bench Power Supply Supply High Voltage Power Supply Adjustable Power Supply

1 / 5

6KW-10KW DC Regulated Power Battery Charging Bench Power Supply Supply High Voltage Power Supply Adjustable Power Supply

Send Inquiry

Product Description

High power regulated power supply system

We are located in a core city cluster in the Yangtze River Delta region of China. Conveniently positioned near major shipping channels, product exports are efficient. The professional production facility spans 10,000 square meters, specializing in high-power regulated power supplies for over 15 years, and recognized as a reliable, high-quality enterprise unit and excellent service provider.

Product Details & Features

Product Name: DC Switching Power Supply
Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
Features: High stability and reliability
Warranty: 1 year
Weight: Approximately 19KG

Internal Components and Heat Dissipation

High Power Voltage Regulated System Panel

Technical Specifications

Product Name	DC Switching Power Supply	Operating Relative Humidity	20%~88%
Power Rating	6000W / 7000W / 8000W / 10000W	Application Scenarios	Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage	Single-phase / Three-phase 220V±10% 50-60HZ / 110V±10% 50-60HZ / 380V±10%	Protection Functions	Overcurrent, overvoltage, overheating, short-circuit protection

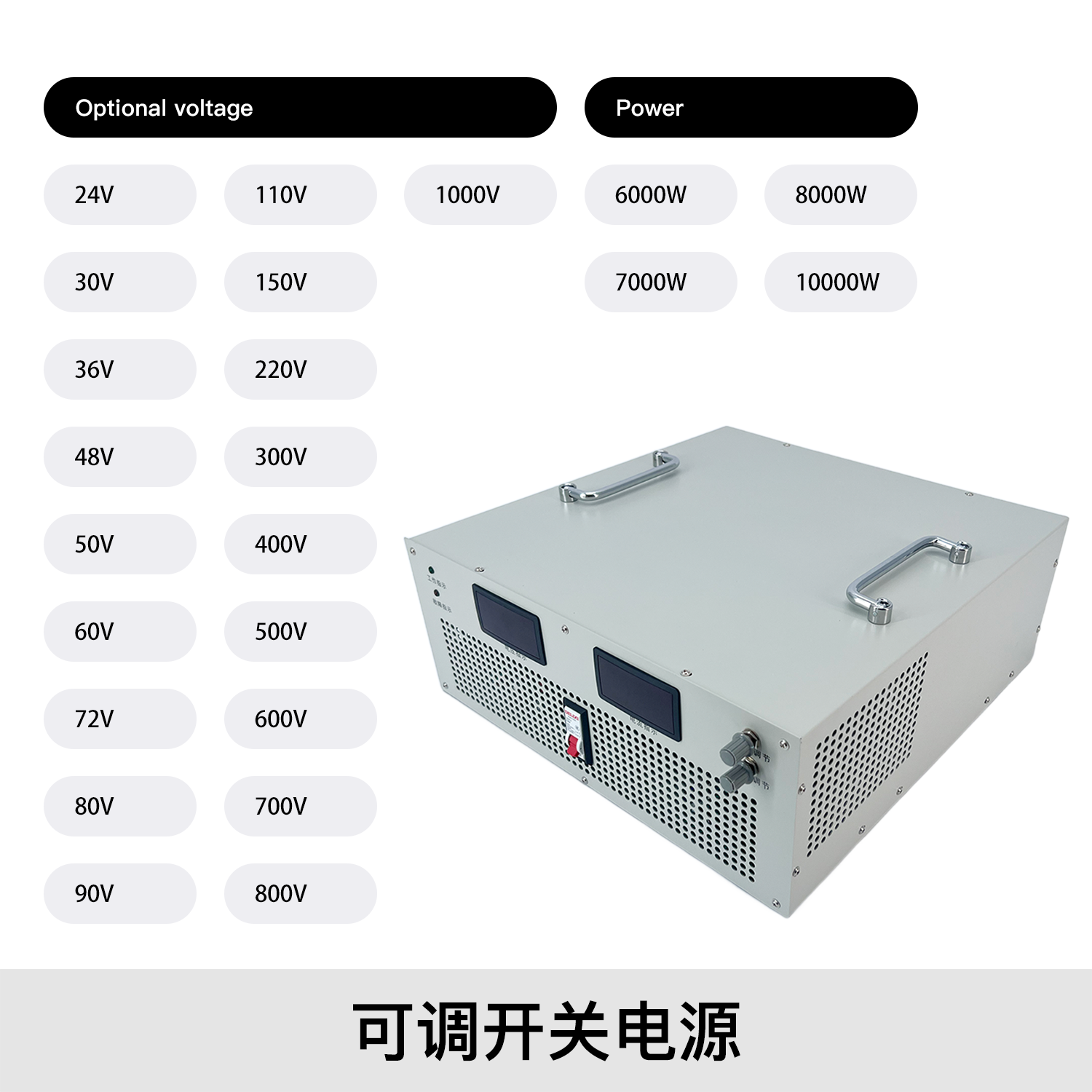

Output Voltage	24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V	Product Features	High stability, high reliability
Output Current	Selected power / selected voltage	Warranty Period	1 Year
Power Conversion Type	AC-DC	Product Weight	Approximately 19kg
Efficiency	>88-89%	Carton Dimensions	550x505x235mm
Output Voltage Accuracy	±1%

Product Instructions

1. Inspection Prior to Power-On Before powering on, check the stored and transported switching power supply. Check for any damage during transportation, such as loose screws, abnormal appearance, disconnected power cords/terminals, or dampness. Address any issues promptly.

2. Power Input Connection The local power switch controls the internal auxiliary power supply. For safety, please add an air switch at the power input terminal to control the power input. Connect the ground wire and input power wire according to the rear panel label. Verify correct connections and ensure the input voltage matches the manual.

3. Temperature-Controlled Cooling The cooling fan is temperature-controlled. It starts when the internal temperature exceeds the control threshold. The speed varies with output voltage and current. Keep the fan inlet and outlet clear during operation.

4. Overheating Protection If the internal temperature reaches the shutdown threshold, the machine stops automatically to prevent damage. It will automatically resume operation once the temperature drops.

5. Operating Environment Avoid environments with excessive dust, acid, corrosive gases/substances, severe vibration, impacts, rain, or direct sunlight.

6. Regular Dust Removal Regular dust removal improves the service life and reliability. Use dry compressed air for dust removal. Do not open the casing or damage internal components.

7. Long-Term Storage Store in a dry, ventilated room. If idle for over 6 months, power on and operate the equipment for at least half an hour.

8. Safe Operation Only connect the powered load equipment after a normal, error-free power-on test.

9. Troubleshooting & Safety Warnings If abnormal operation occurs, switch off the stabilized power supply immediately. Check connections and settings. Do not unscrew or remove the casing without authorization. Due to high internal voltage, self-repair without professional knowledge is prohibited. Contact support promptly to resolve issues.

Frequently Asked Questions

Is there overvoltage, overcurrent, overheating, or short circuit protection?

Yes, the power supply includes comprehensive built-in protections for overcurrent, overvoltage, overheating, and short circuits.

Can it be used at full power for a long time?

No, the power supply needs to be used with excess capacity. Operation below 80% capacity is recommended for continuous, long-term use.

Is it convenient to adjust voltage and current?

Yes, it is very convenient. The voltage and current can be easily adjusted using the dual control knobs.

Is the high-power power supply isolated?

Yes, this system is a fully isolated power supply.

What is the voltage regulation range?

The voltage regulation range starts from 1V.

Is the power supply sufficient?

Yes, the unit provides sufficient power according to the specified ratings.
