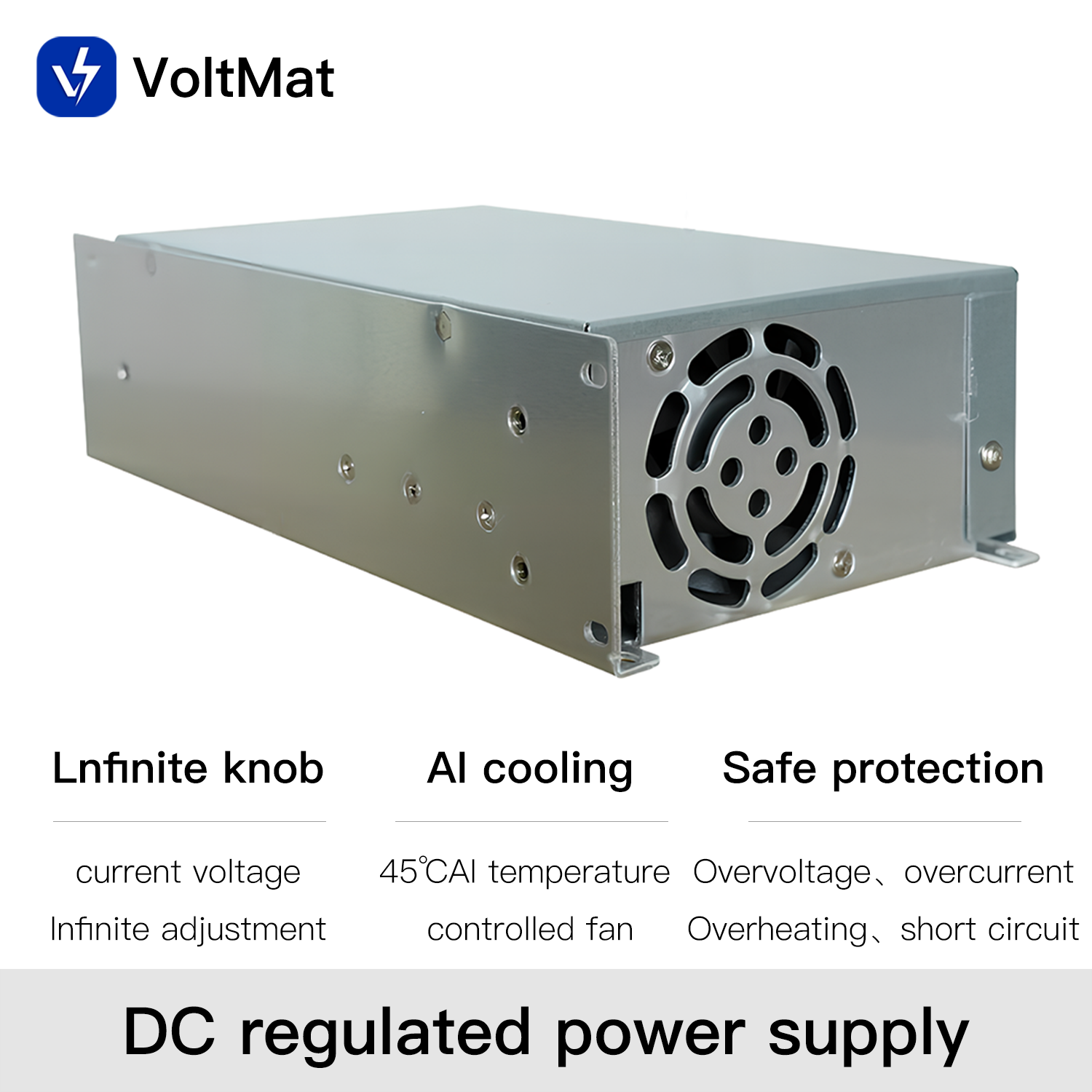

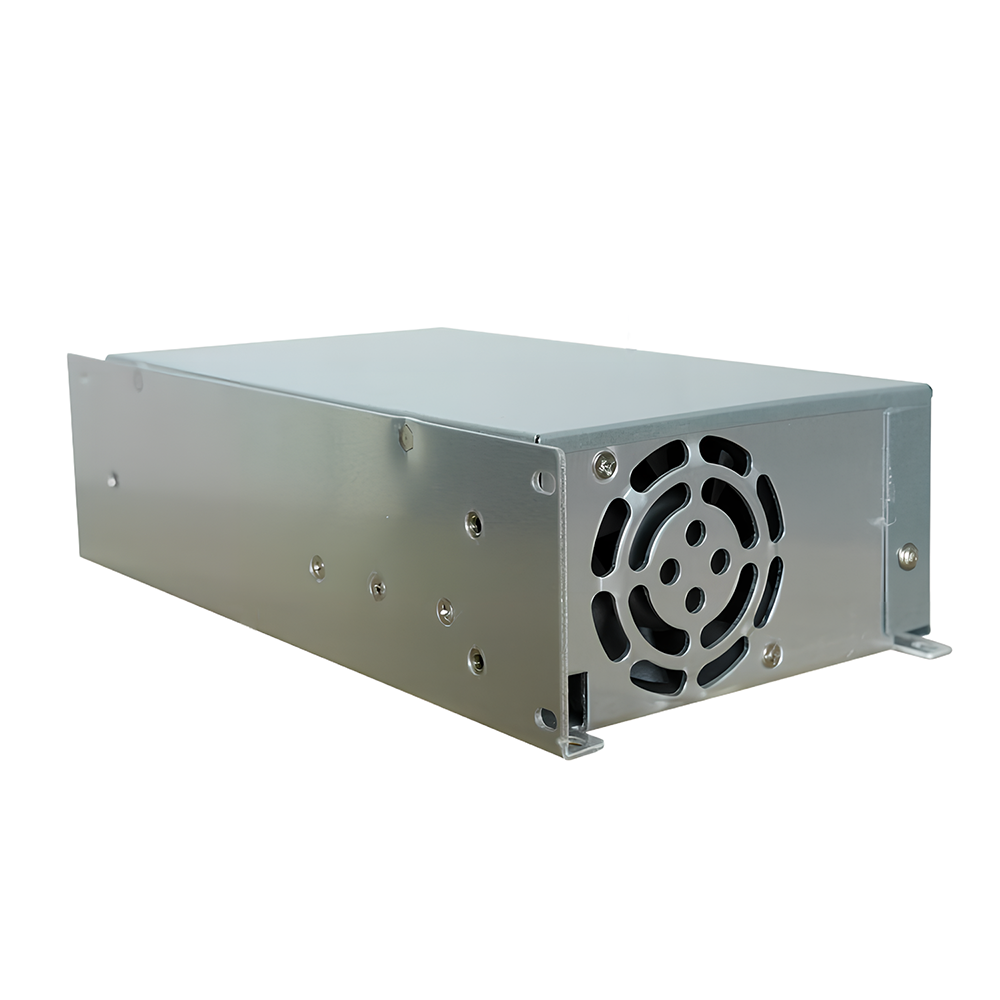

220V-800W Industrial High-Stability DC Switching Regulated Power Supply with 1 Year Warranty 89% Efficiency Overload Protection

DC Switching Power Supply

Applications: Widely used in power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC fields.
Protection: Complete overcurrent, overvoltage, overheat, and short circuit protection.
Features: Delivers exceptional stability and reliability.
Warranty & Weight: 1-year warranty. Net weight is approximately 2KG.

Product Highlights & Details

Technical Specifications

Product Name	DC Switching Power Supply	Operating Humidity	20%~88% RH
Power Rating	800W	Applications	Power electronics, electroplating, water treatment, battery charging, new energy maintenance
Input Voltage	Single-phase 220V±10% / 110V±10% (50-60Hz)	Protection Functions	Overcurrent, overvoltage, overheating, short-circuit protection

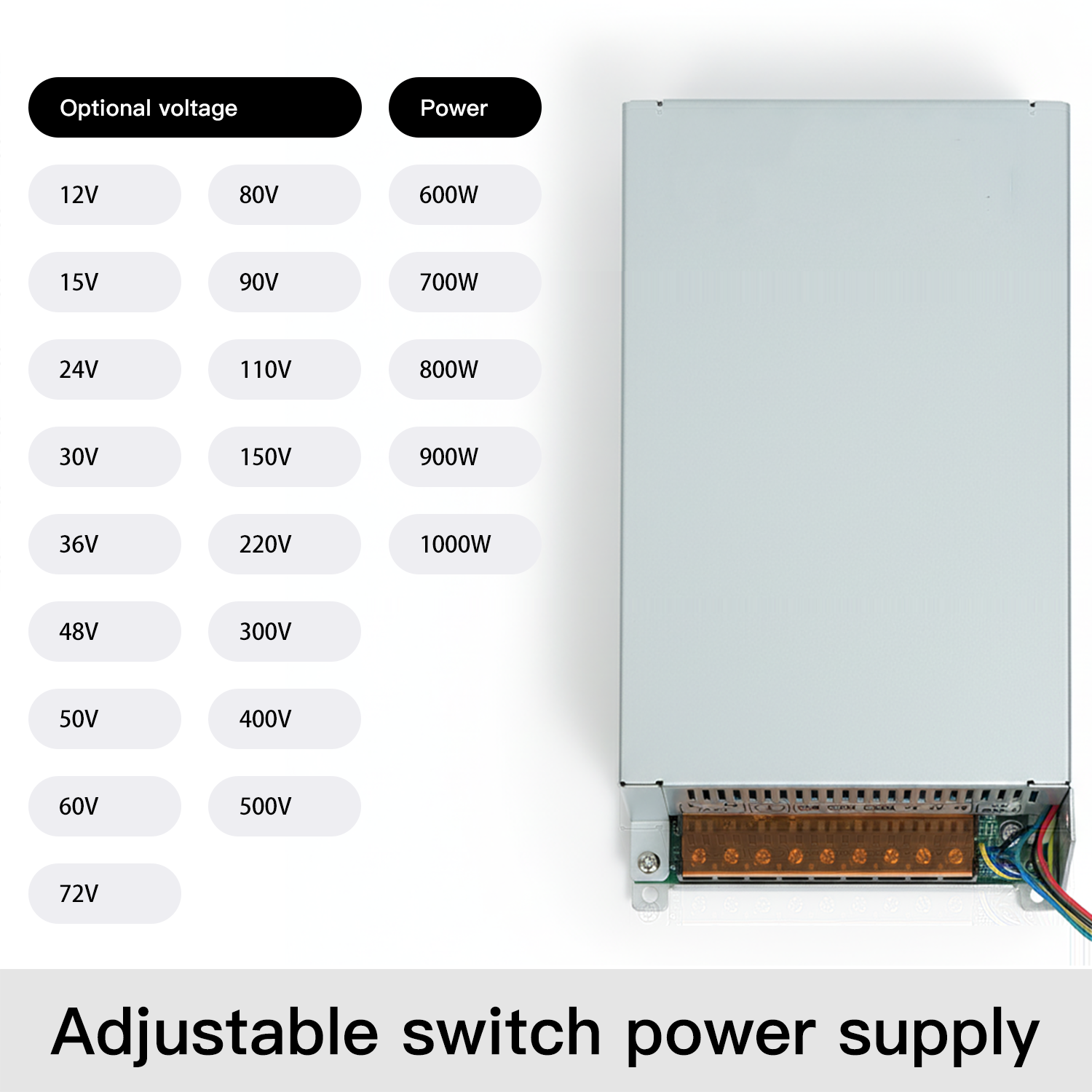

Output Voltage	12V, 15V, 24V, 30V, 36V, 48V, 50V, 60V, 72V, 80V, 90V, 110V, 150V, 220V, 300V, 400V, 500V	Product Features	High stability, high reliability
Output Current	Selected power / selected voltage	Warranty Period	1 Year
Power Conversion	AC-to-DC	Product Weight	Approximately 2KG

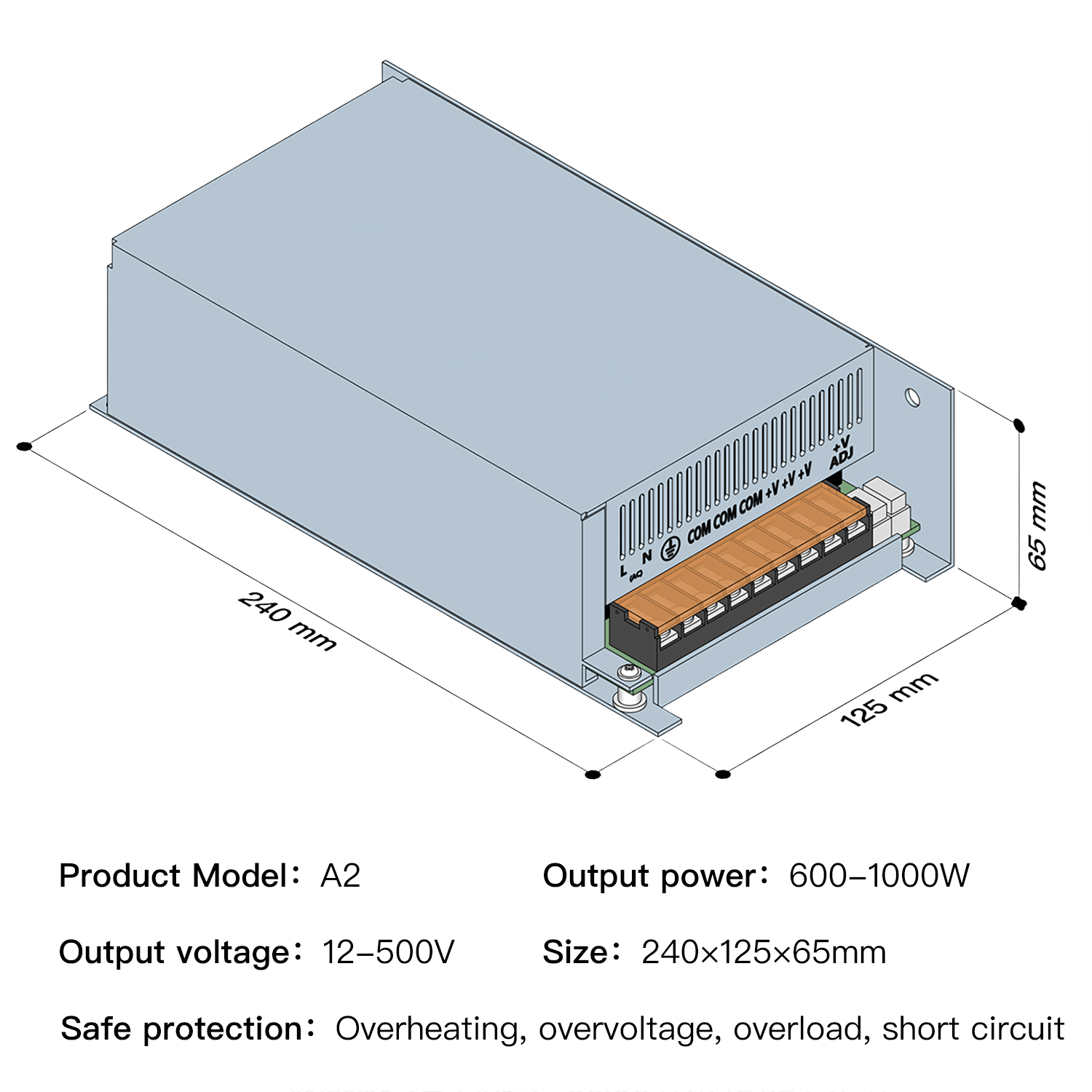

Efficiency	≥ 88-89%	Carton Dimensions	260 * 135 * 70 mm
Output Accuracy	±1%

Product Application & Setup

Product Instructions

1

Before powering on, check the stored and transported switch power supply. Check for any damage during transportation, loose screws, abnormal appearance, disconnected terminals, or signs of dampness. Address any issues promptly.

2

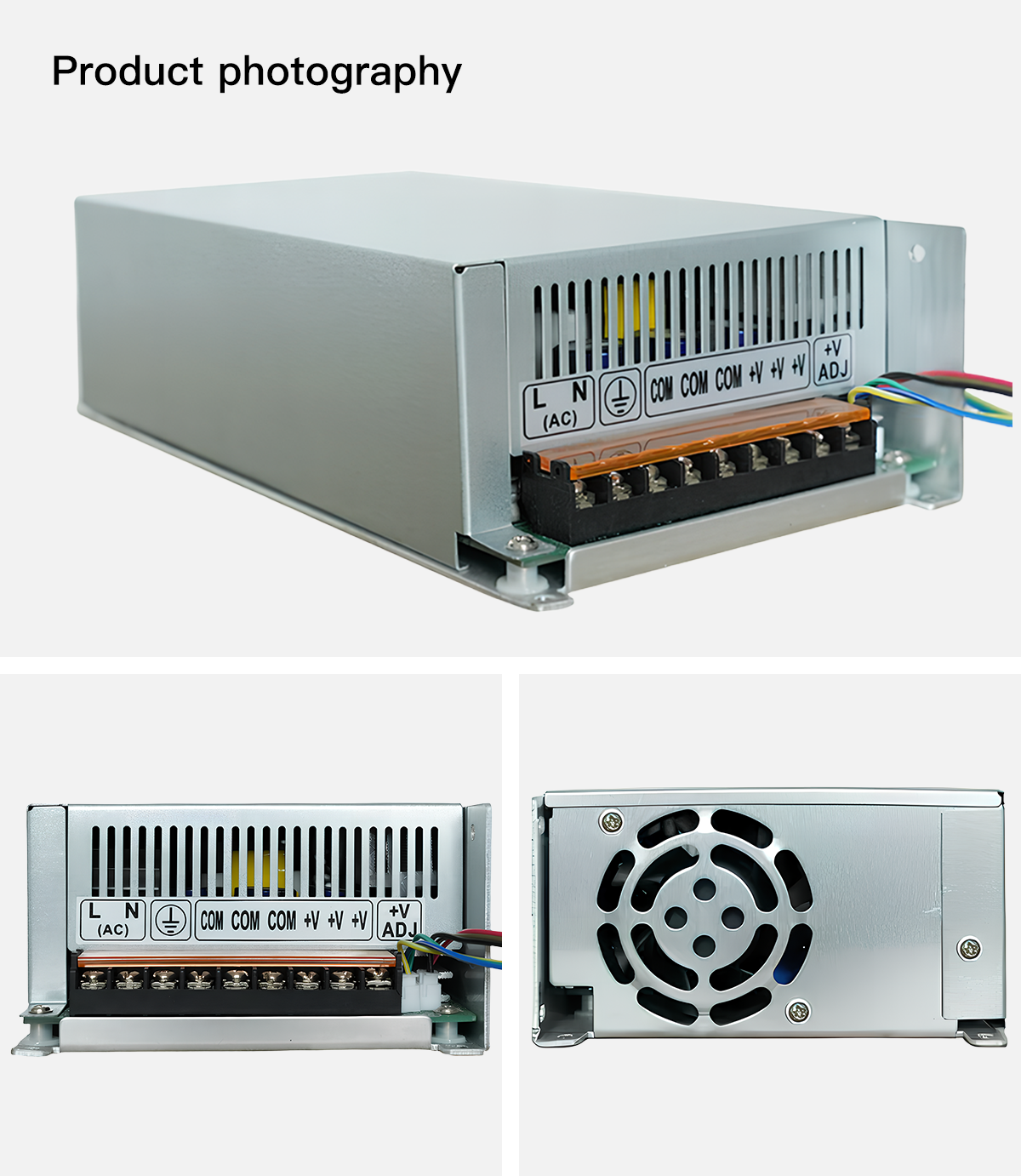

The local power switch controls the internal auxiliary power supply. For safety reasons, please add an air switch to the power input terminal. Connect the ground wire and input power wire correctly according to the rear panel labels. Confirm the input supply voltage matches the specifications.

3

The cooling fan is temperature-controlled and starts when internal temperatures cross the activation threshold. Fan speed changes based on output load, which is normal. Ensure the fan inlet and outlet are not blocked during operation.

4

If the inner temperature reaches the overheat threshold, the system automatically stops operating. It will automatically restart once the unit cools down.

5

Avoid using the equipment in environments with excessive dust, acid, corrosive gases, severe vibrations, direct rain, or exposure to intense direct sunlight.

6

Regular dust removal (using dry compressed air) improves the lifespan and reliability of the unit. Do not open the casing to prevent high-voltage hazards and damage to internal components.

7

When idle for long periods, store the unit in a dry, ventilated room. If stored for over 6 months, power on and operate the unit for at least 30 minutes before deployment.

8

Warning: Only connect load equipment to the power supply once the initial power-on test is successful and error-free.

9

If abnormal behavior occurs, power off the unit immediately and inspect the external connections. Due to high internal voltages, do not attempt to open the casing or perform self-repairs. Contact professional technical support promptly for assistance.

Frequently Asked Questions (FAQ)

Q: Does this power supply have built-in overvoltage, overcurrent, overheating, or short circuit protection?

A: Yes, the unit is fully equipped with comprehensive protection systems including overcurrent, overvoltage, overheating, and short-circuit protection features to prevent damage.

Q: Can the power supply be operated at full capacity for extended periods?

A: For continuous long-term operations, it is recommended to run the unit within 80% of its maximum capacity. Running at full capacity for too long is not recommended to ensure optimal lifespan.

Q: How easy is it to adjust output voltage and current?

A: Adjustments are highly convenient. The unit features dual knobs to allow quick, precise modifications of voltage and current settings.

Q: Is this high-power switching power supply fully isolated?

A: Yes, this power supply model is fully isolated, offering added security and noise reduction for testing and power setups.

Q: What is the starting voltage regulation range?

A: The voltage regulation starts from 1V, offering versatile adjustability for multiple application demands.

Q: Does this equipment provide sufficient and stable rated power?

A: Yes, it is engineered to deliver sufficient output power up to the rated limits reliably.
