1500W-2000W DC Regulated Power Battery Charging Bench Power Supply Supply High Voltage Power Supply Adjustable Power Supply

The professional production factory of 10,000 square meters has been specializing in high-power regulated power supplies for 15 years. Committed to offering excellent and reliable service.

DC Switching Power Supply specifications

Product Overview

⚡
Product Name: DC Switching Power Supply
⚙️
Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
🛡️
Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
⭐
Features: High stability and reliability
📋
Warranty: 1 year
⚖️
Weight: Approximately 5KG

Electrical Parameters		Physical & Environmental Parameters
Product Name	DC Switching Power Supply	Operating Relative Humidity	20%~88%
Power Rating	1500W 1800W 2000W	Application Scenarios	Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC fields
Input Voltage	220V±10%, 50-60HZ / 110V±10%, 50-60HZ	Protection Functions	Overcurrent, overvoltage, overheating, short-circuit protection

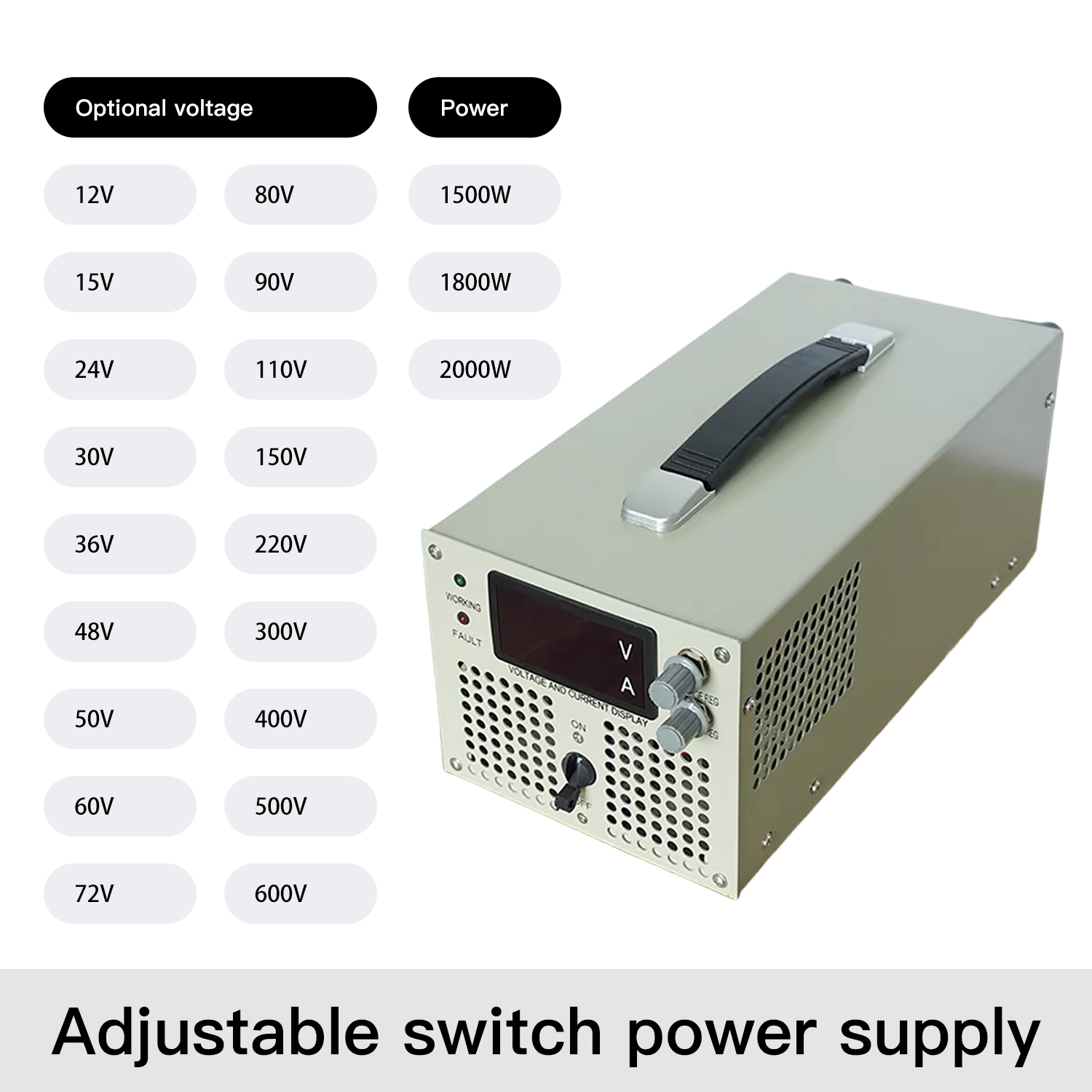

Output Voltage	12V to 600V multiple options (12V, 15V, 24V, 30V, 36V, 48V, 50V, 60V, 72V, 80V, 90V, 110V, 150V, 220V, 300V, 400V, 500V, 600V)	Product Features	High stability, high reliability
Output Current	Selected power / selected voltage	Warranty Period	1 Year
Power Conversion Type	AC-DC	Product Weight	Approximately 5KG
Efficiency	≥88-89%	Carton Dimensions	435x235x215mm
Output Voltage Accuracy	±1%	-	-

📋 Product Instructions & Operation Safety

1 Before powering on, inspect the device for potential shipping damage, loose screws, abnormal appearance, or detached cables and terminals. Keep the environment dry and resolve any issues promptly.
2 The built-in power switch controls the internal auxiliary power supply. For safety, install an air switch at the power input terminal. Correctly wire the ground and input cords based on the rear panel label and ensure matching input voltage levels.
3 The cooling fan operates based on temperature control. The fan starts automatically when the system reaches its temperature threshold, with speed adjusting to output voltage and current. Keep the air inlets and outlets clean and unobstructed.
4 When the internal temperature reaches the overheat threshold, the device shuts down automatically for protection and resumes operation once cooled.
5 Ensure the working area does not contain extreme concentrations of dust, acid, or corrosive gases. Avoid exposure to rain, severe vibration, mechanical shock, and direct sunlight.
6 Regular maintenance and dust removal using dry compressed air can enhance lifetime and stability. Warning: Do not open the case without authorization due to internal high voltage.
7 If stored idle for over 6 months, place in a dry, ventilated area and power the unit on for at least 30 minutes before usage.
8 Warning: Always ensure the unit undergoes a normal power-on test before connecting any active loads.
9 Malfunction Handling: If the unit operates abnormally, immediately cut off the power. Check the internal and external wiring connections and ensure knobs are properly configured. If problems persist, do not remove the casing yourself due to high voltage. Contact a qualified technician for troubleshooting.

❓ Frequently Asked Questions (FAQ)

Q: Does the power supply have built-in protective functions?

A: Yes, it is fully equipped with overvoltage, overcurrent, overheating, and short-circuit protection.

Q: Is reverse protection available for this model?

A: Yes, reverse protection can be added as an optional upgrade.

Q: Can this device run at 100% full capacity for extended periods?

A: No. For long-term reliability and safety, it is recommended to keep the load below 80% capacity.

Q: How is the voltage and current adjusted?

A: Adjustments are quick and convenient using the integrated dual control knobs.

Q: Is the high-power regulated supply isolated?

A: Yes, this unit utilizes a fully isolated design.

Q: What is the output voltage regulation range?

A: The voltage adjustment range starts from 1V.
