36V-1500W Single Output High Stability AC-DC Switching Power Supply Industrial Use with 12V-600V Input
36V-1500W Single Output High Stability AC-DC Switching Power Supply Industrial Use with 12V-600V Input
36V-1500W Single Output High Stability AC-DC Switching Power Supply Industrial Use with 12V-600V Input
36V-1500W Single Output High Stability AC-DC Switching Power Supply Industrial Use with 12V-600V Input
36V-1500W Single Output High Stability AC-DC Switching Power Supply Industrial Use with 12V-600V Input
1 / 5
36V-1500W Single Output High Stability AC-DC Switching Power Supply Industrial Use with 12V-600V Input
36V-1500W Single Output High Stability AC-DC Switching Power Supply Industrial Use with 12V-600V Input
36V-1500W Single Output High Stability AC-DC Switching Power Supply Industrial Use with 12V-600V Input
36V-1500W Single Output High Stability AC-DC Switching Power Supply Industrial Use with 12V-600V Input
36V-1500W Single Output High Stability AC-DC Switching Power Supply Industrial Use with 12V-600V Input

36V-1500W Single Output High Stability AC-DC Switching Power Supply Industrial Use with 12V-600V Input

Send Inquiry

Product Description

DC Switching Power Supply Main Display
DC Switching Power Supply Overview

Product Overview

  • Product Name: DC Switching Power Supply
  • Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
  • Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
  • Features: High stability and reliability
  • Warranty: 1 year
  • Weight: Approximately 5KG

Product Features & Interface

Feature Interface Detail 1
Feature Interface Detail 2
Feature Interface Detail 3
Feature Interface Detail 4
Feature Interface Detail 5

Technical Specifications

Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 1500W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage 220V±10%, 50-60HZ / 110V±10%, 50-60HZ Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection

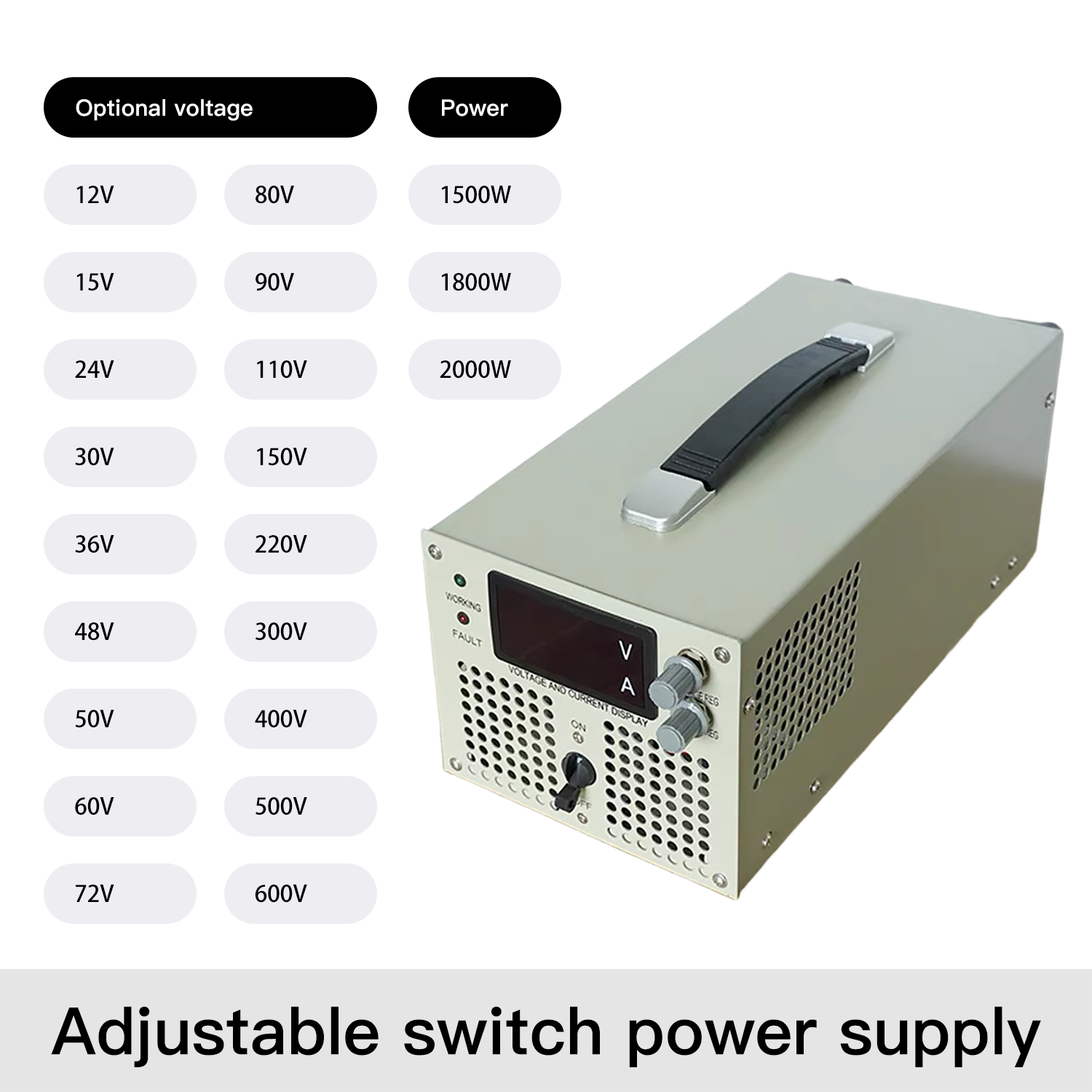

Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V Product Features High stability, high reliability
Output Current Selected power/selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 5KG
Efficiency >88-89% Carton Dimensions 435x235x215mm
Output Voltage Accuracy ±1%

Product Gallery

Product Gallery Image 1
Product Gallery Image 2
Product Gallery Image 3
Product Gallery Image 4
Product Gallery Image 5

Product Instructions

1. Initial Inspection
Before powering on, check the stored and transported switch power supply. Inspect for any damage during transportation, such as loose screws, abnormal appearance, loose power cords/terminals, or dampness. Address any of these issues promptly.
2. Power Connection
The local power switch controls the auxiliary power supply inside the machine. For safety, install an air switch at the power input terminal to control power input. Connect the ground wire and input power wire according to the labels on the rear panel. Verify that the input power supply voltage matches the specifications in the manual.
3. Cooling System
The cooling fan is temperature-controlled and starts when the internal temperature exceeds the activation threshold. The fan speed varies with output voltage and current. Keep the air inlets and outlets clear during operation.
4. Overheat Shutdown Protection
If the internal temperature reaches the overheat threshold, the machine will automatically shutdown to protect the components. It will automatically restart once the temperature cools down.
5. Operating Environment
Avoid using the equipment in environments with excessive dust, acid, corrosive gases, severe vibrations, impact, rain, or direct sunlight.
6. Regular Dust Removal
Regularly remove dust to extend service life and improve reliability. Use dry compressed air for cleaning. Do not open the casing as high voltage is present inside. Take care not to damage internal components.
7. Long-term Storage
When idle for long periods, store the power supply in a dry, well-ventilated room. If stored for more than 6 months, power on the device and run it for at least 30 minutes.
8. Power-On Testing Warning
Only connect to the load equipment after the initial power-on test is confirmed normal and error-free.
9. Troubleshooting and Maintenance
If abnormal operation occurs, shut off the power switch immediately. Check all internal/external connections for tightness and verify switch positions. Do not open the casing or attempt self-repair due to high voltage. Please notify professional support promptly to resolve issues safely.

Frequently Asked Questions (FAQ)

Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes, the power supply includes comprehensive built-in protections for overcurrent, overvoltage, overheating, and short circuits.
Is there reverse protection?
Reverse protection can be added as a custom option for an additional cost.
Can it be used at full power for a long time?
No. For continuous, long-term operation, the power supply should be used with a margin, preferably below 80% of its maximum capacity.
Is it convenient to adjust the voltage and current?

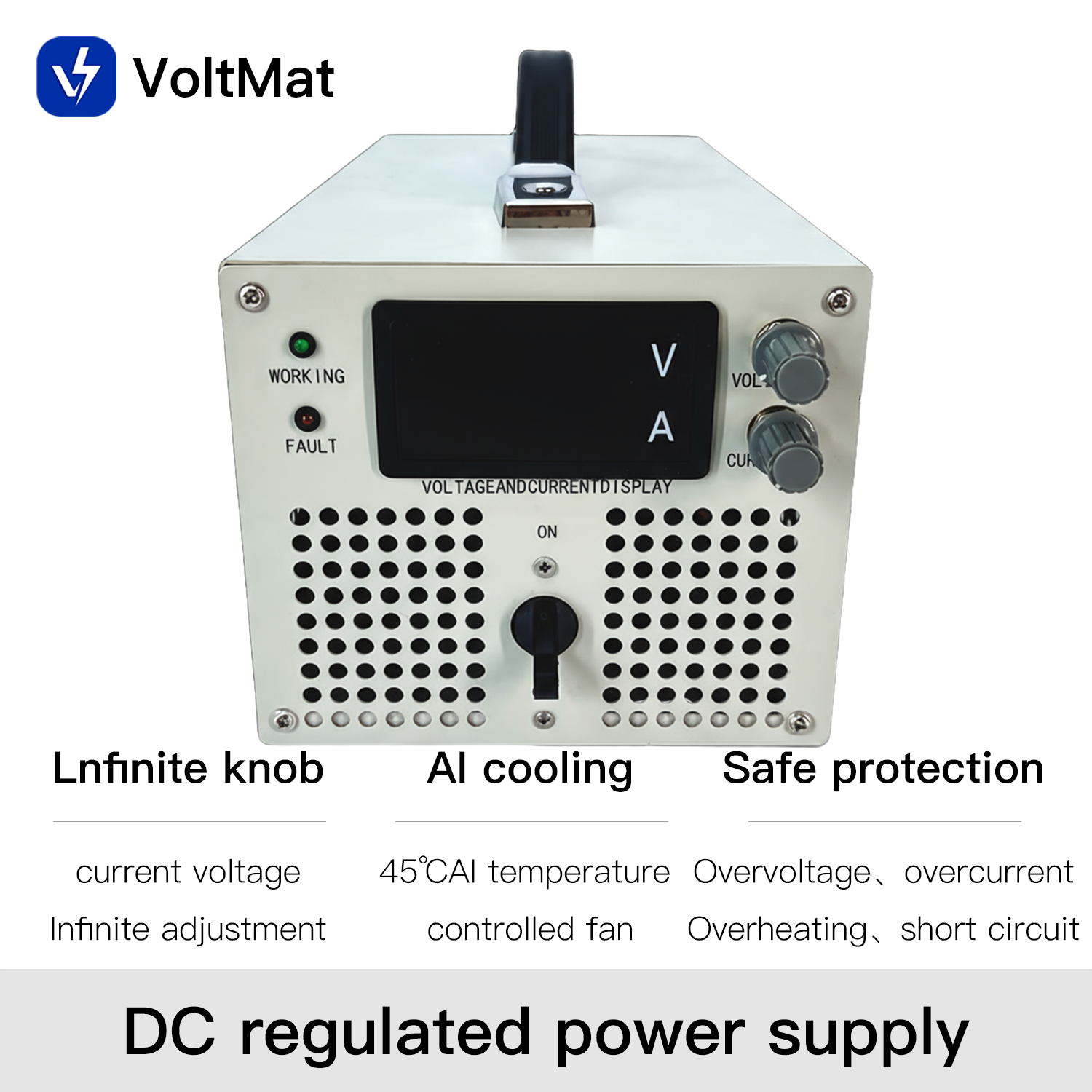

Yes, both voltage and current can be easily and precisely adjusted via the dual control knobs on the front panel.
Is the high-power power supply isolated?
Yes, this power supply is fully isolated.
What is the voltage regulation range?
The voltage regulation starts from 1V.
