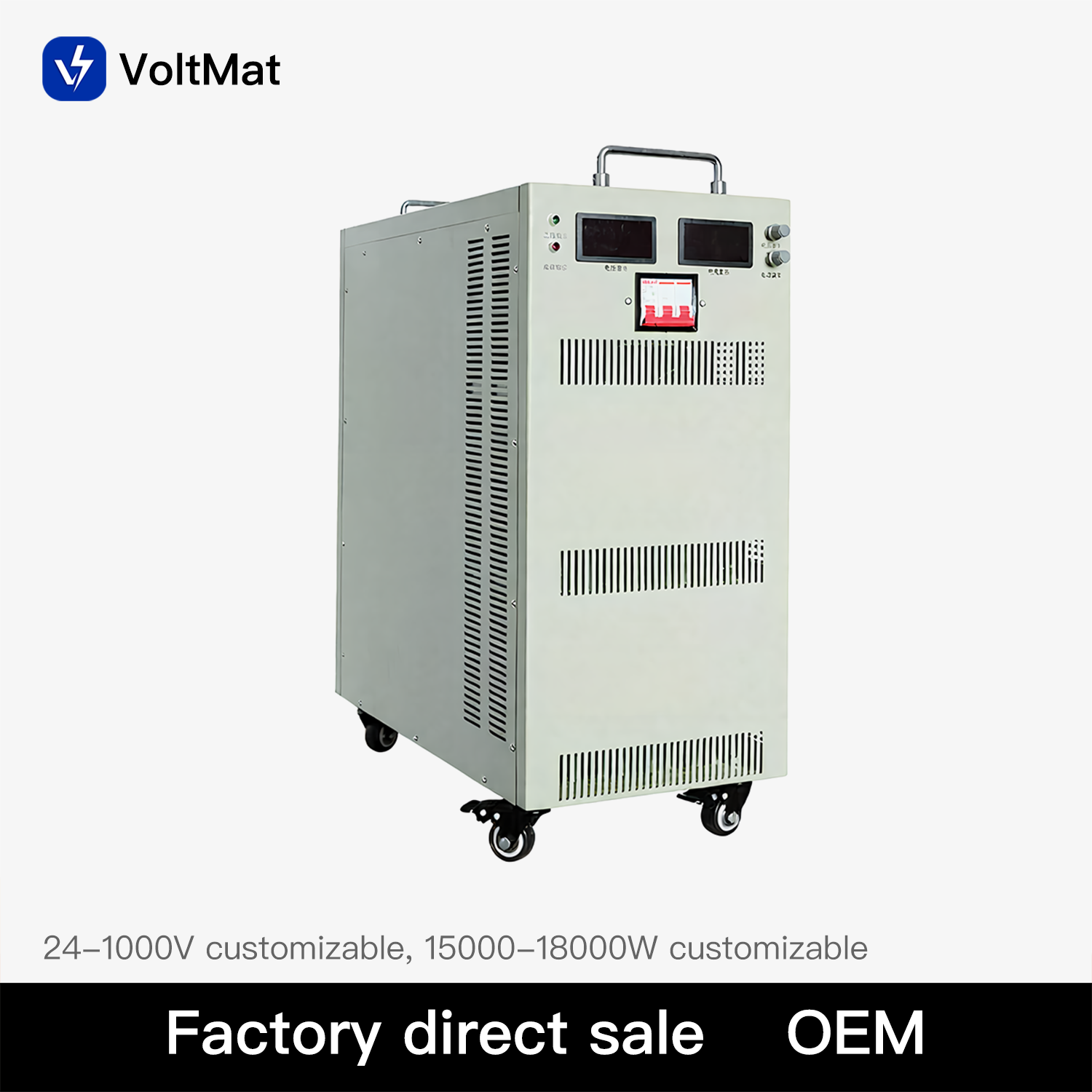

15KW-18KW DC Regulated Power Battery Charging Bench Power Supply Supply High Voltage Power Supply Adjustable Power Supply

DC Switching Power Supply

■ Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
■ Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
■ Features: High stability and reliability
■ Warranty: 1 year
■ Weight: Approximately 25KG

Technical Specifications

Product Name	DC Switching Power Supply	Operating Relative Humidity	20%~88%
Power Rating	15000W / 16000W / 17000W / 18000W	Application Scenarios	Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage	Three-phase 380V±10% 50-60HZ	Protection Functions	Overcurrent, overvoltage, overheating, short-circuit protection

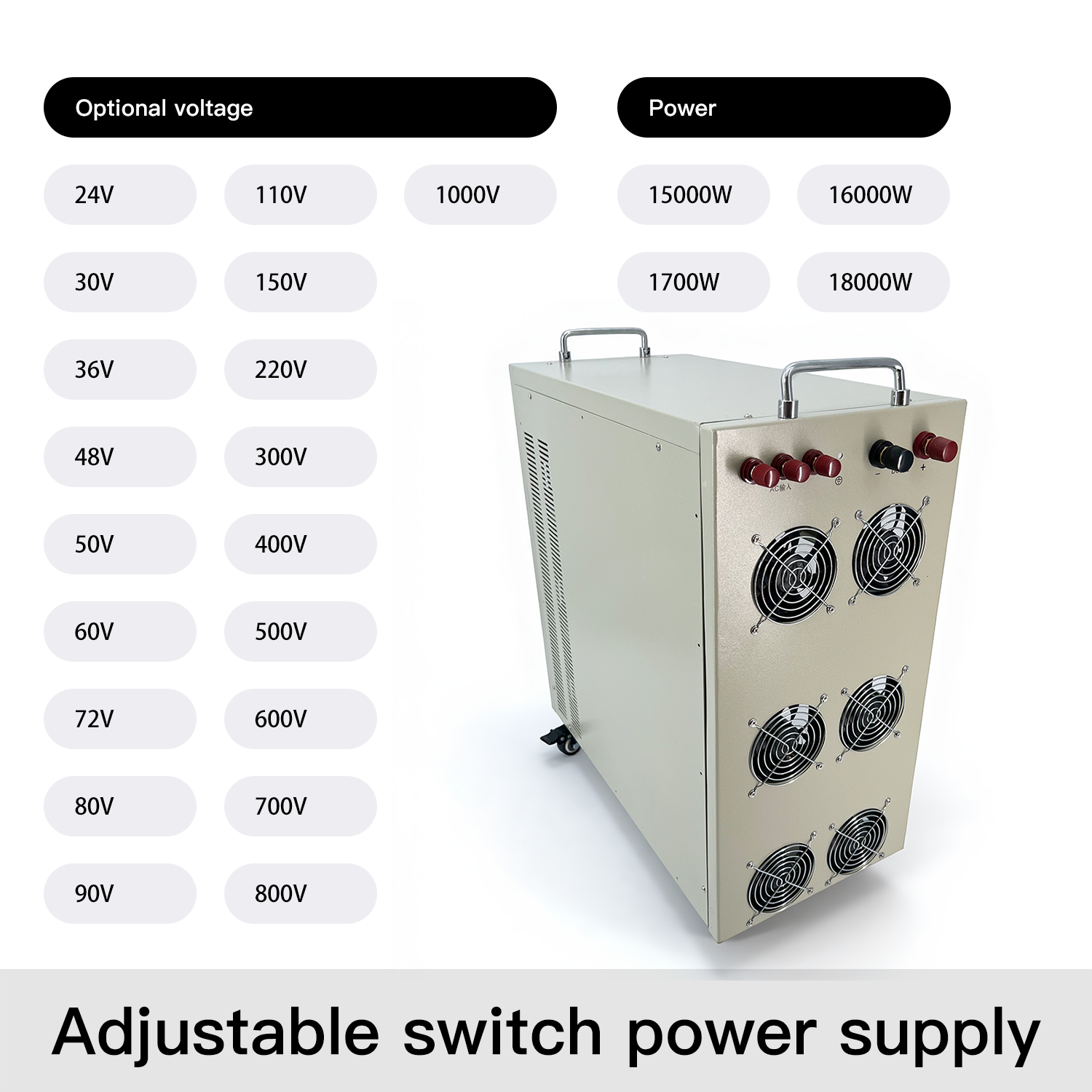

Output Voltage	24V to 1000V (including 24V, 30V, 36V, 48V, 50V, 60V, 72V, 80V, 90V, 110V, 150V, 220V, 300V, 400V, 500V, 600V, 700V, 800V, 1000V)	Product Features	High stability, high reliability
Output Current	Selected power / selected voltage	Warranty Period	1 Year
Power Conversion Type	AC-DC	Product Weight	Approximately 40KG

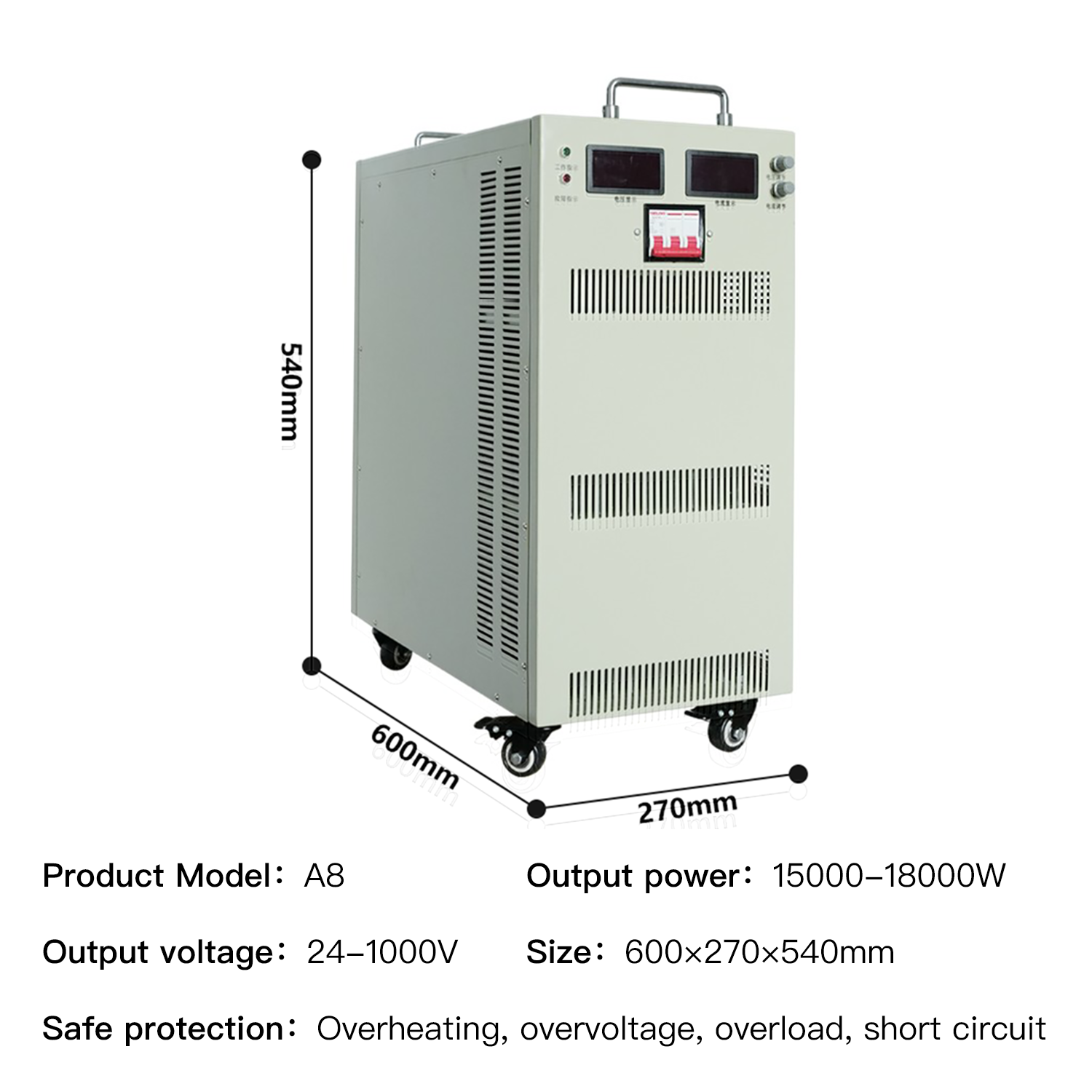

Efficiency	> 88-89%	Carton Dimensions	770x400x740mm
Output Voltage Accuracy	±1%	-	-

Product Instructions

1

Before powering on, check the stored and transported switch power supply. Inspect for any potential damage during transit, such as loose screws, abnormal appearance, shaken power cords or terminals, and dampness. Handle any abnormal findings promptly.

2

The local power switch controls the auxiliary power supply inside the machine. For safety, please install an air switch at the power input terminal to control the main input. Connect the ground wire and input power wires properly according to the label on the rear panel. Ensure the input voltage matches the manual specifications.

3

The cooling fan is temperature-controlled. It initiates operation once the internal temperature reaches the preset threshold. Fan speed dynamically adjusts based on output voltage and current. Keep the air inlets and outlets completely unobstructed during operation.

4

If the temperature exceeds the safety threshold, the machine initiates automatic thermal shutdown. It automatically resumes operation after the internal temperature cools down to safe levels.

5

Avoid using the equipment in environments with excessive dust, acid, corrosive gases, severe vibrations, impact, rainfall, or under direct sunlight.

6

Regular dust removal (using dry compressed air) extends service life. Do not open the casing to prevent contact with high voltage components inside.

7

When storing the device long-term, choose a dry and ventilated area. If stored for over 6 months, power on the device and run it for at least 30 minutes to maintain component integrity.

8

Warning: Only connect load equipment to the power supply after verifying stable and correct behavior during a no-load test.

9

In case of malfunctions, cut off power immediately. Inspect external connections and control switch positions. Do not attempt internal repairs without proper training and tools due to dangerous internal voltages. Please contact professional support promptly.

Frequently Asked Questions (FAQ)

QIs there overvoltage, overcurrent, overheating, or short circuit protection?

Yes, the power supply includes comprehensive built-in protection mechanisms for overvoltage, overcurrent, overheating, and short circuit safety.

QIs reverse polarity protection available?

Reverse protection can be added as an optional customized feature.

QCan this power supply run continuously at full power?

For long-term usage, it is recommended to keep load levels below 80% of total capacity to ensure reliability and performance longevity.

QHow do you adjust the output voltage and current?

Output voltage and current can be easily adjusted manually via the dual knobs located on the front panel.

QIs this high-power supply isolated?

Yes, this power supply features a fully isolated circuit design.

QWhat is the voltage regulation range?

The output voltage is adjustable starting from 1V up to the maximum rated voltage.
