Output 60V-10000 High Efficiency AC-DC Switching Voltage Regulator 1 Year Warranty Protection for Industrial DC

With a professional production factory spanning 10,000 square meters, we have specialized in high-power regulated power supplies for 15 years, offering excellent product quality and dedicated after-sales service.

Product Overview

Product Name DC Switching Power Supply
Application Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
Protection Overcurrent, Overvoltage, Overheat, Short Circuit Protection
Features High stability and reliability
Warranty 1 year
Weight Approximately 19KG

Specifications Gallery

Technical Specifications

Product Name	DC Switching Power Supply	Operating Relative Humidity	20%~88%
Power Rating	10000W	Application Scenarios	Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage	Single-phase/Three-phase 220V±10% 50-60HZ / 110V±10% 50-60HZ / 380V±10%	Protection Functions	Overcurrent, overvoltage, overheating, short-circuit protection

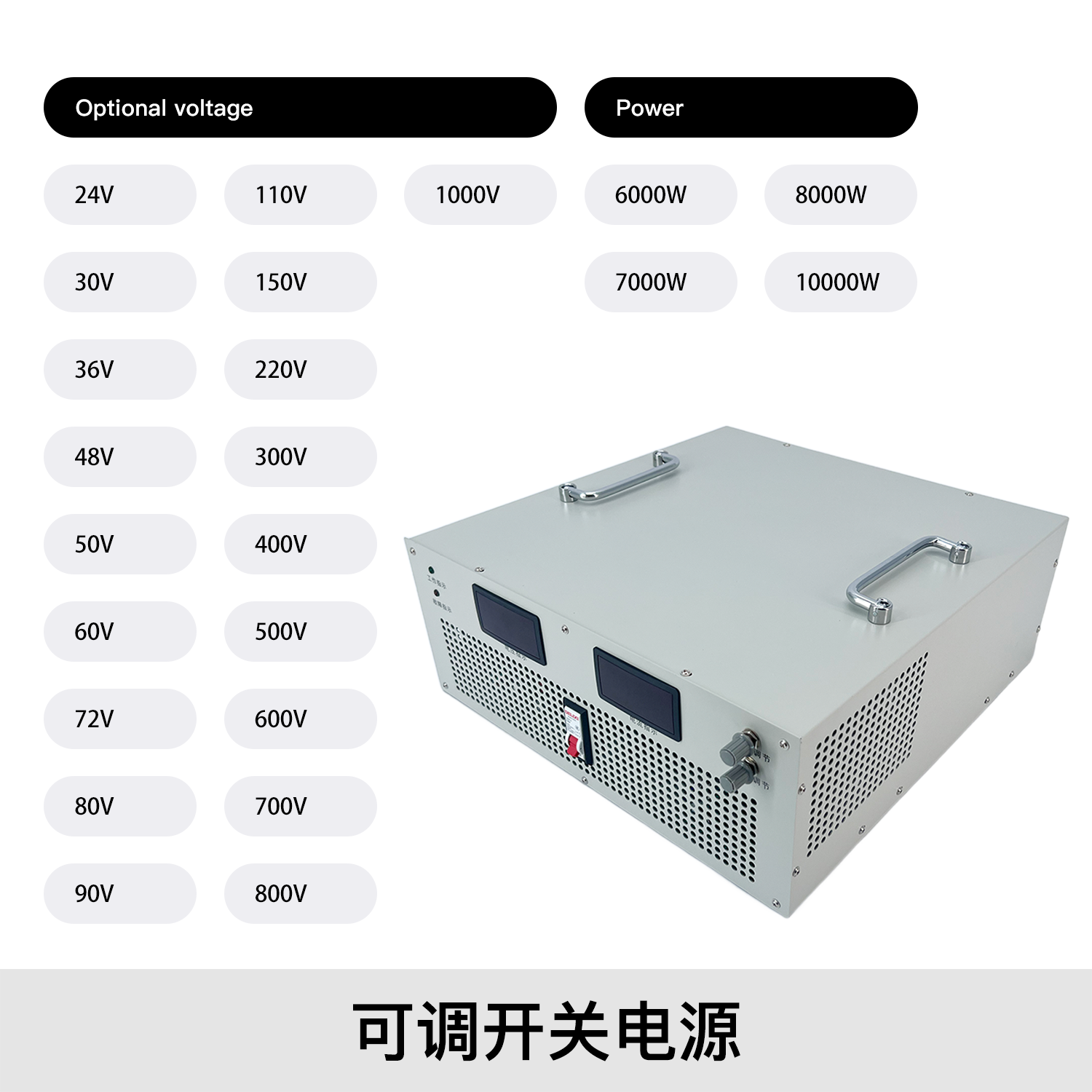

Output Voltage	12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V	Product Features	High stability, high reliability
Output Current	Selected power/selected voltage	Warranty Period	1 Year
Power Conversion Type	AC-DC	Product Weight	Approximately 19

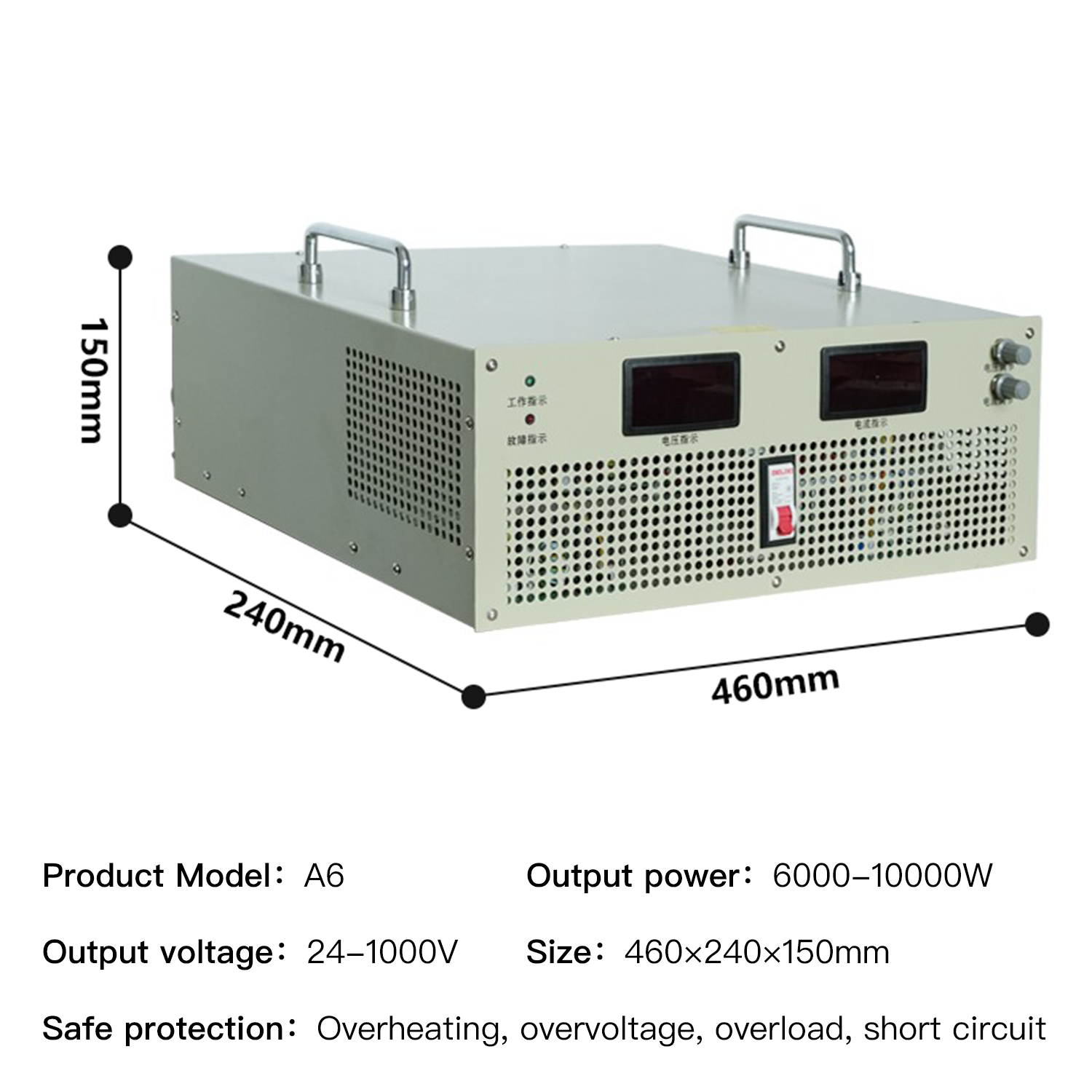

Efficiency	>88-89%	Carton Dimensions	550x505x235mm
Output Voltage Accuracy	±1%

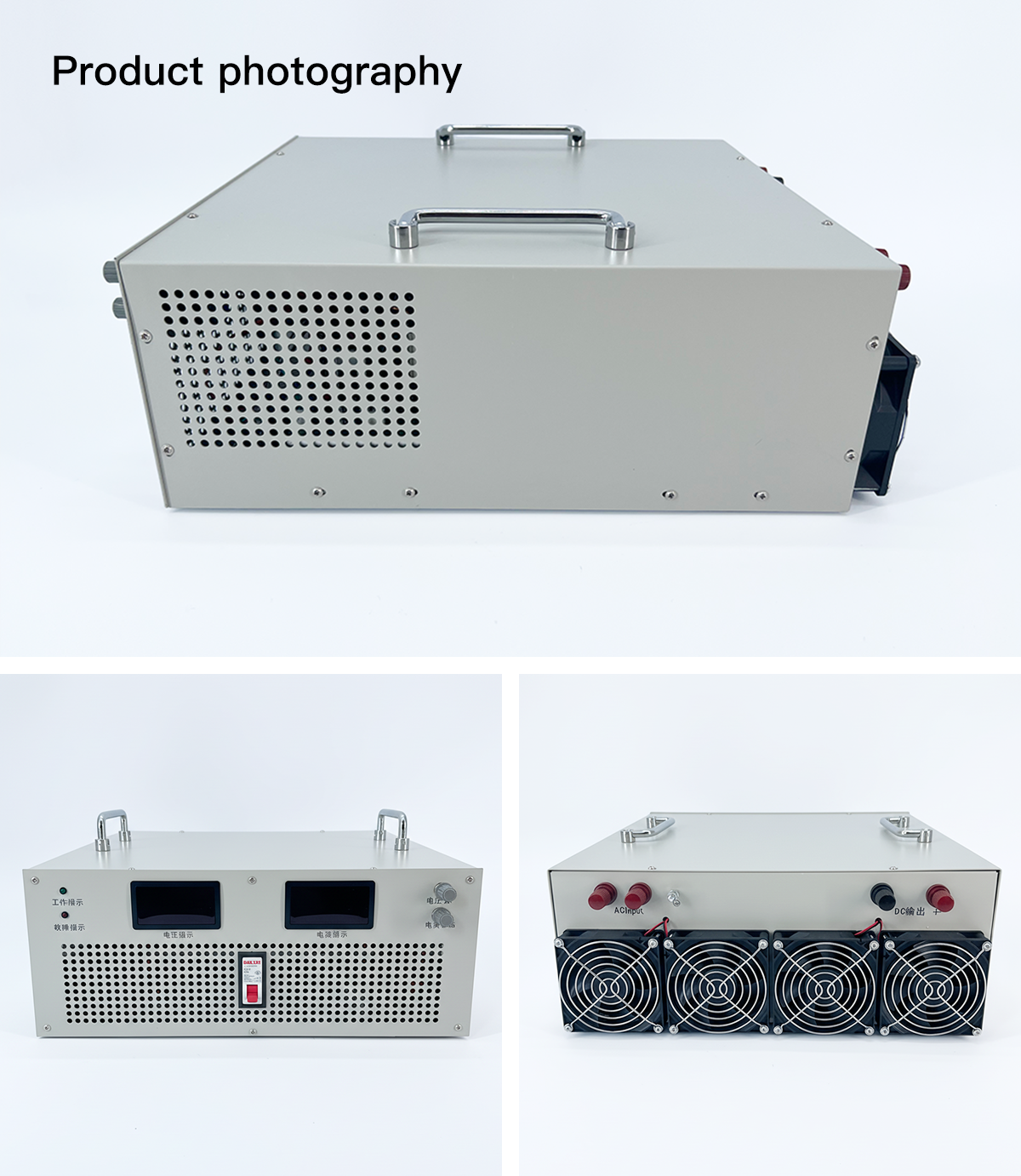

Product Details Gallery

Product Instructions

1 Before powering on, inspect the stored and transported switching power supply. Check for any damage during transit, such as loose screws, abnormal appearance, disconnected or unstable power cords and terminals, or dampness. If any of these issues are found, resolve them promptly.
2 The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel, confirming correct connection. Verify that the input power supply voltage matches the voltage indicated in the manual.
3 The cooling fan is temperature-controlled. When the internal temperature of the machine exceeds the activation threshold, the fan will start. The fan speed varies with output voltage and current under normal operation. Ensure the inlet and outlet of the fan remain unblocked during operation.
4 When the internal temperature of the machine reaches the overheat shutdown threshold, the machine will automatically stop operating to prevent damage. Once the temperature drops sufficiently, it will automatically restart and resume operation.
5 When using the power equipment, ensure that dust, acid, corrosive gases, or substances in the air do not exceed normal levels. Avoid severe vibrations, impacts, rain exposure, and direct sunlight.
6 Regular dust removal is recommended to significantly improve the service life and reliability of the equipment. Dry compressed air can be used for cleaning. Due to high internal voltage, do not open the casing and ensure internal components are not damaged.
7 When the power equipment is idle for an extended period, store it in a dry and ventilated environment. If stored for more than 6 months, the equipment should be powered on and operated for over half an hour.
8 Warning: Only connect to powered load equipment once the power-on test is normal and error-free.
9 Troubleshooting: If abnormal operation is detected after startup, shut off the power switch immediately. Carefully check all internal and external connections for correctness and ensure screws are secure. Verify that all switches and knobs are positioned correctly. For complex issues, do not unscrew the casing or attempt unauthorized repairs due to high internal voltages. Please notify technical support promptly to resolve the issue.

Frequently Asked Questions

Is there overvoltage, overcurrent, overheating, or short circuit protection?

Yes, the power supply features built-in protection mechanisms for overvoltage, overcurrent, overheating, and short circuiting to ensure safe operation.

Is there reverse protection available?

Yes, reverse polarity protection can be added as an optional customized feature.

Can it be used at full power for a long period?

No, the power supply should be used with excess capacity. Continuous usage for extended periods is recommended at loads below 80% of capacity.

Is it convenient to adjust the voltage and current?

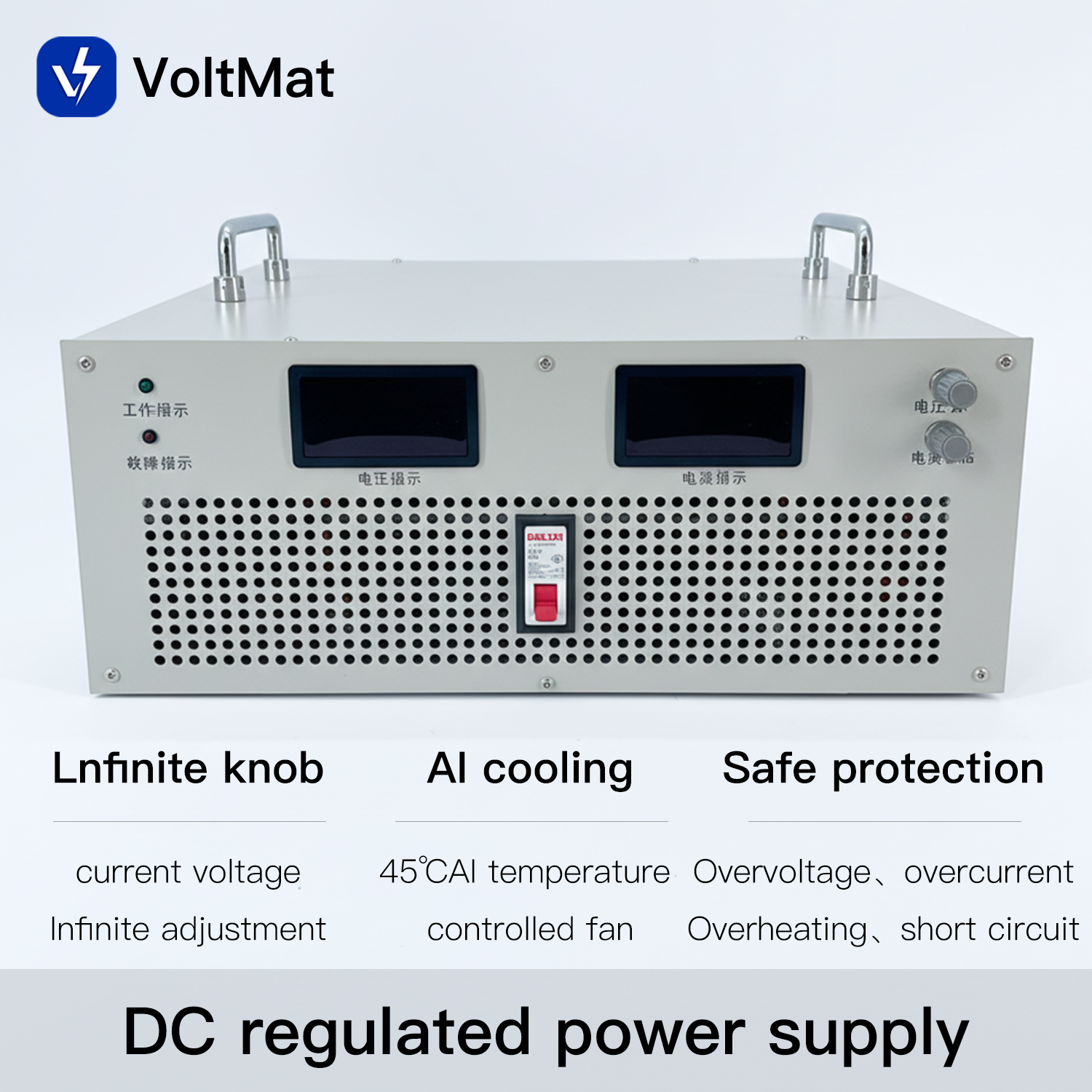

Yes, both the voltage and current can be easily adjusted using the dual knobs on the panel.

Is the high-power power supply electrically isolated?

Yes, this is designed as a fully isolated power supply.

What is the starting voltage regulation range?

The voltage regulation starts from 1V.
