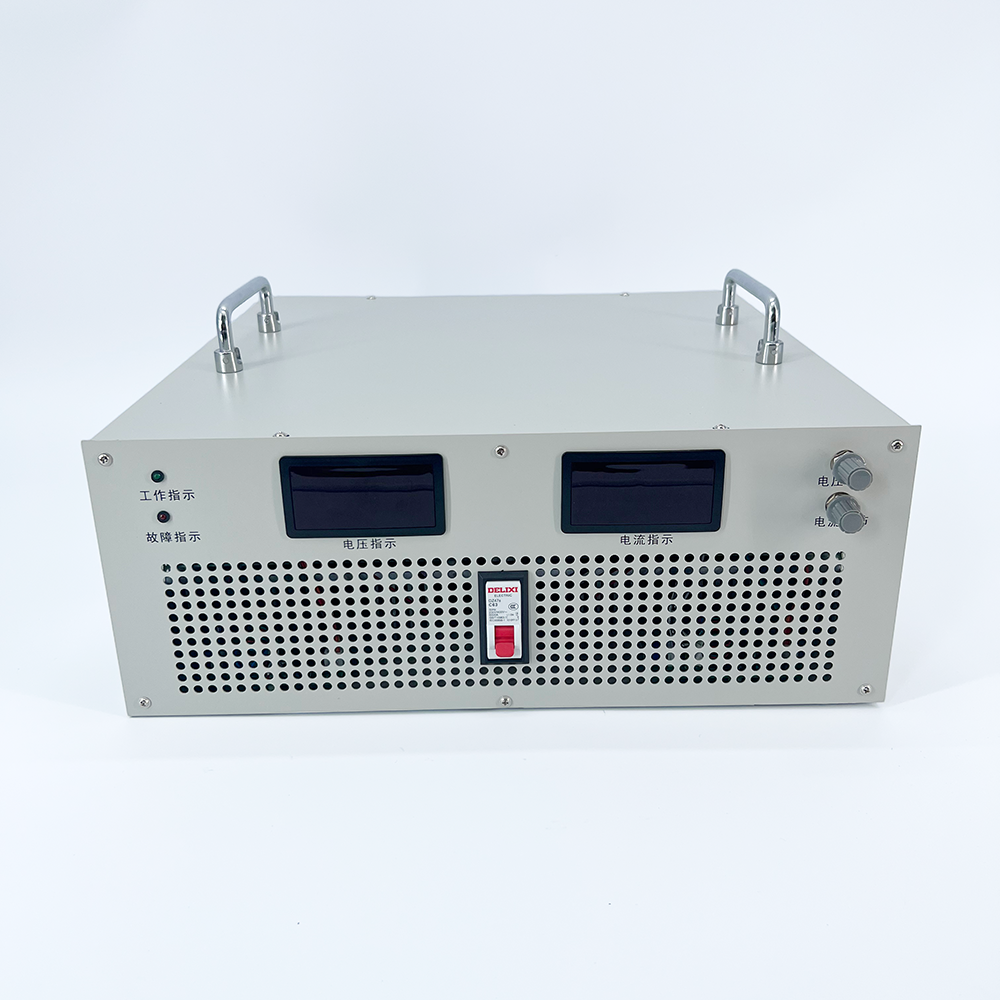

Output 600V-6000W High-Stability AC-DC Adjustable Switching Power Supply 88-89% Efficiency 1-Year Warranty Industrial DIN Rail
Output 600V-6000W High-Stability AC-DC Adjustable Switching Power Supply 88-89% Efficiency 1-Year Warranty Industrial DIN Rail
Output 600V-6000W High-Stability AC-DC Adjustable Switching Power Supply 88-89% Efficiency 1-Year Warranty Industrial DIN Rail
Output 600V-6000W High-Stability AC-DC Adjustable Switching Power Supply 88-89% Efficiency 1-Year Warranty Industrial DIN Rail
Output 600V-6000W High-Stability AC-DC Adjustable Switching Power Supply 88-89% Efficiency 1-Year Warranty Industrial DIN Rail
1 / 5
Output 600V-6000W High-Stability AC-DC Adjustable Switching Power Supply 88-89% Efficiency 1-Year Warranty Industrial DIN Rail
Output 600V-6000W High-Stability AC-DC Adjustable Switching Power Supply 88-89% Efficiency 1-Year Warranty Industrial DIN Rail
Output 600V-6000W High-Stability AC-DC Adjustable Switching Power Supply 88-89% Efficiency 1-Year Warranty Industrial DIN Rail
Output 600V-6000W High-Stability AC-DC Adjustable Switching Power Supply 88-89% Efficiency 1-Year Warranty Industrial DIN Rail
Output 600V-6000W High-Stability AC-DC Adjustable Switching Power Supply 88-89% Efficiency 1-Year Warranty Industrial DIN Rail

Output 600V-6000W High-Stability AC-DC Adjustable Switching Power Supply 88-89% Efficiency 1-Year Warranty Industrial DIN Rail

Send Inquiry

Product Description

Regulated Power Supply Banner

We operate a professional production facility covering 10,000 square meters, specializing in high-power regulated power supplies for over 15 years. We pride ourselves on delivering excellent after-sales service and high-quality power solutions.

DC Switching Power Supply

DC Switching Power Supply

  • ⚡
    Application: Widely used in power electronics, electroplating, water treatment, battery charging, new energy maintenance, and various DC application sites.
  • 🛡️
    Protection: Equipped with overcurrent, overvoltage, overheat, and short circuit protection.
  • ⚙️
    Features: Exceptional stability and reliability for heavy-duty industrial tasks.
  • 📋
    Warranty: 1 Year.
  • ⚖️
    Weight: Approximately 19KG.
Product Detail Views
Detail Image 1
Detail Image 2
Detail Image 3
Detail Image 4
Detail Image 5
Product Specifications
Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 6000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
Input Voltage Single-phase/Three-phase
220V±10% 50-60HZ / 110V±10% 50-60HZ / 380V±10%		 Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V, 15V, 24V, 30V, 36V, 48V, 50V, 60V, 72V, 80V, 90V, 110V, 150V, 220V, 300V, 400V, 500V, 600V, 700V, 800V, 1000V Product Features High stability, high reliability
Output Current Selected power / selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 19KG

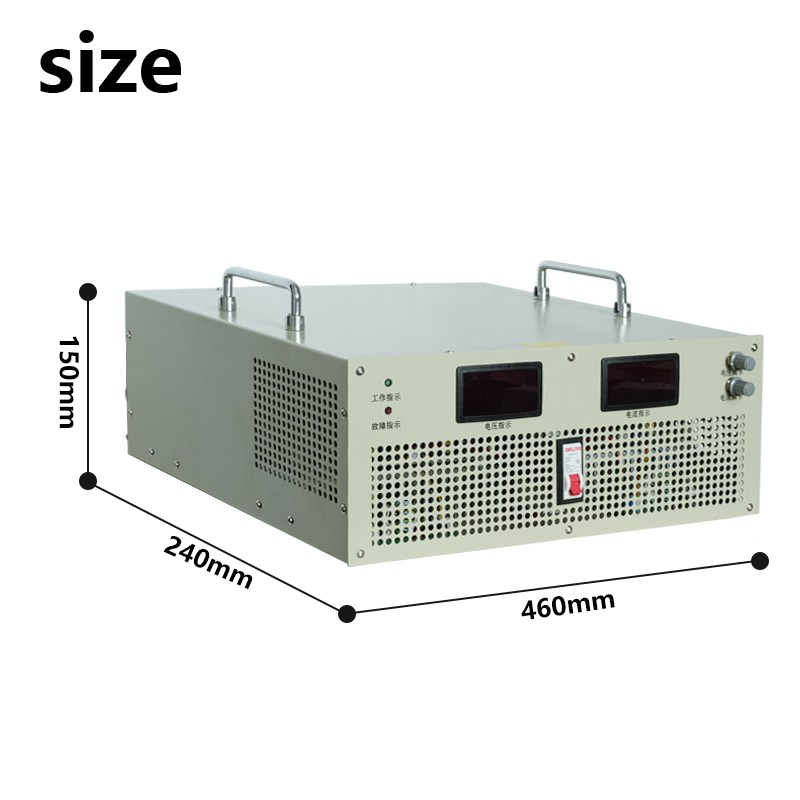

Efficiency >88-89% Carton Dimensions 550x505x235mm
Output Voltage Accuracy ±1%
Production Showcase
Production Line 1
Production Line 2
Testing Facility 1
Testing Facility 2
Warehouse Showcase
Product Instructions
  • 1 Before powering on, inspect the device for potential shipping damage such as loose screws, abnormal housing structure, or loose connection terminals. If any moisture or issues are present, resolve them before operating.
  • 2 The built-in power switch controls the auxiliary circuitry. For safety, install an air switch at the power input terminal. Ensure correct ground and input line connections as indicated on the rear panel. Check if the local input voltage is compatible with the device.
  • 3 The cooling fan is temperature-controlled and starts automatically when the internal heat reaches the threshold. Fan speed changes depending on load output, which is normal. Keep the air inlets and outlets completely unobstructed.
  • 4 If internal heat exceeds the safety threshold, the system triggers automatic shutdown protection. The device automatically resumes normal operations once temperature levels cool down.
  • 5 Ensure the working space is free of extreme dust, acidic or corrosive fumes, heavy vibration, rain, or direct sunlight.
  • 6 Regular maintenance dust removal prolongs working lifespan. Use dry compressed air for internal cleaning, but avoid opening the housing to avoid electrical risks.
  • 7 If kept idle for more than 6 months, store in a dry, ventilated area. Run the power supply for at least 30 minutes before regular usage.
  • 8 Warning: Ensure the power on test is normal and free of errors before connecting any load equipment.
  • 9 Malfunction Handling: If the unit functions abnormally, disconnect power immediately. Inspect external connections and settings first. To avoid electrical hazards, do not dismantle or attempt internal self-repair without professional knowledge. Please contact support promptly for assistance.
Frequently Asked Questions
Q Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes, this power supply comes fully equipped with active overvoltage, overcurrent, overheating, and short circuit protection mechanisms.
Q Is there reverse polarity protection available?
Yes, reverse polarity protection features can be added and customized as per your requirement.
Q Can this system run at full power for a long time?
No, it is recommended to run the power supply below 80% capacity for continuous, long-term operation to maintain optimal stability and hardware life.
Q Is it convenient to adjust the voltage and output current?
Yes, it is very convenient. The voltage and current outputs can be easily configured using the dual control knobs.
Q Are these high-power power supplies isolated?
Yes, our high-power power supplies feature a fully isolated design.
Q What is the output voltage regulation range?
The adjustable output voltage starts from 1V.
