Output 500V-6000W High Stability Switching Regulated Power Supply 88-89% Efficiency 50/60Hz Industry Use Overcurrent/Overvoltage
Output 500V-6000W High Stability Switching Regulated Power Supply 88-89% Efficiency 50/60Hz Industry Use Overcurrent/Overvoltage
Output 500V-6000W High Stability Switching Regulated Power Supply 88-89% Efficiency 50/60Hz Industry Use Overcurrent/Overvoltage
Output 500V-6000W High Stability Switching Regulated Power Supply 88-89% Efficiency 50/60Hz Industry Use Overcurrent/Overvoltage
Output 500V-6000W High Stability Switching Regulated Power Supply 88-89% Efficiency 50/60Hz Industry Use Overcurrent/Overvoltage
1 / 5
Output 500V-6000W High Stability Switching Regulated Power Supply 88-89% Efficiency 50/60Hz Industry Use Overcurrent/Overvoltage
Output 500V-6000W High Stability Switching Regulated Power Supply 88-89% Efficiency 50/60Hz Industry Use Overcurrent/Overvoltage
Output 500V-6000W High Stability Switching Regulated Power Supply 88-89% Efficiency 50/60Hz Industry Use Overcurrent/Overvoltage
Output 500V-6000W High Stability Switching Regulated Power Supply 88-89% Efficiency 50/60Hz Industry Use Overcurrent/Overvoltage
Output 500V-6000W High Stability Switching Regulated Power Supply 88-89% Efficiency 50/60Hz Industry Use Overcurrent/Overvoltage

Output 500V-6000W High Stability Switching Regulated Power Supply 88-89% Efficiency 50/60Hz Industry Use Overcurrent/Overvoltage

Send Inquiry

Product Description

DC Switching Power Supply Banner
DC Switching Power Supply Product

DC Switching Power Supply

  • Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
  • Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
  • Features: High stability and reliability
  • Warranty: 1 year
  • Weight: Approximately 19KG

Product Features & Details

Detail Image 1
Detail Image 2
Detail Image 3
Detail Image 4
Detail Image 5

Technical Specifications

Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 6000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase/Three-phase
220V±10% 50-60HZ 110V±10% 50-60HZ 380V±10%		 Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V Product Features High stability, high reliability
Output Current Selected power/selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 19KG

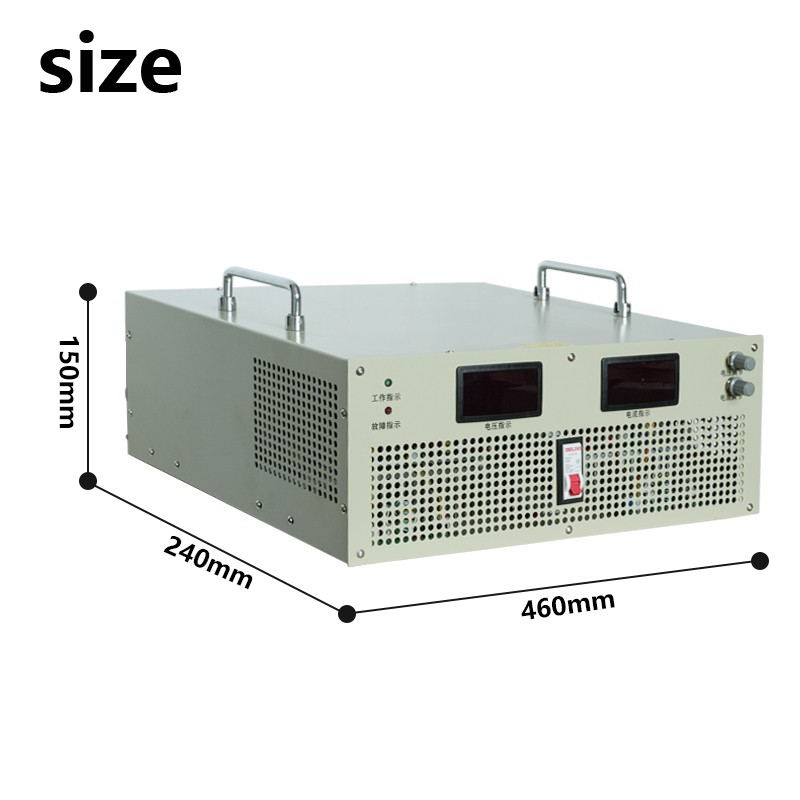

Efficiency ≥88-89% Carton Dimensions 550x505x235mm
Output Voltage Accuracy ±1%
Detail Image 6
Detail Image 7
Detail Image 8
Detail Image 9
Detail Image 10

Product Instructions

1. Pre-Power Check
Check the stored and transported switch power supply. Inspect for any damage during transportation, such as loose screws, abnormal appearance, shaken power cords or terminals, or dampness. Address any issues promptly.
2. Power Connection
The local power switch controls the internal auxiliary power supply. For safety, add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the rear panel label. Verify that the input voltage matches the manual instructions.
3. Temperature Control Fan
The cooling fan is temperature-controlled and starts when internal temperatures exceed the control threshold. Fan speed adjusts dynamically based on output voltage and current. Keep the inlet and outlet clear during operation.
4. Overheat Safety Shutdown
If internal temperatures reach the safety threshold, the machine will shut down automatically to prevent damage. It will resume operation automatically once the temperature drops.
5. Operating Environment
Avoid environments with abnormal levels of dust, acid, corrosive gases, severe vibrations, impact, rain, or direct sunlight.
6. Regular Dust Removal
Regularly clean the dust to extend the service life and reliability of the equipment. Dry compressed air can be used. Do not open the casing to avoid high voltage hazards or damaging internal components.
7. Long-Term Storage
Store the idle equipment in a dry, ventilated room. If stored for more than 6 months, power on the device and run it for at least 30 minutes.
8. Load Warning
Only connect the load equipment after the power-on self-test runs successfully without errors.
9. Malfunctions Handling
If abnormal operation occurs, shut off the power immediately. Check all connections, screws, switches, and knobs. If the issue persists, do not open the casing or attempt repairs without professional knowledge due to high internal voltages. Contact technical support promptly.

Frequently Asked Questions

Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes, the power supply includes comprehensive protection mechanisms, including overcurrent, overvoltage, overheat, and short circuit protection.
Is there reverse protection?
Yes, reverse protection can be configured as an optional customization.
Can it be used at full power for a long time?
No, the power supply needs to be used with excess capacity. For continuous, long-term operations, it is recommended to keep power usage below 80% capacity.
Is it convenient to adjust voltage and current?
Yes, adjusting the voltage and current is highly convenient using the dual knobs on the unit.
Is the high-power power supply isolated?
Yes, our high-power power supply is a fully isolated system.
What is the voltage regulation range?
The voltage regulation range starts from 1V.
