Voltmat Power
Voltmat Power
We are located in a core city cluster in the Yangtze River Delta region of China. Situated near key transport hubs, product exports are highly convenient. Our professional production facility spans 10,000 square meters. We have been specializing in high-power regulated power supplies for 15 years, recognized as an honest enterprise unit and an excellent after-sales service provider.

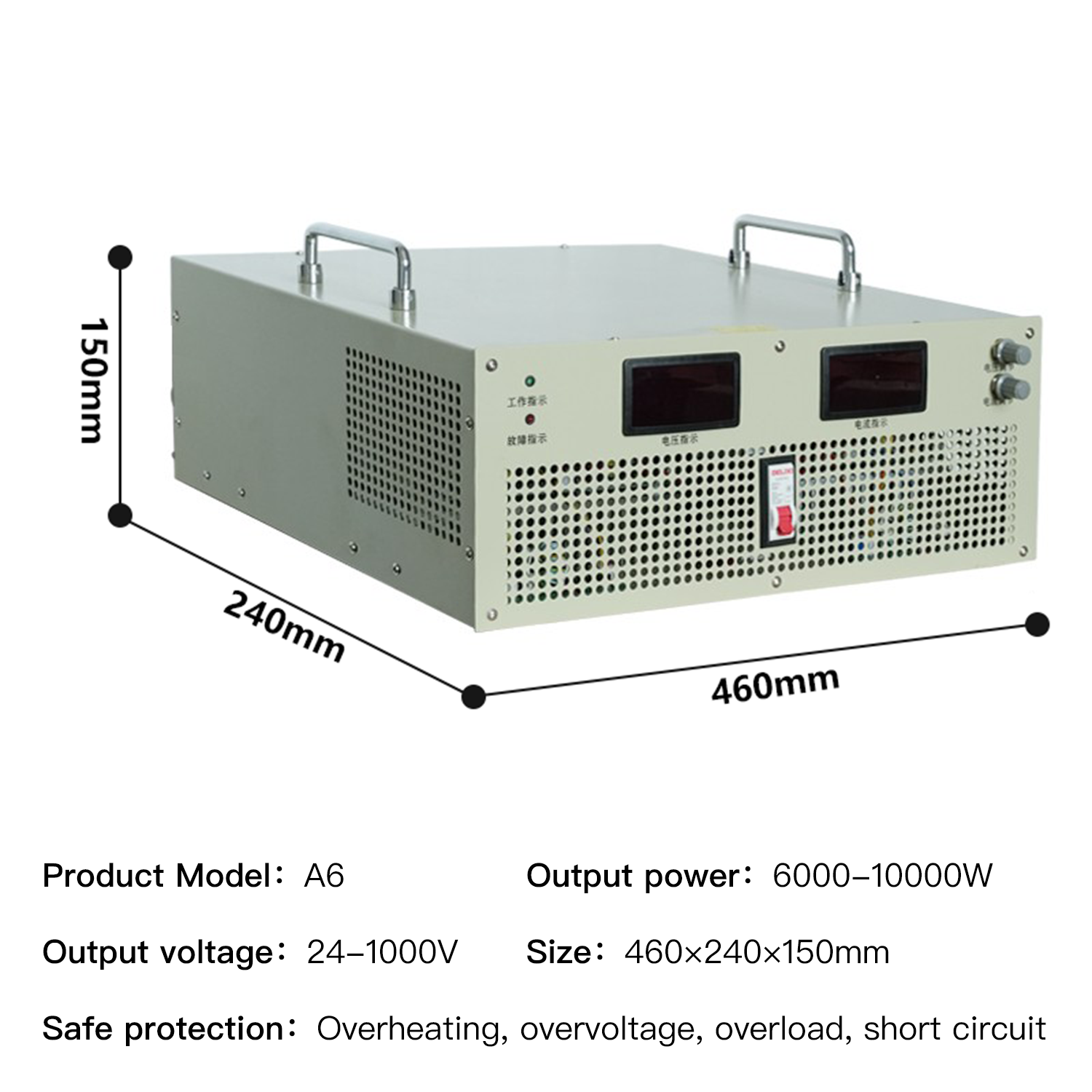

| Parameter | Details | Parameter | Details |
|---|---|---|---|
| Product Name | DC Switching Power Supply | Operating Relative Humidity | 20%~88% |
| Power Rating | 10000W | Application Scenarios | Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC fields |
| Input Voltage | Single-phase/Three-phase 220V±10% 50-60HZ / 110V±10% 50-60HZ / 380V±10% |
Protection Functions | Overcurrent, overvoltage, overheating, short-circuit protection |

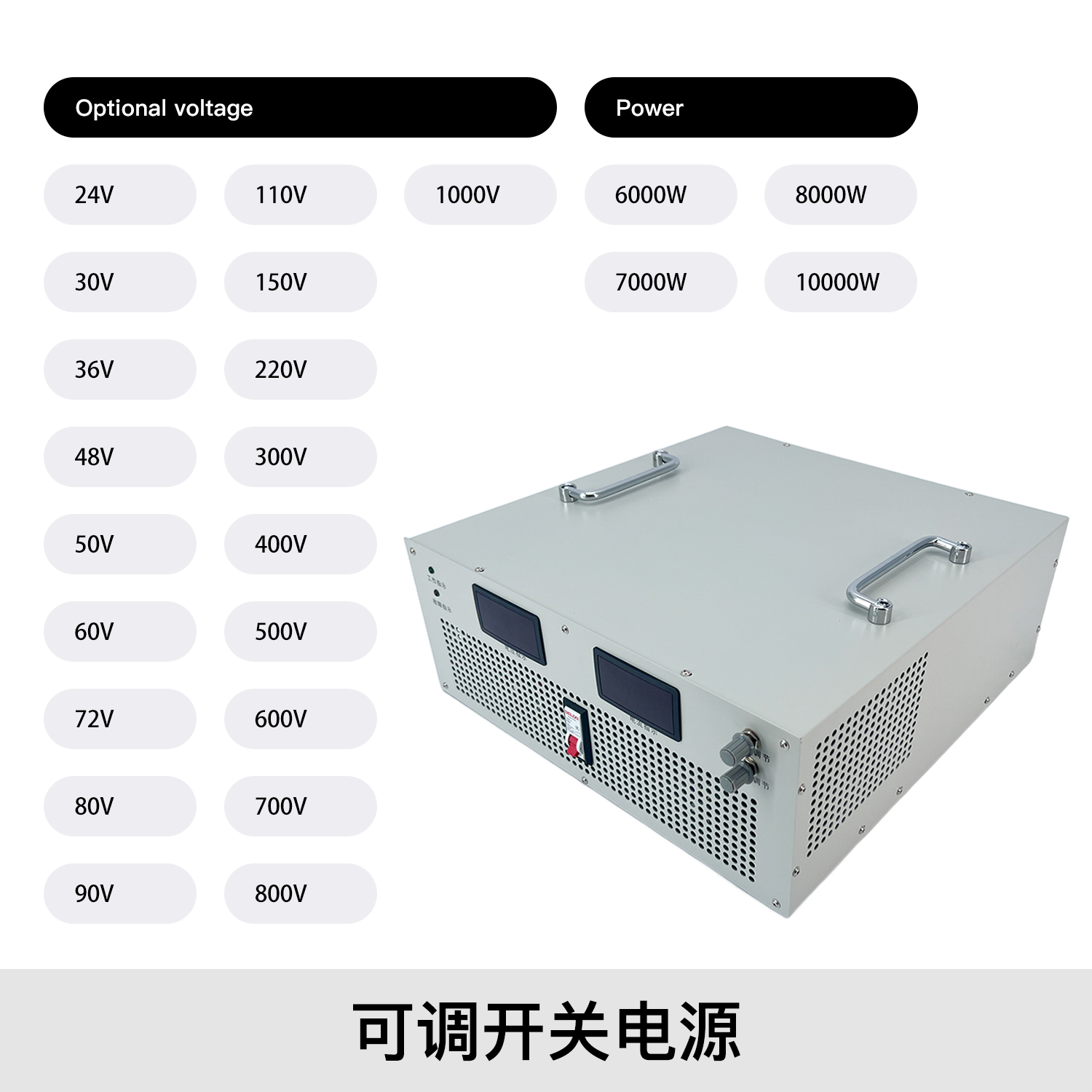

| Output Voltage | 12V, 15V, 24V, 30V, 36V, 48V, 50V, 60V, 72V, 80V, 90V, 110V, 150V, 220V, 300V, 400V, 500V, 600V, 700V, 800V, 1000V | Product Features | High stability, high reliability |
| Output Current | Selected power / selected voltage | Warranty Period | 1 Year |
| Power Conversion Type | AC-DC | Product Weight | Approximately 19KG |
| Efficiency | > 88-89% | Carton Dimensions | 550x505x235mm |
| Output Voltage Accuracy | ±1% | -- | -- |
Check for any transportation damage before powering on. Ensure screws are tight, the outer appearance is normal, power cords/terminals are secure, and the equipment is free from dampness.
Install an air switch at the power input terminal for control. Connect the ground wire and input power wire correctly as indicated on the rear panel. Verify that the input voltage matches the manual guidelines.
The cooling fan is temperature-controlled and starts automatically when needed. Do not block the air inlet or outlet. Automatic shutdown will trigger if overheating occurs, resuming once cooled.
Avoid environments with excessive dust, acid, corrosive gases, severe vibrations, impact, rain, or direct sunlight to ensure optimal longevity.
Perform regular dust removal using dry compressed air. When idle for over 6 months, store in a dry, ventilated room and power on for at least 30 minutes periodically.
If abnormal operation is observed, cut off power immediately. Check external and internal connection screws. Due to high internal voltage, do not attempt to disassemble or repair without authorization.
Get quick answers to common questions about our switching power supplies.
