Before powering on, check the stored and transported switch power supply. Verify that there is no transportation damage, loose screws, abnormal appearance, shaking of the power cord/terminal, or dampness. Address any issues promptly.
The local power switch controls the auxiliary power supply inside the machine. For safety, install an air switch at the power input terminal. Connect the ground wire and input power wire correctly according to the rear panel label. Check if the input voltage matches the manual specifications.

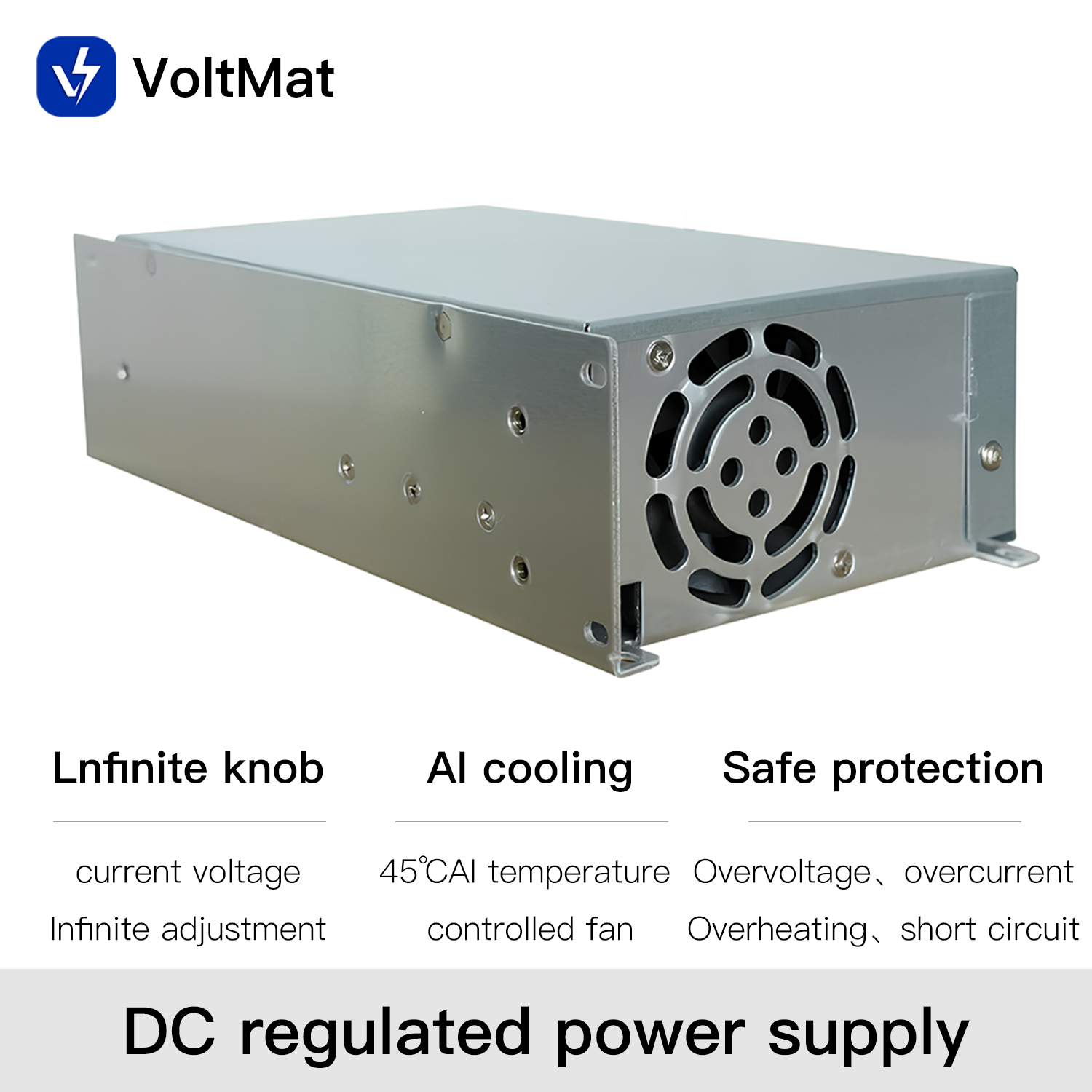

The cooling fan is temperature-controlled and starts when internal temperatures exceed the control threshold. Speed changes relative to output voltage/current are normal. Keep the fan inlets and outlets clear of blockages.
If internal temperature exceeds the overheat shutdown threshold, the device will stop operating automatically for protection. It will resume operation automatically once the temperature decreases.
Ensure ambient air is free from excessive dust, acid, corrosive gases, severe vibrations, rain, and direct sunlight.
Regularly clean the dust to extend the device's service life. Use dry compressed air for dust removal. Do not open the casing to prevent damage to internal high-voltage components.
Store idle equipment in a dry, ventilated environment. If stored for over 6 months, power on the device and run it for at least 30 minutes.
Warning: Only connect load equipment to the power supply once power-on tests are confirmed successful and error-free.
Malfunction Handling: If abnormal operation occurs, switch off the power supply immediately. Check internal and external connections, switches, knobs, and screws. Do not open the casing or attempt repairs without professional knowledge due to high-voltage hazards. Seek professional technical assistance to resolve the issue.
Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes, the power supply includes comprehensive overvoltage, overcurrent, overheating, and short-circuit protection features.
Is reverse polarity protection available?
Yes, reverse polarity protection can be added as an optional customized feature at an additional cost.
Can this unit be used continuously at full power?
No, it is recommended to run the power supply with excess capacity. For long-term continuous operations, please keep the load below 80% of the maximum capacity.
How convenient is it to adjust the output voltage and current?
Adjustments are highly convenient. You can easily adjust the voltage and current using the dedicated dual adjustment knobs.
Is this high-power power supply isolated?
Yes, our high-power power supply features a fully isolated design for enhanced safety and performance.
What is the starting point of the voltage regulation range?
The voltage regulation for this power supply starts from 1V.
