Voltmat Power
Voltmat Power
We are located in Suzhou, a core city cluster in the Yangtze River Delta region of China. Located near Shanghai, product exports are convenient. The factory has a professional production area of 10,000 square meters. We have been specializing in high-power regulated power supplies for 15 years, recognized as an honest enterprise unit with an excellent after-sales service reputation.
| Product Name | DC Switching Power Supply | Operating Relative Humidity | 20%~88% |
| Power Rating | 600W 700W 800W 900W 1000W | Application Scenarios | Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields |
| Input Voltage | Single-phase 220V±10%, 50-60HZ / 110V±10%, 50-60HZ | Protection Functions | Overcurrent, overvoltage, overheating, short-circuit protection |
| Output Voltage | 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V | Product Features | High stability, high reliability |
| Output Current | Selected power / selected voltage | Warranty Period | 1 Year |
| Power Conversion Type | AC-DC | Product Weight | Approximately 2 |
| Efficiency | >88-89% | Carton Dimensions | 260*135*70 |
| Output Voltage Accuracy | ±1% | - | - |
Check the stored and transported switch power supply. Inspect for transportation damage, such as loose screws, abnormal appearance, loose power cord or terminals, and dampness. Handle any issues promptly.
The local power switch controls the auxiliary power supply. For safety, please install an air switch at the power input terminal to control the power input. Connect the ground wire and input power wire correctly according to the rear panel label.

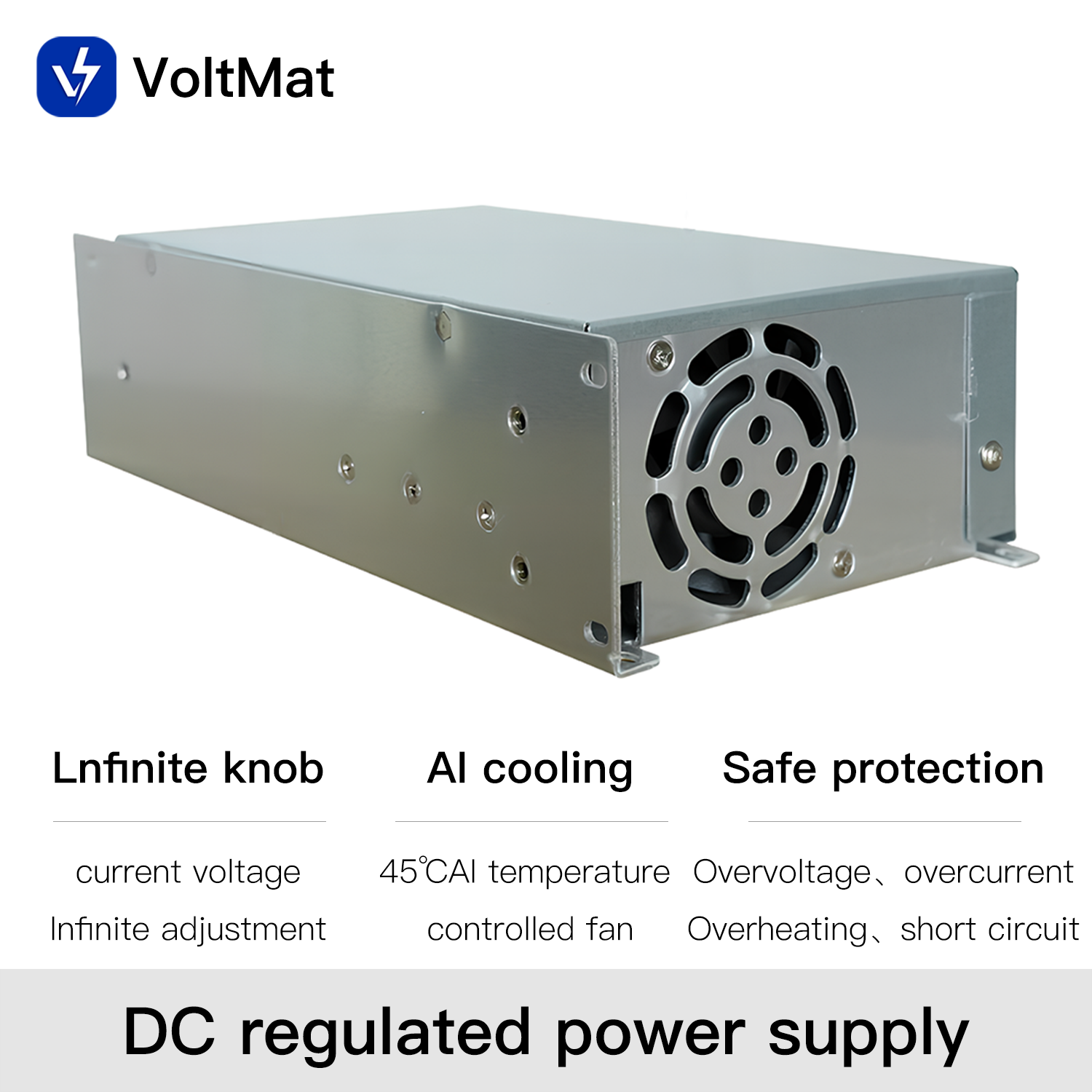

The cooling fan is temperature controlled and starts when internal temperature exceeds the limit. Speed varies with voltage and current. Keep the fan inlets and outlets clear.
When the internal temperature reaches the overheating shutdown threshold, the machine stops working automatically to prevent damage, resuming when the temperature drops.
Avoid dust, acid, corrosive gases or substances, severe vibrations, bumps, rain, and direct sunlight during operation.
Regularly clean the dust to improve service life and reliability. Use dry compressed air for dust removal. Do not open the casing without authorization.
Store in a dry, ventilated room when idle. If stored for over 6 months, power on and operate the equipment for at least 30 minutes.
Only connect to the powered load equipment when the power-on test is normal and error-free.
Malfunction Handling: If abnormal operation is found, cut off the stabilized power supply switch. Check internal and external connections for correctness and tighten any loose screws. Due to high voltage, do not attempt to repair the equipment yourself without professional knowledge. Please contact the factory immediately to resolve issues.
