Output 150V-600W DC Voltage Regulator DC Switching Power Supply,600W-1000W Power Range, 12V-500V Optional Voltage

1 / 5

Output 150V-600W DC Voltage Regulator DC Switching Power Supply,600W-1000W Power Range, 12V-500V Optional Voltage

Send Inquiry

Product Description

DC Switching Power Supply

Applications: Widely used in power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application sites.
Protection Features: Built-in overcurrent, overvoltage, overheat, and short circuit protection.
Stability: Engineered for high stability and reliability.
Warranty: 1-year product warranty.
Weight: Lightweight design, approximately 2KG.

Product Details & Build

Technical Specifications

Product Name	DC Switching Power Supply	Operating Relative Humidity	20% ~ 88%
Power Rating	600W	Application Scenarios	Power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
Input Voltage	Single-phase: 220V±10% (50-60Hz) / 110V±10% (50-60Hz)	Protection Functions	Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage Options	12V, 15V, 24V, 30V, 36V, 48V, 50V, 60V, 72V, 80V, 90V, 110V, 150V, 220V, 300V, 400V, 500V	Product Features	High stability, high reliability
Output Current	Selected power / selected voltage	Warranty Period	1 Year
Power Conversion Type	AC-DC	Product Weight	Approximately 2KG

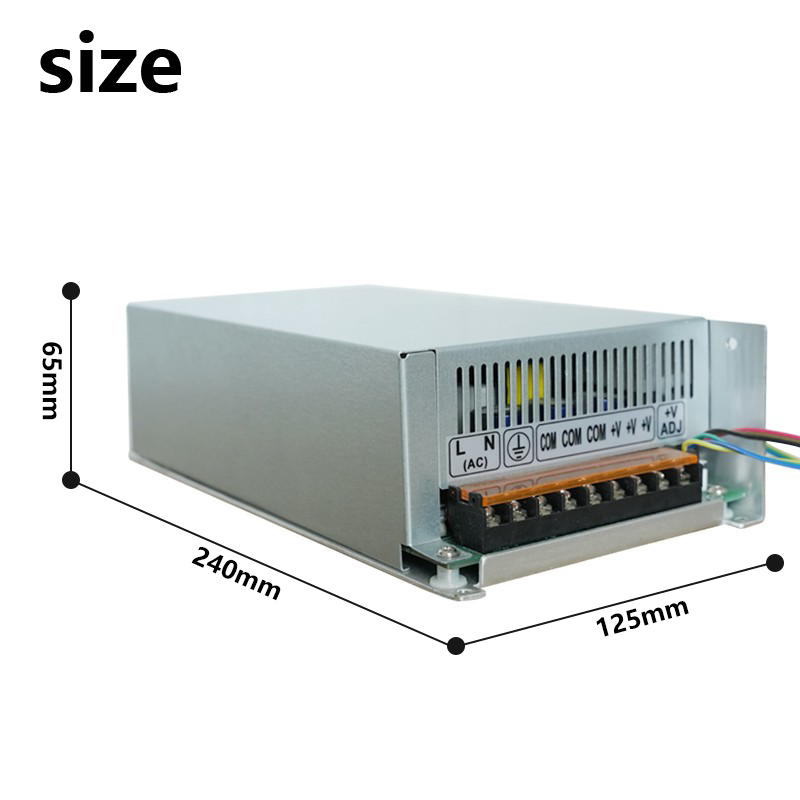

Efficiency	> 88-89%	Carton Dimensions	260 * 135 * 70 mm
Output Voltage Accuracy	±1%	-	-

Production & Quality Control

Product Instructions

1. Before powering on, check the stored and transported switch power supply. Verify that no damage has occurred during transportation (e.g., loose screws, abnormal appearance, disconnected terminals/cords, or dampness). Resolve any issues immediately.

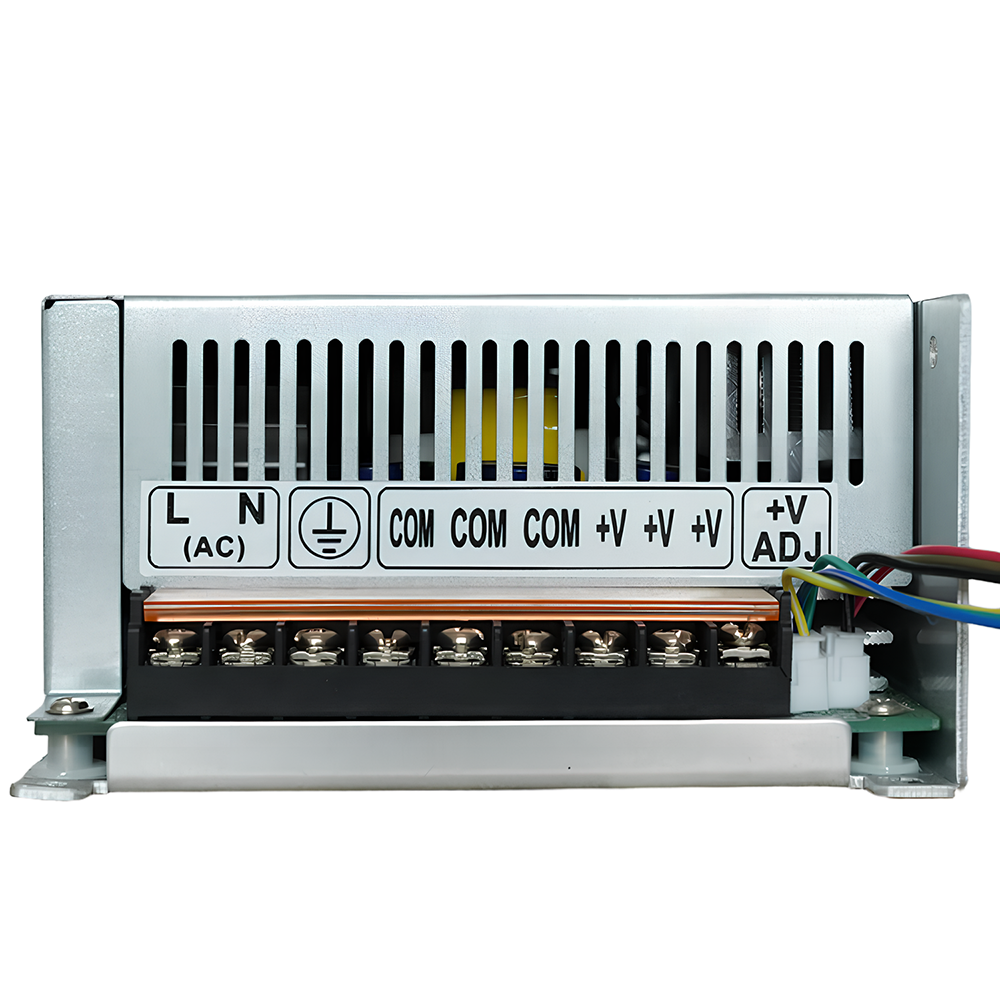

2. The local power switch controls the auxiliary power supply inside the machine. For safety, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the rear panel label. Confirm input voltage matches the manual specifications.

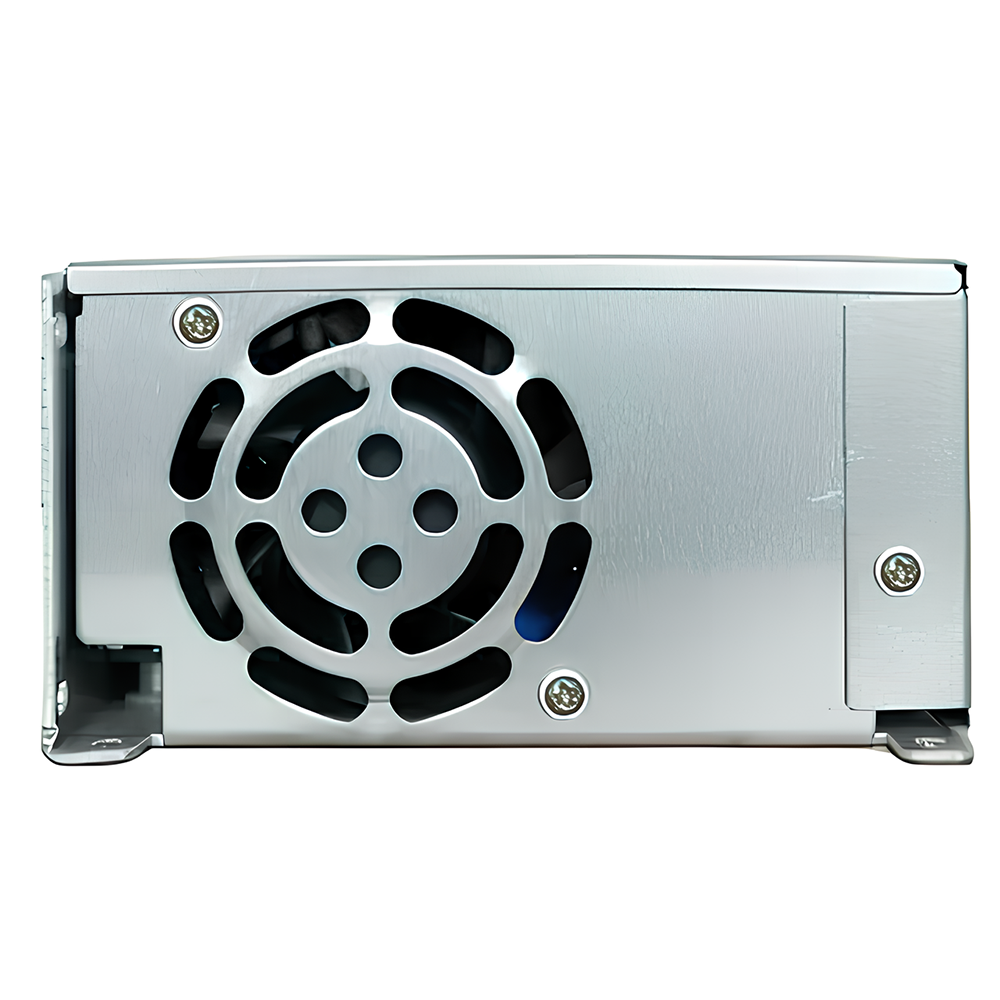

3. The cooling fan is temperature controlled. It starts running when the inner temperature exceeds the target threshold. The speed varies with output voltage and current. Keep the inlet and outlet vents completely unobstructed.
4. If the internal temperature reaches the overheating shutdown threshold, the machine stops automatically to prevent damage and resumes operation once cooled.
5. Keep the operating environment free of excessive dust, acid, corrosive gases, severe vibrations, direct rain, and direct sunlight.
6. Perform regular dust removal using dry compressed air to extend the service life and reliability of the unit. Do not open the casing to prevent high-voltage contact and component damage.
7. When storing the device idle for over 6 months, place it in a dry, ventilated room and power it on for at least 30 minutes.
8. Warning: Only connect load equipment to the power supply after verifying normal operation under no-load tests.
9. Malfunction Handling: If abnormal operation occurs, switch off the power immediately. Check external and internal connection tightness and switch settings. Do not open the cover without professional authorization due to internal high voltage risk. Contact support immediately for troubleshooting assistance.

Frequently Asked Questions (FAQ)

Is there overvoltage, overcurrent, overheating, or short circuit protection?

Yes, the power supply includes comprehensive built-in protection functions for overvoltage, overcurrent, overheating, and short circuits.

Is reverse protection included?

Reverse protection can be customized and integrated as an optional feature for an additional charge.

Can it be used at full power for a long time?

No, the power supply needs to be operated with excess headroom capacity. For long-term continuous use, we recommend maintaining the power below 80% of its maximum capacity.

Is it convenient to adjust the voltage and current?

Yes, it is highly convenient. The voltage and current can be easily adjusted using the dedicated dual knobs on the panel.

Is this high-power power supply electrically isolated?

Yes, this switching power supply is fully isolated to ensure optimal safety and performance.

What is the starting voltage regulation range?

The voltage regulation range starts from 1V.

Product Detail

Output 150V-600W DC Voltage Regulator DC Switching Power Supply,600W-1000W Power Range, 12V-500V Optional Voltage

Product Description

DC Switching Power Supply
