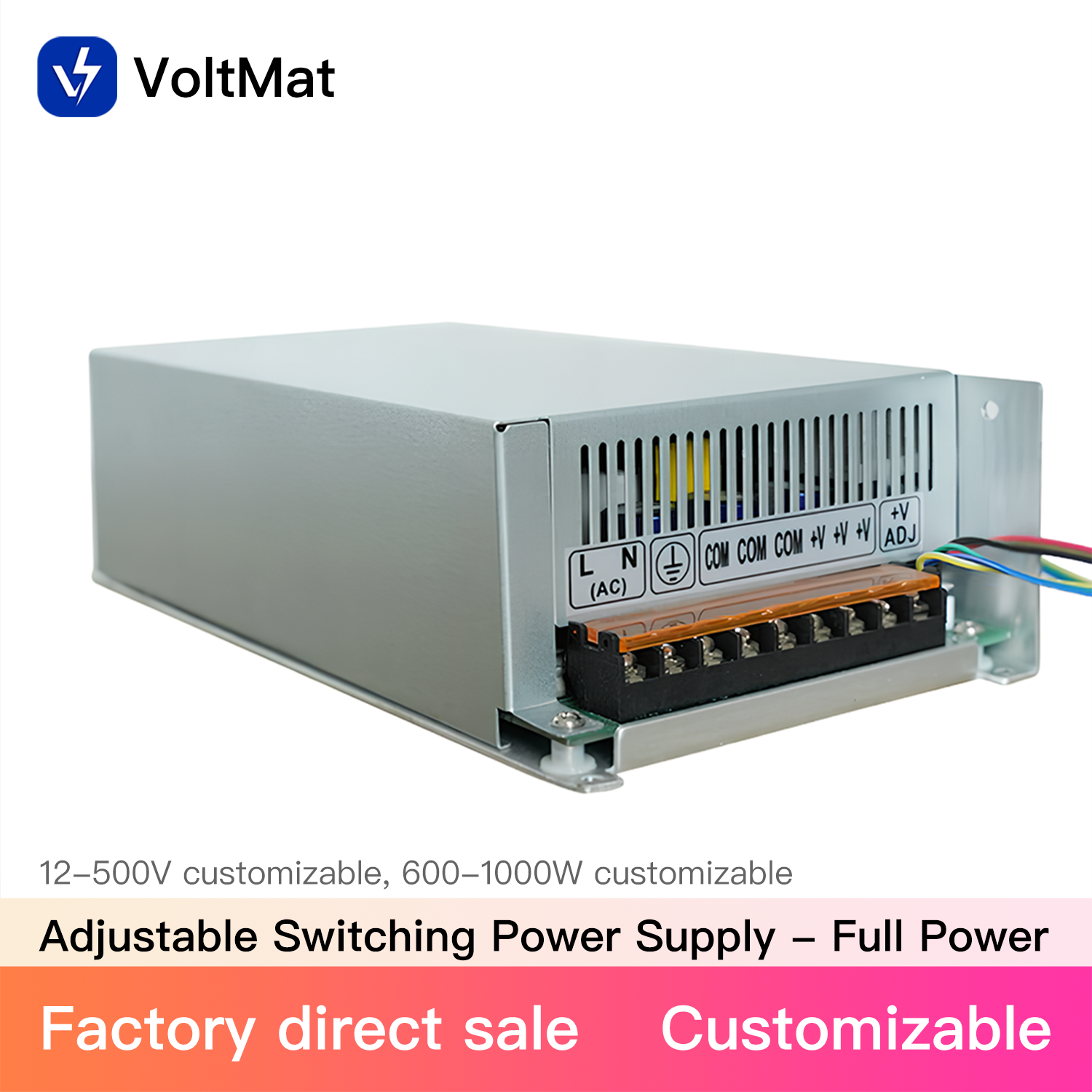

50V 700W-1000W Single Output Switching Regulated Industrial DC Power Supply with High Stability and Reliability
50V 700W-1000W Single Output Switching Regulated Industrial DC Power Supply with High Stability and Reliability
50V 700W-1000W Single Output Switching Regulated Industrial DC Power Supply with High Stability and Reliability
50V 700W-1000W Single Output Switching Regulated Industrial DC Power Supply with High Stability and Reliability
50V 700W-1000W Single Output Switching Regulated Industrial DC Power Supply with High Stability and Reliability
1 / 5
50V 700W-1000W Single Output Switching Regulated Industrial DC Power Supply with High Stability and Reliability
50V 700W-1000W Single Output Switching Regulated Industrial DC Power Supply with High Stability and Reliability
50V 700W-1000W Single Output Switching Regulated Industrial DC Power Supply with High Stability and Reliability
50V 700W-1000W Single Output Switching Regulated Industrial DC Power Supply with High Stability and Reliability
50V 700W-1000W Single Output Switching Regulated Industrial DC Power Supply with High Stability and Reliability

50V 700W-1000W Single Output Switching Regulated Industrial DC Power Supply with High Stability and Reliability

Send Inquiry

Product Description

DC Switching Power Supply Header
DC Switching Power Supply Unit

DC Switching Power Supply

  • Application:Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.

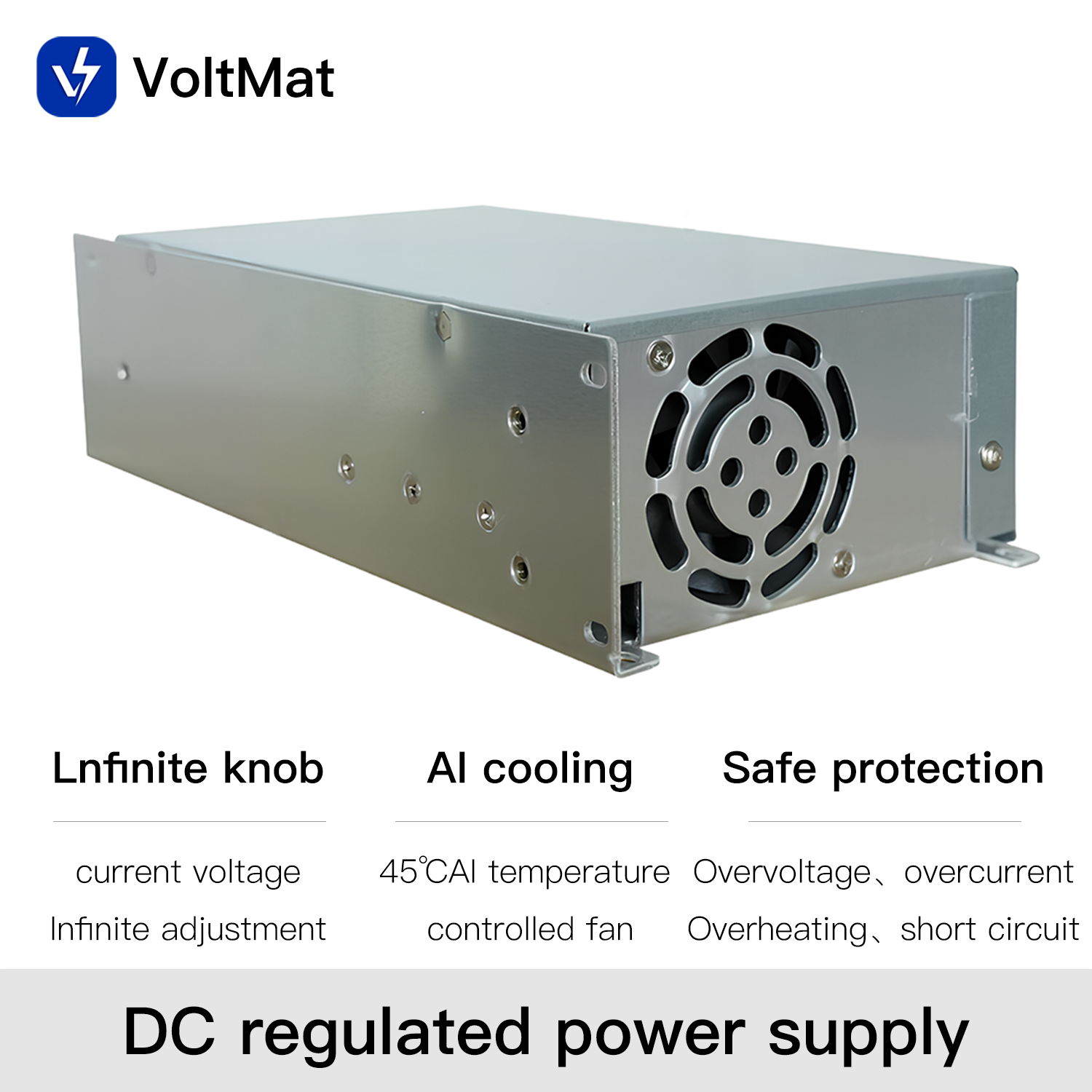

  • Protection:Overcurrent, Overvoltage, Overheat, Short Circuit Protection.
  • Features:High stability and reliability.
  • Warranty:1 Year.
  • Weight:Approximately 2KG.

Product Showcase

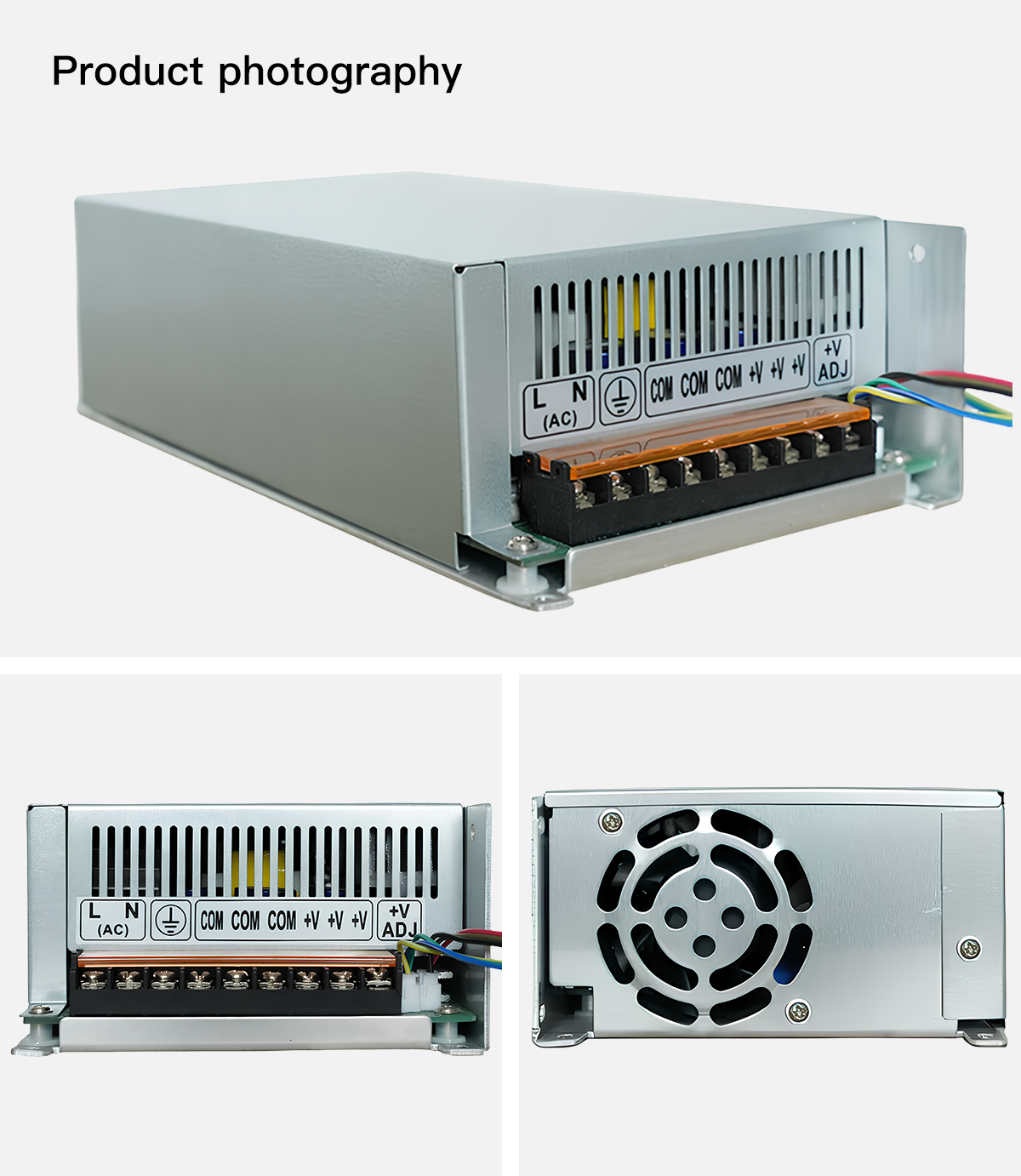

Switching Power Supply Details View 1
Switching Power Supply Details View 2
Switching Power Supply Details View 3
Switching Power Supply Details View 4
Switching Power Supply Details View 5

Technical Specifications

Parameter Configuration Environmental & Safety Parameters
Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 700W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC fields
Input Voltage Single-phase 220V±10% (50-60Hz) / 110V±10% (50-60Hz) Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection

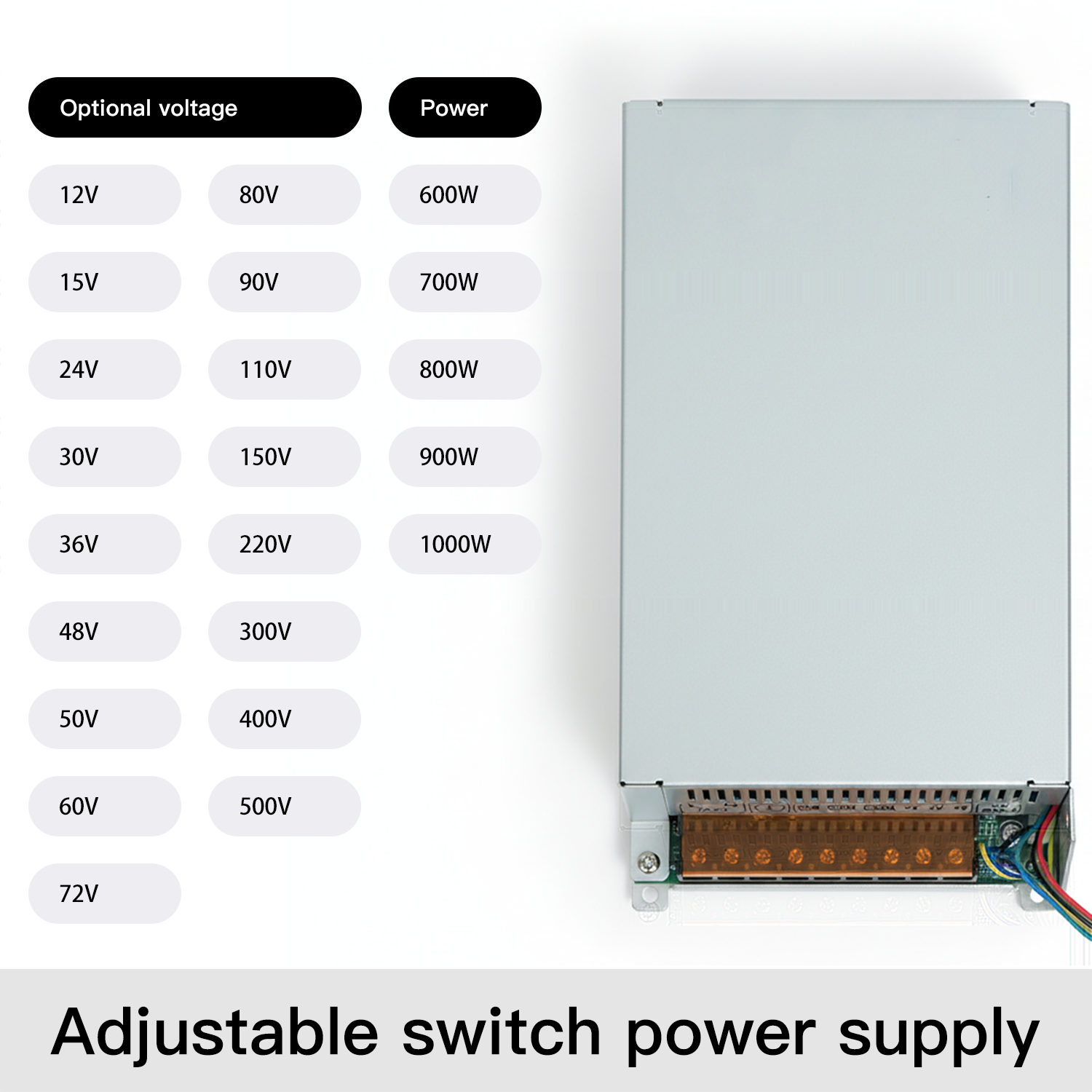

Output Voltage 12V, 15V, 24V, 30V, 36V, 48V, 50V, 60V, 72V, 80V, 90V, 110V, 150V, 220V, 300V, 400V, 500V Product Features High stability, high reliability
Output Current Selected power / selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 2KG
Efficiency >88-89% Carton Dimensions 260*135*70
Output Voltage Accuracy ±1% - -

Detailed Product Presentation

Application View 1
Application View 2
Application View 3
Application View 4
Application View 5

Product Instructions

1 Pre-Operation Inspection
Before powering on, check the stored and transported switch power supply. Inspect for any damage during transportation, such as loose screws, abnormal appearance, shaken-off power cords/terminals, or dampness. Deal with these issues in a timely manner.
2 Input Power Connection & Safety
The local power switch controls the auxiliary power supply inside the machine. For safety, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel. Confirm that the voltage of the input power supply matches the instruction manual.
3 Cooling Fan Operation
The cooling fan is temperature-controlled. When the temperature inside the machine exceeds the starting threshold, the fan will start. The fan speed varies with output voltage and current. Make sure not to block the inlet and outlet of the fan.
4 Overheat Protection
When the temperature inside the machine reaches the threshold for overheating shutdown, the machine will automatically stop working to prevent damage. When the temperature drops, it will automatically resume work.
5 Operating Environment
Keep the operation environment clean. Dust, acid, corrosive gases, or substances in the air should not exceed normal levels. Avoid severe vibration, bumps, rain, and direct sunlight.
6 Regular Maintenance & Dust Removal
Regular dust removal can greatly improve the service life and reliability of the power equipment. Dry compressed air can be used for dust removal. High voltage is present inside; do not open the casing to prevent damage to internal components.
7 Long-Term Storage
When the equipment is idle for a long time, store it in a dry and ventilated room. If the storage time exceeds 6 months, the power supply equipment should be powered on and operated for more than half an hour.
8 Load Connection
Warning: Only connect to the powered load equipment when the power-on test is normal and error-free.
9 Malfunctions & Troubleshooting
If abnormal operation is found after starting, cut off the power switch immediately. Carefully check all internal and external connections, screws, switches, and knobs. Do not disassemble the casing without professional knowledge and equipment due to the presence of high voltage. Please contact professional support promptly to resolve the issue.

Frequently Asked Questions

Q1: Is there overvoltage, overcurrent, overheating, or short circuit protection?
A: Yes, the power supply includes comprehensive protection features against overvoltage, overcurrent, overheating, and short circuits.
Q2: Is there reverse polarity protection?
A: Yes, reverse polarity protection can be integrated with optional customization support.
Q3: Can this power supply be used at full power for a long time?
A: No, it is recommended to operate the power supply below 80% capacity for continuous long-term operations to preserve the lifespan of the unit.
Q4: Is it convenient to adjust the voltage and current?
A: Yes, the voltage and current can be easily adjusted using the dual knobs on the panel.
Q5: Is this high-power switching power supply isolated?
A: Yes, our units are fully isolated switching power supplies.
Q6: What is the voltage regulation starting point?
A: The voltage regulation range starts from 1V.
