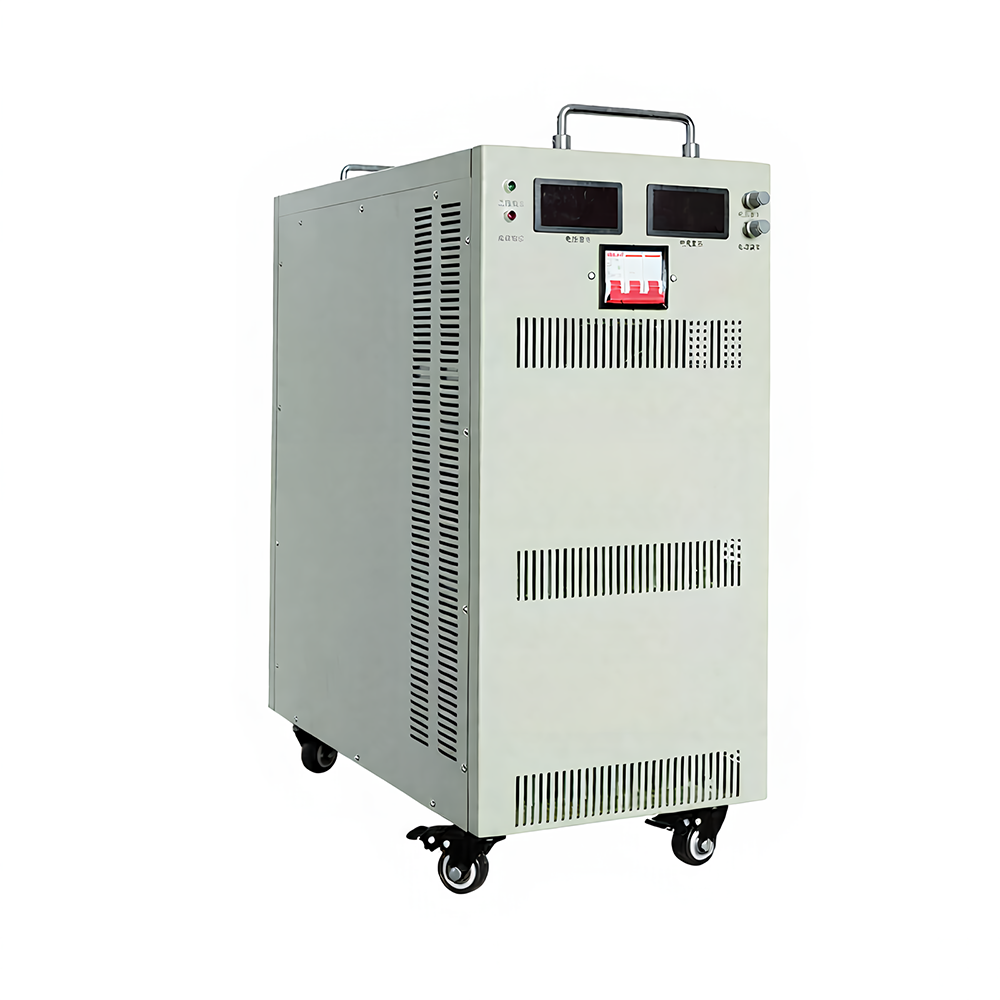

Industrial High-Precision DC Switching Power Supply 600V-16000W Multi-Voltage Input 50/60Hz 89% Efficiency 1 Year Warranty

Specializing in high-power regulated power supplies for over 15 years, offering high stability, reliable performance, and engineered solutions for diverse industrial applications.

DC Switching Power Supply

Applications: Widely used in power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application sites.
Built-in Protection: Overcurrent, Overvoltage, Overheat, and Short Circuit Protection.
Key Features: Exceptionally high stability and reliability.
Warranty: 1-year warranty coverage.
Weight: Approximately 25KG (net unit weight).

Technical Specifications

Product Name	DC Switching Power Supply	Operating Relative Humidity	20%~88%
Power Rating	16000W	Application Scenarios	Power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
Input Voltage	Three-phase 380V±10% 50-60HZ	Protection Functions	Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage	12V to 1000V range options available	Product Features	High stability, high reliability
Output Current	Selected power / selected voltage	Warranty Period	1 Year
Power Conversion Type	AC-DC	Product Weight	Approximately 40KG (shipping weight)
Efficiency	≥88-89%	Carton Dimensions	770x400x740mm
Output Voltage Accuracy	±1%

Product Layout & Design

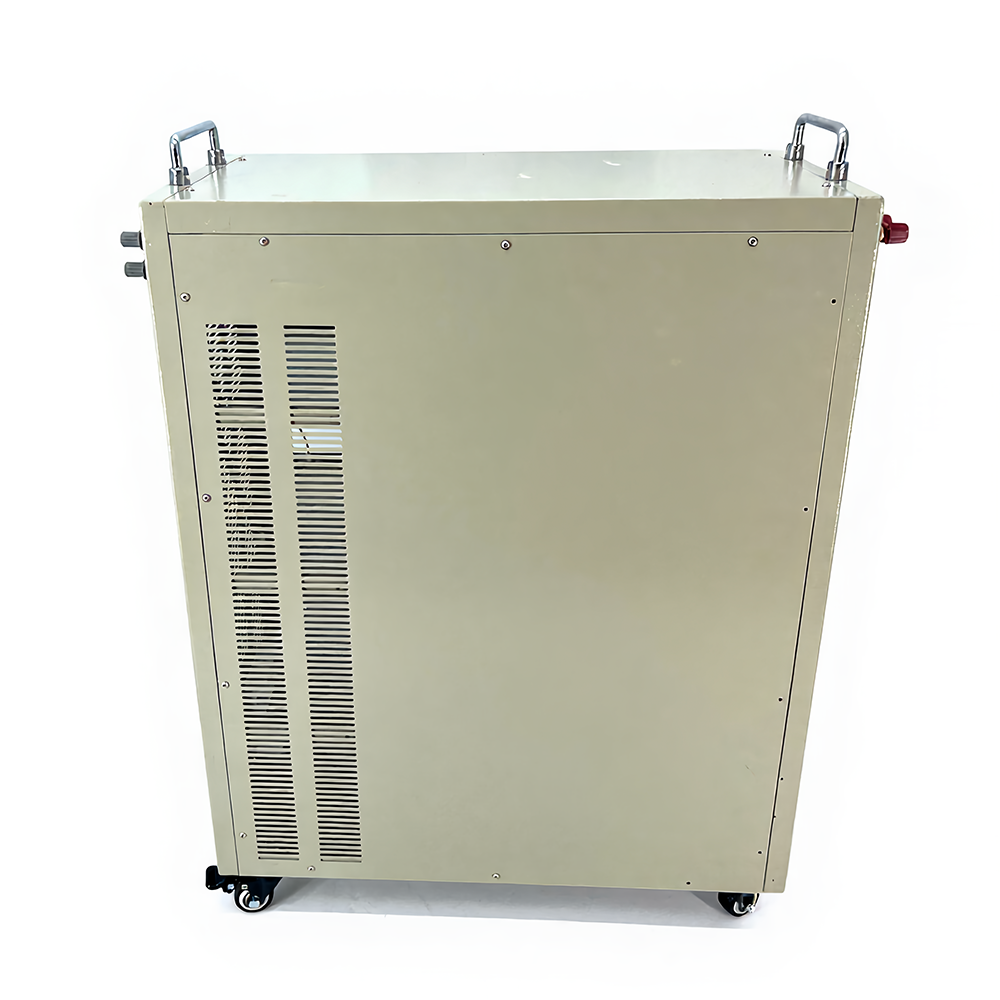

Detailed Product Views

Product Instructions

1 Pre-Power Check: Inspect the power supply for potential damage incurred during transit. Ensure all screws are tight, the outer appearance is normal, the power cord and terminals are secure, and the unit is free from moisture. Address any anomalies before power connection.

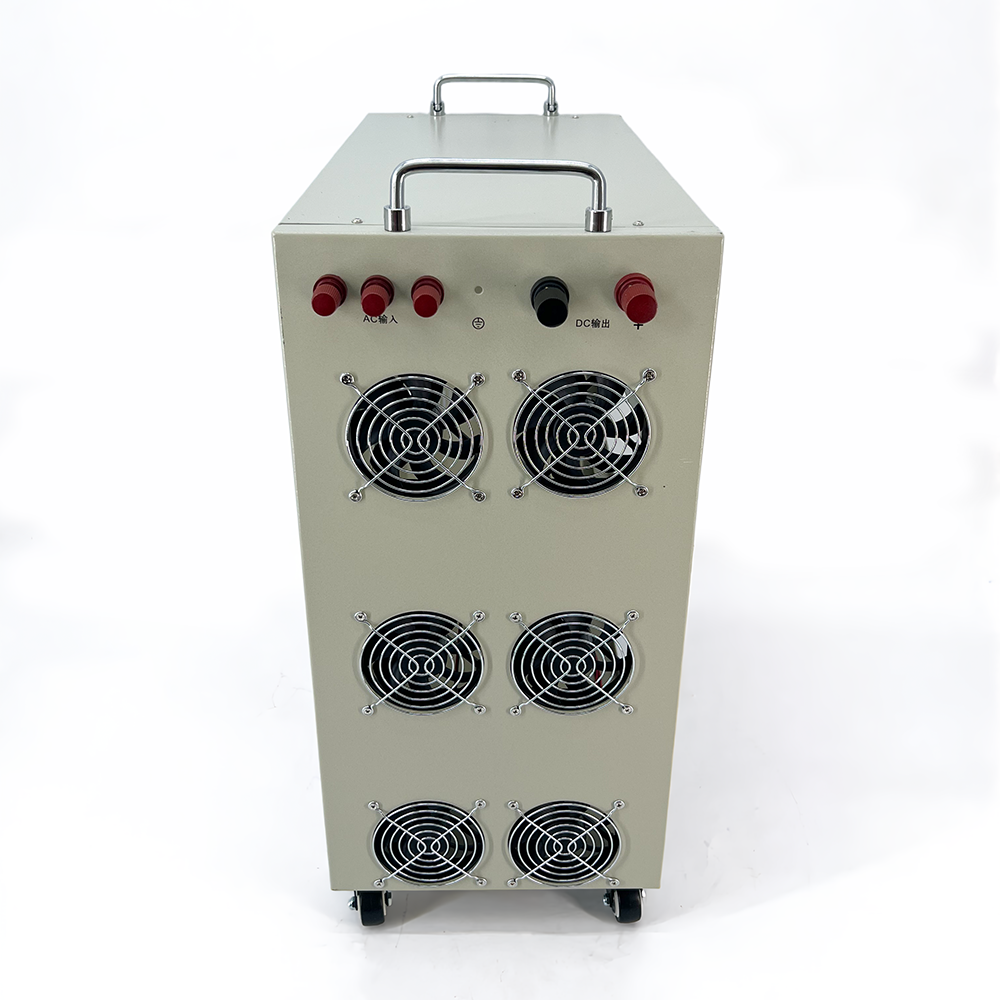

2 Input Connection: The local power switch controls the internal auxiliary power supply. For safety, install an external air circuit breaker at the input end. Connect the ground wire and input power line according to the rear panel label. Confirm that the input voltage matches the manual specifications.
3 Cooling & Temperature Control: The cooling fan is temperature-controlled and starts when internal temperatures reach the preset threshold. Fan speed will dynamically adjust based on the output load. Ensure that the air inlet and outlet vents remain completely unobstructed.
4 Overheat Shutdown: If the internal temperature exceeds safe operational thresholds, the machine will shut down automatically to prevent damage. The unit will restart and resume normal operation once the temperature drops to a safe level.
5 Environmental Requirements: Avoid deploying the equipment in environments with excessive dust, acid, corrosive gases, severe vibrations, rain, moisture, or direct sunlight.
6 Maintenance & Cleaning: Regularly clear dust from the unit using dry compressed air to extend the lifespan and reliability of the internal electrical components. Do not open the casing to prevent damage to internal circuits.
7 Idle Storage: When stored long-term, place the device in a dry, ventilated room. If stored for more than 6 months, power on the device and run it without load for at least 30 minutes.
8 Safety Warning: Only connect your powered load equipment to the terminals after confirming that the initial power-on test is normal and error-free.
9 Troubleshooting: In case of abnormal operation, immediately switch off the power supply. Inspect all external connections, screws, and knob positions. If complex issues occur, do not attempt to disassemble the casing due to high-voltage hazards. Contact technical support promptly for assistance.

Frequently Asked Questions

Q Does the power supply have overvoltage, overcurrent, overheating, or short circuit protection?

Yes. The power supply is equipped with robust safety protection mechanisms covering overvoltage, overcurrent, overheating, and short circuit safety.

Q Can reverse polarity protection be added?

Yes, reverse protection can be configured as an optional custom addition.

Q Can this power supply be run at full load continuously?

No. For long-term operations, it is recommended to maintain the load below 80% of the maximum capacity to preserve stability and longevity.

Q Is it easy to adjust the voltage and current?

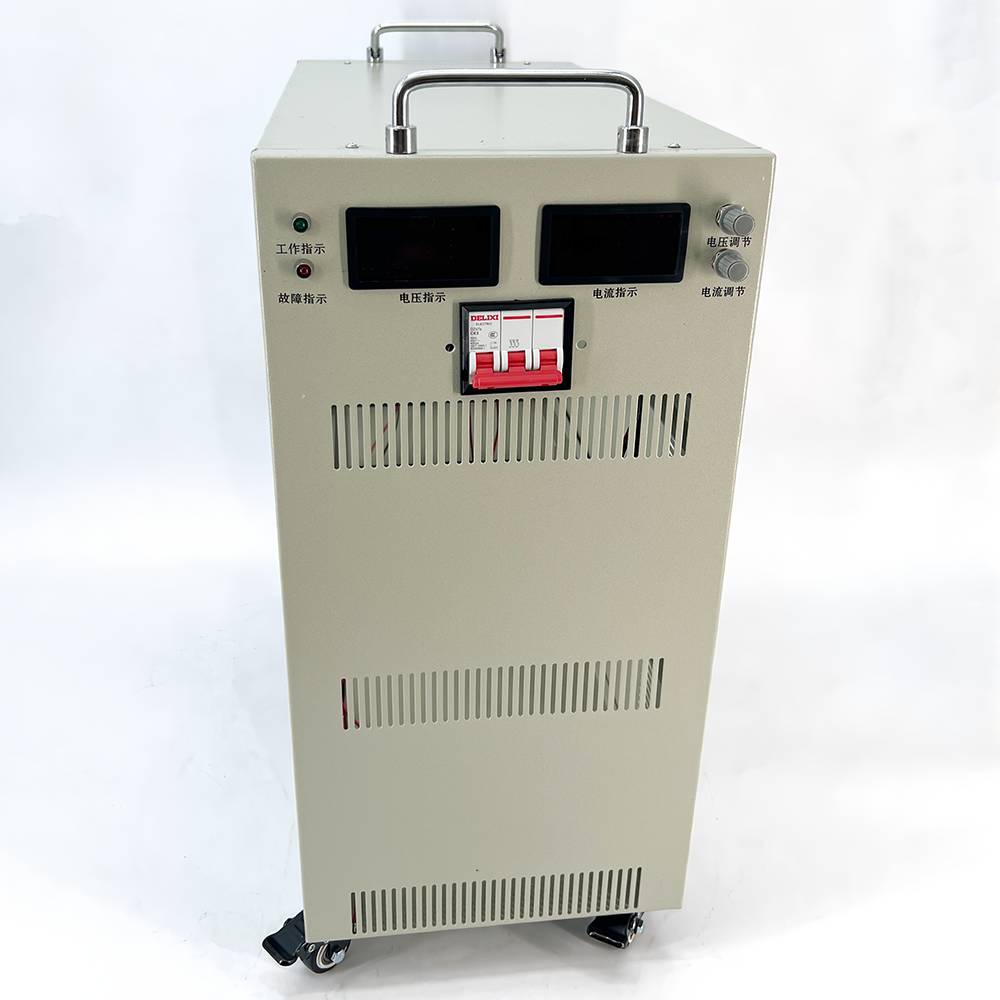

Yes, adjusting both parameters is simple and convenient using the dedicated dual knobs on the control interface.

Q Is this high-power switching power supply isolated?

Yes, our power supplies are designed as fully isolated units for safe operation.

Q What is the starting voltage regulation range?

The output voltage regulation range starts from 1V.
