DC Switching Power Supply 800V-16000W 88%-89% Efficiency 1 Year Warranty Single Output 24V-1000V Battery Charging Industry High

DC Switching Power Supply

Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.

Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection.

Features: High stability and reliability.

Warranty: 1 year.

Weight: Approximately 25KG.

Product Specifications

Product Name	DC Switching Power Supply	Operating Relative Humidity	20%~88%
Power Rating	16000W	Application Scenarios	Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC fields
Input Voltage	Three-phase 380V±10% 50-60HZ	Protection Functions	Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage	12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V	Product Features	High stability, high reliability
Output Current	Selected power / selected voltage	Warranty Period	1 Year
Power Conversion Type	AC-DC	Product Weight	Approximately 40

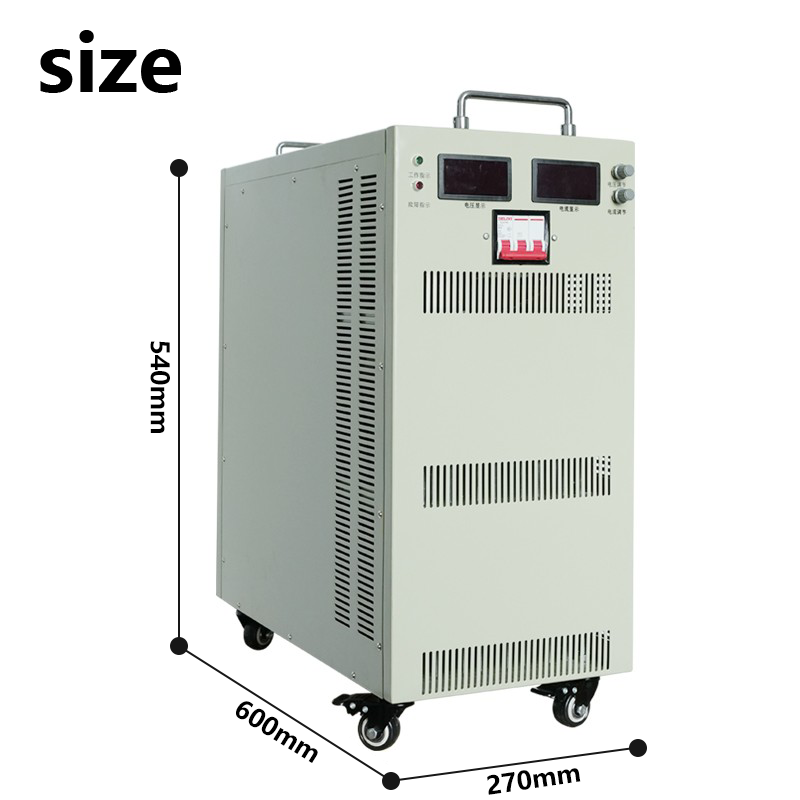

Efficiency	>88-89%	Carton Dimensions	770x400x740mm
Output Voltage Accuracy	±1%	-	-

Factory Showcase & Details

Product Instructions

1

Before powering on, check the stored and transported switch power supply. Any damage during transportation should be checked, such as loose screws, abnormal appearance, shaken off power cords/terminals, or dampness. If observed, resolve before operation.

2

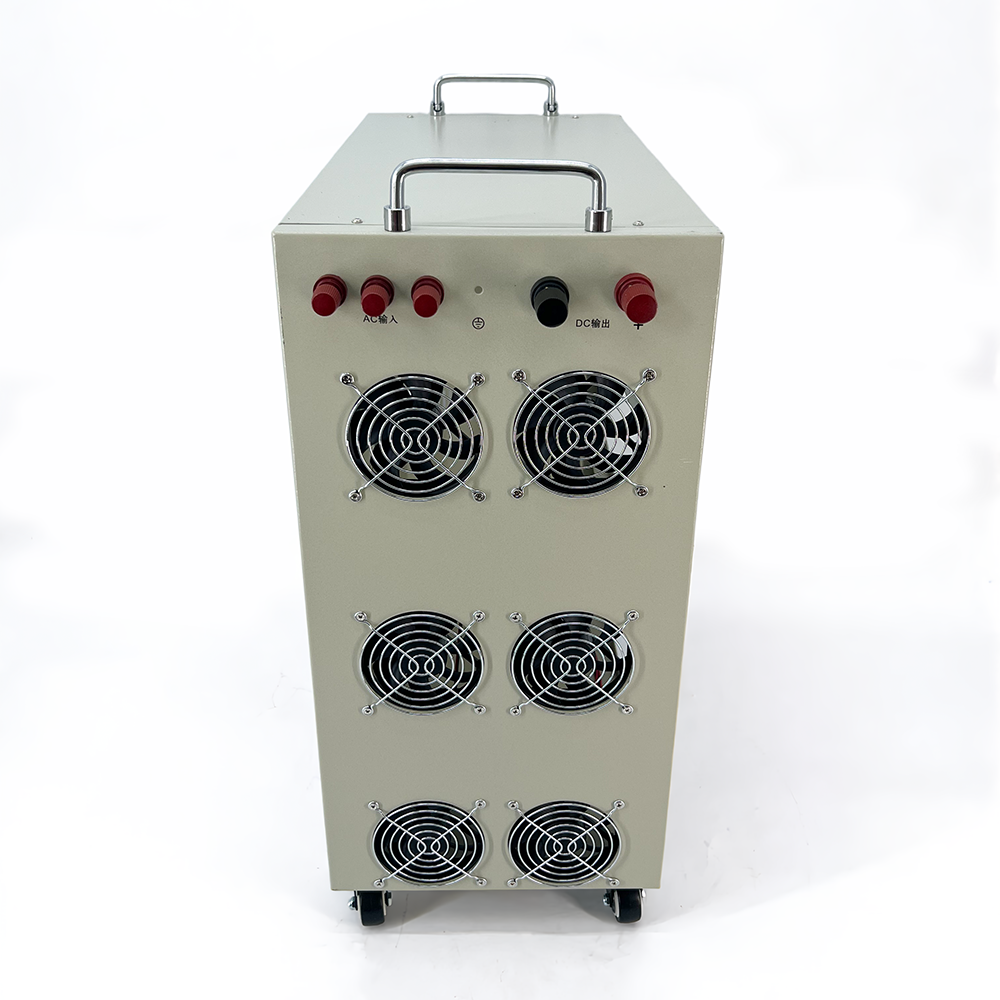

The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire correctly according to the rear panel labels. Ensure the input voltage is consistent with the manual.

3

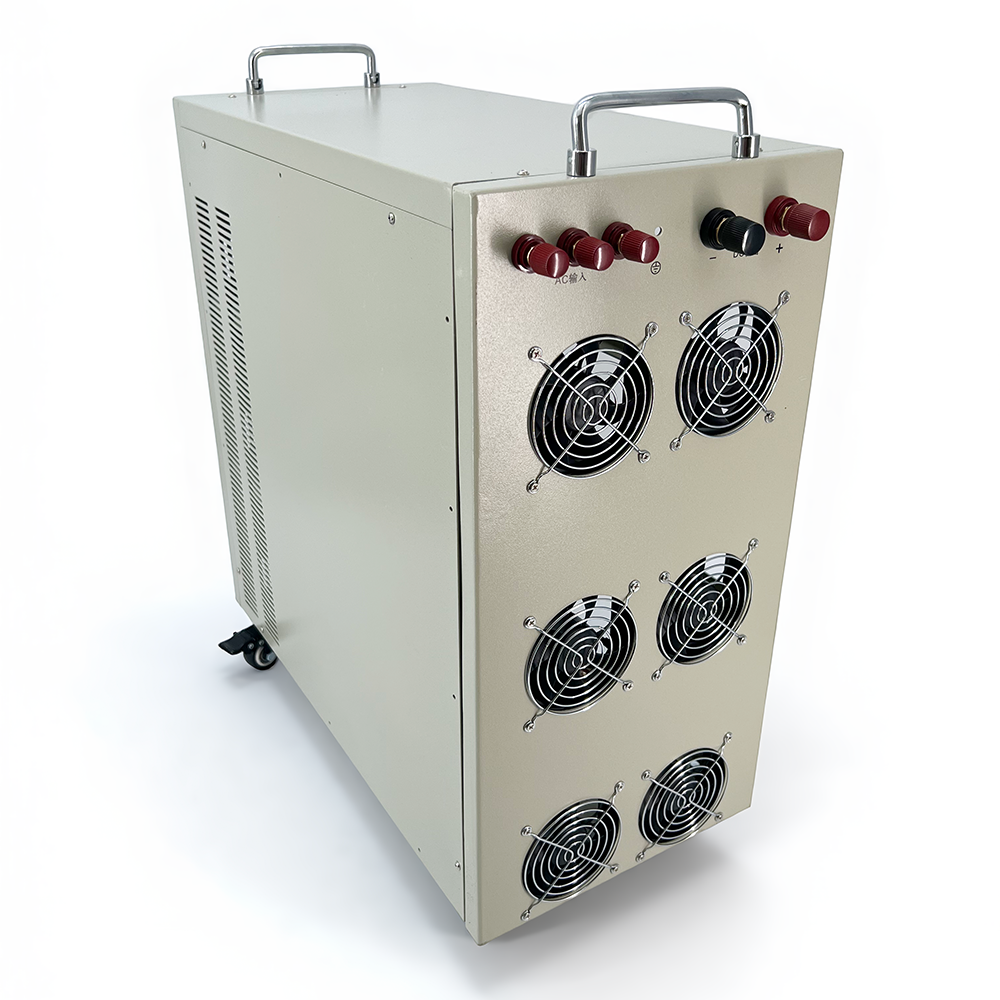

The cooling fan is temperature controlled. When internal temperatures exceed the starting threshold, the fan begins operation. Speed varies with output voltage and current. Keep the fan inlet and outlet clear of obstructions.

4

When the internal temperature reaches the threshold for overheating shutdown, the machine automatically stops to prevent damage. It resumes automatically once the temperature drops.

5

Avoid using the power supply in conditions exceeding normal levels of dust, acid, corrosive gases, severe vibrations, bumps, rain, or direct sunlight.

6

Perform regular dust removal (dry compressed air can be used) to increase reliability and service life. High voltage is present inside; do not open the casing to prevent component damage.

7

If stored idle for over 6 months, place in a dry, ventilated room and run the equipment for more than half an hour before use.

8

Warning: Only connect to powered load equipment once the power-on test runs normally without error.

9

In case of malfunction, immediately cut off the power switch, check connections, and check if switches/knobs are in their correct positions. High voltage inside poses an electric shock hazard; do not attempt internal repairs without proper training. Please notify professional support promptly to resolve issues.

Frequently Asked Questions

Does the power supply have overvoltage, overcurrent, overheating, or short circuit protection?

Yes, this power supply has full protection parameters including overvoltage, overcurrent, overheating, and short-circuit protections.

Can reverse protection be added to this model?

Yes, reverse protection functions can be integrated customized with an additional charge.

Can this power supply be run at 100% capacity continuously?

No, to ensure optimal lifespan and safety, the power supply must be used with some excess capacity. Continuous usage is recommended below 80% of rated capacity.

Is it easy to adjust the output voltage and current?

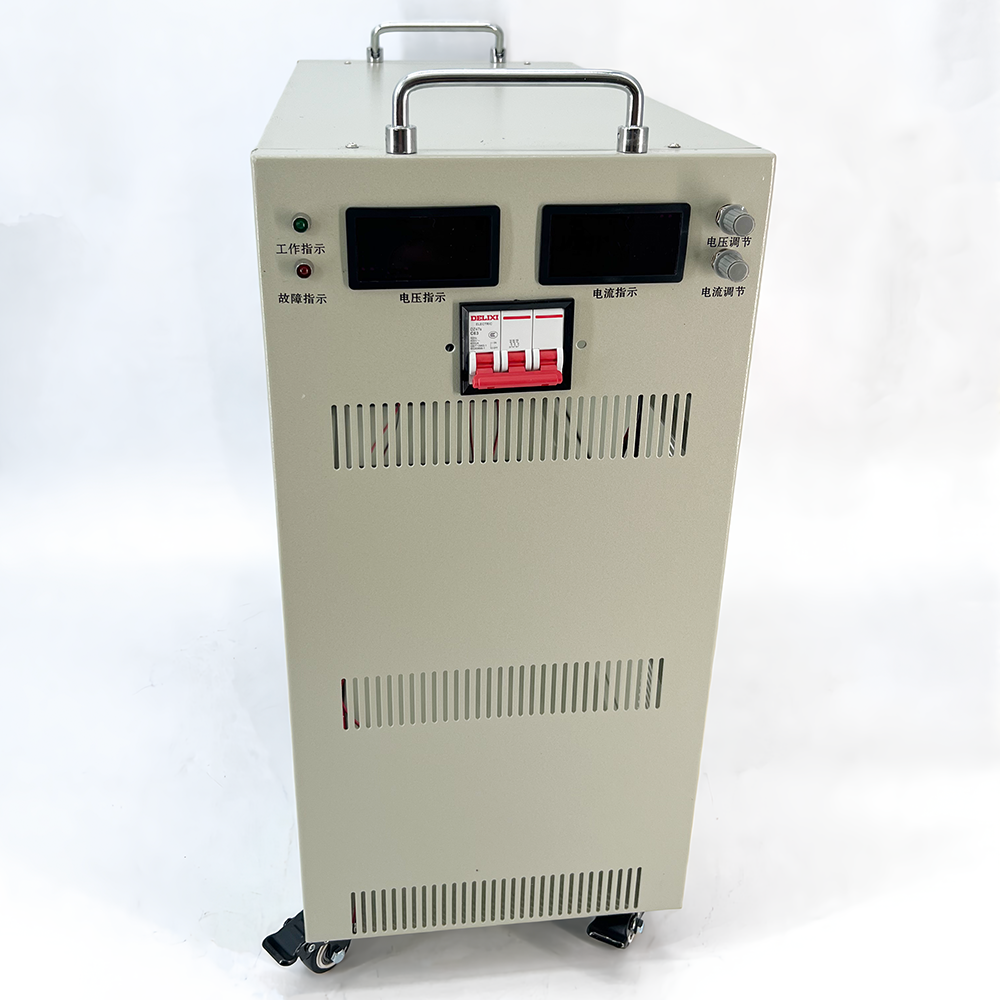

Yes, the design is highly user-friendly and convenient. The voltage and current levels can be adjusted easily with dual knobs.

Is the output of this high-power power supply isolated?

Yes, this model features a fully isolated power supply design for safe electrical performance.

What is the voltage regulation starting threshold and power output?

The voltage regulation range starts from 1V, and the power supply provides sufficient rated output power.
