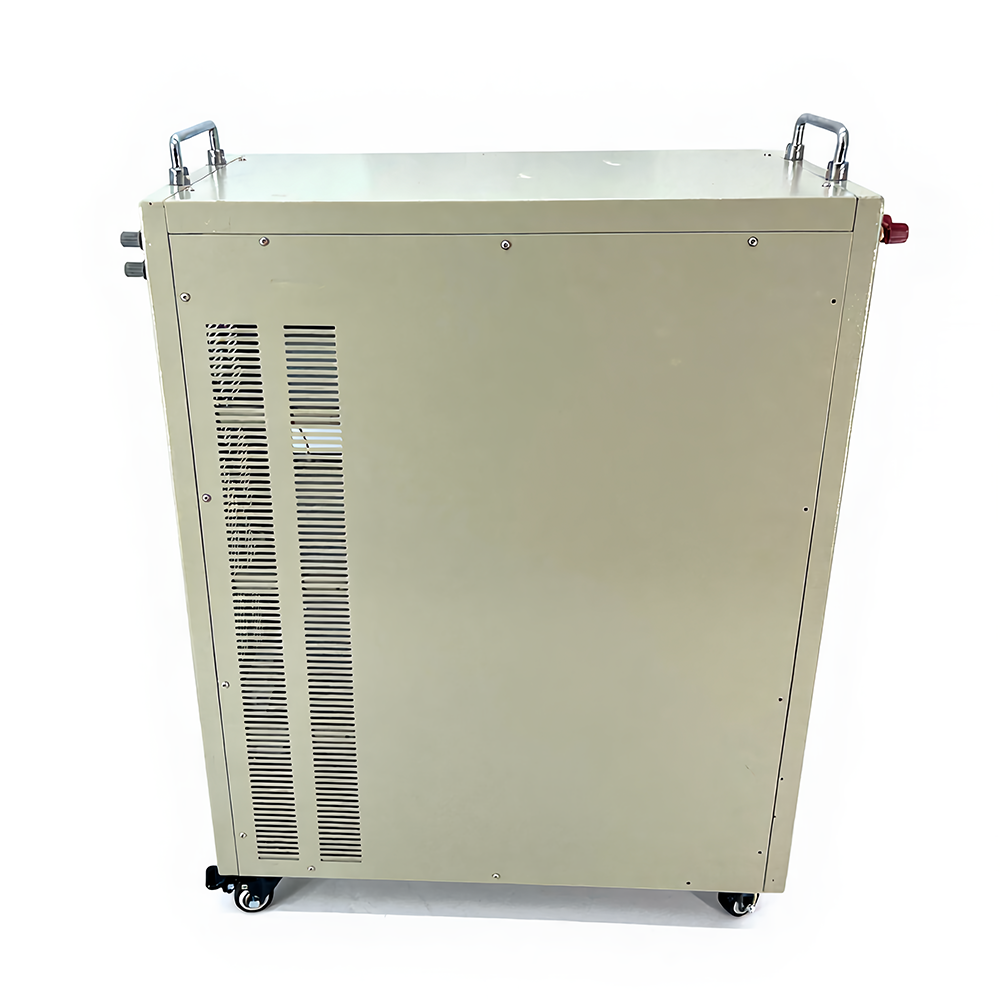

110V-17000W Adjustable Single Switching Power Supply High Precision High Efficiency-Voltage Input for Precise Battery Charging

We operate a professional production factory of 10,000 square meters, specializing in high-power regulated power supplies for 15 years. We are fully committed to delivering reliable solutions and outstanding service to ensure optimal product performance and customer satisfaction.

DC Switching Power Supply

Application: Widely used in power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields.
Protection: Equipped with Overcurrent, Overvoltage, Overheat, and Short Circuit Protection.
Features: High stability and reliability.
Warranty: 1 year.
Weight: Approximately 25KG.

Product Specifications

Product Name	DC Switching Power Supply	Operating Relative Humidity	20%~88%
Power Rating	17000W	Application Scenarios	Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage	Three-phase 380V±10% 50-60HZ	Protection Functions	Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage	12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V	Product Features	High stability, high reliability
Output Current	Selected power / selected voltage	Warranty Period	1 Year
Power Conversion Type	AC-DC	Product Weight	Approximately 40 KG
Efficiency	>88-89%	Carton Dimensions	770x400x740mm
Output Voltage Accuracy	±1%	Cooling System	Temperature Controlled Fan Cooling

Product Instructions

1

Before powering on, check the stored and transported switch power supply. Inspect for any damage during transit, such as loose screws, abnormal appearance, loose power cords/terminals, or signs of moisture. Address these issues promptly if found.

2

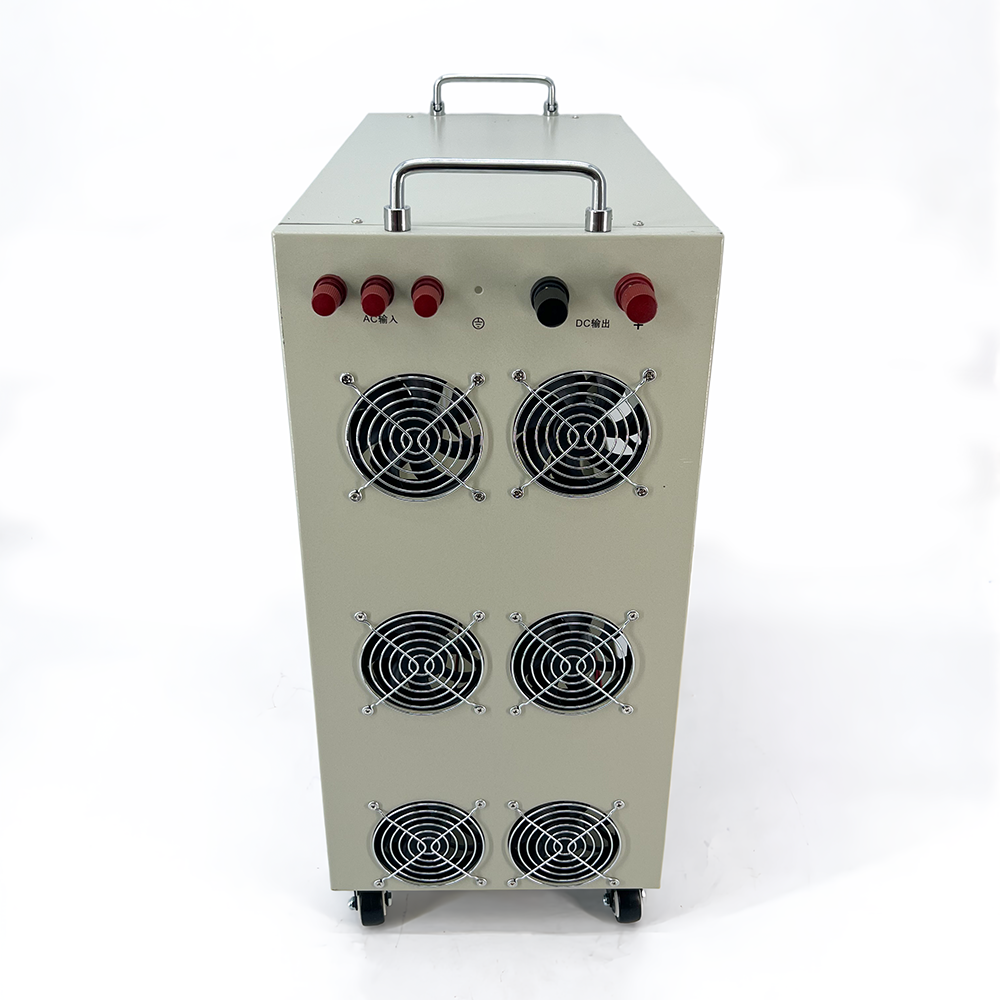

The local power switch controls the internal auxiliary power supply. For safety, install an air switch at the power input terminal to control the power input. Connect the ground wire and input power wire correctly as labeled on the rear panel. Verify that the input voltage matches the voltage specifications in the manual.

3

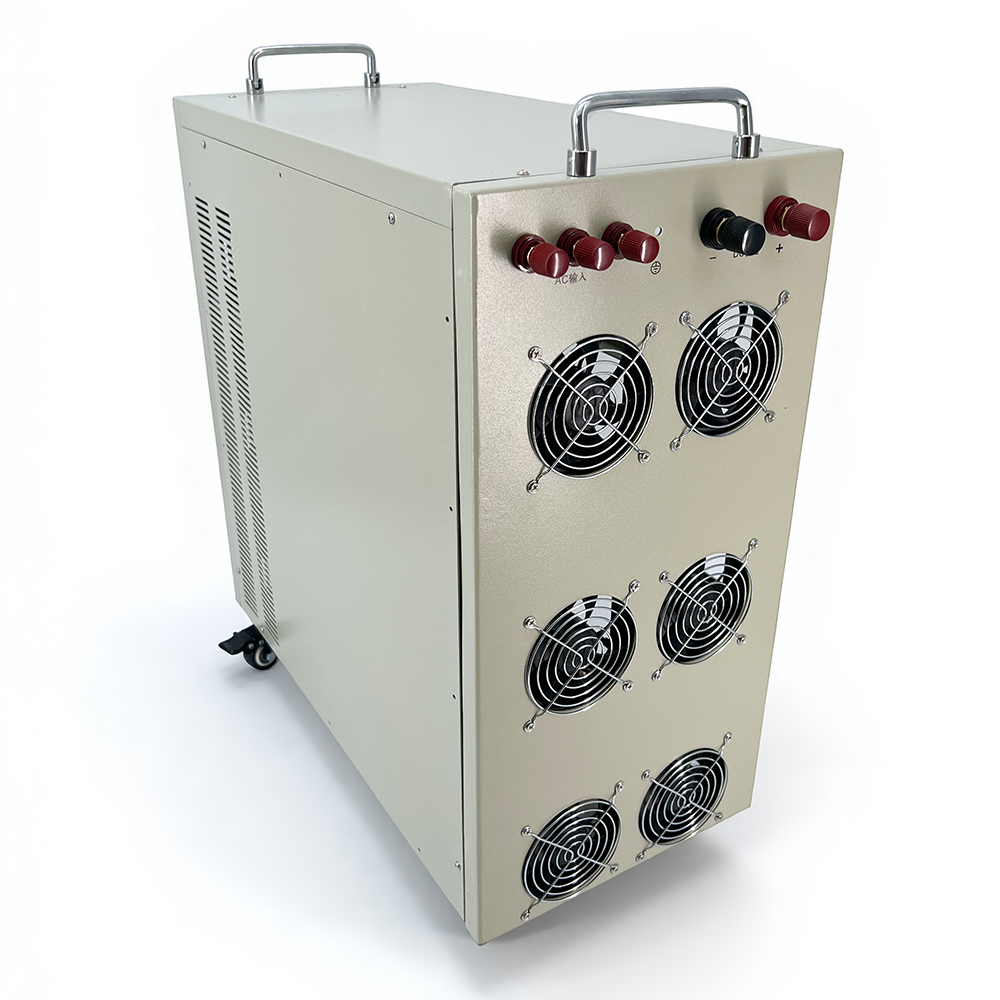

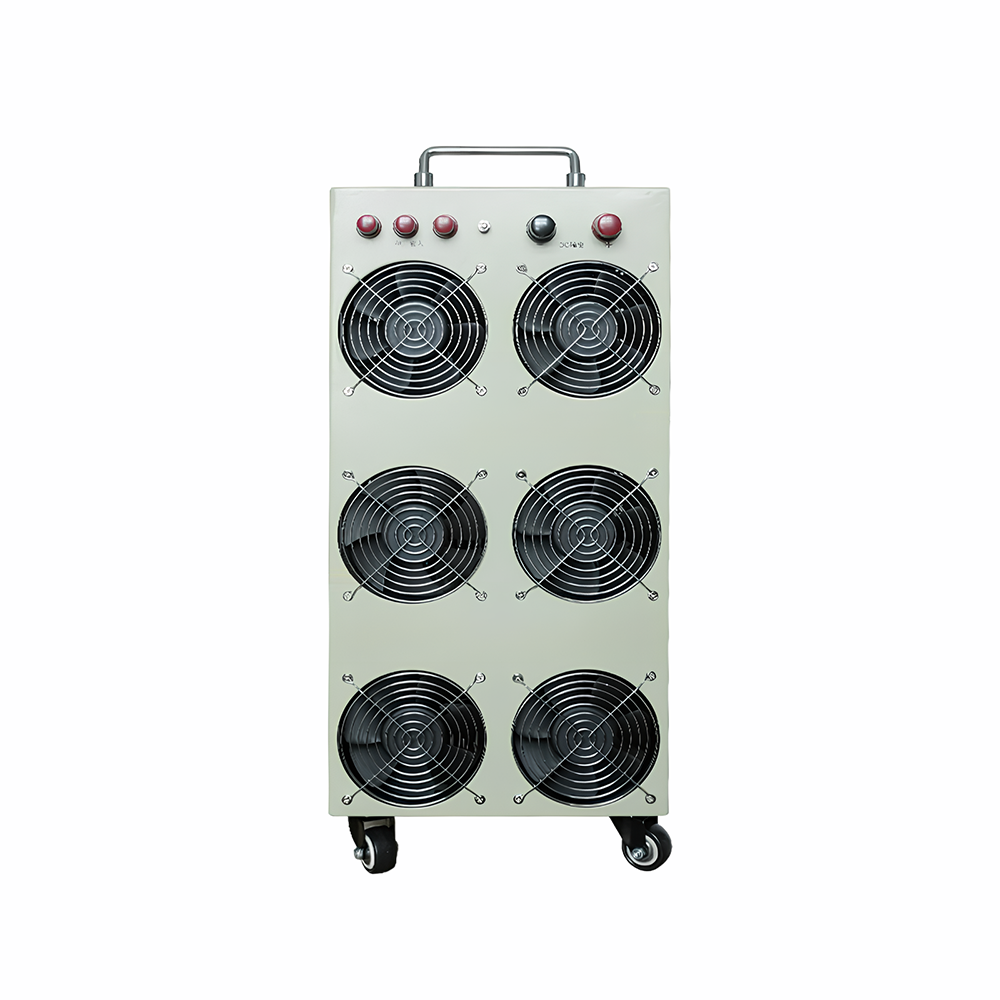

The cooling fan is temperature-controlled and starts when the internal temperature exceeds the control point. The fan speed changes according to output voltage and current, which is normal. Do not block the fan's inlet and outlet during operation.

4

When internal temperatures reach the overheating shutdown threshold, the machine stops working automatically to prevent damage. It resumes automatically once the temperature drops.

5

Avoid exposing the equipment to excessive dust, acid, corrosive gases, severe vibrations, impact, rain, or direct sunlight.

6

Regular dust removal is recommended to improve the equipment's lifetime and reliability. Dry compressed air can be used, but avoid opening the casing to protect internal components from high internal voltage.

7

Store the equipment in a dry, ventilated room if idle for a long time. If stored for over 6 months, power on the device and run it for at least 30 minutes.

8

Warning: Connect to load equipment only after the initial power-on test is normal and free of errors.

9

Troubleshooting: If abnormal operation is observed, cut off the power switch, check internal and external connections, and make sure switches and knobs are correctly set. For complex issues, do not open the casing without professional knowledge due to high-voltage hazards. Contact customer support immediately.

Frequently Asked Questions

Q: Is there overvoltage, overcurrent, overheating, or short circuit protection?

A: Yes, our power supplies are fully designed with multiple protective functions, including overvoltage, overcurrent, overheating, and short-circuit protection.

Q: Can reverse polarity protection be added?

A: Yes, reverse polarity protection can be customized and integrated with a reasonable additional cost.

Q: Can the power supply be used at full capacity for continuous, long-term operations?

A: For long-term operations, it is recommended to use the power supply with an excess capacity margin. Keeping the continuous load below 80% is optimal for longevity.

Q: Is it easy to adjust the output voltage and current?

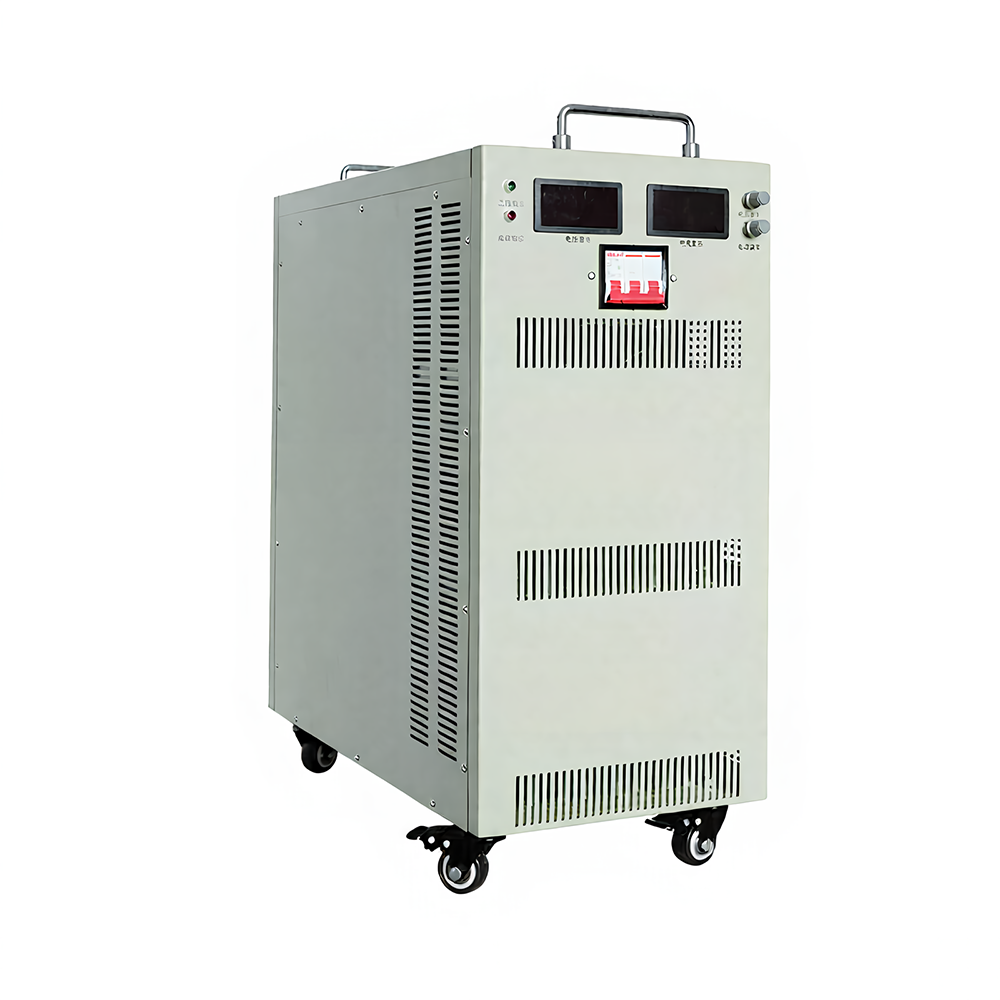

A: Yes, the output voltage and current are highly adjustable and can be configured easily using the dual knobs on the panel.

Q: Are these high-power power supplies isolated?

A: Yes, our products are built with a fully isolated design to ensure secure and stable operations in various industrial setups.

Q: What is the regulation range of the output voltage?

A: The voltage regulation starts from 1V up to the maximum rated capability of the specific power supply model.
