Industrial Output 24V-18000W Three-phase Input High-Power Adjustable Single Output DC Stabilized High Efficiency Switching Power
Industrial Output 24V-18000W Three-phase Input High-Power Adjustable Single Output DC Stabilized High Efficiency Switching Power
Industrial Output 24V-18000W Three-phase Input High-Power Adjustable Single Output DC Stabilized High Efficiency Switching Power
Industrial Output 24V-18000W Three-phase Input High-Power Adjustable Single Output DC Stabilized High Efficiency Switching Power
Industrial Output 24V-18000W Three-phase Input High-Power Adjustable Single Output DC Stabilized High Efficiency Switching Power
1 / 5
Industrial Output 24V-18000W Three-phase Input High-Power Adjustable Single Output DC Stabilized High Efficiency Switching Power
Industrial Output 24V-18000W Three-phase Input High-Power Adjustable Single Output DC Stabilized High Efficiency Switching Power
Industrial Output 24V-18000W Three-phase Input High-Power Adjustable Single Output DC Stabilized High Efficiency Switching Power
Industrial Output 24V-18000W Three-phase Input High-Power Adjustable Single Output DC Stabilized High Efficiency Switching Power
Industrial Output 24V-18000W Three-phase Input High-Power Adjustable Single Output DC Stabilized High Efficiency Switching Power

Industrial Output 24V-18000W Three-phase Input High-Power Adjustable Single Output DC Stabilized High Efficiency Switching Power

Send Inquiry

Product Description

DC Switching Power Supply Banner
DC Switching Power Supply Overview

Product Overview

  • ✓ Product Name: DC Switching Power Supply
  • ✓ Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
  • ✓ Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
  • ✓ Features: High stability and reliability
  • ✓ Warranty: 1 year
  • ✓ Weight: Approximately 25KG

Product Detail Showcase

Detail View 1 Detail View 2 Detail View 3
Detail View 4 Detail View 5

Technical Specifications

Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 15000-18000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Three-phase 380V±10% 50-60HZ Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V Product Features High stability, high reliability
Output Current Selected power/selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 40

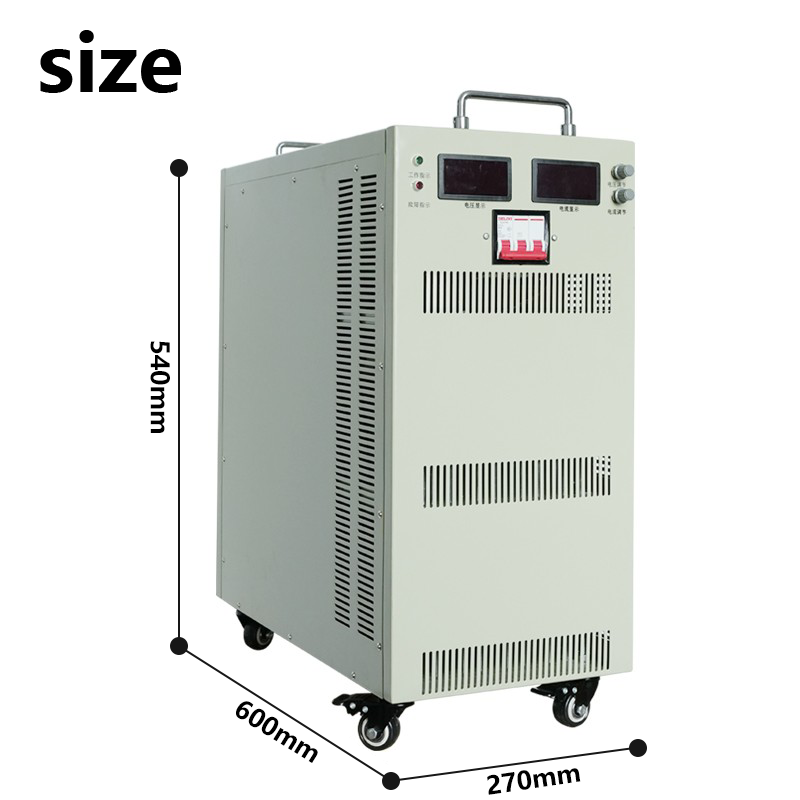

Efficiency ＞88-89% Carton Dimensions 770x400x740mm
Output Voltage Accuracy ±1%

Product Application & Setup Gallery

Application 1 Application 2 Application 3
Application 4 Application 5

Product Instructions

1. Before powering on, check the stored and transported switch power supply. Check for damage during transportation, such as loose screws, abnormal appearance, shaken power cords or terminals, and dampness. Address any issues immediately.
2. The local power switch controls the auxiliary power supply inside the machine. For safety, add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the rear panel label. Confirm connection voltage matches manual specifications.
3. The cooling fan is temperature controlled. It starts when internal temperature exceeds the control point. The fan speed varies with output voltage and current. Ensure the inlet and outlet of the fan remain unblocked.
4. If internal temperature reaches the threshold for overheating shutdown, the machine will automatically stop. It resumes automatically when the temperature drops.
5. Keep the equipment clear of excessive dust, acid, corrosive gases, severe vibrations, bumps, rain, and direct sunlight.
6. Perform regular dust removal (dry compressed air is recommended) to improve service life and reliability. Do not open the casing to prevent damage to internal high-voltage components.
7. When idle for long periods, store the unit in a dry, ventilated room. If stored for over 6 months, power on and operate the supply for more than half an hour.
8. Warning: Only connect to powered load equipment after verifying a normal, error-free power-on test.
9. Malfunction Handling: If abnormal operation occurs, cut off the power switch immediately. Check all external and internal connections for tightness and verify knob positions. Do not remove the casing or attempt repairs yourself due to high-voltage hazards. Contact professional support for assistance.

Frequently Asked Questions

Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes, the power supply includes overcurrent, overvoltage, overheating, and short-circuit protection features.
Is there reverse protection available?
Yes, reverse protection can be added as a customized option.
Can this power supply be operated at full power continuously?
No, the power supply should be used with excess capacity. Continuous operation is recommended at loads below 80% capacity.
How convenient is it to adjust the voltage and current?
Adjustment is very convenient; both voltage and current can be easily adjusted using the dual knobs.
Is this high-power power supply isolated?
Yes, this is a fully isolated power supply.
What is the voltage regulation range?
The voltage regulation starts from 1V.
