Voltmat Power
Voltmat Power
| Product Name | DC Switching Power Supply | Operating Relative Humidity | 20%~88% |
| Power Rating | 16000W | Application Scenarios | Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields |
| Input Voltage | Three-phase 380V±10% 50-60HZ | Protection Functions | Overcurrent, overvoltage, overheating, short-circuit protection |
| Output Voltage | 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V | Product Features | High stability, high reliability |
| Output Current | Selected power/selected voltage | Warranty Period | 1 Year |
| Power Conversion Type | AC-DC | Product Weight | Approximately 40 kg |
| Efficiency | >88-89% | Carton Dimensions | 770x400x740mm |
| Output Voltage Accuracy | ±1% |
Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes, the power supply is fully equipped with overcurrent, overvoltage, overheat, and short circuit protection systems.
Is reverse protection available?
Yes, reverse protection can be configured as an option at an additional cost.
Can this power supply operate at full power continuously?
No. For long-term continuous operation, the system needs to run below 80% capacity to ensure proper safety and performance headroom.
How easily can the voltage and current be adjusted?

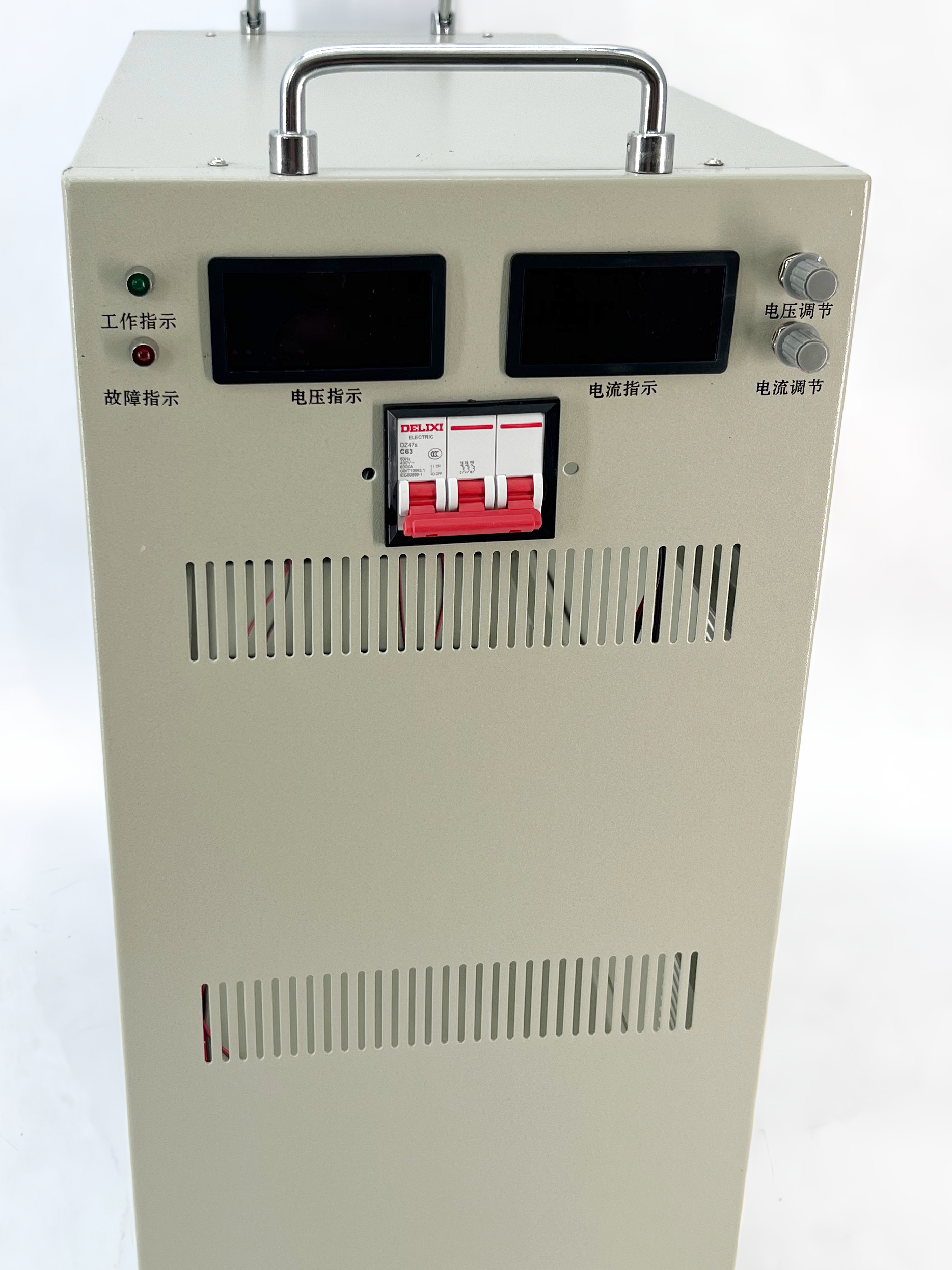

Adjustments are very convenient. The system features dual knobs that allow precise adjustment of both current and voltage settings.
Is the high-power power supply system isolated?
Yes, our systems are built with fully isolated power supply designs for enhanced safety.
What is the minimum voltage regulation range?
The regulation control starts from a minimum threshold of 1V.
