90V-700W Regulated Single Output AC-DC Switching Power Supply 600W-1000W Adjustable 12V-500V High Efficiency Industrial Use High
90V-700W Regulated Single Output AC-DC Switching Power Supply 600W-1000W Adjustable 12V-500V High Efficiency Industrial Use High
90V-700W Regulated Single Output AC-DC Switching Power Supply 600W-1000W Adjustable 12V-500V High Efficiency Industrial Use High
90V-700W Regulated Single Output AC-DC Switching Power Supply 600W-1000W Adjustable 12V-500V High Efficiency Industrial Use High
90V-700W Regulated Single Output AC-DC Switching Power Supply 600W-1000W Adjustable 12V-500V High Efficiency Industrial Use High
1 / 5
90V-700W Regulated Single Output AC-DC Switching Power Supply 600W-1000W Adjustable 12V-500V High Efficiency Industrial Use High
90V-700W Regulated Single Output AC-DC Switching Power Supply 600W-1000W Adjustable 12V-500V High Efficiency Industrial Use High
90V-700W Regulated Single Output AC-DC Switching Power Supply 600W-1000W Adjustable 12V-500V High Efficiency Industrial Use High
90V-700W Regulated Single Output AC-DC Switching Power Supply 600W-1000W Adjustable 12V-500V High Efficiency Industrial Use High
90V-700W Regulated Single Output AC-DC Switching Power Supply 600W-1000W Adjustable 12V-500V High Efficiency Industrial Use High

90V-700W Regulated Single Output AC-DC Switching Power Supply 600W-1000W Adjustable 12V-500V High Efficiency Industrial Use High

Send Inquiry

Product Description

DC Switching Power Supply Main View DC Switching Power Supply Details
DC Switching Power Supply Specification Details
DC Switching Power Supply
  • Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
  • Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
  • Features: High stability and reliability
  • Warranty: 1 year
  • Weight: Approximately 2KG
Product Features
Protection Features
Performance Controls
Safety Certifications
Cooling Mechanism
Hardware Components
Port Interfaces
Technical Specifications
Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 600W 700W 800W 900W 1000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase 220V±10%, 50-60HZ / 110V±10%, 50-60HZ Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection

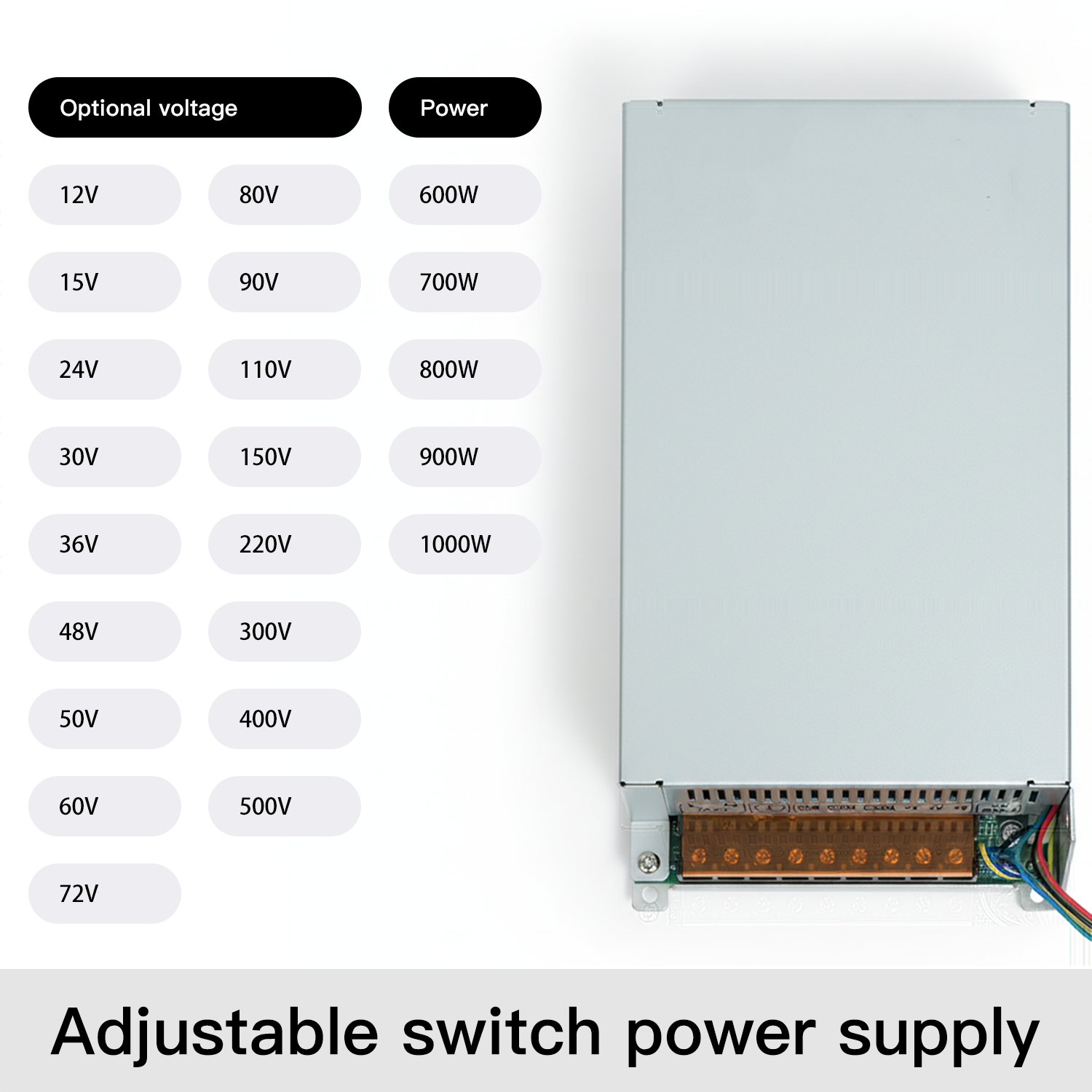

Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V Product Features High stability, high reliability
Output Current Selected power / selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 2KG

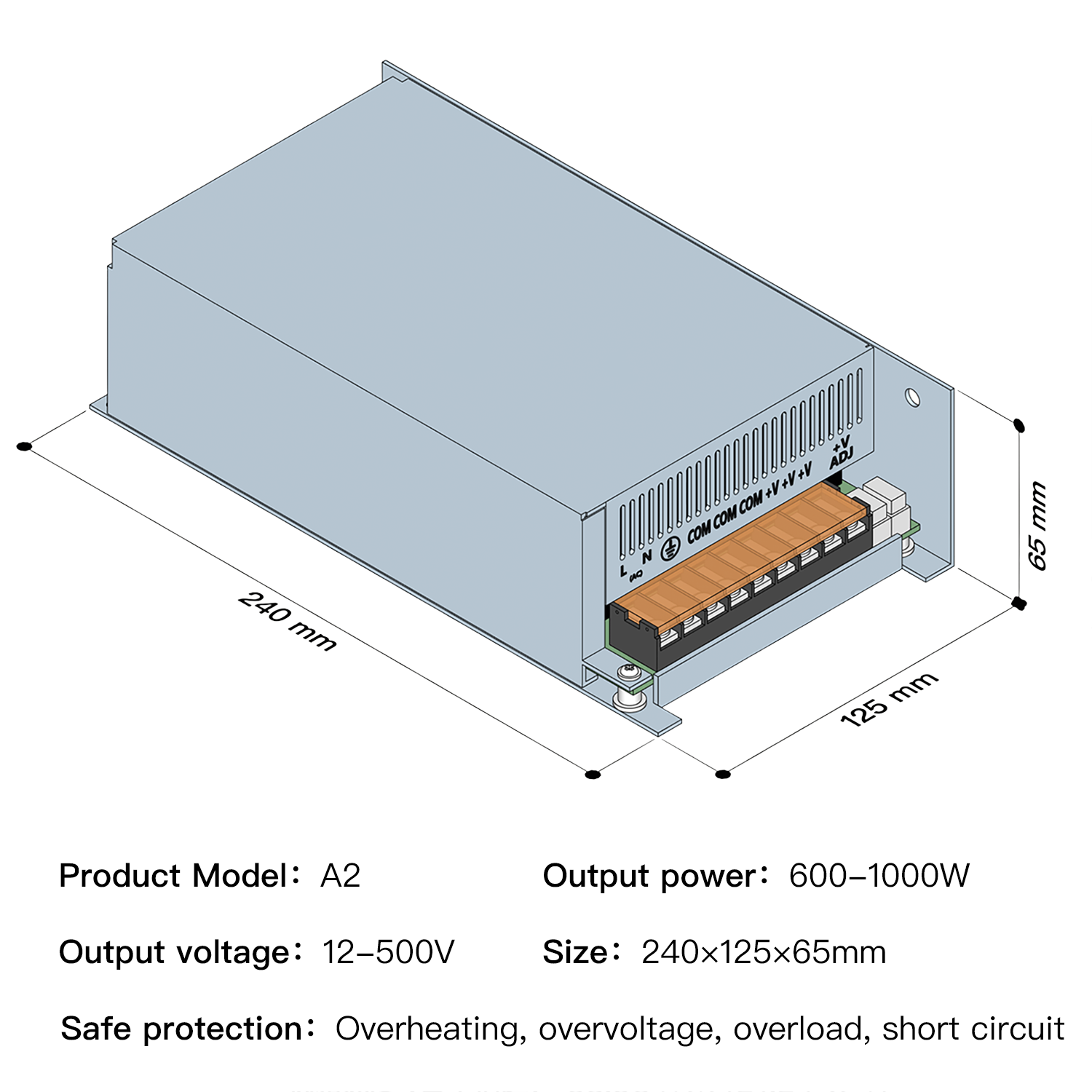

Efficiency >88-89% Carton Dimensions 260*135*70
Output Voltage Accuracy ±1%
Applications & Showcase
Application Scene 1
Application Scene 2
Application Scene 3
Application Scene 4
Application Scene 5
Product Instructions
1
Before powering on, check the stored and transported switch power supply. Inspect for damage during transportation, such as loose screws, abnormal appearance, shaken off power cords/terminals, or dampness. Deal with any issues in a timely manner.
2
The local power switch controls the auxiliary power supply inside the machine. For safety, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel. Confirm the input power voltage is consistent with the manual.
3
The cooling fan is temperature controlled and will start when the temperature inside the machine exceeds the start point. The fan speed varies with output voltage and current. Make sure not to block the inlet and outlet of the fan.
4
When the temperature inside the machine reaches the threshold for overheating shutdown, it will automatically stop working. Once the temperature drops slightly, it will resume operation automatically.
5
When using power equipment, check that dust, acid, corrosive gases or substances in the air do not exceed normal levels. Avoid severe vibration, bumps, rain, and direct sunlight.
6
Regularly carry out dust removal to improve service life and reliability. Dry compressed air can be used for dust removal. Do not open the casing to avoid high-voltage hazards and internal component damage.
7
When the equipment is idle for a long time, store it in a dry and ventilated room. If stored for over 6 months, power on and operate the equipment for more than half an hour.
8
Warning: Only connect to powered load equipment once the power-on test is normal and error-free.
9
Handling of malfunctions: If abnormal operation occurs, cut off the power switch. Check internal/external connections for correctness and screws for tightness. Do not remove the casing without authorization. High voltage is present inside; do not attempt self-repair without professional knowledge. Please notify the manufacturer promptly to resolve the issue.
Frequently Asked Questions
Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes, the power supply includes comprehensive built-in protection against overvoltage, overcurrent, overheating, and short circuits.
Is there reverse protection available?
Reverse protection can be added as an optional customized feature.
Can it be used at full power for a long time?
No, the power supply needs to be used with excess capacity. For continuous operations, power below 80% capacity can be used for long-term running.
Is it convenient to adjust the voltage and current?
Yes, adjusting both parameters is highly convenient via the dual knobs built into the device.
Is the high-power power supply isolated?
Yes, our high-power power supplies feature a fully isolated design.
What is the voltage regulation range?
The voltage regulation range starts from 1V.
