Output 500V-16000W High-Power Safety DC Switching Power Supply , 3-Voltage Input for Battery Charging & Electroplating
Output 500V-16000W High-Power Safety DC Switching Power Supply , 3-Voltage Input for Battery Charging & Electroplating
Output 500V-16000W High-Power Safety DC Switching Power Supply , 3-Voltage Input for Battery Charging & Electroplating
Output 500V-16000W High-Power Safety DC Switching Power Supply , 3-Voltage Input for Battery Charging & Electroplating
Output 500V-16000W High-Power Safety DC Switching Power Supply , 3-Voltage Input for Battery Charging & Electroplating
1 / 5
Output 500V-16000W High-Power Safety DC Switching Power Supply , 3-Voltage Input for Battery Charging & Electroplating
Output 500V-16000W High-Power Safety DC Switching Power Supply , 3-Voltage Input for Battery Charging & Electroplating
Output 500V-16000W High-Power Safety DC Switching Power Supply , 3-Voltage Input for Battery Charging & Electroplating
Output 500V-16000W High-Power Safety DC Switching Power Supply , 3-Voltage Input for Battery Charging & Electroplating
Output 500V-16000W High-Power Safety DC Switching Power Supply , 3-Voltage Input for Battery Charging & Electroplating

Output 500V-16000W High-Power Safety DC Switching Power Supply , 3-Voltage Input for Battery Charging & Electroplating

Send Inquiry

Product Description

DC Switching Power Supply Banner

Industry-Leading Production Capacity

Equipped with a professional production facility spanning 10,000 square meters. Specializing in high-power regulated power supplies for over 15 years, delivering top-tier stability, reliability, and after-sales support.

Product Overview

DC Switching Power Supply Details

DC Switching Power Supply

  • Application: Widely used in power electronics, electroplating, water treatment, battery charging, and new energy maintenance sites.
  • Comprehensive Protection: Equipped with Overcurrent, Overvoltage, Overheat, and Short Circuit Protection.
  • Key Features: Highly stable output and industrial-grade reliability.
  • Warranty: 1-year product warranty.
  • Weight: Approximately 25 KG.

Product Showcase

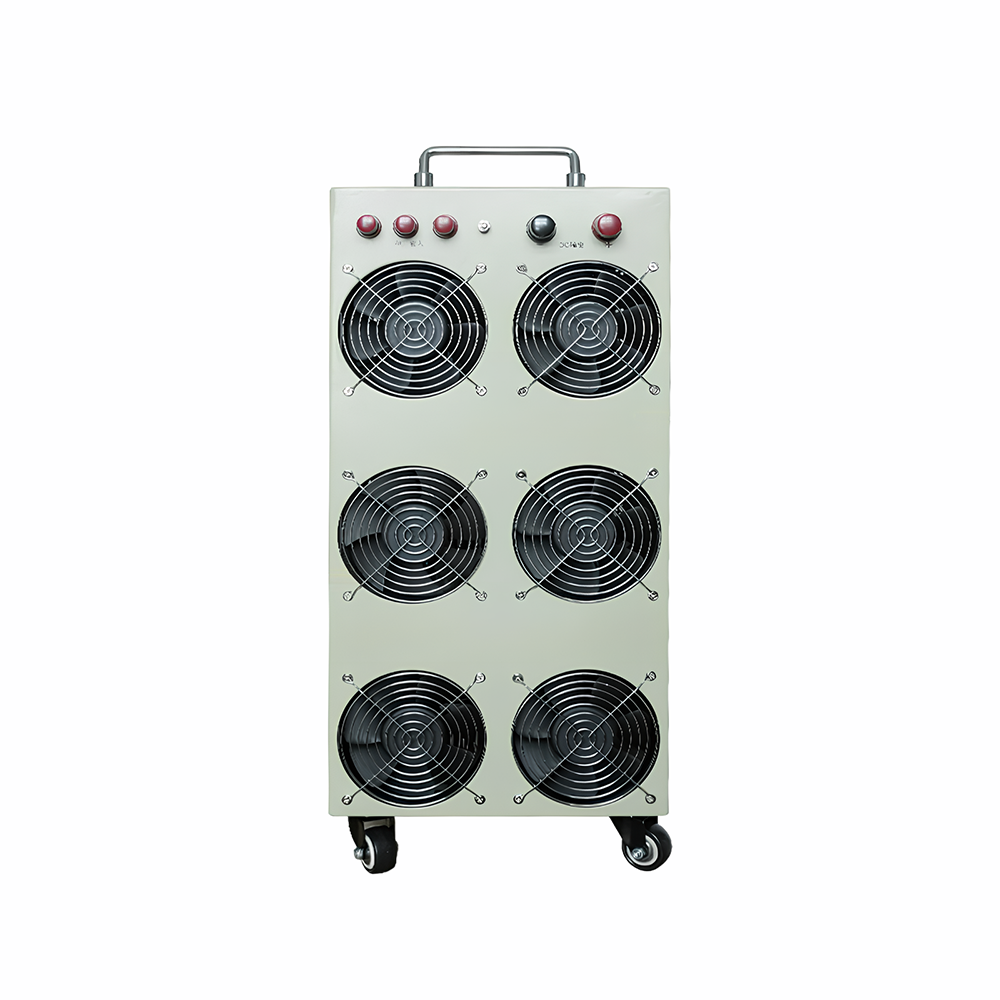

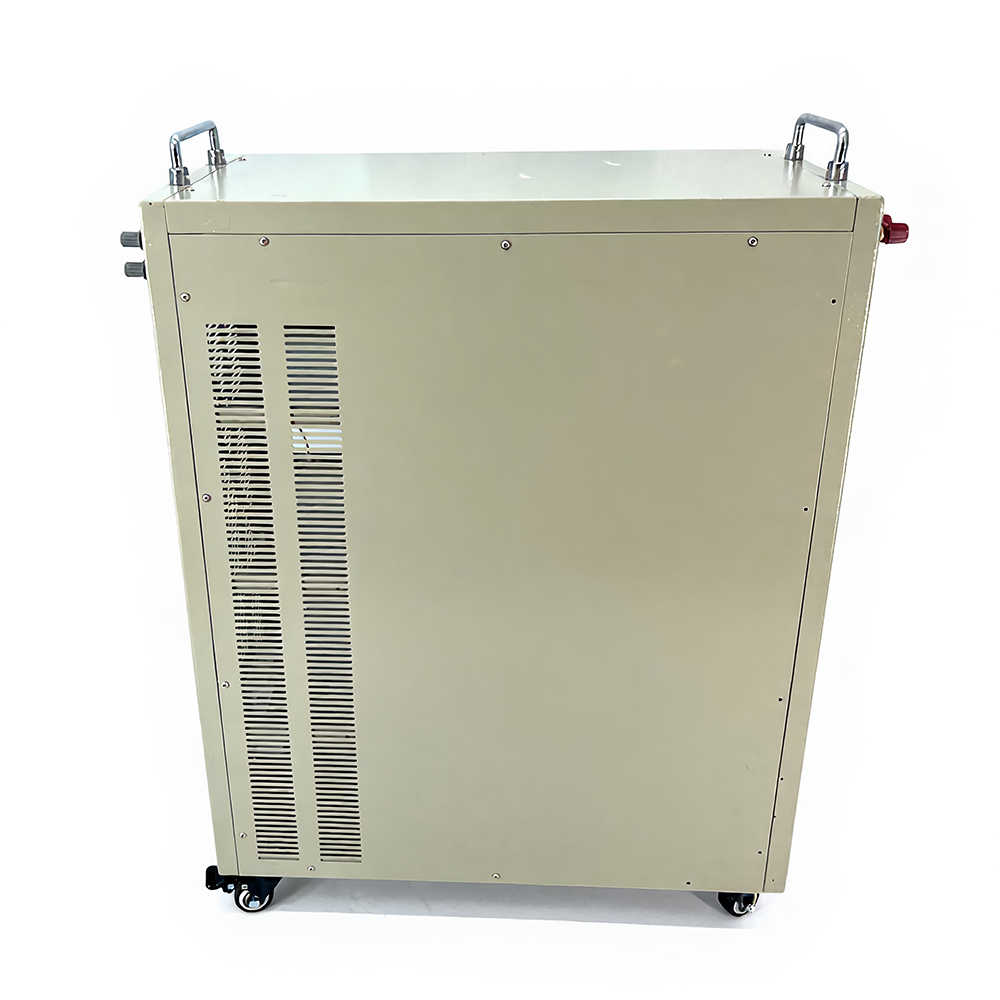

Power Supply Model Front View Power Supply Side Panel View Power Supply Internal Construction
Control Board Close Up Rear Interface Details

Technical Specifications

Parameter Spec Operation Spec
Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 16000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
Input Voltage Three-phase 380V±10% 50-60HZ Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V to 1000V (Multiple configurations available) Product Features High stability, high reliability
Output Current Selected power / selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 40 KG
Efficiency >88-89% Carton Dimensions 770x400x740mm
Output Voltage Accuracy ±1% Cooling System Temperature-controlled cooling fan

Production & Quality Control

Production Process 1 Production Process 2 Production Process 3
Quality Testing 1 Quality Testing 2

Product Instructions

  • 1 Before powering on, inspect the device for physical damage, loose screws, or moisture occurred during transport. Address any anomalies promptly.
  • 2 For safety, integrate an air switch at the power input terminal. Ensure the ground and input wires match the panel label and verify that the input voltage matches the manual rating.
  • 3 The unit features a temperature-controlled fan. Speed variations depending on the load parameters are normal. Keep the air inlets and outlets completely clear of obstructions.
  • 4 If the device reaches its high-temperature threshold, it will automatically shut down. Operation will automatically resume once the device cools down.
  • 5 Avoid operating the equipment in environments exceeding standard levels of dust, corrosive elements, direct rain, strong vibration, or direct sunlight.
  • 6 Conduct regular dry compressed air cleaning to prolong device life. Do not open the outer housing during cleaning as high voltage is present inside.
  • 7 When stored idle for over 6 months, power up and run the unit for at least 30 minutes to maintain optimal component performance.
  • 8 Warning: Always confirm a successful no-load test before connecting load devices to the power supply.
  • 9 If operating errors occur, shut down the device immediately and check connections. Do not dismantle the housing without authorization due to risk of high voltage electric shock. Seek professional assistance if needed.

Frequently Asked Questions

Q: Is there overvoltage, overcurrent, overheating, or short circuit protection?
A: Yes, full protection parameters are integrated.
Q: Can it be used at full power for a long time?
A: No, the power supply needs to be used with excess capacity. Power below 80% can be used continuously for a long time.
Q: Is it convenient to adjust voltage and current?
A: Yes, both voltage and current can be easily adjusted using the dual knob controls on the front panel.
Q: Is the high-power power supply isolated?
A: Yes, our units are design-configured as fully isolated power supplies.
Q: What is the voltage regulation range?
A: The output voltage regulation starts from 1V.
Q: Is the power supply wattage fully sufficient?
A: Yes, our power supplies deliver full rated output power as specified.
