36V-700W Industrial High-Power DC Switching Power Supply AC-DC 110-380V Input 88%-89% Efficiency High Stability Reliability 1
1 / 5

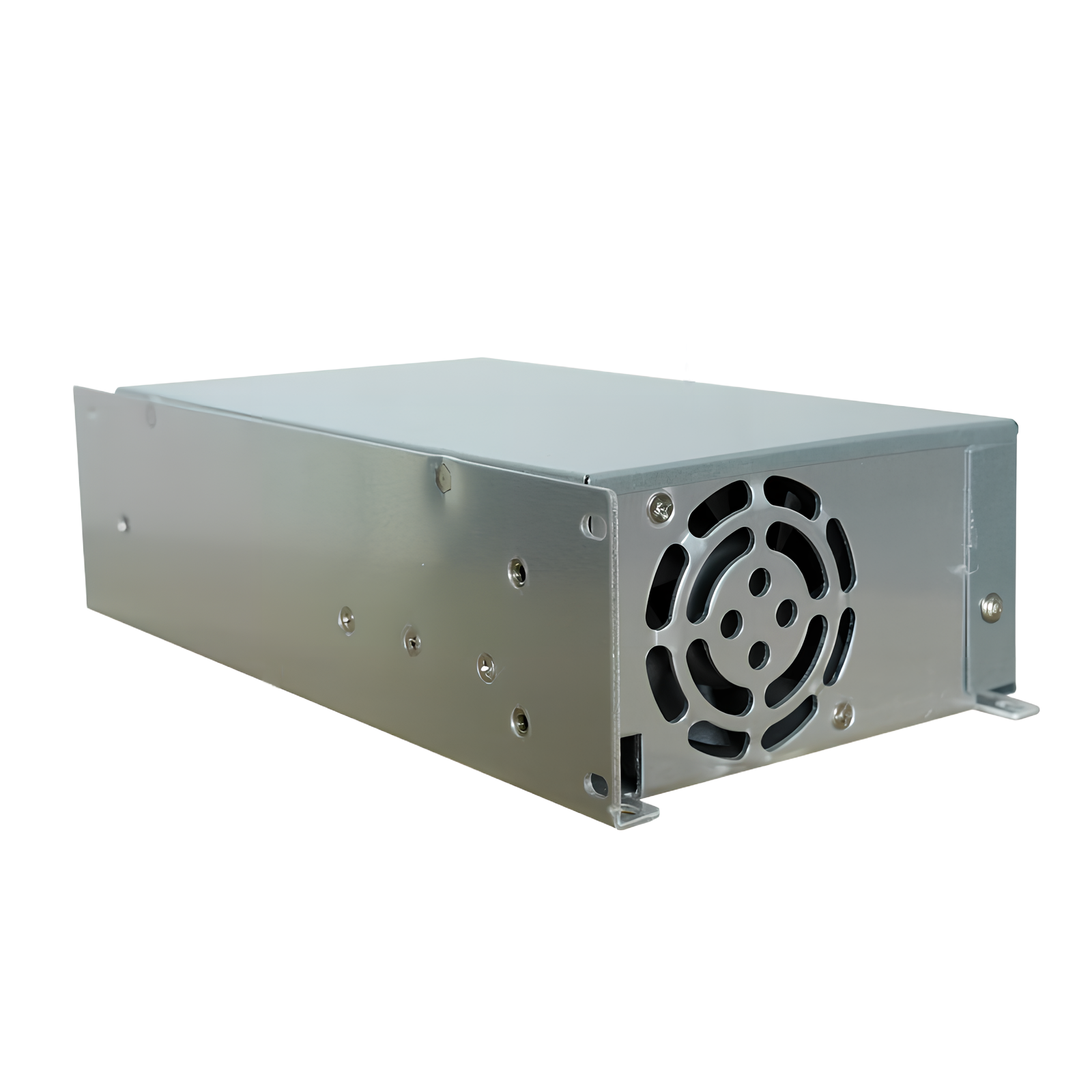

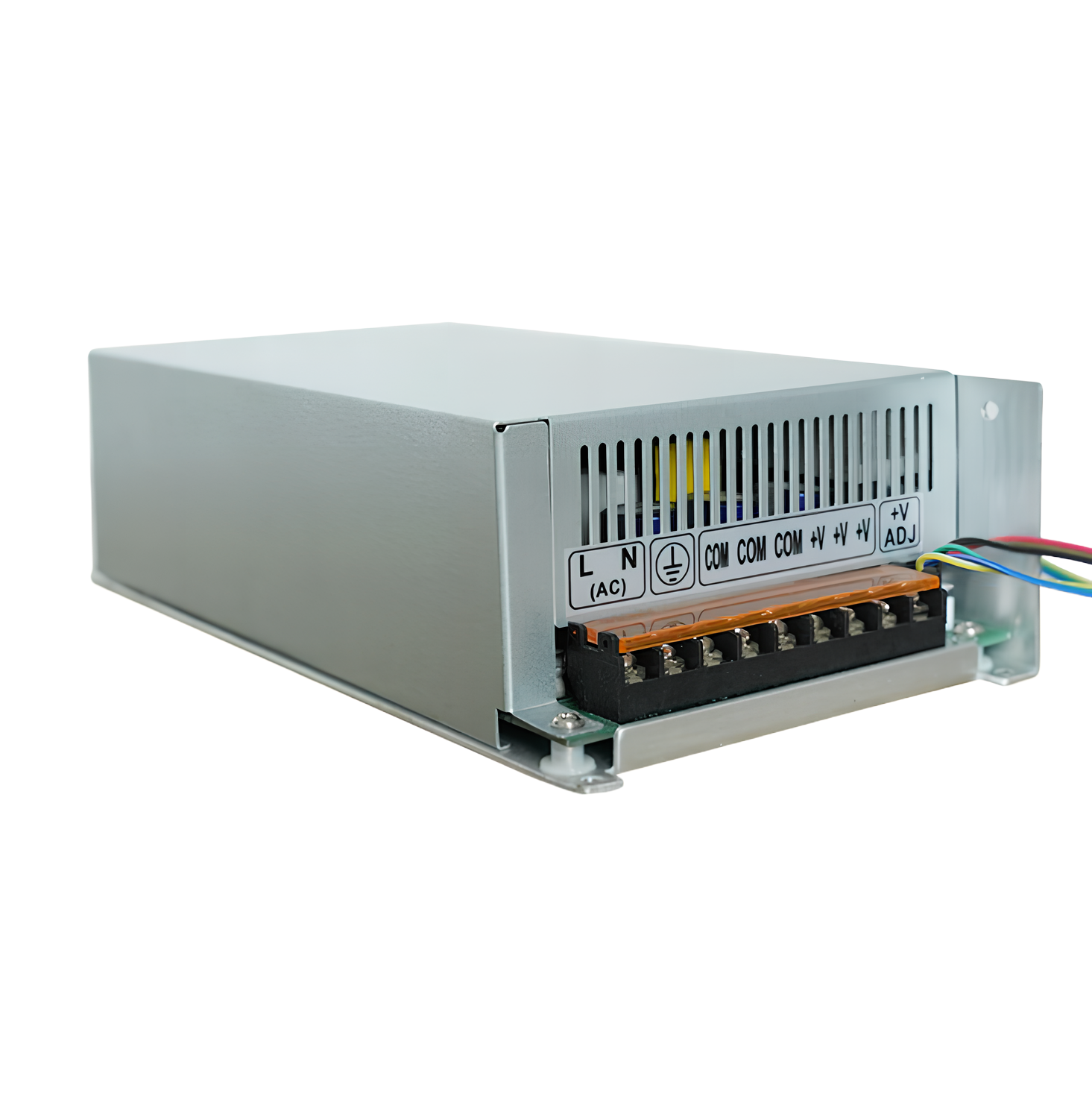

36V-700W Industrial High-Power DC Switching Power Supply AC-DC 110-380V Input 88%-89% Efficiency High Stability Reliability 1
Specializing in high-power regulated power supplies for 15 years, utilizing a professional production factory of 10,000 square meters. Providing excellent after-sales service and high-quality power solutions.
Product Name: DC Switching Power Supply
Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
Features: High stability and reliability
Warranty: 1 year
Weight: Approximately 2KG

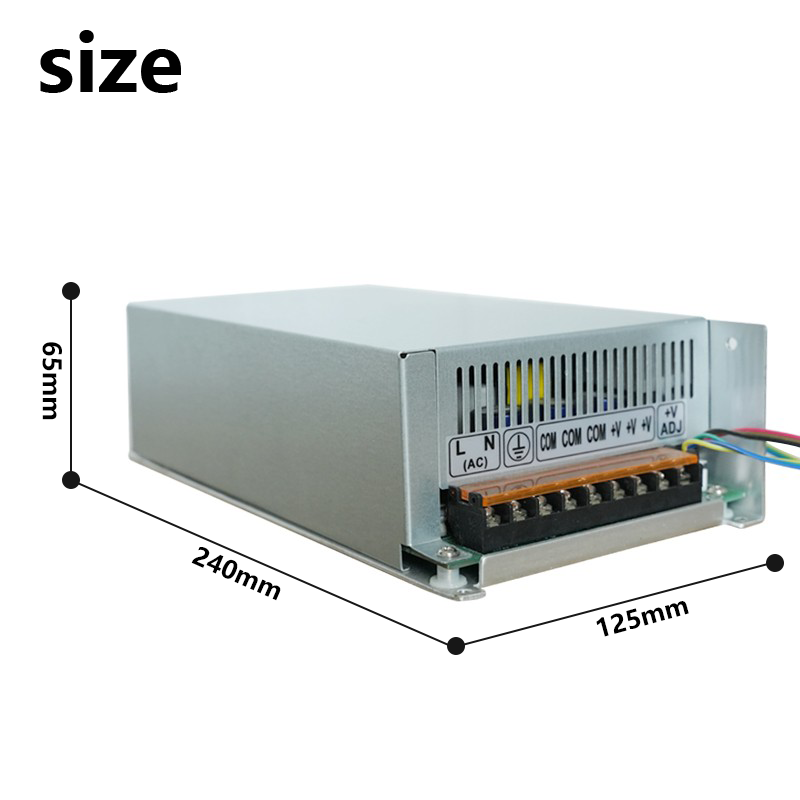

Product Design & Structure Diagrams
Technical Specifications
Product Name
DC Switching Power Supply
Operating Relative Humidity
20%~88%
Power Rating
700W
Application Scenarios
Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Before powering on, check the stored and transported switch power supply. Inspect for any damage during transportation, such as loose screws, abnormal appearance, shaken power cords or terminals, and dampness. Handle any anomalies promptly.
2

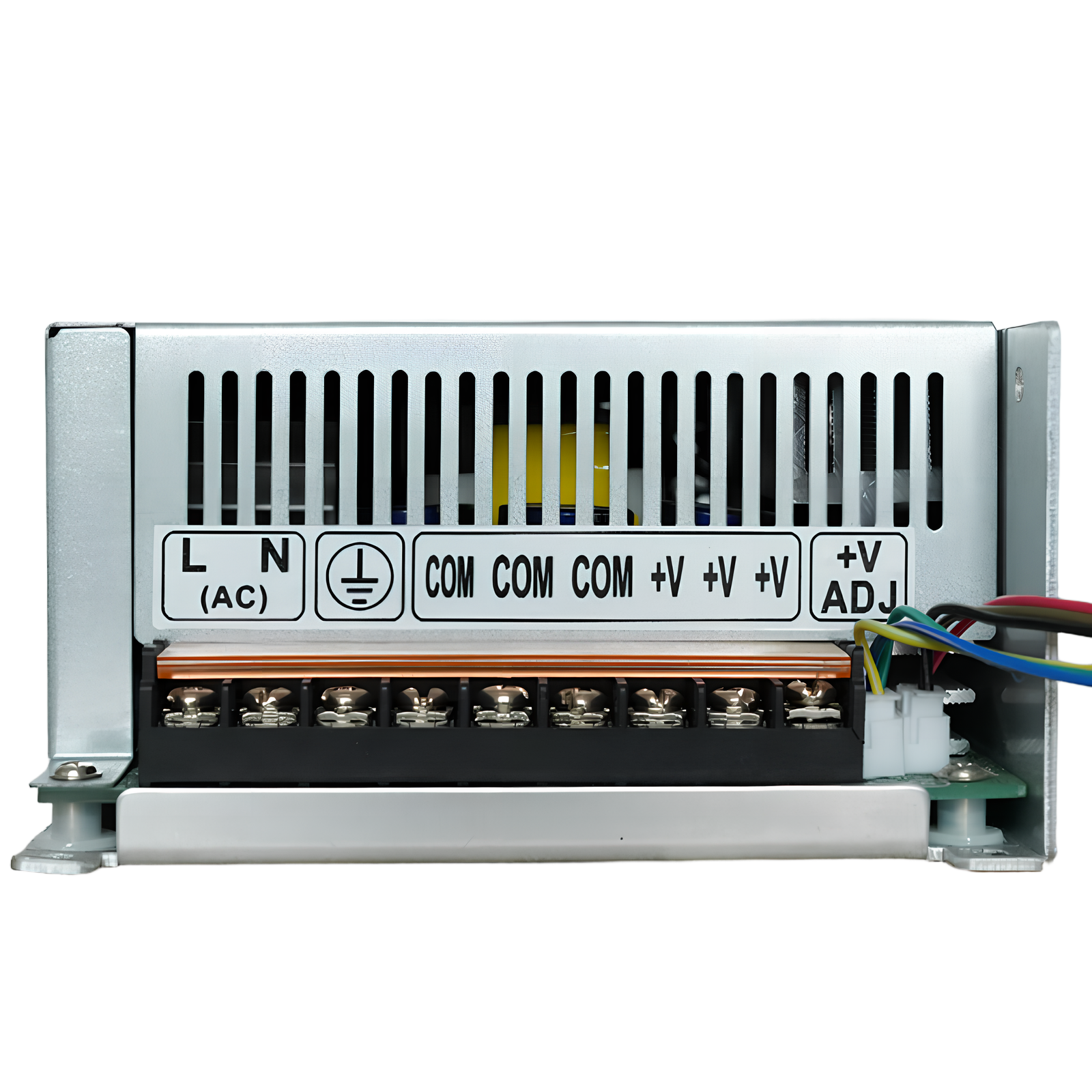

The local power switch controls the internal auxiliary power supply. For safety, add an air switch to the power input terminal. Connect the ground wire and input power wire correctly according to the rear panel label. Verify that the input voltage matches the manual specification.
3

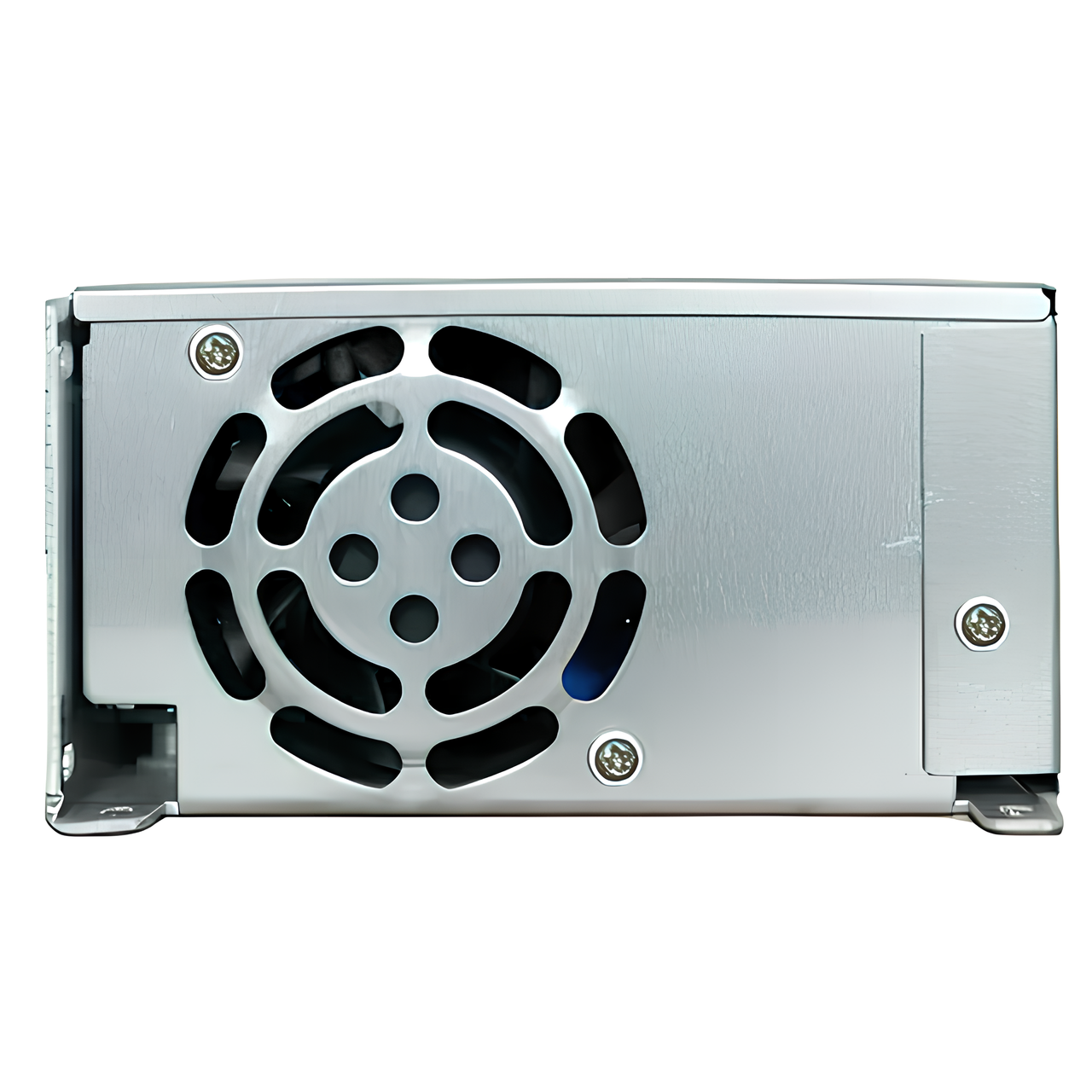

The cooling fan is temperature controlled. The fan starts automatically when the internal temperature exceeds the control threshold. Fan speed changes depending on output voltage and current. Keep the fan inlet and outlet clear of obstructions.
4
If internal temperatures reach the overheating threshold, the machine will shut down automatically to protect components. It resumes operation automatically once the temperature cools.
5
Ensure the ambient air is free from excessive dust, acid, corrosive gases, severe vibrations, water exposure, and direct sunlight.
6
Perform regular dust removal to extend the equipment's lifespan. Use dry compressed air for cleaning, and never open the casing while high pressure is present inside to prevent damage.
7
When storing the device long-term, keep it in a dry, ventilated room. If stored for over 6 months, power it on and run for at least 30 minutes.
8
Warning: Only connect load equipment after the initial power-on test functions normally without error.
9
If abnormal operation occurs, switch off the power immediately. Check internal and external connections, screws, and switch settings. Do not open the casing without professional knowledge due to high-voltage hazards. Please seek assistance promptly to resolve technical issues.
Frequently Asked Questions (FAQ)
Q: Does the power supply have built-in overvoltage, overcurrent, overheating, or short circuit protection?
A: Yes, it features comprehensive safety protection mechanisms including overcurrent, overvoltage, overheat, and short circuit protection.
Q: Can it be used at full power for a long duration?
A: No, for prolonged service life, it is recommended to run the power supply below 80% capacity to ensure adequate headroom.
Q: Is it easy to adjust the voltage and current settings?
A: Yes, it is very convenient. The voltage and current levels can be easily adjusted using the dual knobs on the unit.
Q: Is the high-power unit an isolated power supply?
A: Yes, this is designed as a fully isolated power supply.
Q: What is the minimum voltage regulation range?
A: The voltage regulation starts from 1V.
Q: Does this equipment provide sufficient rated power?
A: Yes, the unit is built to deliver fully sufficient rated power.
