| Product Name | DC Switching Power Supply | Operating Relative Humidity | 20%~88% |
| Power Rating | 15000W | Application Scenarios | Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields |
| Input Voltage | Three-phase 380V±10% 50-60Hz | Protection Functions | Overcurrent, overvoltage, overheating, short-circuit protection |
| Output Voltage | 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V | Product Features | High stability, high reliability |
| Output Current | Selected power/selected voltage | Warranty Period | 1 Year |
| Power Conversion Type | AC-DC | Product Weight | Approximately 40 |
| Efficiency | ≥88-89% | Carton Dimensions | 770x400x740mm |
| Output Voltage Accuracy | ±1% | - | - |
Before powering on, check the stored and transported switch power supply. Any damage during transportation should be checked, such as loose screws, abnormal appearance, shaken power cords/terminals, or dampness. Address any issues promptly.

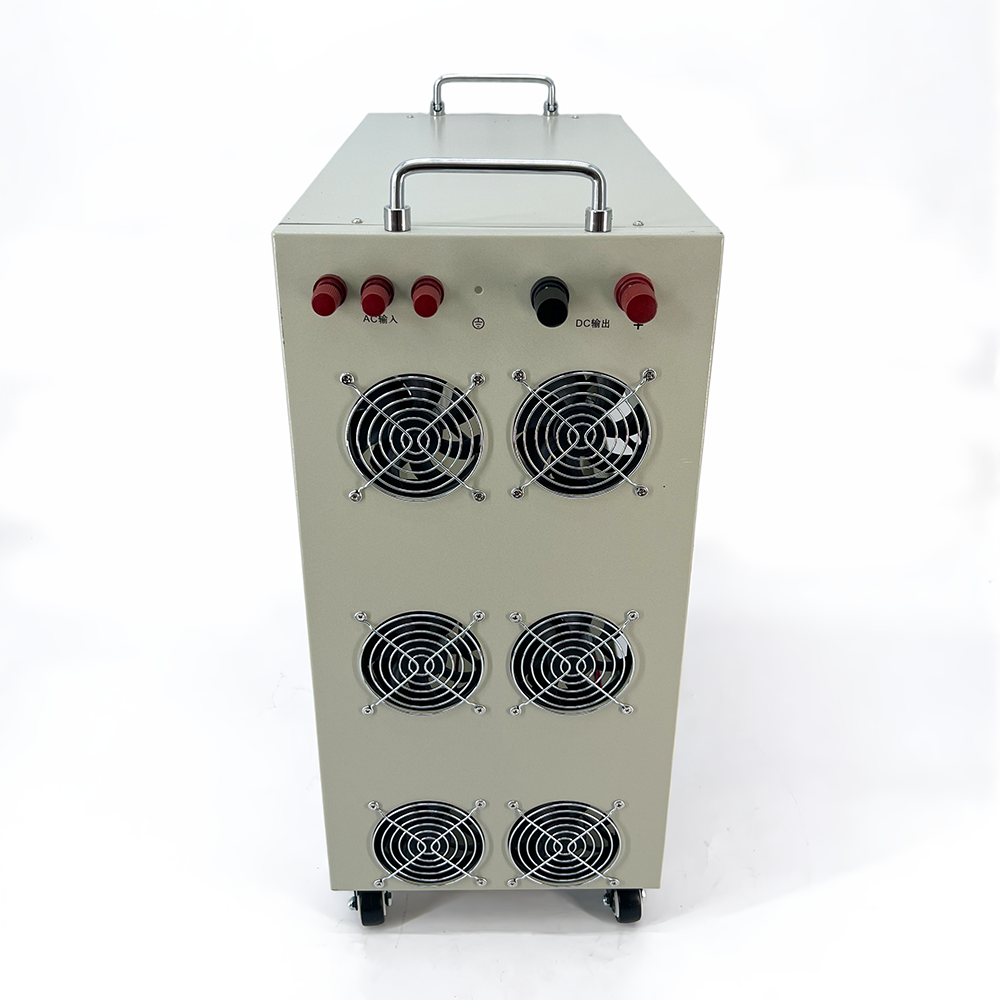

The local power switch controls the internal auxiliary power supply. For safety reasons, please add an air switch to the power input terminal to control input. Connect the ground wire and input power wire correctly according to the label on the rear panel. Verify input voltage matches the manual.

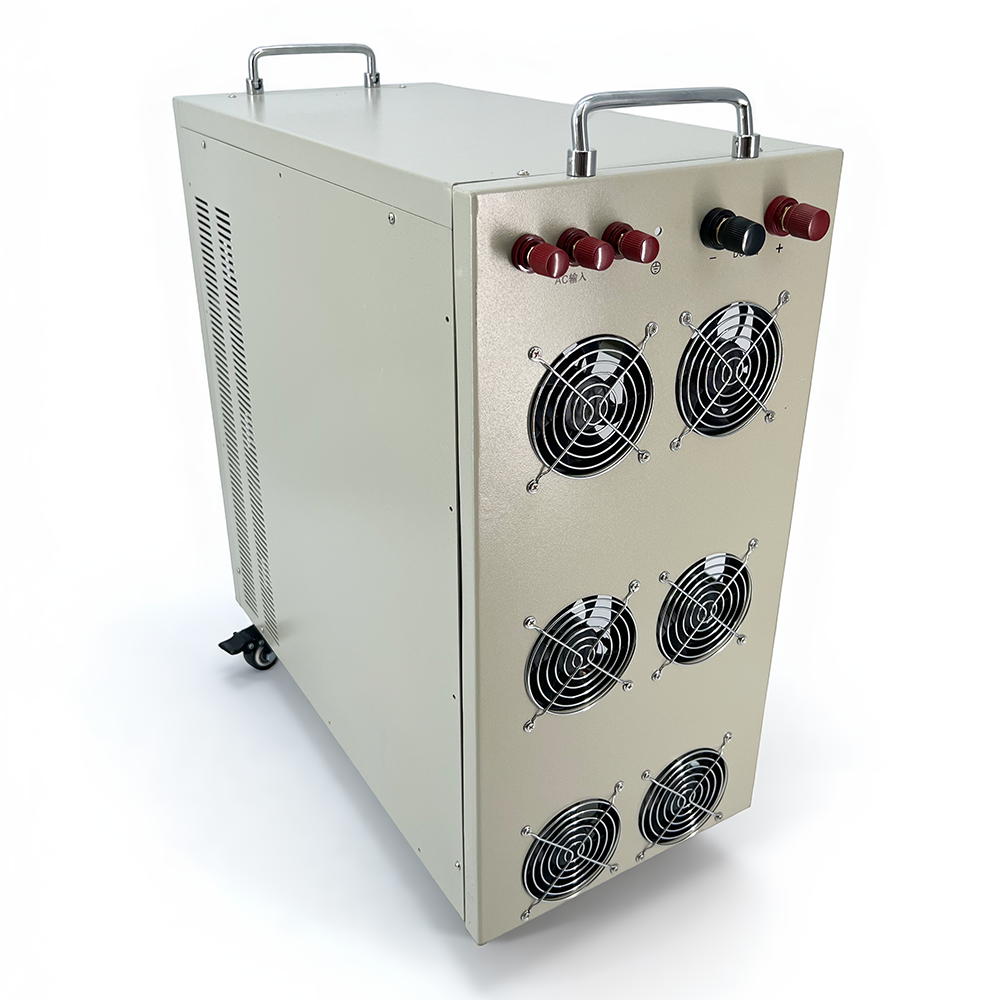

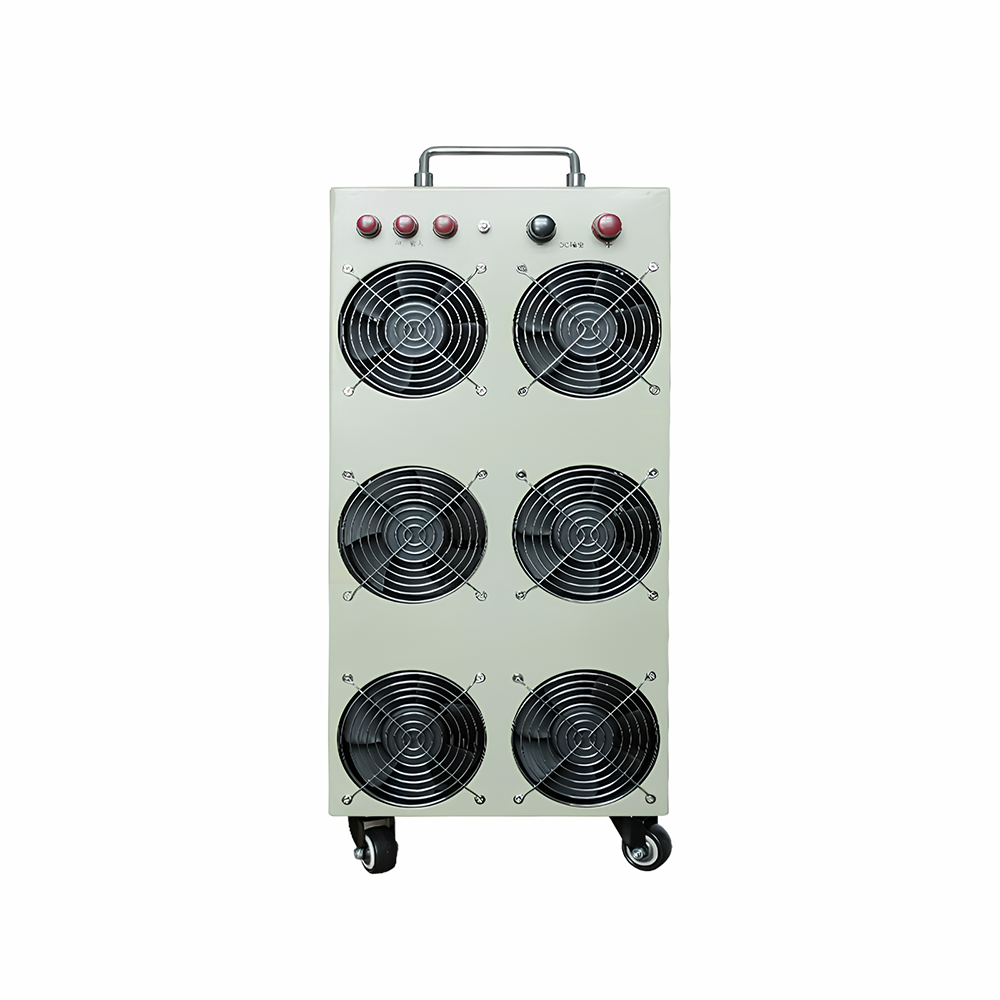

The cooling fan is temperature controlled and starts once internal temperature exceeds the threshold. The speed varies dynamically with output voltage and current. Keep the fan inlet and outlet clear at all times.
When internal temperature reaches the overheating threshold, the machine will auto-shutdown to prevent damage. It will automatically restart once the temperature drops.
Ensure air dust, acid, or corrosive gases do not exceed normal levels during operation. Avoid severe vibrations, direct sunlight, rain, and heavy impacts.
Perform regular dust removal with dry compressed air to improve product lifespan. Do not open the casing to prevent high-voltage hazards and internal component damage.
Store the equipment in a dry, ventilated room when idle. If stored for over 6 months, power on and operate the supply for at least 30 minutes to maintain functionality.
Warning: Only connect to powered load equipment after a normal, error-free power-on test run.
Malfunction Handling: If abnormal operation occurs, shut off the power switch immediately. Check internal and external connection security, screw tightness, and knob positioning. If troubleshooting is complex, contact the manufacturer promptly. Do not open the casing without professional knowledge due to high internal voltages.
Yes, all of these safety protection mechanisms are fully integrated into the unit.
Yes, reverse polarity protection can be customized and integrated into your unit upon request.
No, we recommend running the power supply below 80% capacity for continuous, long-term operations to preserve component lifespan and system stability.

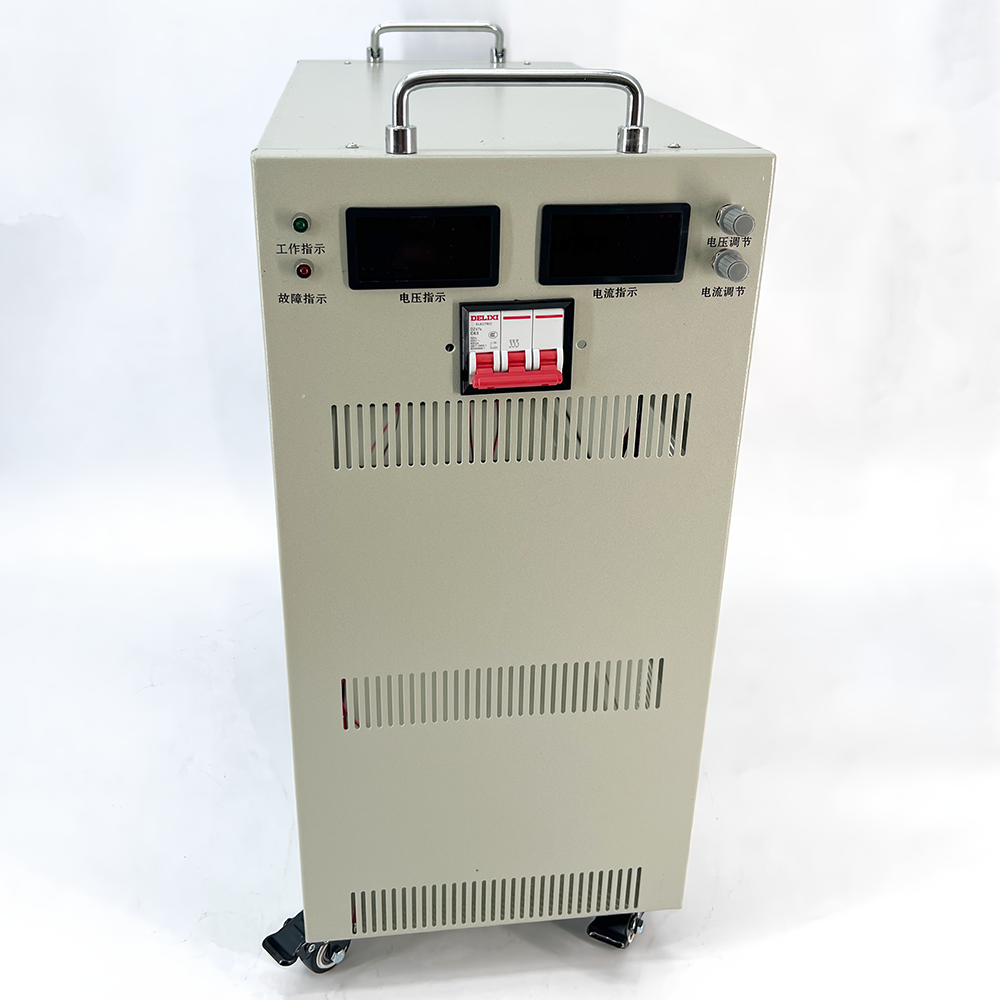

Both voltage and current can be easily and precisely adjusted via the built-in dual analog control knobs.
Yes, our high-power DC switching power supplies feature complete galvanic isolation design for maximum operation safety.
The output voltage regulation starts from 1V up to its maximum rated capacity.
