Voltmat Power
Voltmat Power
| Product Name | DC Switching Power Supply | Operating Relative Humidity | 20%~88% |
| Power Rating | 17000W | Application Scenarios | Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields |
| Input Voltage | Three-phase 380V±10% 50-60HZ | Protection Functions | Overcurrent, overvoltage, overheating, short-circuit protection |
| Output Voltage | 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V | Product Features | High stability, high reliability |
| Output Current | Selected power / selected voltage | Warranty Period | 1 Year |
| Power Conversion Type | AC-DC | Product Weight | Approximately 40 kg |
| Efficiency | ≥ 88-89% | Carton Dimensions | 770x400x740mm |
| Output Voltage Accuracy | ±1% |
Before powering on, check the stored and transported switch power supply. Inspect for any damage during transportation, such as loose screws, abnormal appearance, shaken off power cords/terminals, or signs of dampness. Address any of these issues promptly before use.

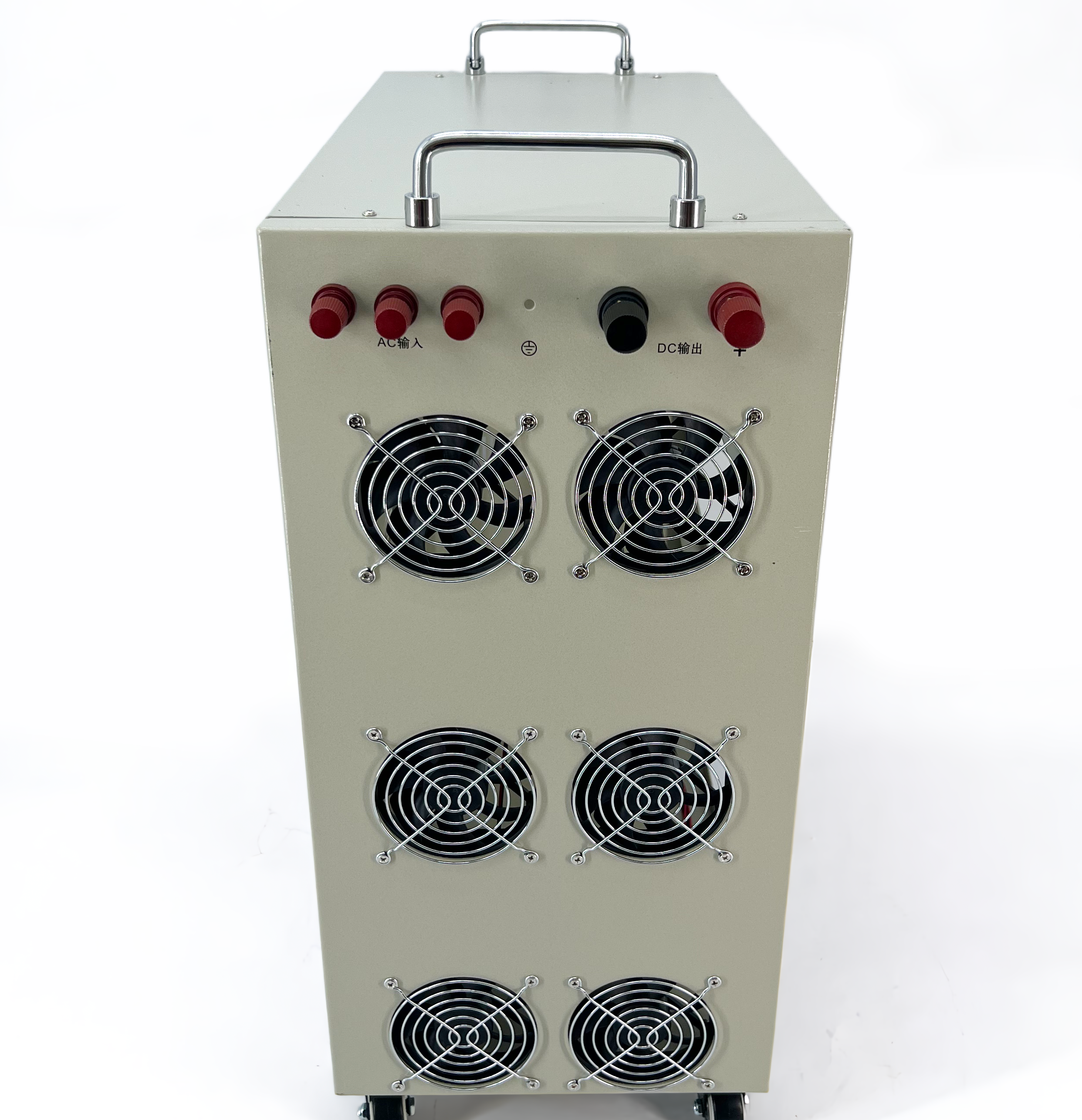

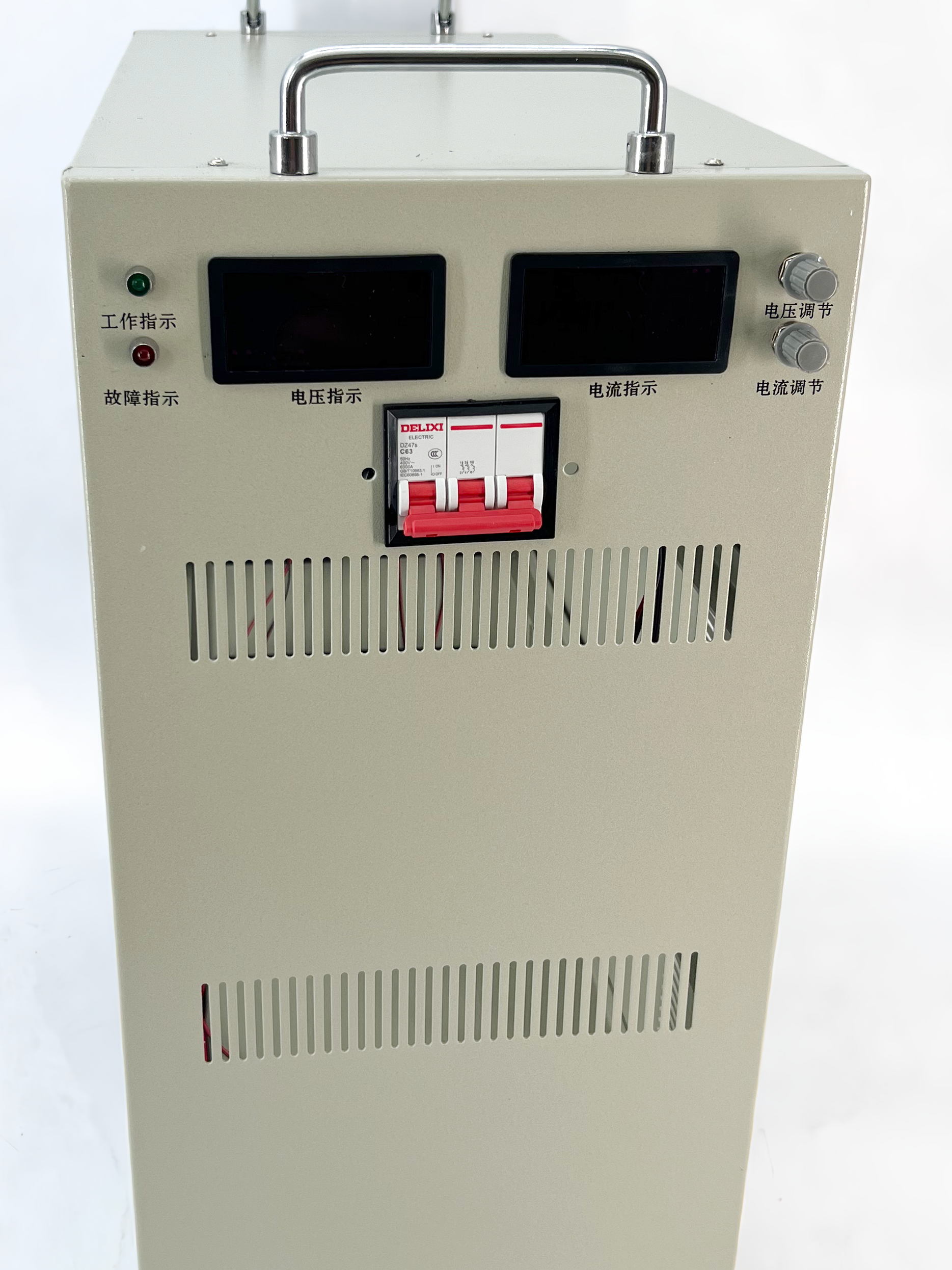

The local power switch controls the auxiliary power supply inside the machine. For safety, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel to confirm they are correct. Verify that the input power supply voltage matches the voltage indicated in the manual.

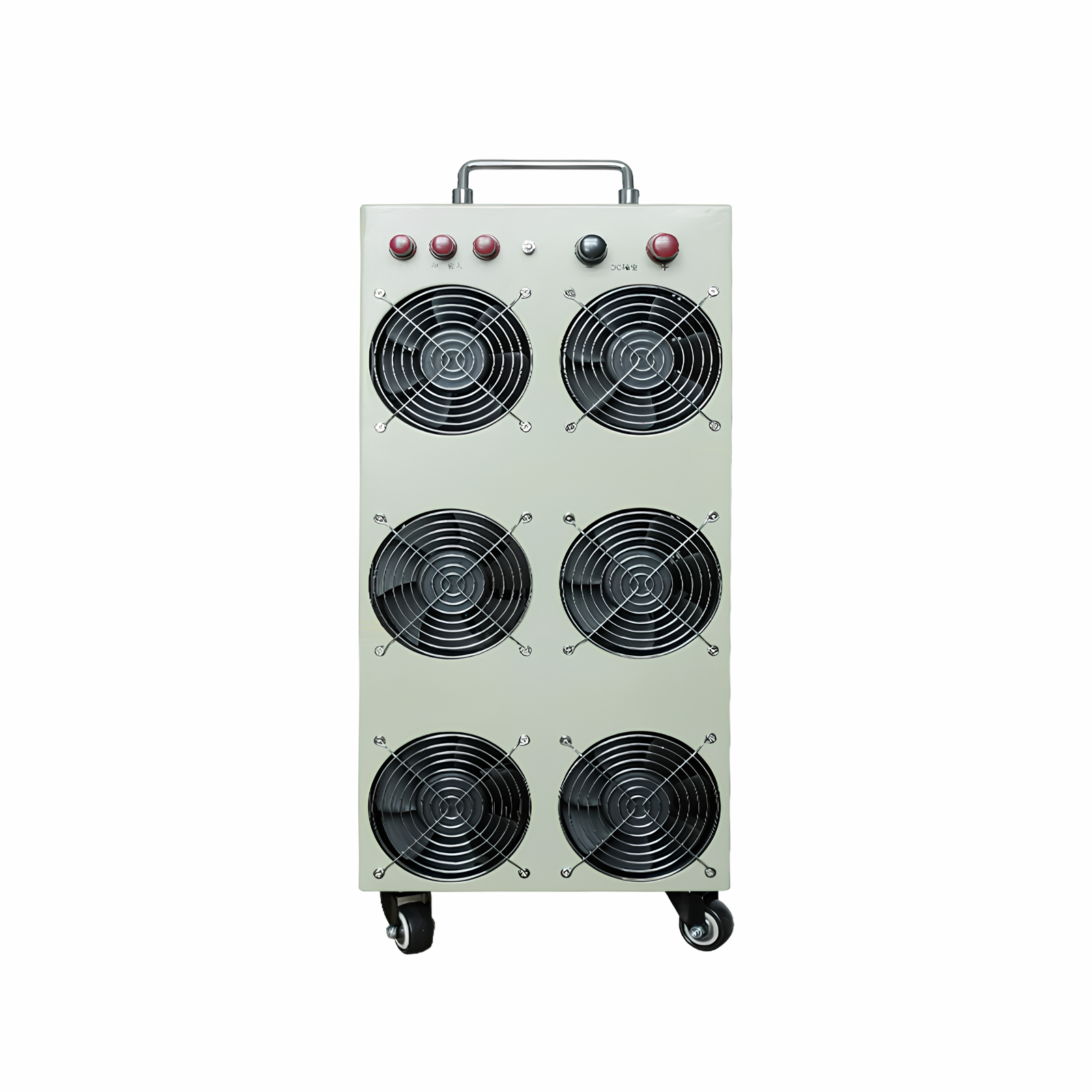

The cooling fan is temperature controlled. It starts running when the internal machine temperature exceeds the activation threshold. The fan speed varies based on the output voltage and current, which is normal. Keep the fan inlet and outlet clear during operation.
If the temperature inside the machine reaches the overheating shutdown threshold, the device will automatically stop working to prevent damage. It will resume operation automatically once the temperature drops.
When operating this power equipment, the level of dust, acid, corrosive gases, or substances in the air should not exceed normal levels. Avoid placing the unit in areas with severe vibrations, bumps, rain, or direct sunlight.
Regular dust removal is highly recommended to improve the service life and reliability of the equipment. Dry compressed air can be used for cleaning. Due to high internal voltage, do not open the casing or damage the internal components.
When idle for long periods, store the power supply in a dry, ventilated room. If stored for over 6 months, power on the device and run it for at least half an hour.
Warning: Only connect to powered load equipment after verifying that the power-on test is normal and error-free.
Handling Malfunctions: If abnormal operation occurs, switch off the power supply, check all internal/external connections, ensure screws are tight, and check that all switches and knobs are positioned correctly. Do not attempt to open the casing or repair the unit without professional guidance, as dangerous high voltage is present inside. Please notify support promptly to resolve any issues.
