Product Showcase

Product Internals & Hardware

Product Instructions

• 1
  Before powering on, check the stored and transported switch power supply. Inspect for any damage during transportation, such as loose screws, abnormal appearance, disconnected power cords/terminals, or signs of dampness. Address any issues promptly.
• 2

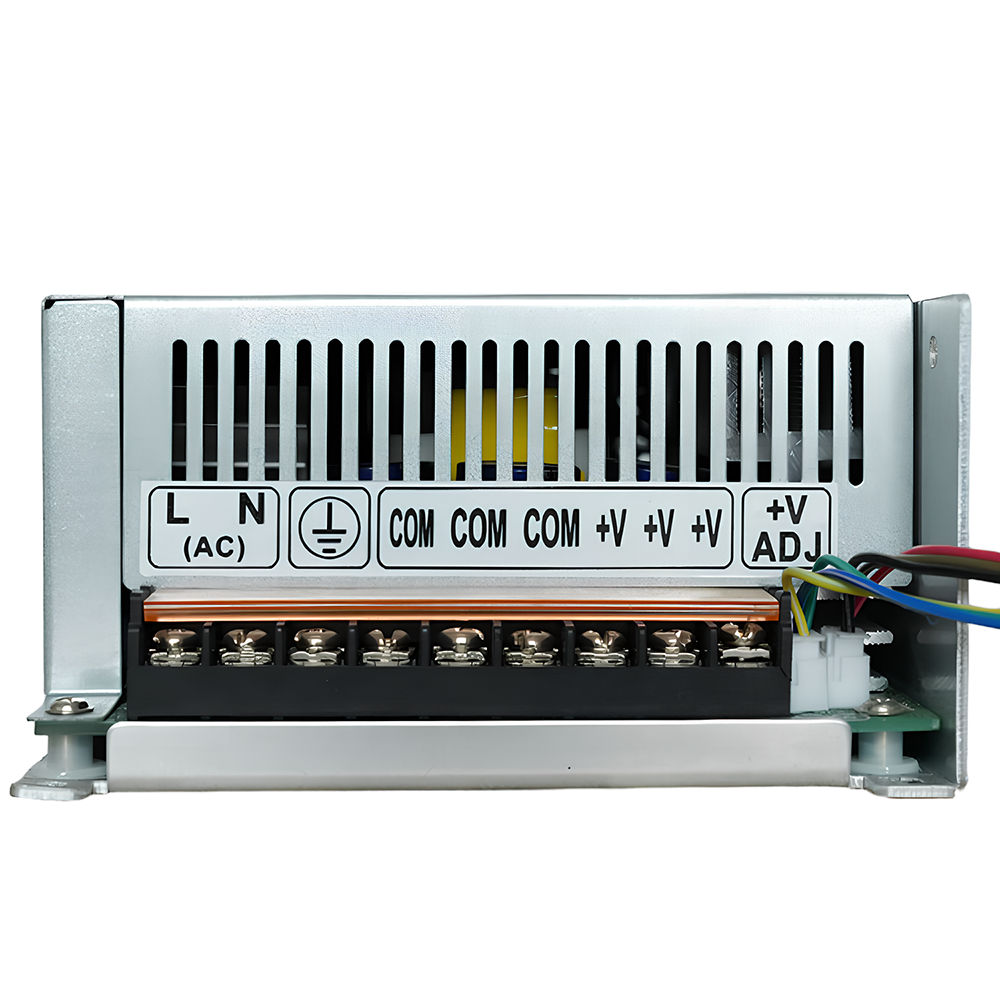

  The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel, confirming correct connection. Ensure the input voltage is consistent with the voltage indicated in the manual.
• 3

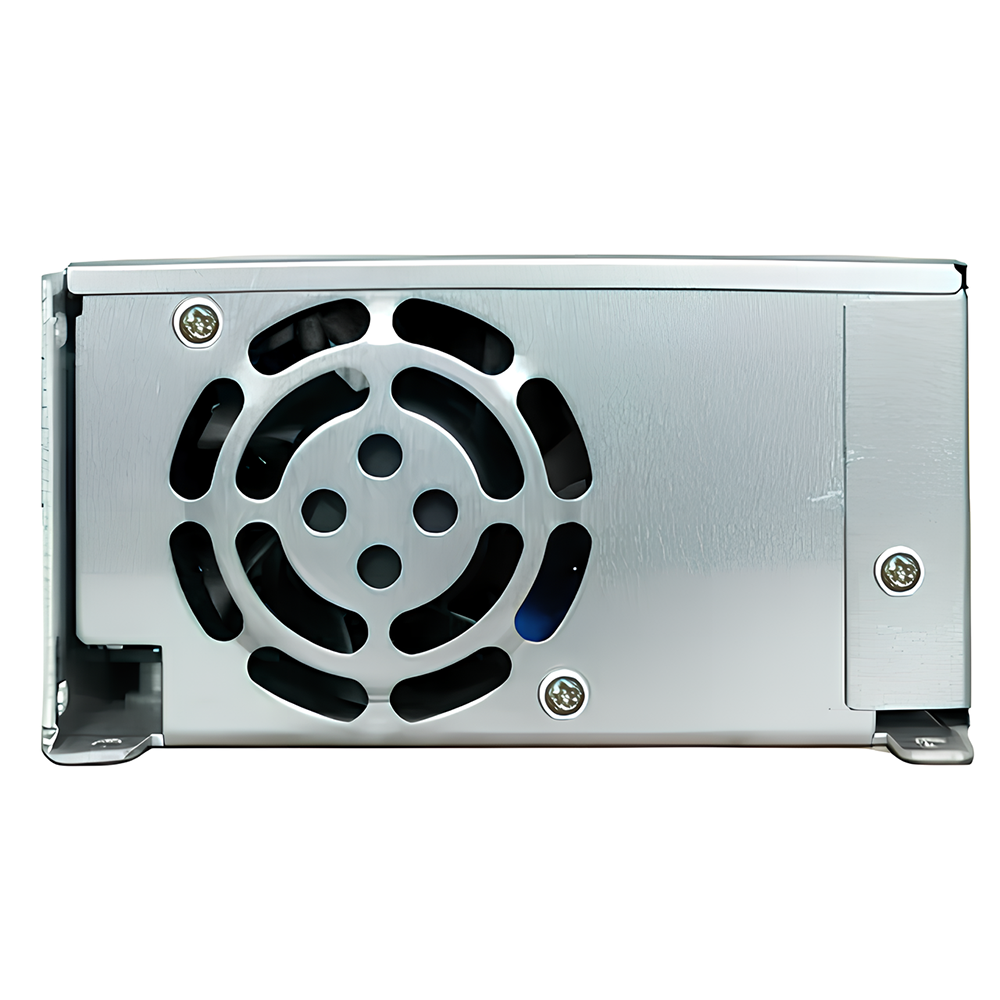

  The cooling fan is temperature-controlled. When the temperature inside the machine exceeds the start point, the fan will activate. The fan speed varies with output voltage and current. Do not block the inlet and outlet of the fan during operation.
• 4
  When the temperature inside the machine reaches the overheat shutdown threshold, it will automatically stop working to prevent damage. Once the temperature drops to a safe level, it will automatically resume operation.
• 5
  Avoid exposing the equipment to abnormal levels of dust, acid, corrosive gases, severe vibrations, impact, rain, and direct sunlight.
• 6
  Regular dust removal is recommended to improve service life and reliability. Dry compressed air can be used, but do not open the casing to prevent damage to internal components.
• 7
  When the equipment is idle for a long time, store it in a dry and ventilated room. If stored for over 6 months, power on the device and run it for at least half an hour.
• 8
  Warning: Only connect to the powered load equipment when the power-on test is normal and error-free.
• 9
  Handling malfunctions: If abnormal operation occurs, switch off the power supply, check connections for correctness and tightness, and ensure all switches/knobs are correctly set. Due to high internal voltage, do not attempt to disassemble or repair the device without proper knowledge and equipment to avoid electric shock. Contact authorized support promptly to resolve issues.
